Yesterday held very exciting news for the VMware community with vSphere 6.7 being released as GA. VMware has certainly kept everyone “wanting more” with every release of products and they have certainly been on a roll with captivating their customer audience. VMware vSphere 6.7 takes the vSphere 6.5 product line even further with new enhancements and features with this release both in operations and security. The vSphere 6.7 product is very storage centric in its nature, in that many of the enhancements center around the storage layer. In this post we will take a look at VMware vSphere ESXi 6.7 New Features Installing and Upgrading.

VMware vSphere ESXi 6.7 New Features Installing and Upgrading

As mentioned in the outset, many of the features contained in this newest release of VMware vSphere ESXi 6.7 are around storage.  There are some things to consider before installing ESXi 6.7 release including the upgrade path.

Currently the following are the only supported upgrade paths for vSphere 6.7.  Interestingly, if you are running the latest and greatest version of 6.5 U2x, then you are in an unsupported upgrade path at the moment.  An upgrade path should be made available with this version at some point in the near future with an updated release.

Source vSphere Version Target Version Path Supported?
vSphere 5.5 vSphere 6.7 Not Supported
vSphere 6.0 vSphere 6.7 Supported
vSphere 6.5-6.5 U1x vSphere 6.7 Supported
vSphere 6.5 U2x vSphere 6.7 Not Supported



Beginning-ESXi-6.7-Upgrade VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Beginning ESXi 6.7 Upgrade

Other noteworthy things before upgrading as found in KB 53704:  https://kb.vmware.com/s/article/53704

These products are not compatible with vSphere 6.7 at this time:

For those still running legacy servers:

  • Windows 2003 and XP are no longer supported

For Horizon

Horizon 7.4 is not compatible with the Instant Clone API used in vSphere 6.7. Instant Clone support for vSphere 6.7 will be available in an upcoming Horizon release.

Noteworthy new features found in ESXi 6.7:

  • ESXi 6.7 Quick Boot
    • Only a quick reboot of the hypervisor happens and the physical server does not power cycle, POST, etc.  This is meant to drastically cut down the time it takes to apply updates to servers.
  • Configurable unmap feature
    • New configuration options for unmap
  • support for 4K native hard drives
    • Finally 4K native hard drive support!
  • XCOPY is now used to offload copying cloning and zeroing operatings to storage array instead of the ESXihost using vendor specific VAAI directives.
    • New performance enhancements with operations offloaded to hardware SANs
  • VVOLs enhancements – now supports the iSCSI-3 persistent reservations that are a requirement of Microsoft Window Failover Cluster technologies
    • This is the same with vSAN, the new iSCSI-3 persistent reservations standard that must be met for Microsoft Windows Failover Clusters is now found in the new ESXi VVOLS/vSAN
  • VMFS-3 is now end of life – enough said
  • Persistent memory is now supported
    • New persistent memory options to utilize for ultra fast storage/cache/memory, etc

Installing vSphere ESXi 6.7

As always, in a vCenter Server environment, you want to make sure you have upgraded or installed a vCenter 6.7 server before bringing in or upgrading existing ESXi 6.7 hosts.  In the home lab, I am running the install in a nested VM running on an ESXi 6.5 cluster.  Below, booting off the ISO for the first time.

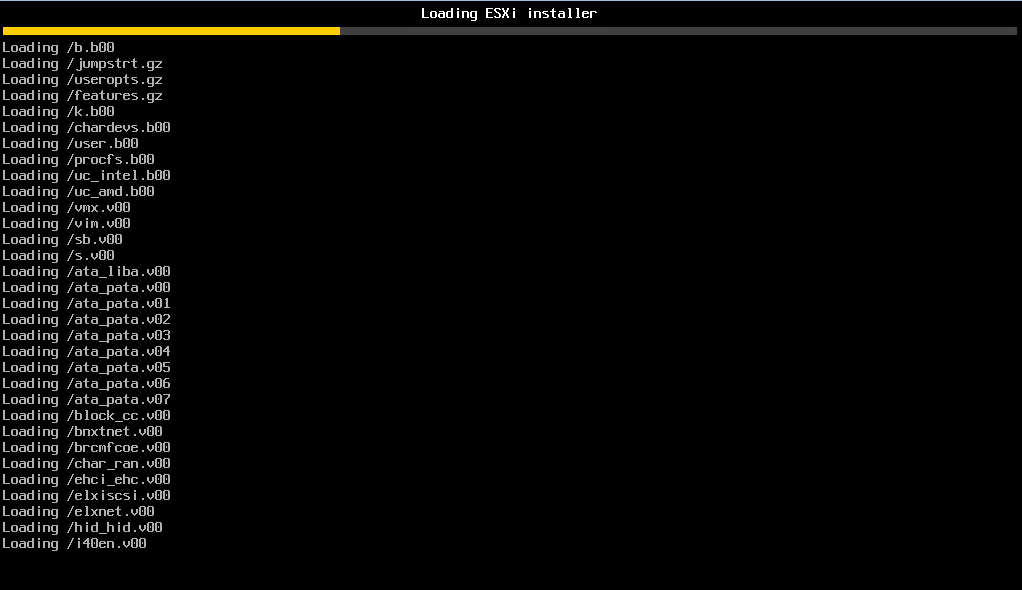

Booting-from-the-ESXi-6.7-ISO VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Booting from the ESXi 6.7 ISO

Nothing looks different here, same installer process and screens we are accustomed to.  But great to have that familiarity as well.

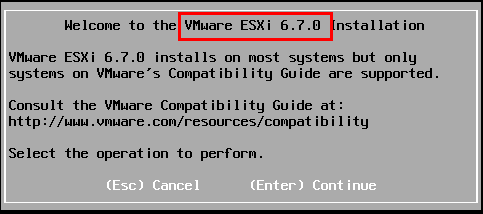

Beginning-the-ESXi-6.7-installer VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Beginning the ESXi 6.7 installer

Standard EULA stuff.

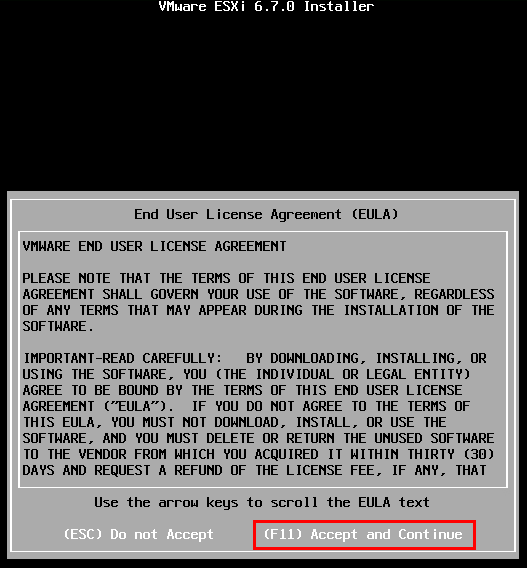

Accepting-the-EULA-for-ESXi-6.7-install VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Accepting the EULA for ESXi 6.7 install

Select the disk to install ESXi 6.7.

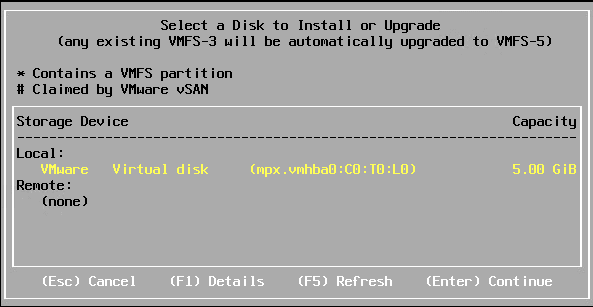

Select-the-disk-to-install-or-upgrade VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Select the disk to install or upgrade

Selecting the keyboard layout.

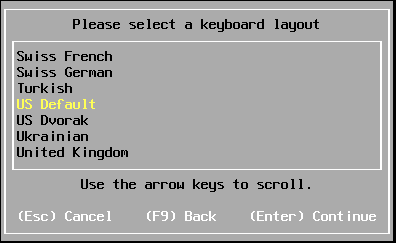

Selecting-a-keyboard-layout-during-the-ESXi-6.7-install VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Selecting a keyboard layout during the ESXi 6.7 install

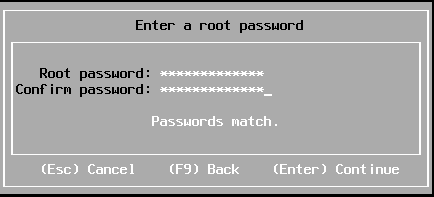

Root password…

Enter-the-root-password-for-the-ESXi-6.7-host VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Enter the root password for the ESXi 6.7 host

If you are like me and were in a hurry to get a VM ready to install ESXi 6.7 and forgot to provision more than one CPU core, you will see the following error 🙂

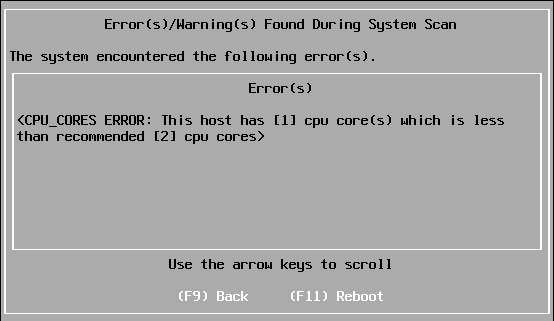

Nested-install-error-due-to-CPU-core-count-on-ESXi-6.7 VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Nested install error due to CPU core count on ESXi 6.7

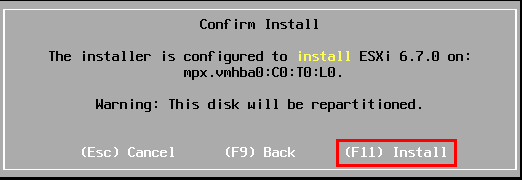

After provisioning more cores and back to the operation at hand, I made it to the F11 Install screen, ready to start copying files.

Press-F11-to-begin-the-ESXi-6.7-install VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Press F11 to begin the ESXi 6.7 install

The-install-begins-for-ESXi-6.7 VMware vSphere ESXi 6.7 New Features Installing and Upgrading

The install begins for ESXi 6.7

Install completed extremely quickly in the nested lab.

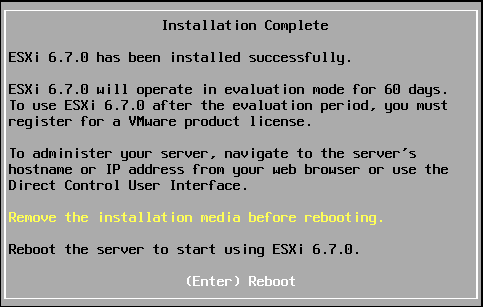

The-ESXi-6.7-install-completes-successfully VMware vSphere ESXi 6.7 New Features Installing and Upgrading

The ESXi 6.7 install completes successfully

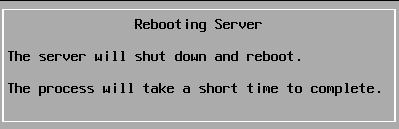

ESXi-6.7-server-reboots VMware vSphere ESXi 6.7 New Features Installing and Upgrading

ESXi 6.7 server reboots

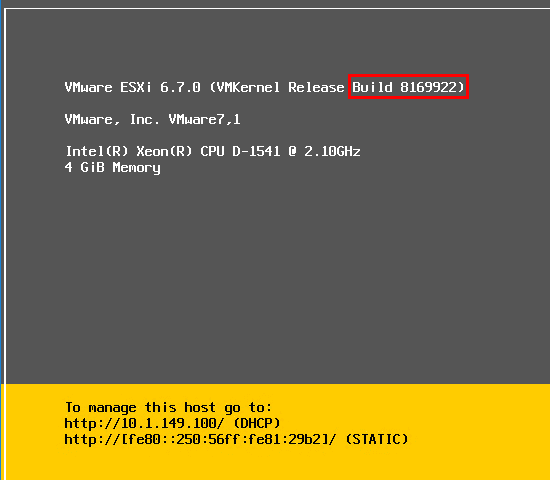

The new server boots and we see the new official ESXi 6.7 Build number 8169922.

ESXi-6.7-install-is-successful-and-server-boots-to-the-DCUI-console-splash-screen VMware vSphere ESXi 6.7 New Features Installing and Upgrading

ESXi 6.7 install is successful and server boots to the DCUI console splash screen

Upgrading vSphere ESXi 6.5 to ESXi 6.7

Now for a quick upgrade test.  I am using the latest build of ESXi 6.5 U1g Build 7967591 to perform the test of the upgrade to ESXi 6.7 in a nested VM installation.  Booting from the ESXi 6.7 ISO on the ESXi 6.5 U1g host…

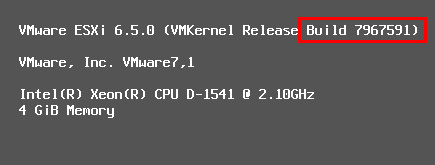

Upgrading-ESXi-6.5-Build-7967591 VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Upgrading ESXi 6.5 Build 7967591

Booting-from-the-ESXi-6.7-ISO-1 VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Booting from the ESXi 6.7 ISO

Same process here to get to the upgrade screen…

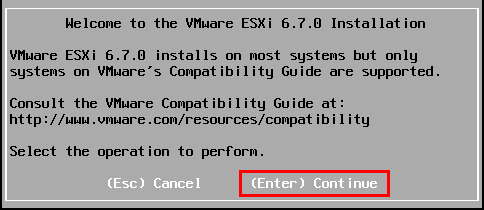

Beginning-ESXi-6.7-Upgrade VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Beginning ESXi 6.7 Upgrade

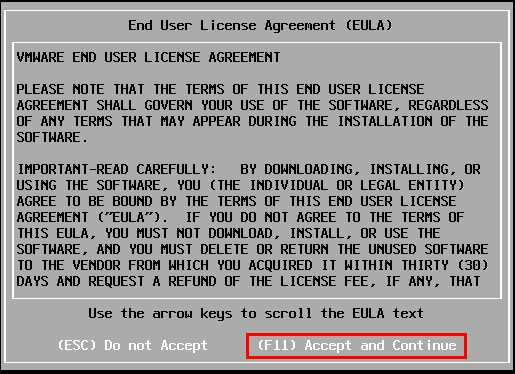

Accept-the-ESXi-6.7-EULA VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Accept the ESXi 6.7 EULA

Now we select the disk that contains the existing ESXi installation – in my case an ESXi 6.5 U1g host.

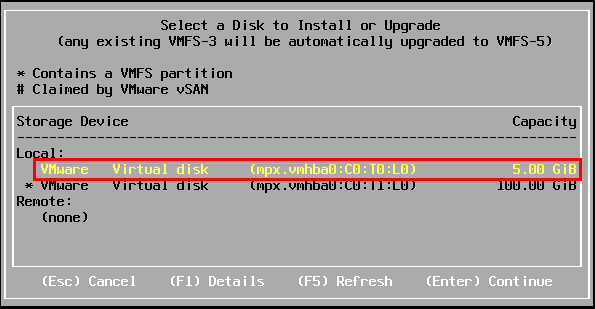

Select-the-disk-with-the-previous-version-of-ESXi VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Select the disk with the previous version of ESXi

We see the Upgrade prompt since the existing ESXi installation was recognized.

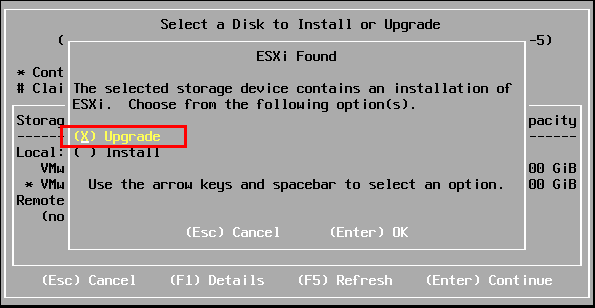

ESXi-installation-is-found-select-Upgrade VMware vSphere ESXi 6.7 New Features Installing and Upgrading

ESXi installation is found select Upgrade

Here we select F11 Upgrade.

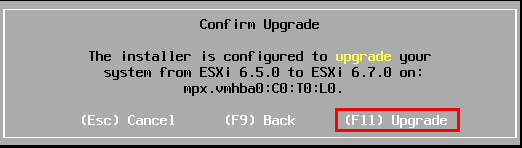

Confirm-the-Upgrade-of-ESXi VMware vSphere ESXi 6.7 New Features Installing and Upgrading

Confirm the Upgrade of ESXi

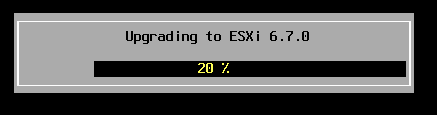

The-upgrade-of-the-previous-ESXi-installation-begins VMware vSphere ESXi 6.7 New Features Installing and Upgrading

The upgrade of the previous ESXi installation begins

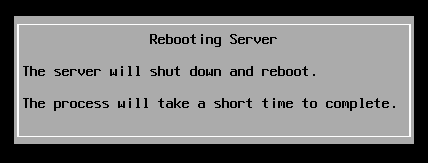

The-server-reboot-begins VMware vSphere ESXi 6.7 New Features Installing and Upgrading

The server reboot begins

The newly upgraded ESXi 6.7 host boots into the DCUI screen.  All done!  Again, the official ESXi 6.7 Build number is displayed – Build 8169922.

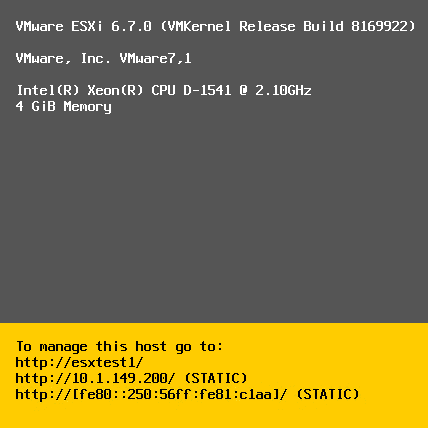

The-upgraded-ESXi-6.7-host-boots-to-the-DCUI-splash-screen VMware vSphere ESXi 6.7 New Features Installing and Upgrading

The upgraded ESXi 6.7 host boots into the DCUI splash screen

Takeaways

The excitement continues to sweep across the VMware community with vSphere 6.7 taking center stage.  This is a great release that is offering tons of reasons to upgrade.  There are a few things that you definitely want to be aware of when upgrading concerning supported builds, versions, etc.  Additionally, if you still have some legacy servers in an environment such as Windows 2003 Server, you will want to take a step back and make additional plans.  The install and upgrade went as smoothly as I had planned and hoped to see.  It will not be long before I go ahead and upgrade the home lab cluster for sure.  Just need to find the time!  Stay tuned for more vSphere 6.7 posts!
