Upgrading VMware ESXi to 6.5 update 1 with commandline

0

We have looked at upgrading ESXi hosts to 6.5 update 1 using the vSphere Update Manager. Today however, we want to look at upgrading VMware ESXi to 6.5 update 1 with commandline. This can prove very useful especially if you are not running VMware vCenter server in your environment to have the vSphere Update Manager available. The process is very straightforward to accomplish, however, there are a few things to keep in mind that we will get to below.  The new vSphere 6.5 Update 1 update is proving to be a very worthy upgrade!

Upgrading VMware ESXi to 6.5 update 1 with commandline

There are a couple of things that we need to keep in mind in upgrading VMware ESXi to 6.5 update 1 with commandline. You will need to have SSH enabled on the host that will be updated. The host will need to be placed in maintenance mode so it will need to have all VMs powered down or compute moved to another host in a cluster.  Additionally, it will need to be able to access the Internet.

As you can see below we have placed the host in maintenance mode.

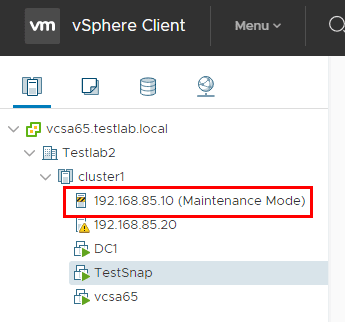

Uprade-ESXi-host-to-6.5-update-1-command-line-place-in-maitenance-mode Upgrading VMware ESXi to 6.5 update 1 with commandline

Uprade ESXi host to 6.5 update 1 command line place in maitenance mode

Find the Current Build Version from the commandline

To find the current build from the commandline we can use the following command:

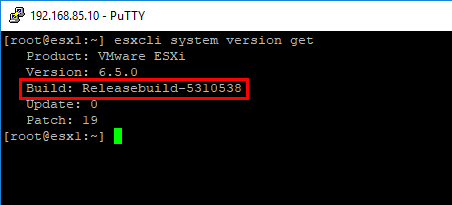

Check-your-ESXi-6.5-host-Build-version Upgrading VMware ESXi to 6.5 update 1 with commandline

Check your ESXi 6.5 host Build version

Open the ESXi host firewall

Next we need to open the host firewall to allow it to use the httpclient ports:

Find the ESXi 6.5 Update 1 update

To find the update we can use the following command to query the available 6.5 updates:

The update we are looking for is the ESXi-6.5.0-20170702001-standard update.

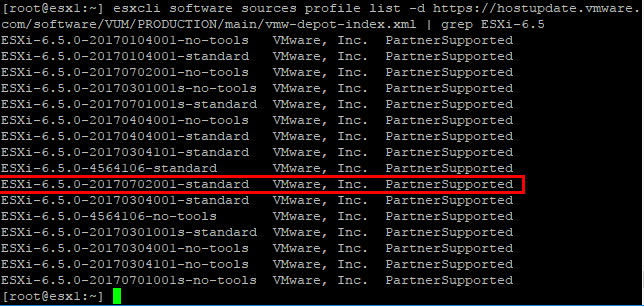

Find-the-ESXi-6.5-update-1-from-the-depot Upgrading VMware ESXi to 6.5 update 1 with commandline

Find the ESXi 6.5 update 1 from the depot

Running the ESXi 6.5 Update 1 update on our ESXi host

To actually run the update, we use the following command:

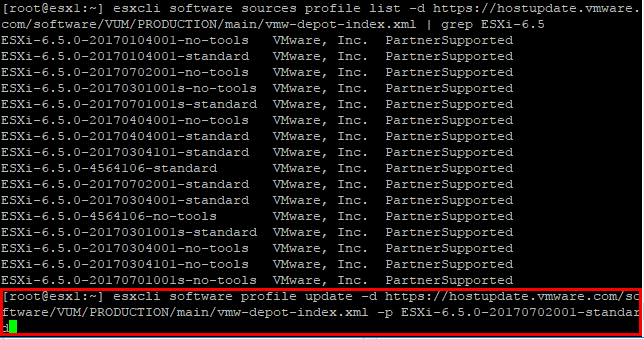

Use-the-ESXCLI-command-to-update-to-ESXi-6.5-update-1 Upgrading VMware ESXi to 6.5 update 1 with commandline

Use the ESXCLI command to update to ESXi 6.5 update 1

After a few moments of updating, you should see the The update completed successfully, but the system needs to be rebooted message.  A listing of the installed VIBs will be presented afterwards.  We can either reboot the host from the commandline with the simple reboot command or via the web client.

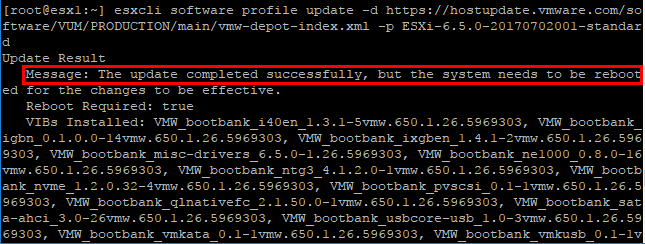

The-update-to-ESXi-6.5-update-1-on-the-host-is-successful Upgrading VMware ESXi to 6.5 update 1 with commandline

The update to ESXi 6.5 update 1 on the host is successful

Verify the ESXi 6.5 Update 1 host version

After the host finishes rebooting, we should see the host version now displaying 6.5.0 5969303.

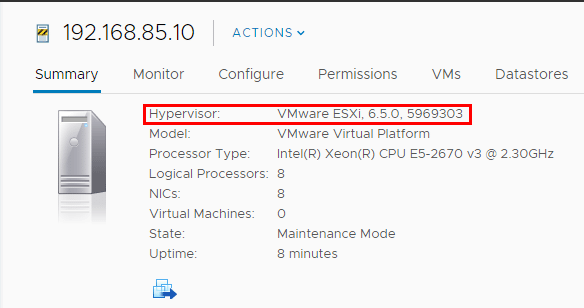

The-ESXi-6.5-update-1-host-version-is-correctly-showing-5969303 Upgrading VMware ESXi to 6.5 update 1 with commandline

The ESXi 6.5 update 1 host version is correctly showing 5969303

Concluding Thoughts

Upgrading VMware ESXi to 6.5 update 1 with commandline is an easy way to upgrade your ESXi host to 6.5 update 1 without using the vSphere Update Manager. You will need SSH, Internet connectivity and the host in maintenance mode to carry out the update from the commandline. The process as shown above is only a few simple steps and should only take a few minutes.
