The new VMware vSphere vCenter Server 6.7 dropped yesterday as GA and installation files are readily available for download now. We have already talked a bit about vSAN 6.7.  This is certainly an exciting release for VMware and customers! The all new vCenter Server appliance or VCSA is showing itself as being a mature, performant, stable, and powerful platform for running vCenter Server in production. In fact this is the VERY last release of the Windows Server based vCenter Server platform. This release of the all new VCSA 6.7 is packed full of really great features and functionality that will make the administrator’s life much easier. Let’s take a look at VMware VCSA 6.7 New Features Installation and Configuration as well as look at the new features that are contained in this exciting release.

VMware VCSA 6.7 New Features Installation and Configuration

As mentioned with this release it is chocked full of goodies. Below is a listing of some of the most prominent features that administrators will want to take note of.

  • The new HTML5 clarity UI is getting VERY close to completion with vCenter Server 6.7.
  • An all new file based backup scheduler with the built in backup for vCenter Server 6.7
  • vCenter Server 6.7 architecture has been simplified
  • The VAMI interface is now sporting the Clarity HTML5 UI interface as well as upgrades in monitoring and a new disks view to view the specific partions, disk space, etc.
  • CLI upgrades in 6.7 include the return of the cmsso-util. This allows for repointing an external vCenter Server appliance across SSO sites within a vSphere SSO domain as well as across vSphere SSO domains.  Additionally, the vCenter Server Appliance ISO comes with JSON template examples. These JSON templates are a way to ensure consistency across installs, upgrades, and migrations.

VCSA 6.7 – New HTML5 Clarity Interface

VMware is touting they are almost there with the complete deprecation of the “Flex” flash client.  Great news!  We all love to hate the flash based client with the sluggishness and frequent crashes, etc.  However, the newly designed HTML5 interface is a pleasure to work with and is extremely performant.  It is said to be around 95% complete at this point and with the new features found in the HTML5 vCenter Server 6.7 release we can see the progress that is being made for sure.  Included functionality in the new HTML5 client in vCenter Server 6.7:

New-HTML5-client-is-displayed-predominantly-with-vCenter-Server-6.7 VMware VCSA 6.7 New Features Installation and Configuration

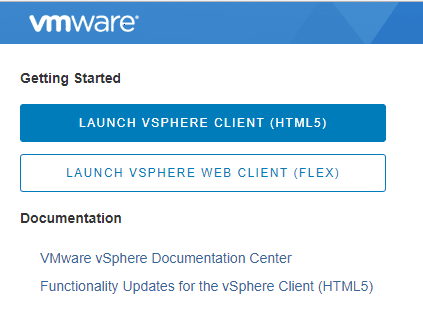

New HTML5 client is displayed predominantly with vCenter Server 6.7

Additionally, the new VAMI interface with the new vCenter Server 6.7 is running on the HTML5 Clarity interface as well.  Major improvements all the way around with the new interface in vCenter Server 6.7.

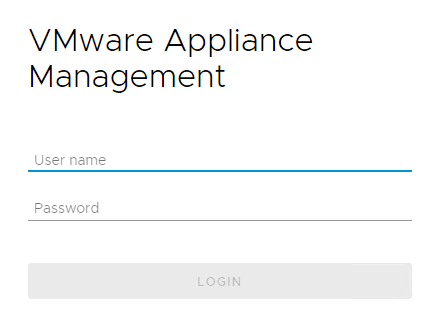

New-HTML5-Clarity-Interface-login-screen-for-vCenter-Server-6.7 VMware VCSA 6.7 New Features Installation and Configuration

New HTML5 Clarity Interface login screen for vCenter Server 6.7

VCSA 6.7 Now Includes a Backup Scheduler

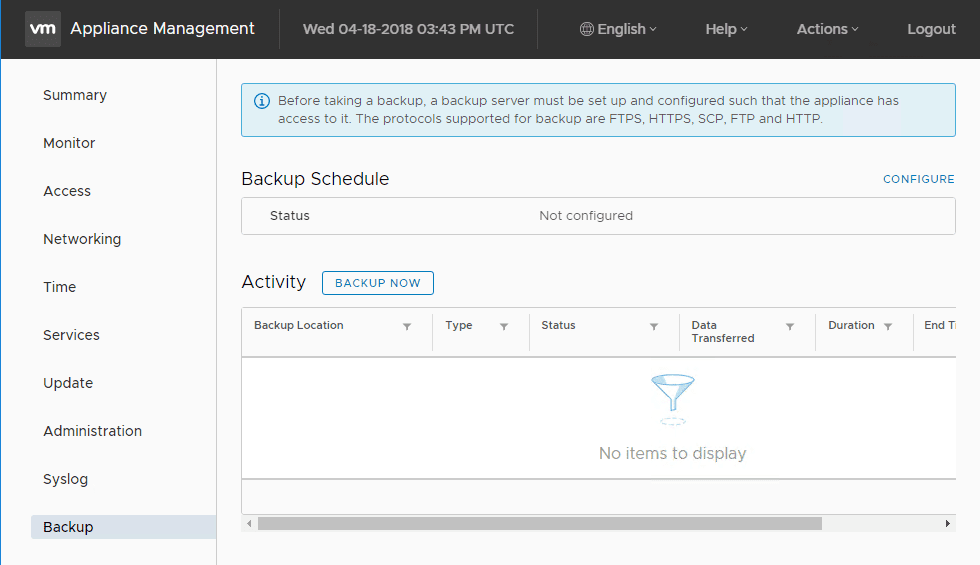

Let’s face it, we all loved the fact there was a file based backup mechanism in vCenter Server 6.5, however, we hated the fact there was not a built-in scheduler to actually schedule the backups.  Well, the wait is over now with vCenter Server 6.7, you can now schedule your backups for vCenter Server.

New-Backup-Scheduler-is-available-in-vCenter-Server-6.7 VMware VCSA 6.7 New Features Installation and Configuration

New Backup Scheduler is available in vCenter Server 6.7

Schedule-vCenter-Server-6.7-Backups VMware VCSA 6.7 New Features Installation and Configuration

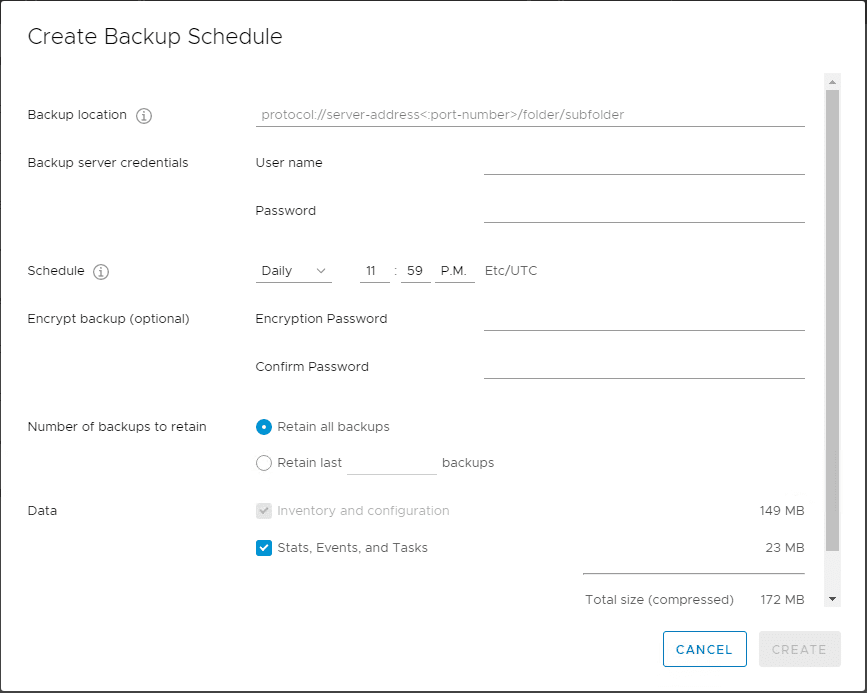

Schedule vCenter Server 6.7 Backups

VCSA 6.7 Improved Architecture

In the vSphere 6.7 release, we now have the option for vCenter Server with Embedded PSC with Enhanced Linked Mode. This brings tremendous benefits:

  • High availability no longer requires a load balancer and fully supports native vCenter Server High Availability.
  • SSO Site boundaries have been removed which provides flexibility of placement.
  • Supports vSphere scale maximums.
  • 15 deployments allowed in a vSphere Single Sign-On Domain.
  • Node management and maintenance is reduced

VCSA 6.7 New CLI Tools

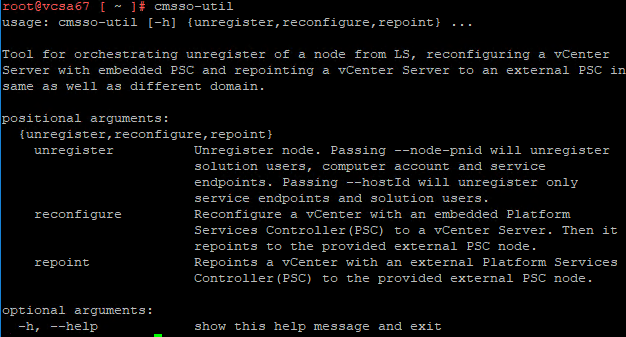

New utilities at the command line level such as the cmsso-util command line utility allow manipulation of the vCenter SSO domain pointing across and within SSO domains.  Additionally, the vCenter Server Appliance ISO comes with JSON template examples. These JSON templates are a way to ensure consistency across installs, upgrades, and migrations.

New-CMSSO-UTIL-CLI-utility-allows-repointing-vCenter-appliance-across-SSO-domains VMware VCSA 6.7 New Features Installation and Configuration

New CMSSO-UTIL CLI utility allows repointing vCenter appliance across SSO domains

VMware VCSA 6.7 Installation and Configuration

VMware has kept with the very well received ISO installer.exe utility for deploying, upgrading, etc a new appliance.  The installer is a 2-stage process that contains the following stages:

  • Deploy the VCSA 6.7 appliance
  • Set up the VCSA 6.7 appliance

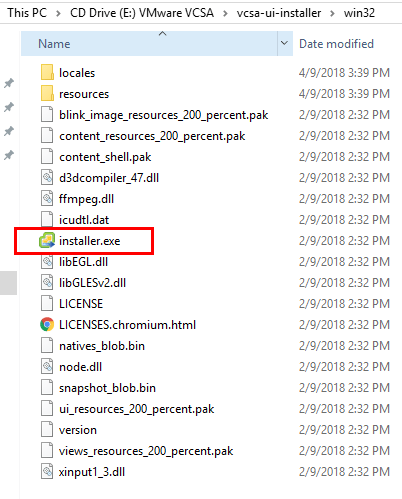

Mount-the-VCSA-6.7-ISO-and-run-the-installer.exe-utility-to-deploy-the-appliance VMware VCSA 6.7 New Features Installation and Configuration

Mount the VCSA 6.7 ISO and run the installer.exe utility to deploy the appliance

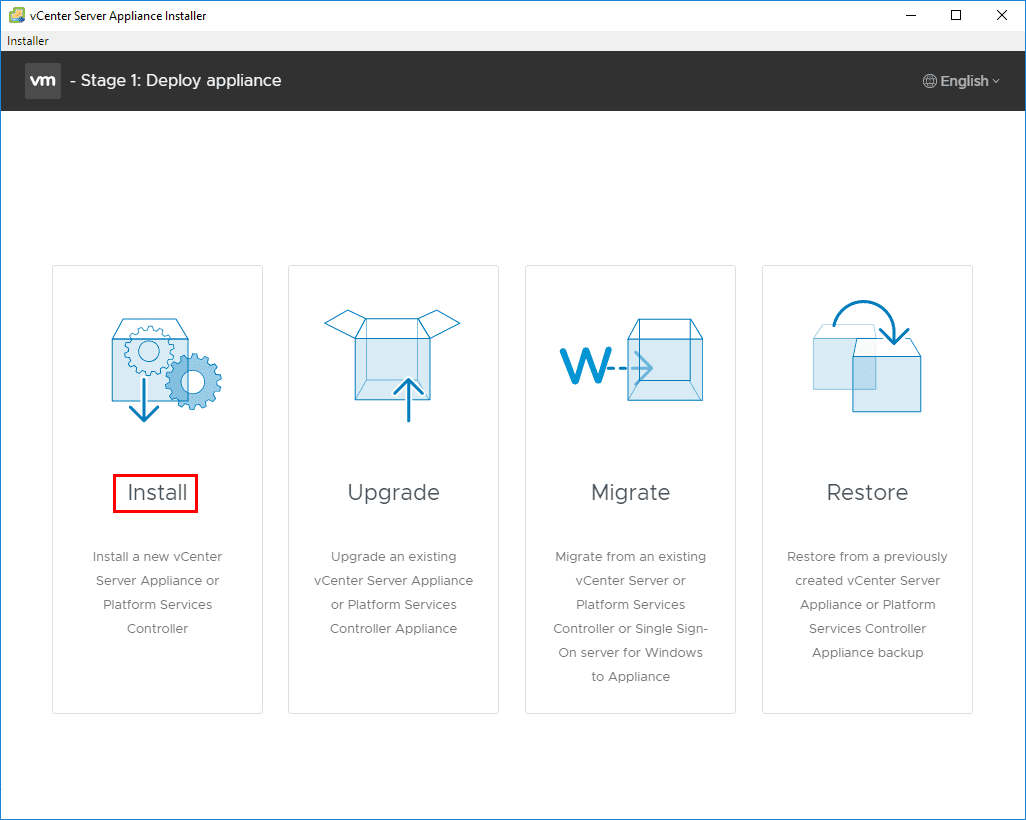

Here since we are deploying a brand new appliance, we choose Install.

Choose-the-Install-Option-to-install-a-new-VCSA-6.7-appliance VMware VCSA 6.7 New Features Installation and Configuration

Choose the Install Option to install a new VCSA 6.7 appliance

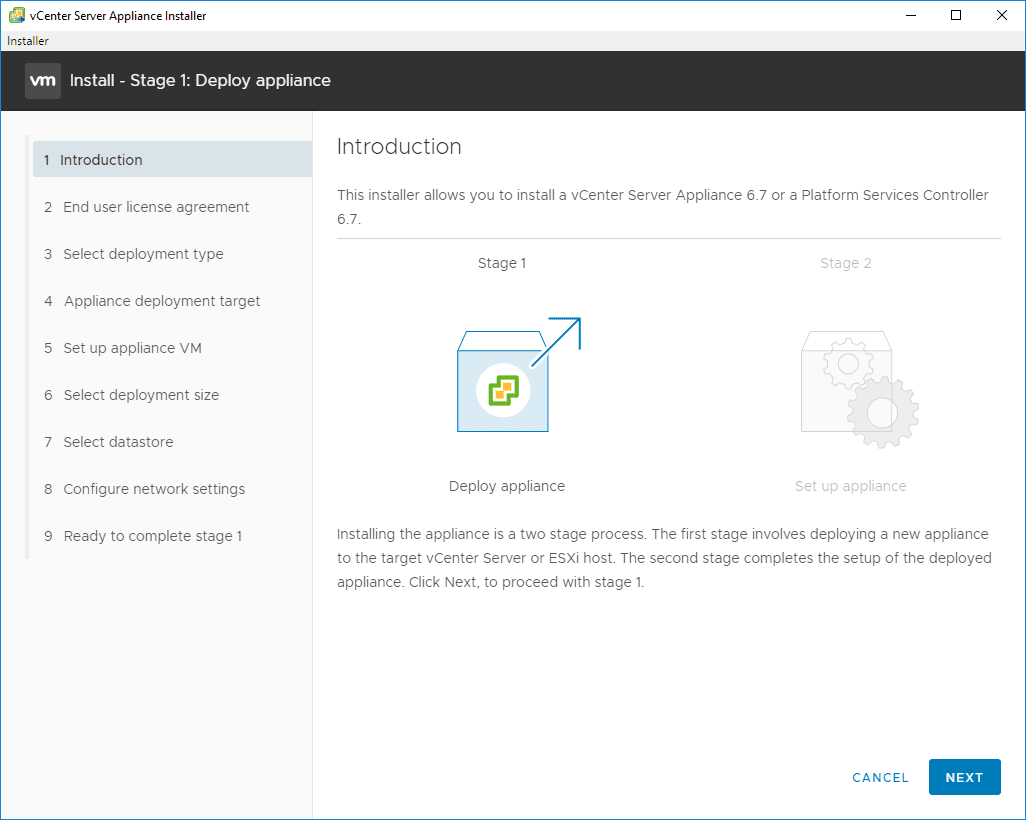

The installer gives an overview of the installation process with the 2 stages involved.

Introduction-to-the-2-stage-process-to-deploy-the-VCSA-6.7-appliance VMware VCSA 6.7 New Features Installation and Configuration

Introduction to the 2 stage process to deploy the VCSA 6.7 appliance

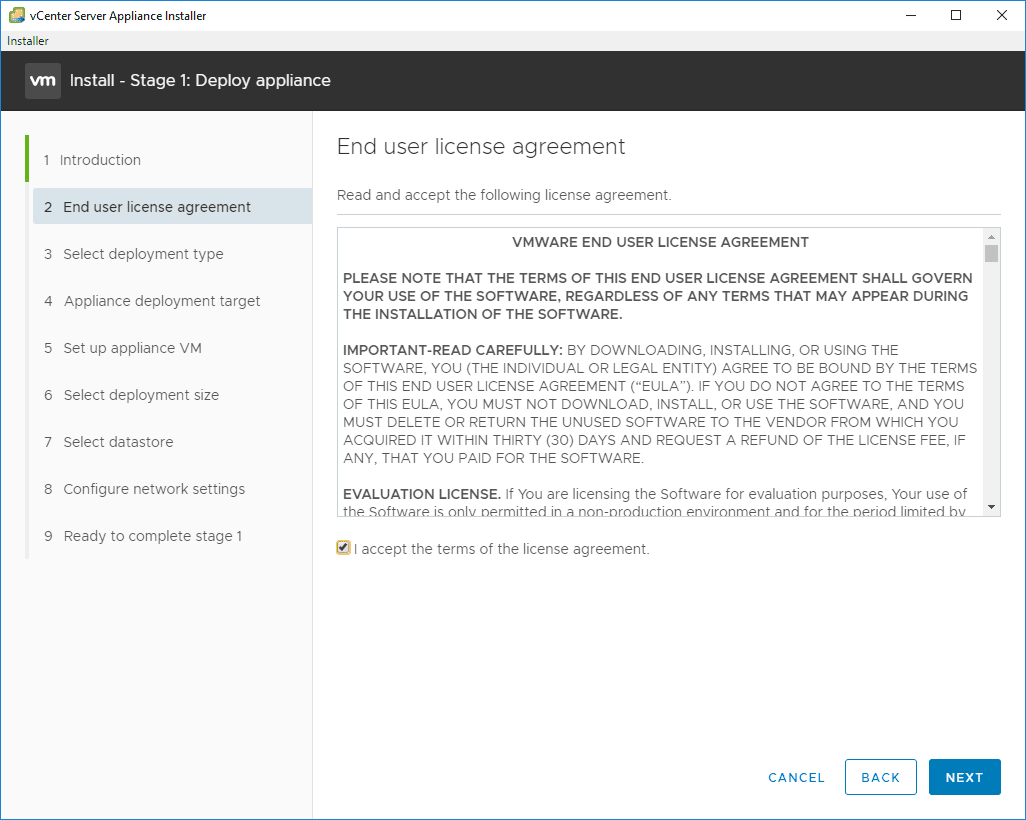

Accept the EULA.

Accept-the-EULA-for-the-VCSA-6.7-appliance-install VMware VCSA 6.7 New Features Installation and Configuration

Accept the EULA for the VCSA 6.7 appliance install

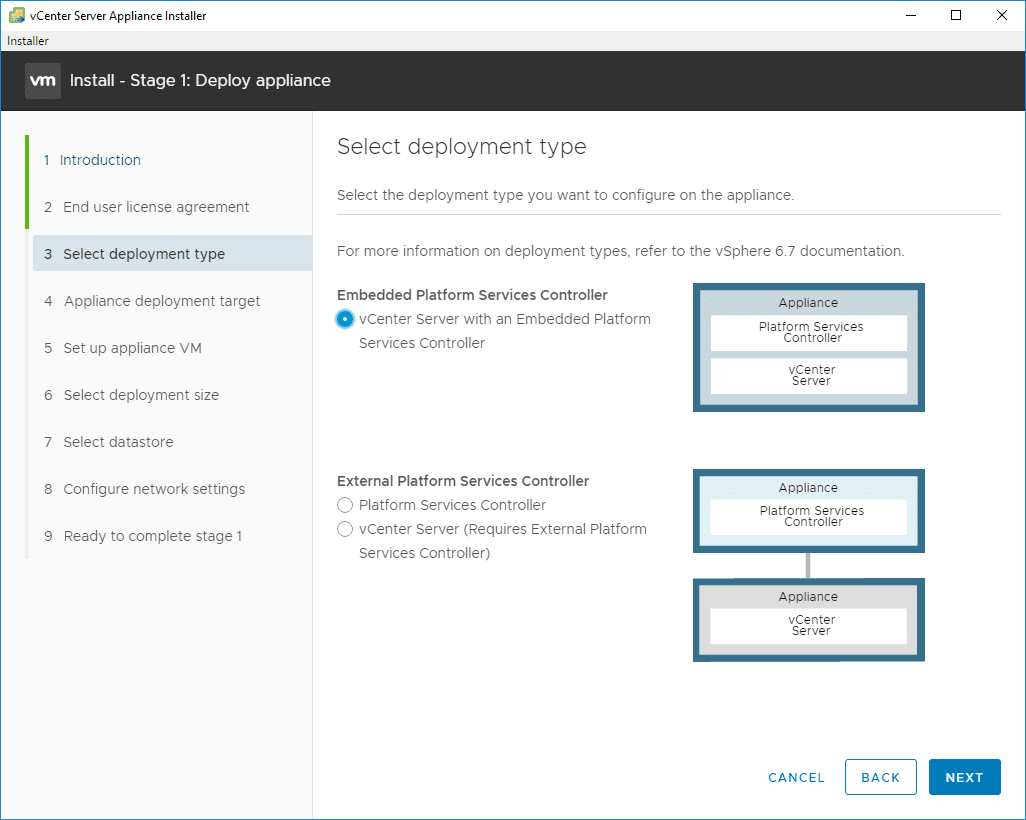

Select the deployment type – the choices are:

  • Embedded Platform Services Controller
  • External Platform Services Controller
Select-the-deployment-type-for-VCSA-6.7 VMware VCSA 6.7 New Features Installation and Configuration

Select the deployment type for VCSA 6.7

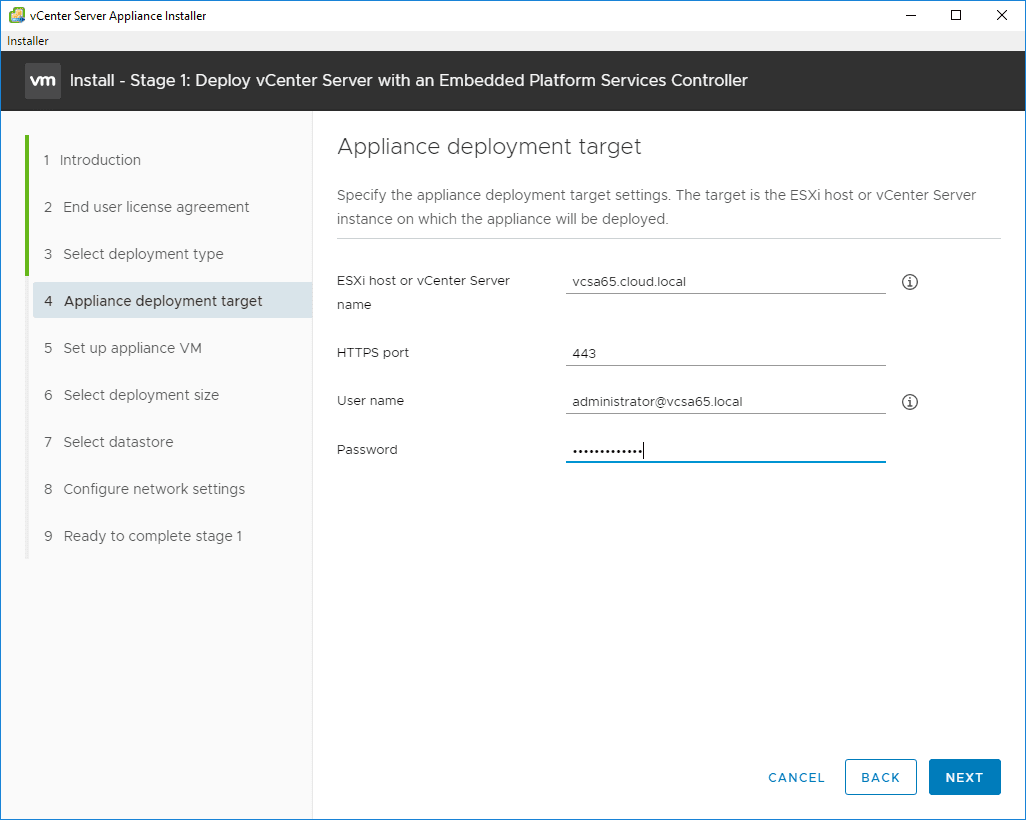

Next, we need to give the installer a target for deploying the appliance – either vCenter Server or an ESXi host.  I am deploying the new appliance into an existing vCenter 6.5 U2 server.

Select-the-Appliance-Deployment-Target-for-VCSA-6.7 VMware VCSA 6.7 New Features Installation and Configuration

Select the Appliance Deployment Target for VCSA 6.7

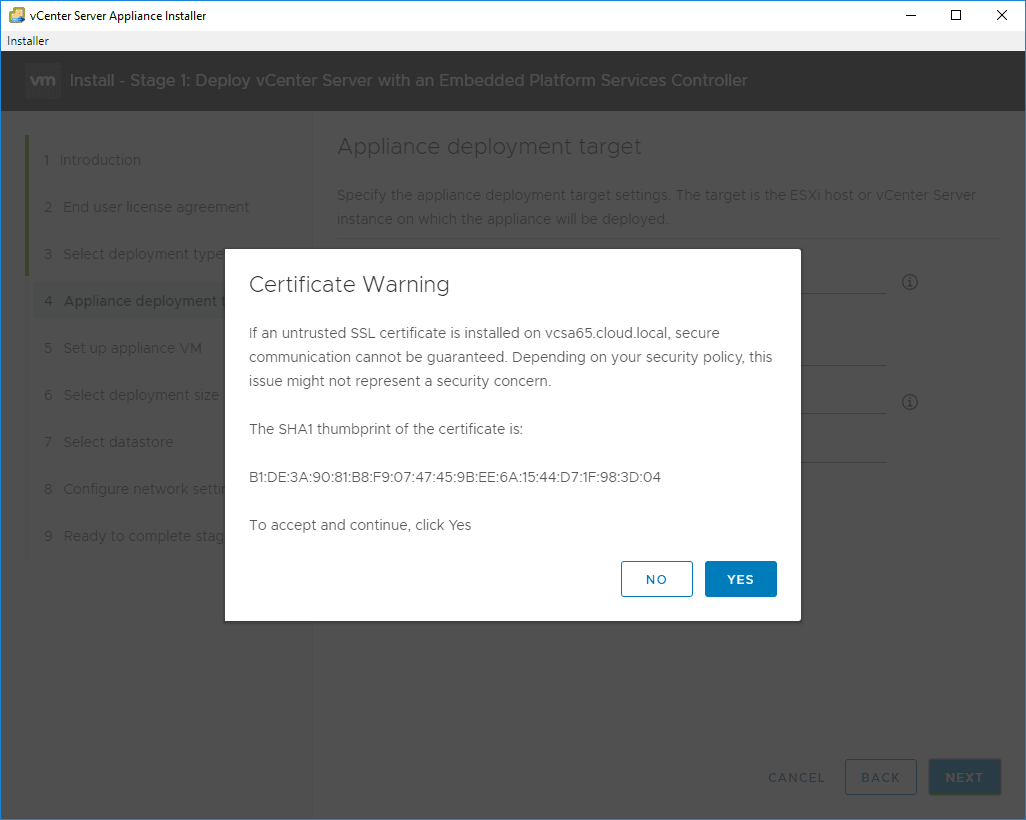

Accept the certificate warning presented from the vCenter Server.

Accept-the-certificate-warning VMware VCSA 6.7 New Features Installation and Configuration

Accept the certificate warning

Choose the vCenter folder you want to deploy into.

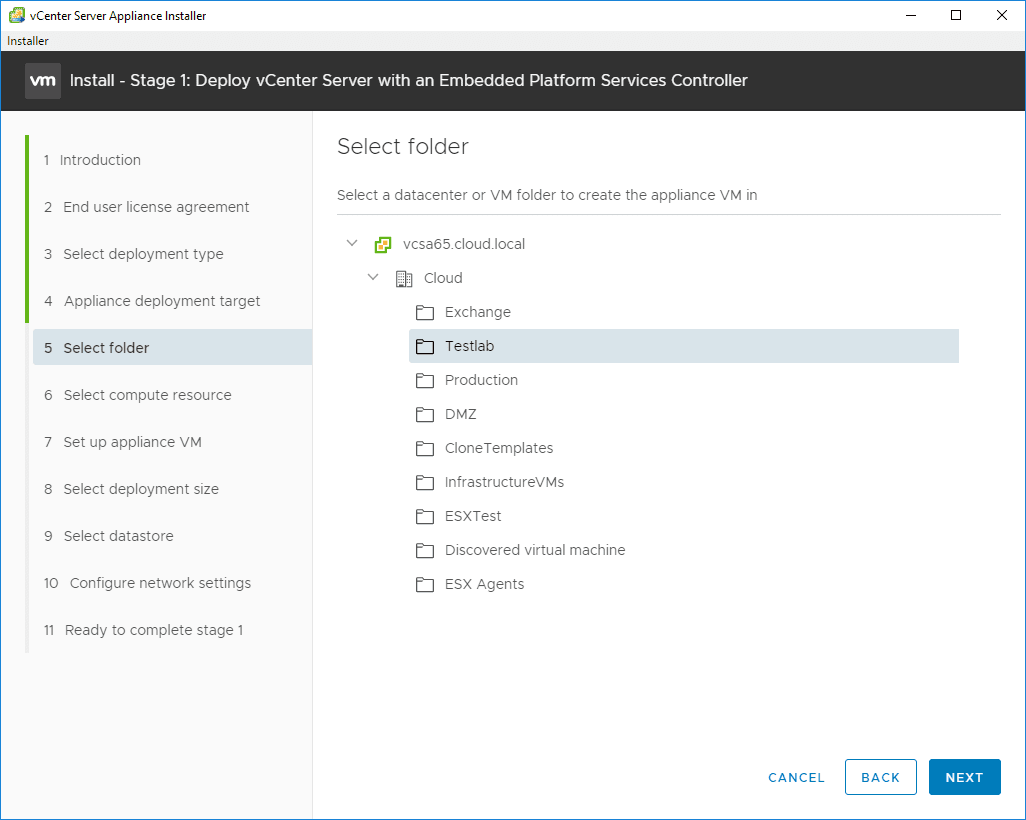

Select-the-folder-in-vCenter-to-deploy-the-new-VCSA-6.7-appliance VMware VCSA 6.7 New Features Installation and Configuration

Select the folder in vCenter to deploy the new VCSA 6.7 appliance

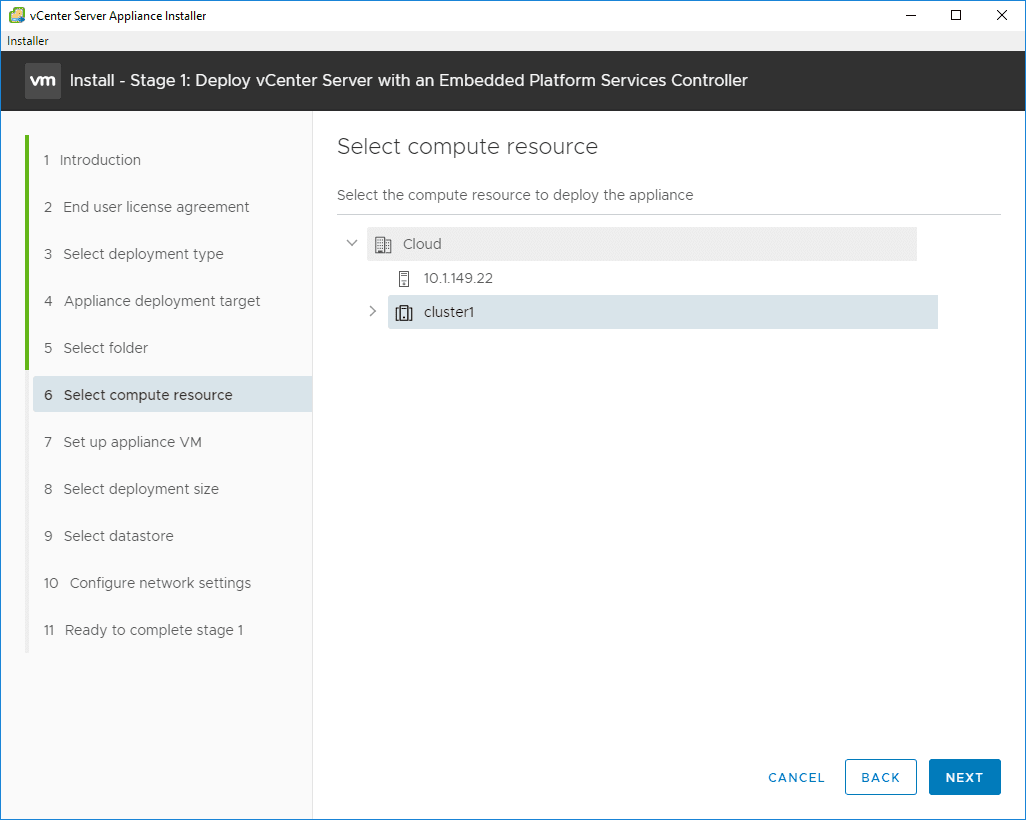

Select the computer resource – either a host or cluster.

Select-the-compute-resource-for-the-new-VCSA-6.7-appliance VMware VCSA 6.7 New Features Installation and Configuration

Select the compute resource for the new VCSA 6.7 appliance

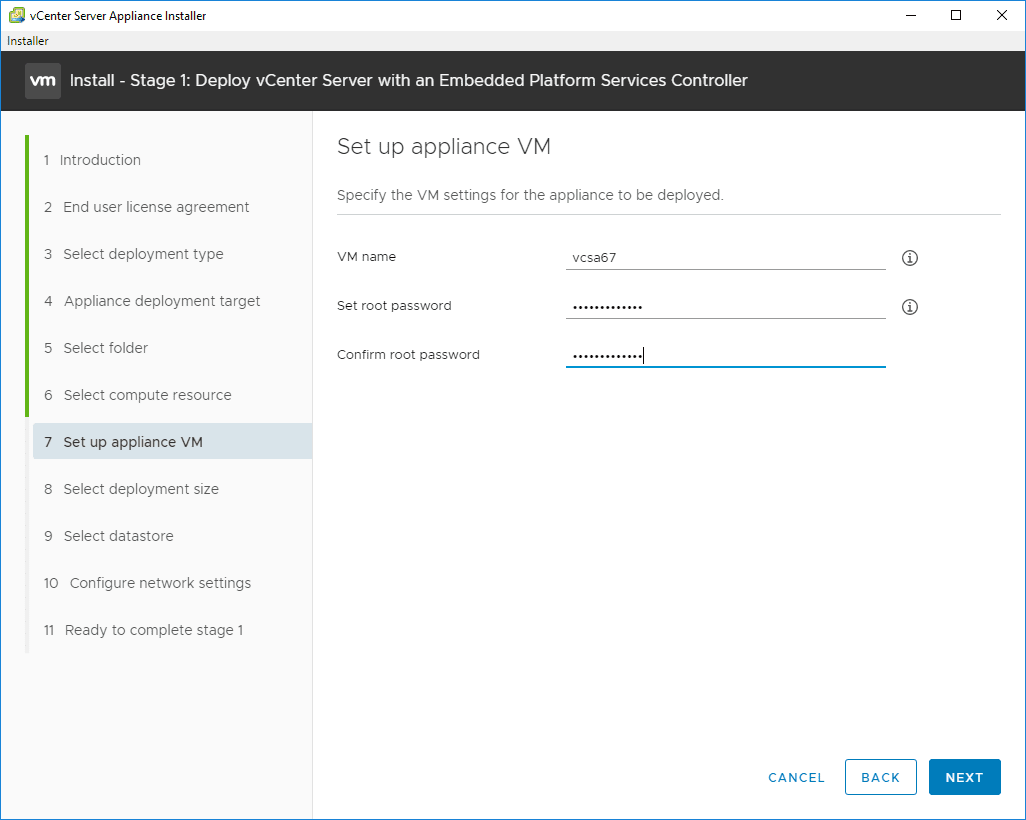

Name the vCenter appliance (what you want it to be called in the vSphere inventory) and also set the root password.

Name-the-VCSA-6.7-appliance-and-set-a-root-password VMware VCSA 6.7 New Features Installation and Configuration

Name the VCSA 6.7 appliance and set a root password

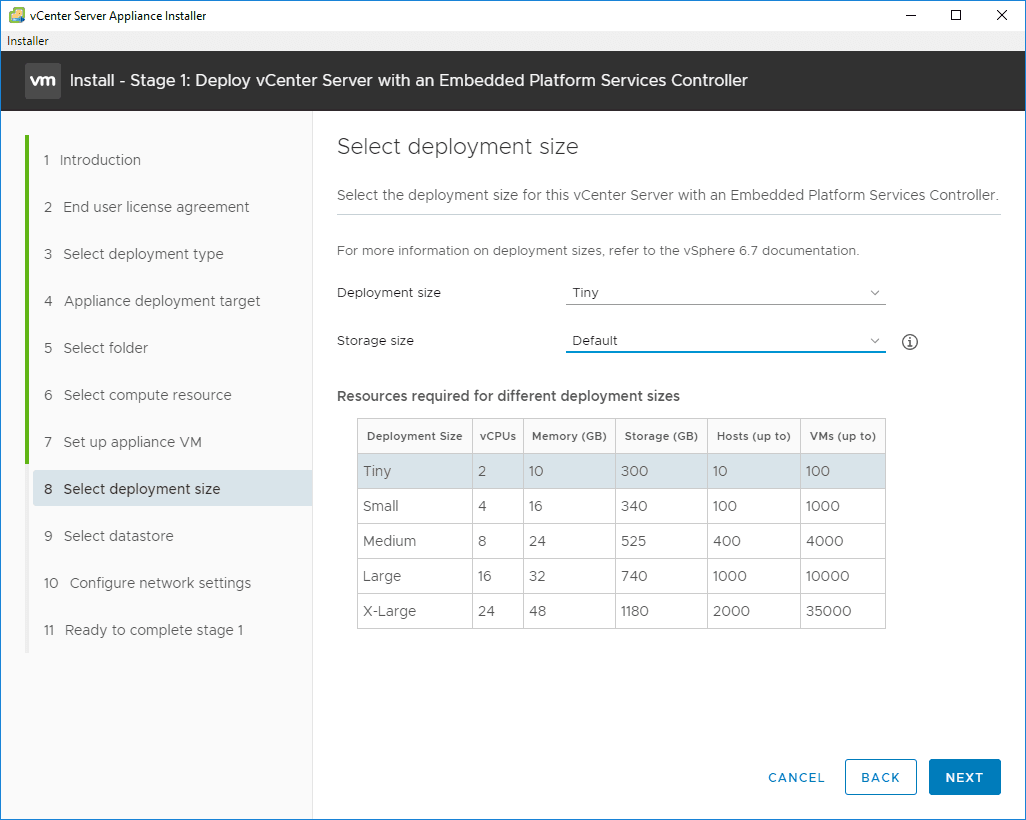

Select the deployment size.  The installer gives a great overview of the size comparisons.

Select-the-deployment-size VMware VCSA 6.7 New Features Installation and Configuration

Select the deployment size

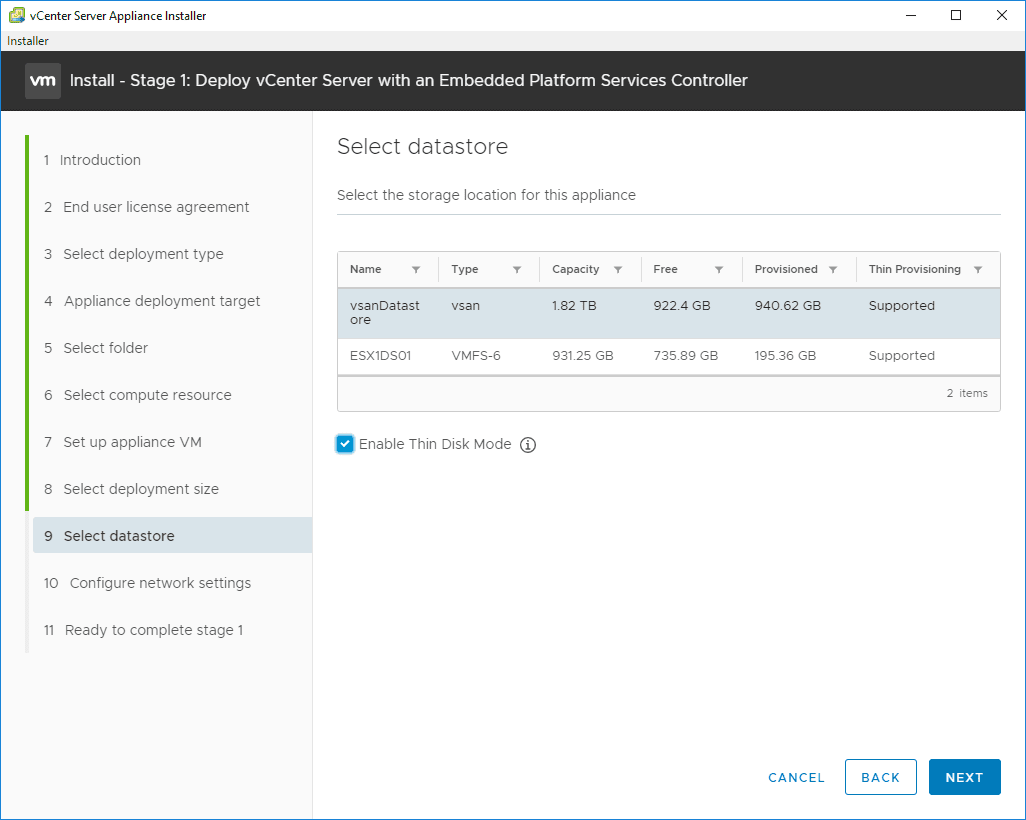

Select the target storage for the appliance deployment.

Select-the-target-datastore-for-the-VCSA-6.7-appliance VMware VCSA 6.7 New Features Installation and Configuration

Select the target datastore for the VCSA 6.7 appliance

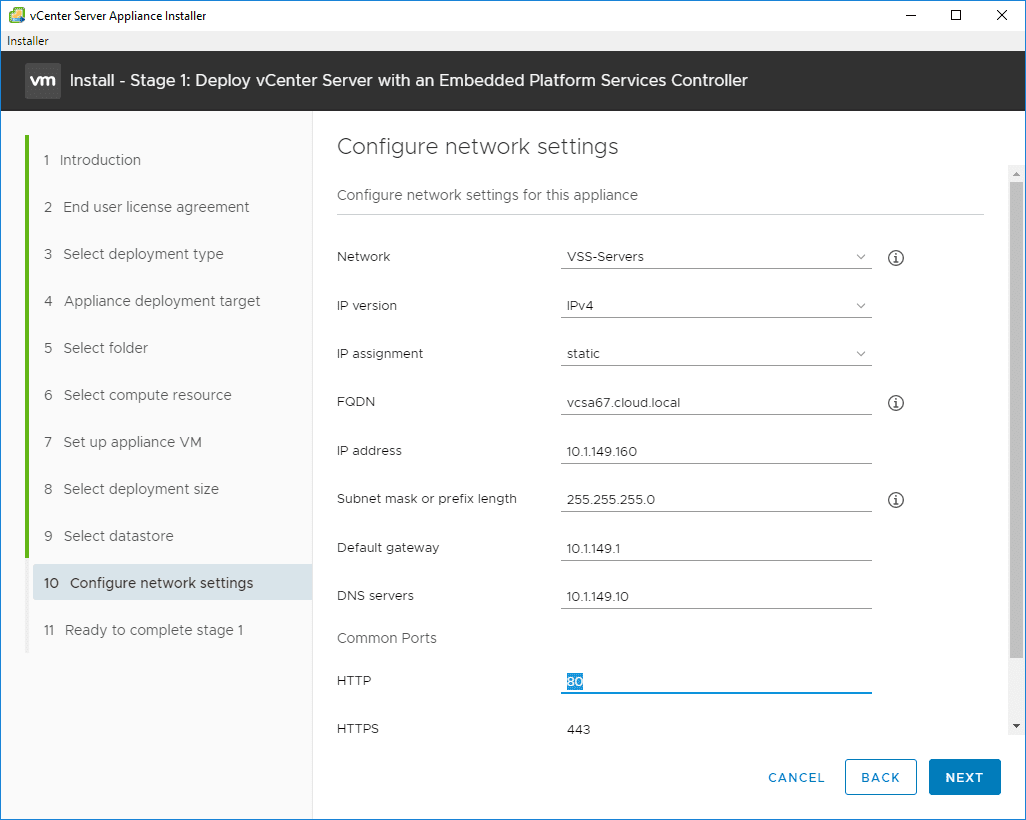

Configure the appliance networking.  As has been the case with previous releases, make sure you have DNS configured correctly along with an A record for the new VCSA 6.7 appliance.

Configure-the-VCSA-6.7-appliance-network-settings VMware VCSA 6.7 New Features Installation and Configuration

Configure the VCSA 6.7 appliance network settings

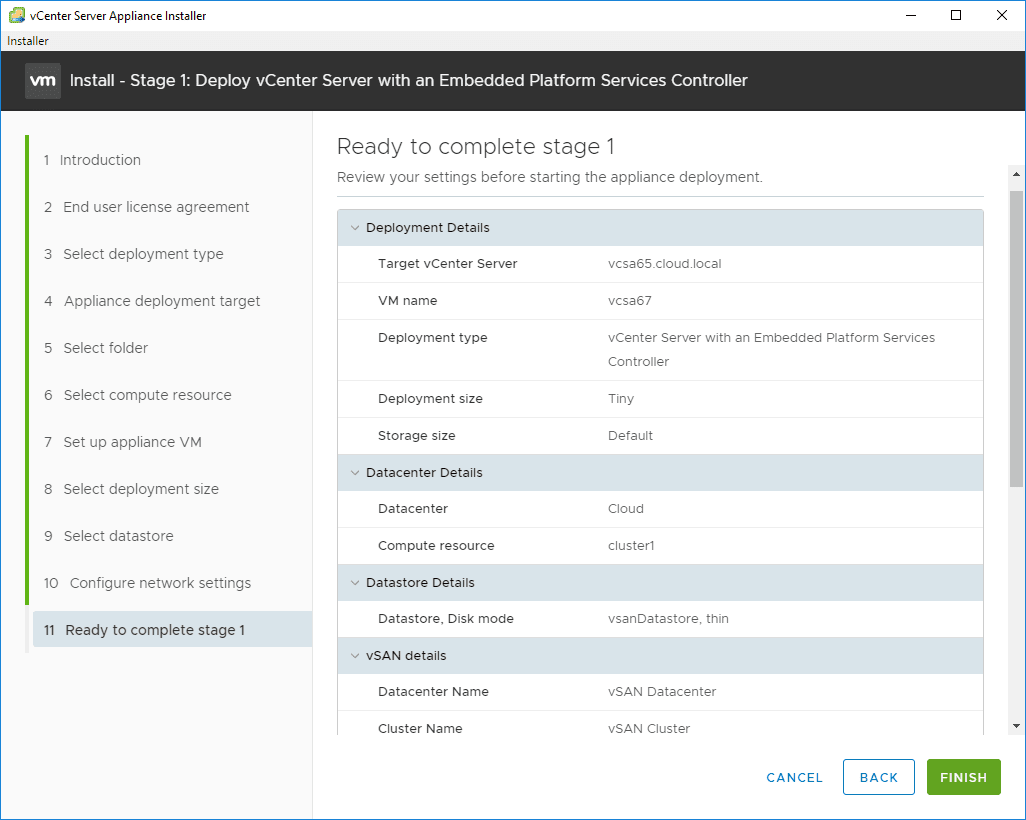

A summary of the configuration is displayed and you are ready to click Finish to begin Stage 1 configuration.

Summary-and-ready-to-complete-stage-1-of-VCSA-6.7-deployment VMware VCSA 6.7 New Features Installation and Configuration

Summary and ready to complete stage 1 of VCSA 6.7 deployment

Stage 1 configuration begins.

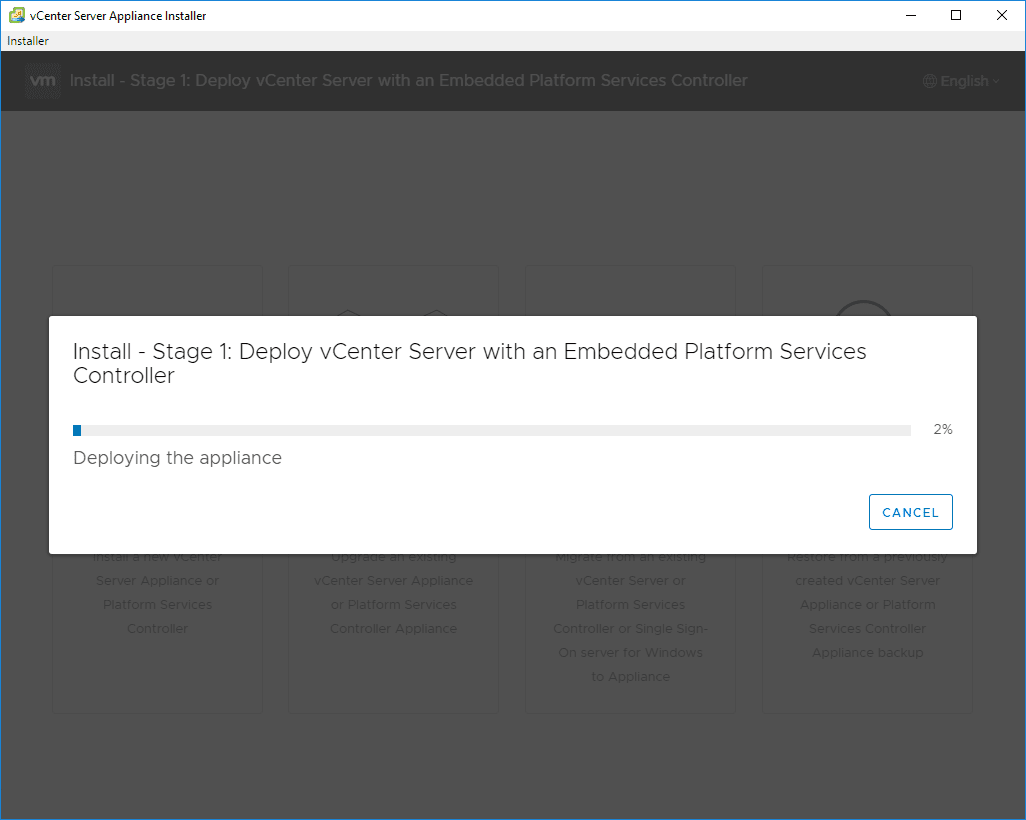

Stage-1-installation-begins-for-VCSA-6.7-appliance VMware VCSA 6.7 New Features Installation and Configuration

Stage 1 installation begins for VCSA 6.7 appliance

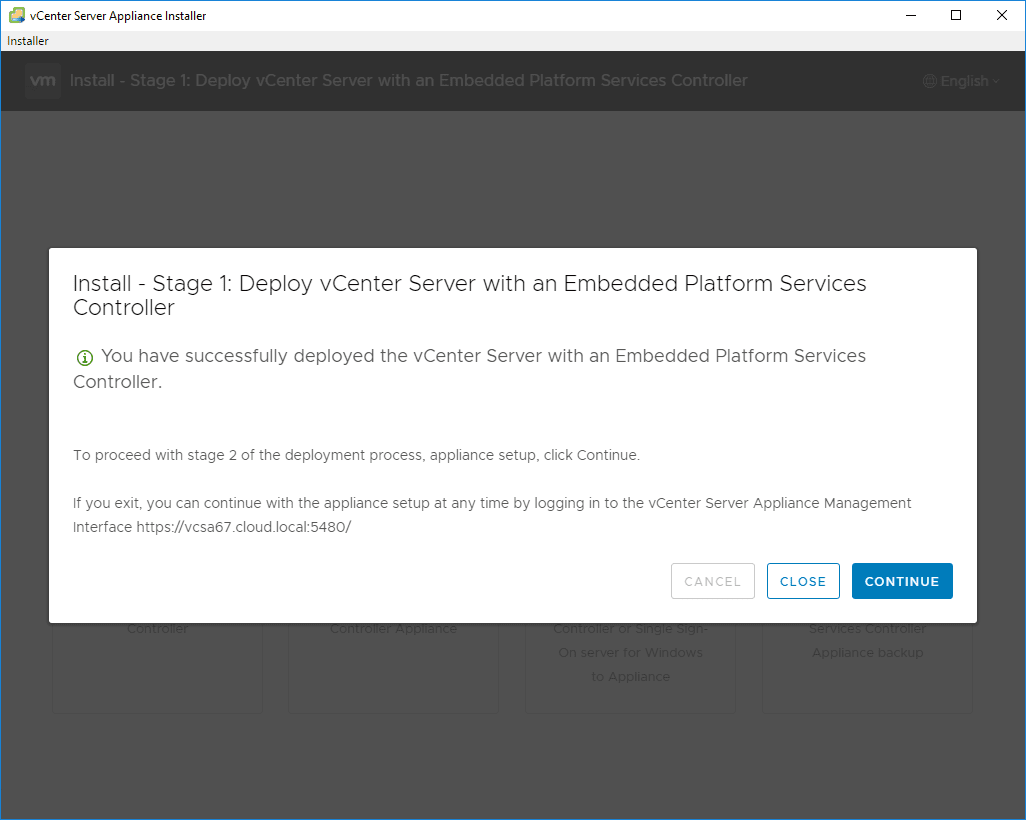

Stage 1 configuration completes successfully.  Hit Continue to move on to Stage 2 Setup.

Stage-1-of-the-installation-completes VMware VCSA 6.7 New Features Installation and Configuration

Stage 1 of the installation completes

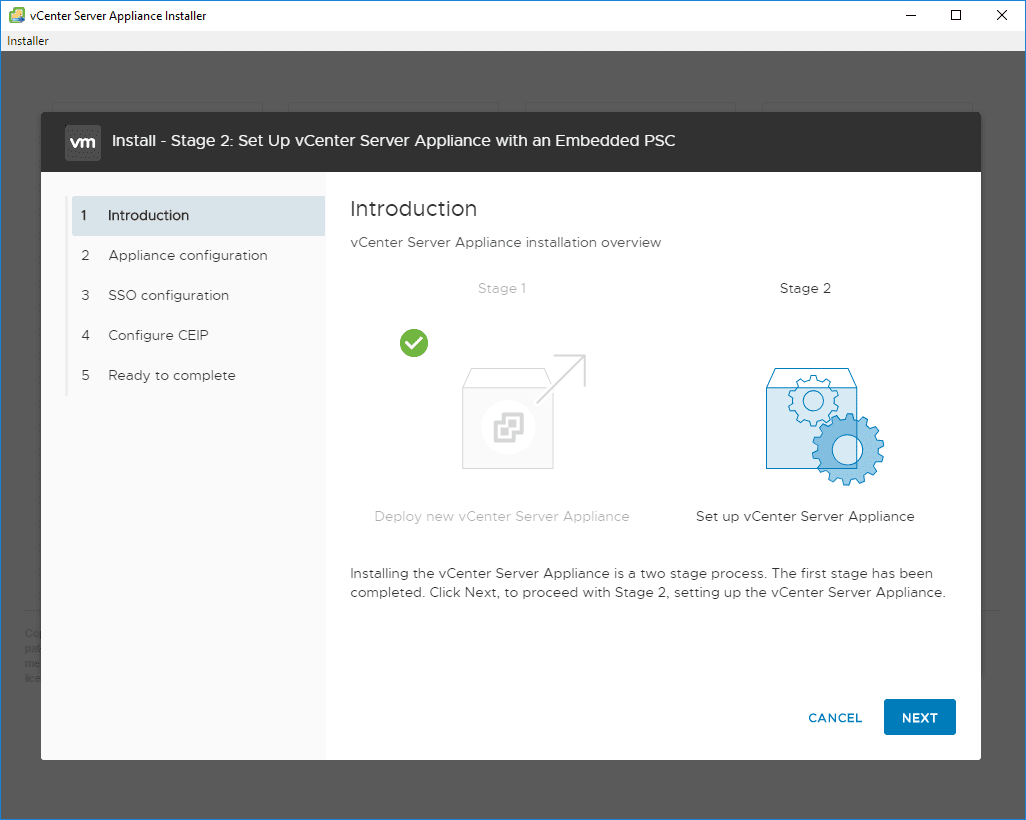

Stage 2 configuration begins.

Stage-2-of-the-VCSA-6.7-setup-begins VMware VCSA 6.7 New Features Installation and Configuration

Stage 2 of the VCSA 6.7 setup begins

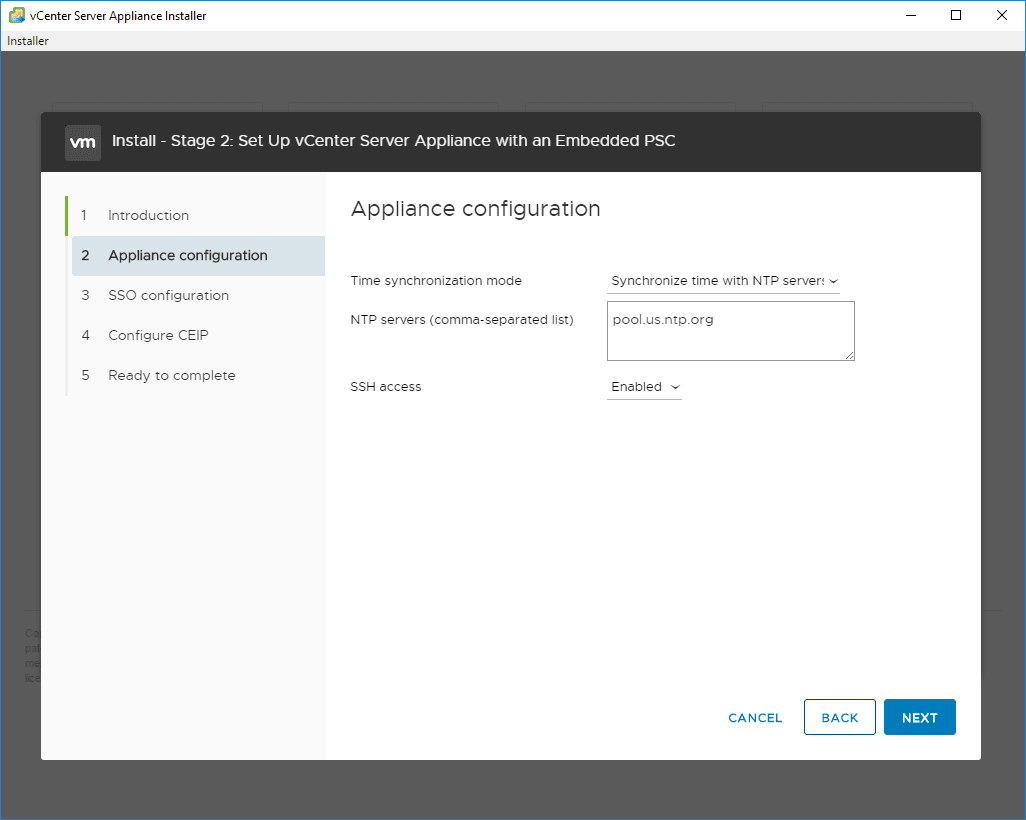

On the first screen of the Stage 2 configuration we setup NTP configuration as well as choose SSH access options.

Setup-NTP-and-SSH-access VMware VCSA 6.7 New Features Installation and Configuration

Setup NTP and SSH access

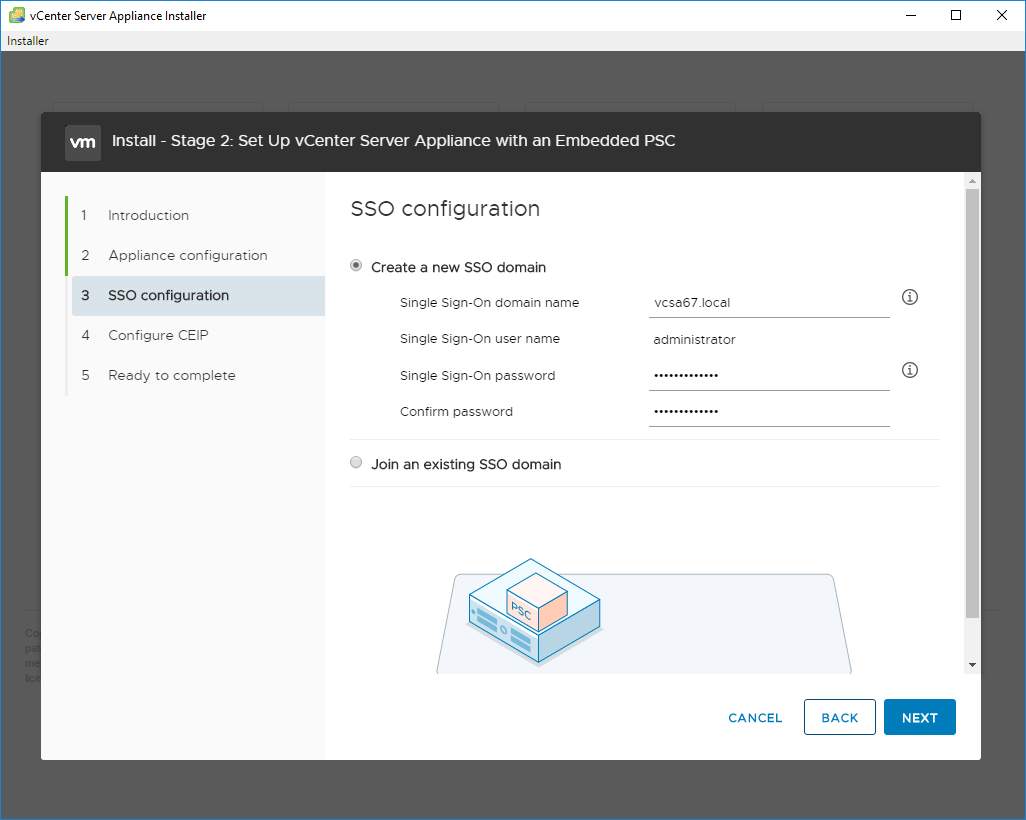

Extremely important, configuring your SSO domain.  Here we either setup something new or join an existing SSO domain.

SSO-Configuration-for-the-new-VCSA-6.7-appliance VMware VCSA 6.7 New Features Installation and Configuration

SSO Configuration for the new VCSA 6.7 appliance

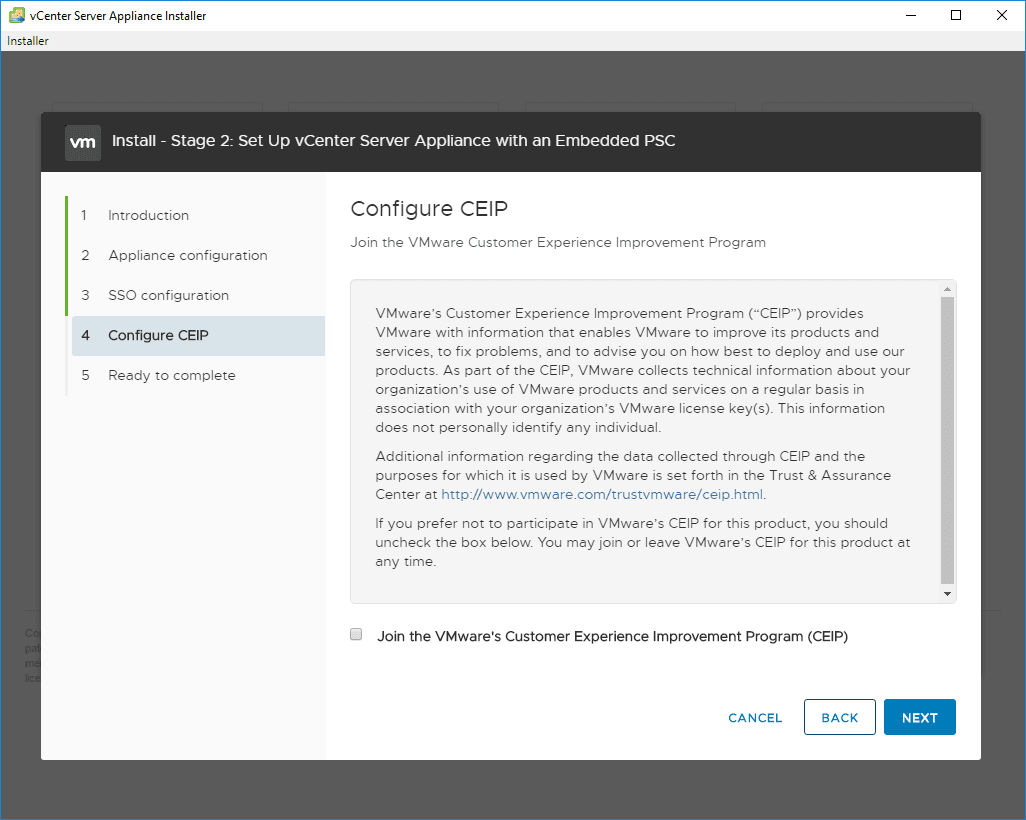

CEIP choices…

Opt-in-or-out-of-the-CEIP-program VMware VCSA 6.7 New Features Installation and Configuration

Opt in or out of the CEIP program

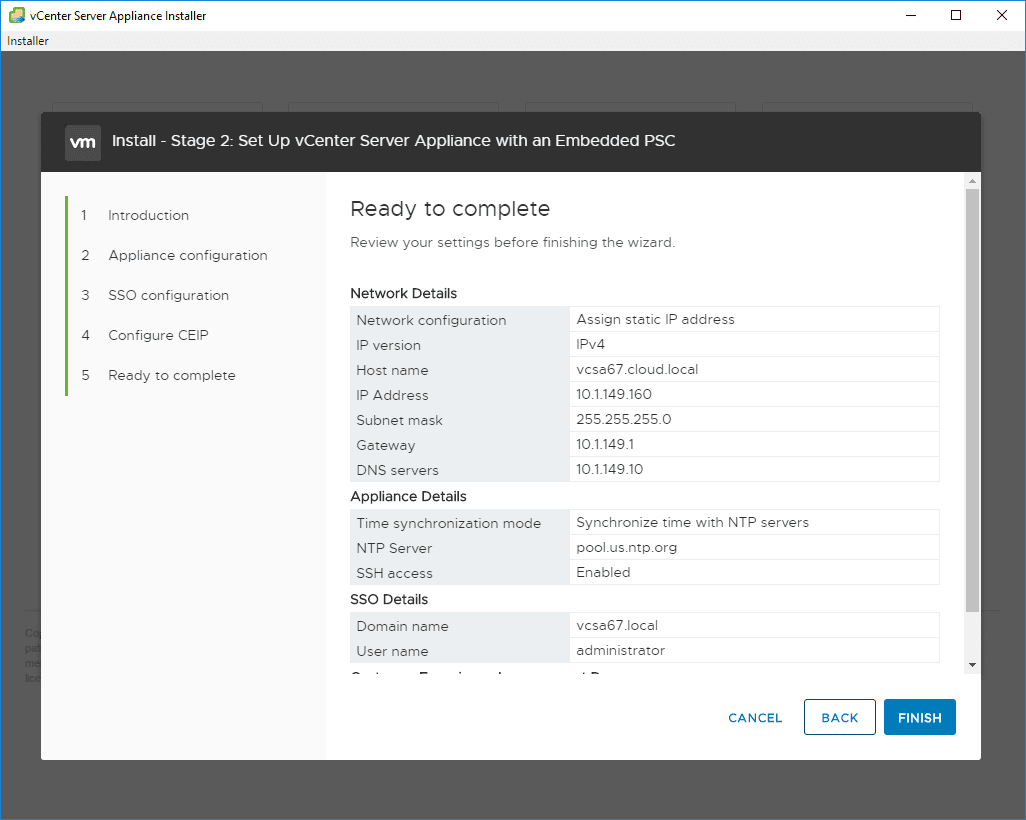

Stage 2 configuration is now ready to complete.

Summary-of-Stage-2-configuration VMware VCSA 6.7 New Features Installation and Configuration

Summary of Stage 2 configuration

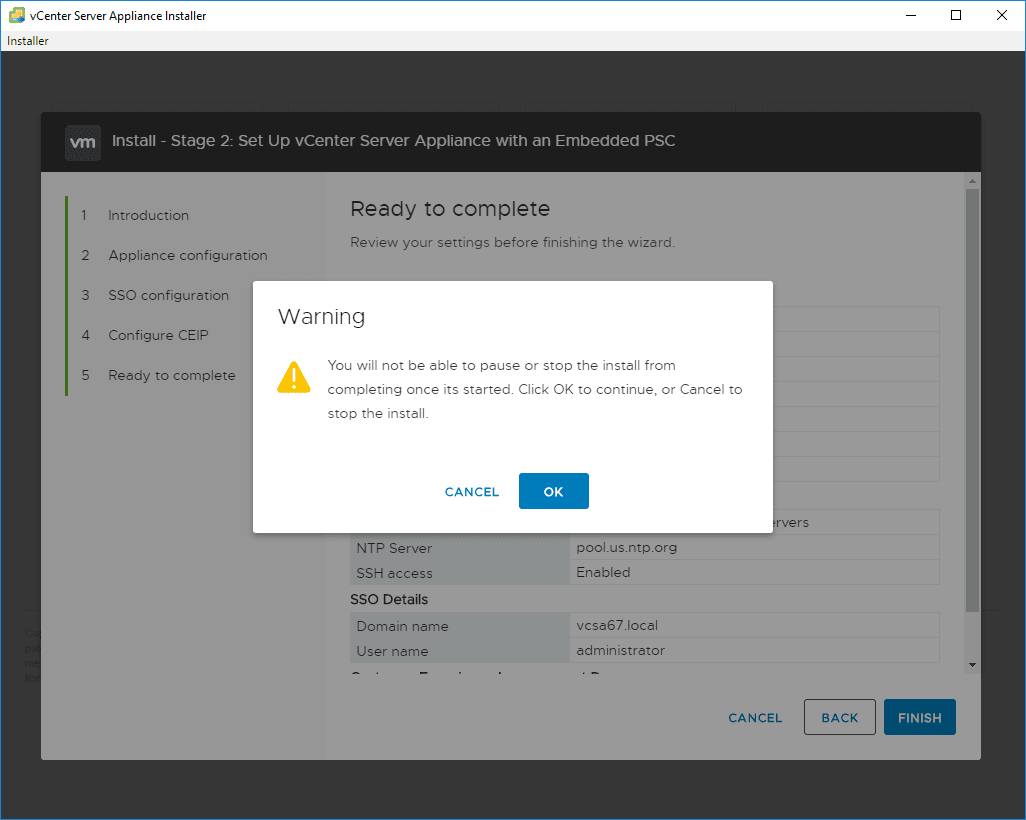

A warning is presented about not being able to pause or stop the installation once it is started.

Warning-about-stopping-the-install VMware VCSA 6.7 New Features Installation and Configuration

Warning about stopping the install

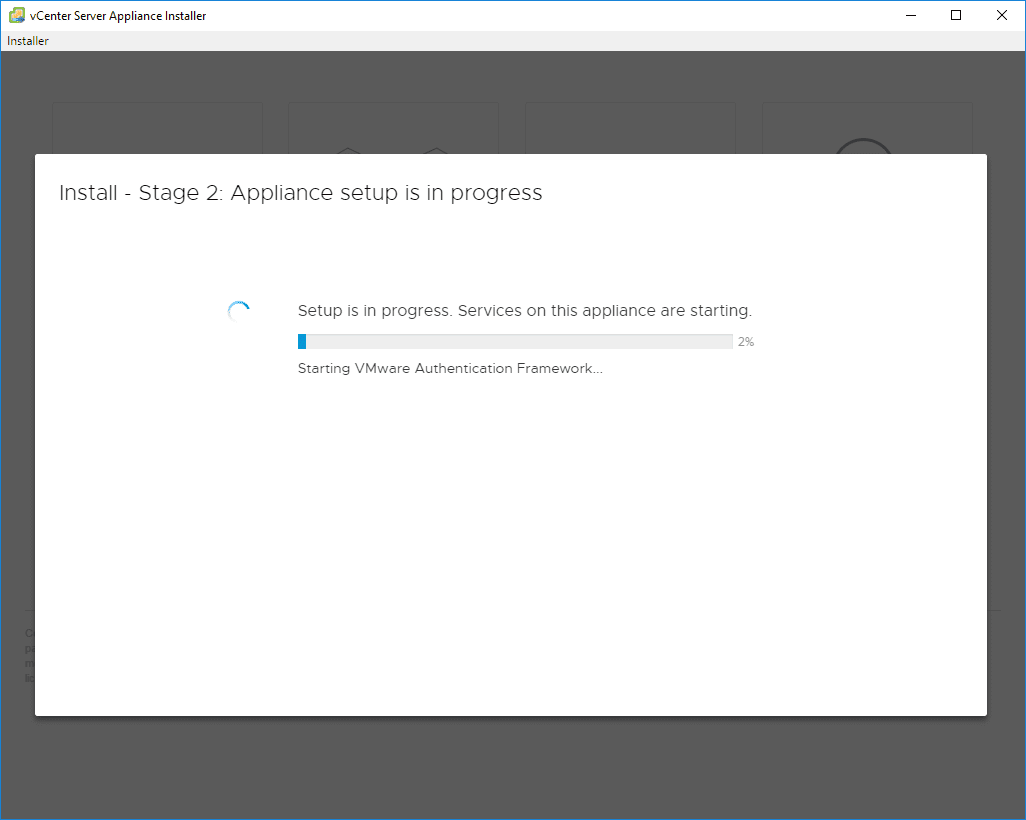

Stage 2 setup begins configuring the appliance with the selected options.

Stage-2-configuration-begins VMware VCSA 6.7 New Features Installation and Configuration

Stage 2 configuration begins

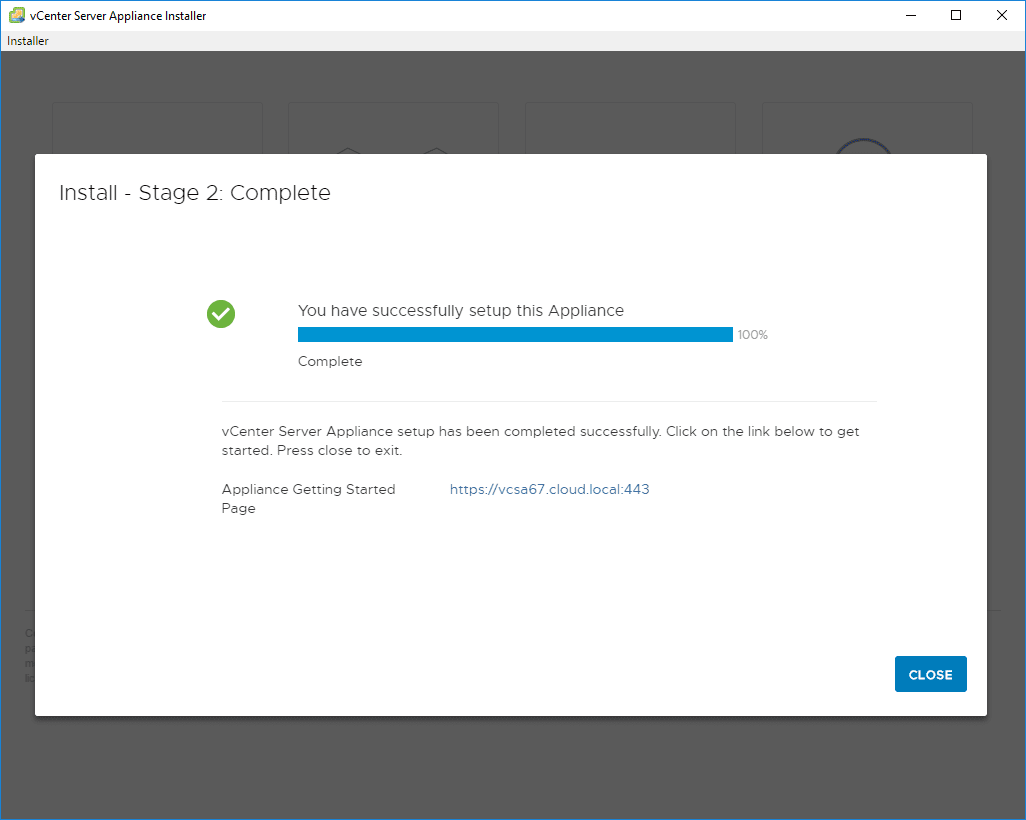

Stage 2 completes successfully. A link to the new vCenter appliance web client is displayed on the Complete screen.

Stage-2-configuration-of-the-VCSA-6.7-appliance-completes VMware VCSA 6.7 New Features Installation and Configuration

Stage 2 configuration of the VCSA 6.7 appliance completes

Takeaways

VMware vSphere VCSA 6.7 New Features Installation and Configuration contains some exciting new features that administrators will be able to take advantage of in their vSphere environments with vSphere 6.7.  VMware has definitely covered some ground in getting the UI updated to the new HTML5 UI clarity theme both in the web client as well as the VAMI interface.  The new options in the VAMI interface for monitoring and other upgrades to the backup utility including scheduling is making this a powerful interface for managing and monitoring vCenter Server 6.7.  Stay tuned for more vSphere 6.7 coverage here as we continue to show upgrades, installs, etc.
