Update manager Upgrade VMware ESXi 6.0 update 2

0

Below are the simple and easy steps to get your ESXi 6.0 u1 or earlier installation to update 2 (3620759) version.  Using update manager the process is very simple.  Make sure before updating your hosts that you have updated your vCenter server either Windows or VCSA as well as Update manager server (if separate) to the latest update 2 level to make sure you don’t run into any issues.  Let’s look at Update manager Upgrade VMware ESXi 6.0 update 2.

Update manager Upgrade VMware ESXi 6.0 update 2

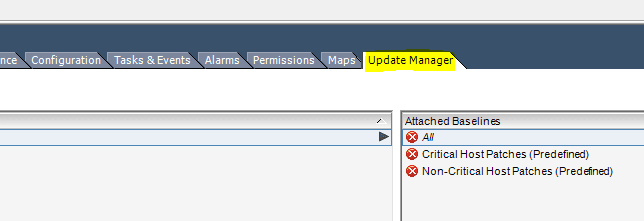

In vCenter Server, click on your Update Manager tab.
v6u2_01 Update manager Upgrade VMware ESXi 6.0 update 2

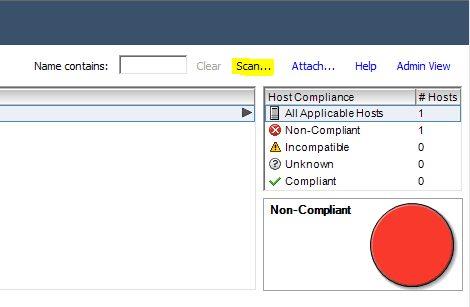

Then click the Scan link…

v6u2_03 Update manager Upgrade VMware ESXi 6.0 update 2

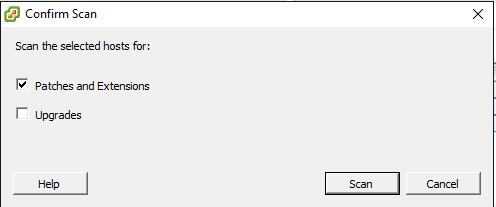

After clicking the Scan action, you will see the pop up box asking for types of updates/upgrades you are looking for.  I you are already on ESXi 6.0 you can simply select patches and extensions since it is a rollup patch.

v6u2_11-300x125 Update manager Upgrade VMware ESXi 6.0 update 2

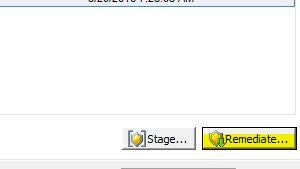

Click Remediate


v6u2_02-300x169 Update manager Upgrade VMware ESXi 6.0 update 2

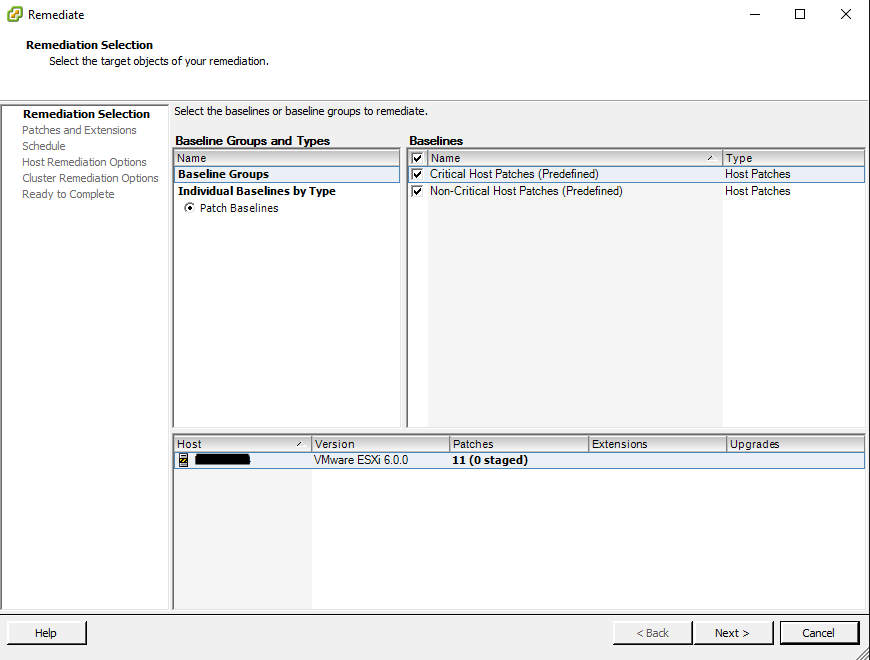

Here we can make our remediation selections, we are simply leaving the default baselines selected.
v6u2_04-300x228 Update manager Upgrade VMware ESXi 6.0 update 2

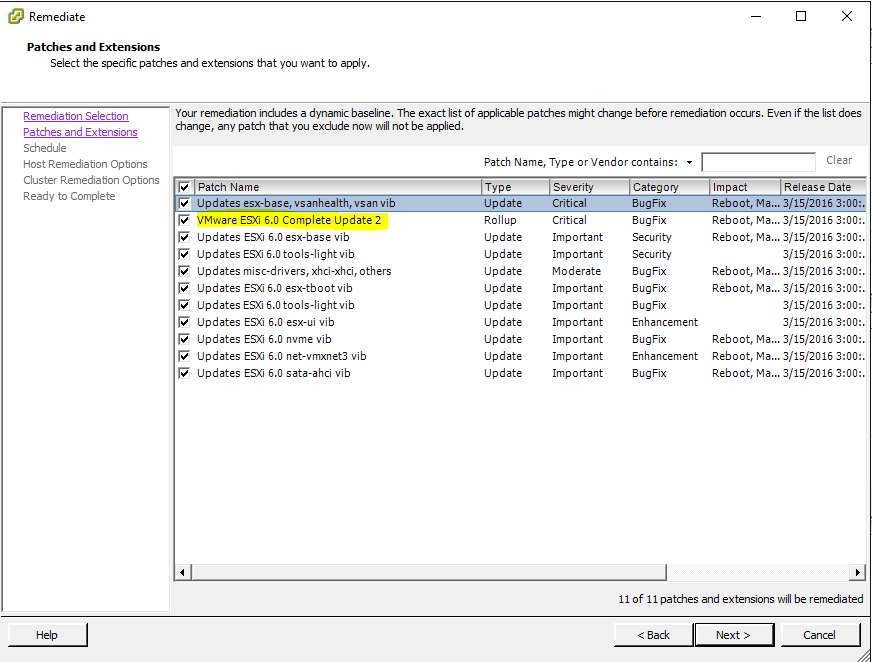

As we can see, the VMware ESXi 6.0 Complete Update 2 is listed.

v6u2_05-300x228 Update manager Upgrade VMware ESXi 6.0 update 2

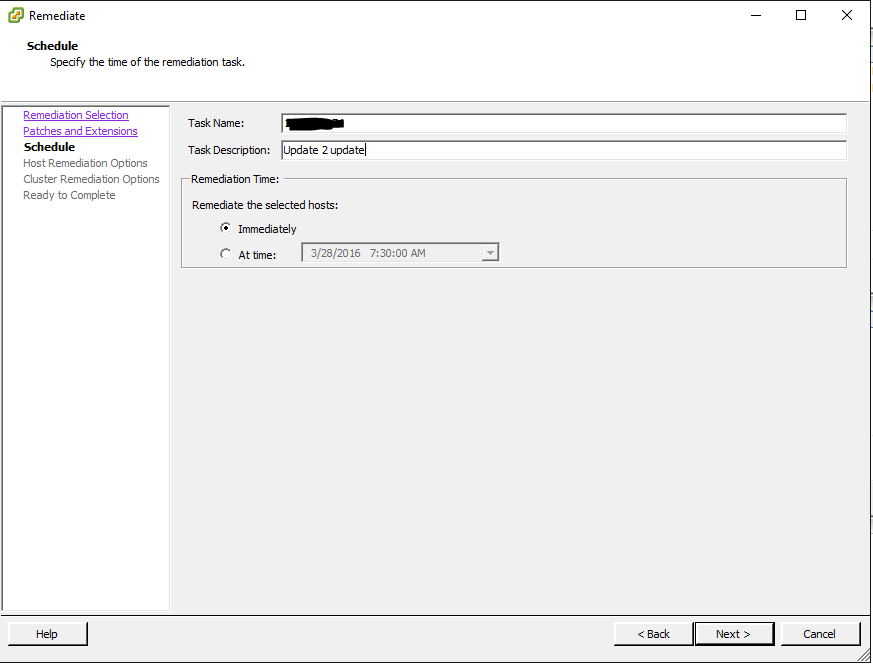

You can schedule or run immediately.

v6u2_06-300x228 Update manager Upgrade VMware ESXi 6.0 update 2

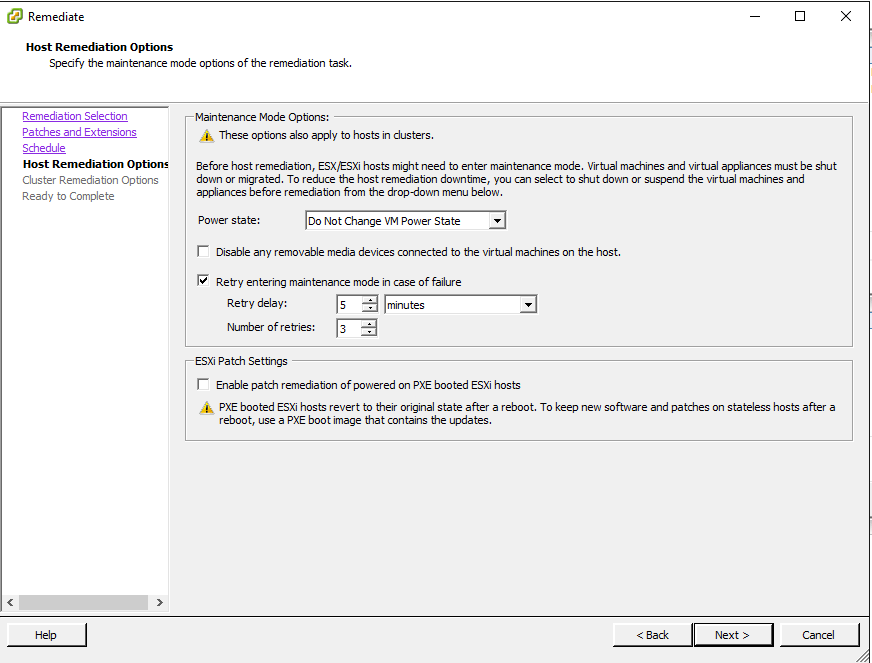

Host remediation options:

v6u2_07-300x228 Update manager Upgrade VMware ESXi 6.0 update 2

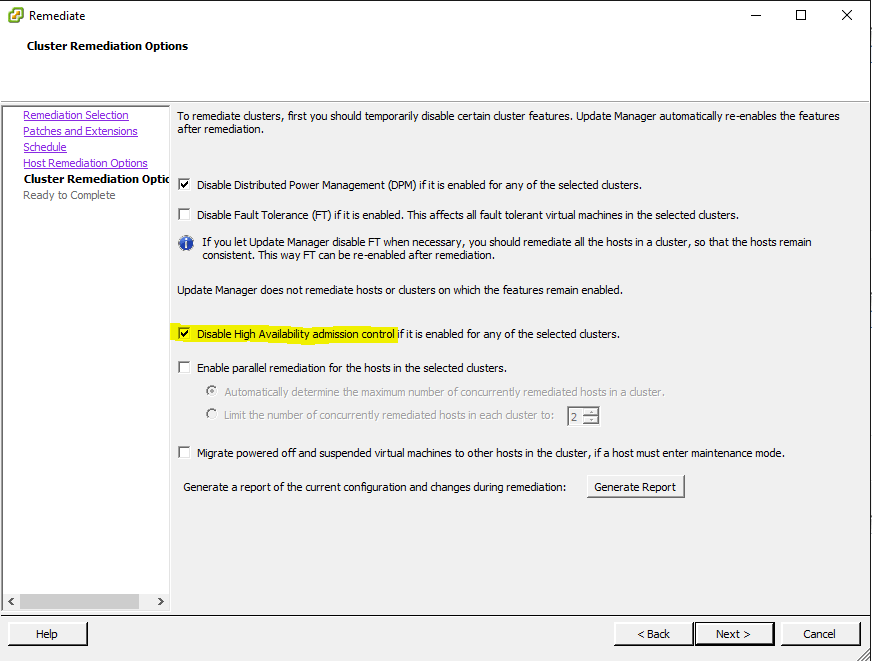

Be sure to disable the High Availability admission control setting by selecting the box.
v6u2_08-300x227 Update manager Upgrade VMware ESXi 6.0 update 2

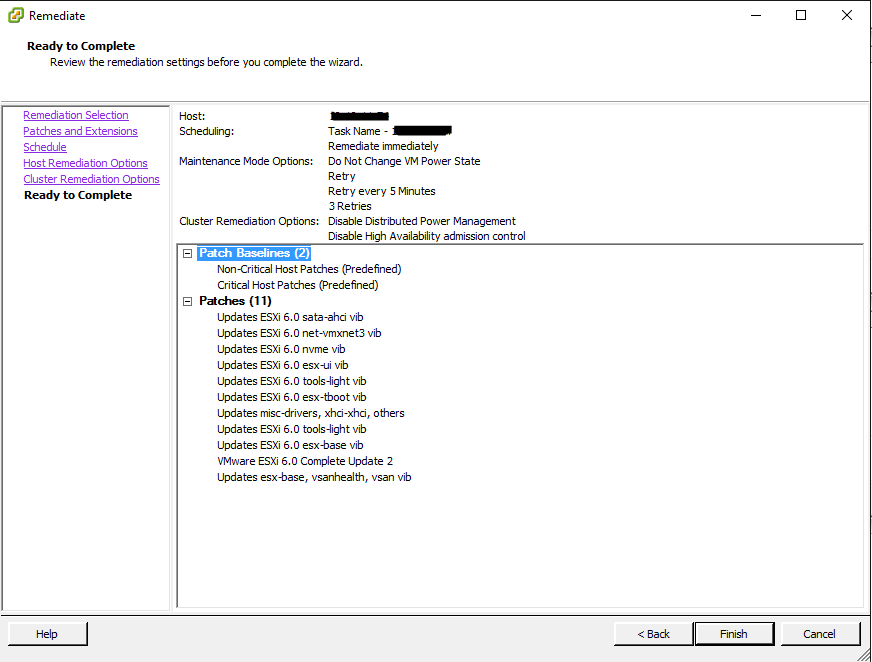

Finally, we get a summary of our remediation operation.

v6u2_09-300x228 Update manager Upgrade VMware ESXi 6.0 update 2

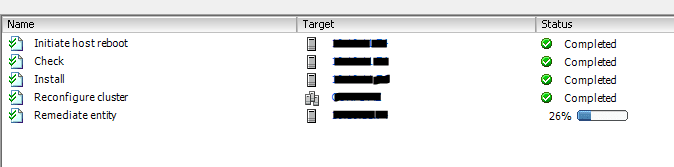

The remediation process will begin and work through the updates.  You will finally see the Initiate host reboot operation which means the update has completed.  After the host reboots, you should be good to go.

v6u2_10-300x74 Update manager Upgrade VMware ESXi 6.0 update 2

Final Thoughts

The update manager process is generally smooth as silk.  I only ran into an issue with one host in particular as it turns out had a bad SDCARD in that host – more on that later!  However, you should notice your update manager process to update your hosts to update 2 will go just fine.
