What is VMware NSX Guest Introspection and how is it configured?

What is VMware NSX Guest Introspection and how is it configured? A look at what guest introspection services are and how these are installed and configured both at the cluster level and the virtual machine.

VMware NSX provides powerful insight into network traffic and it allows administrators to handle traffic based on very powerful criteria, including the user that is logged into a resource. Now in VMware NSX 6.4, this insight has even been turned up a notch with the identity firewall. It can now distinguish between various network flows and the users that are behind those network flows. This provides some really interesting use cases such as being able to correctly implement microsegmentation on an RDSH server.ย  One of the mechanisms behind the powerful network abilities provided by VMware NSX is called guest introspection. What is VMware NSX guest introspection and how is it configured?ย  What are some of the requirements of the new capabilities with the identity firewall?

What is VMware NSX Guest Introspection and how is it configured?

In general, VMware NSX Guest Introspection offloads antivirus and anti-malware agent processing to a dedicated secure virtual appliance that is configured when Guest Introspection service is enabled at the cluster level.ย  However, it is also required when enabling the “identity at source” firewall functionality of the identity firewall.

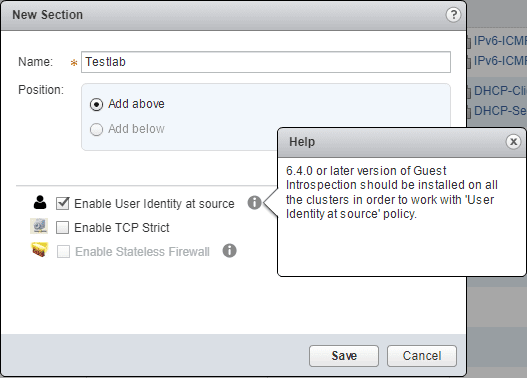

Guest-Introspection-required-for-the-user-identity-at-source-firewall-capabilities
Guest Introspection required for the user identity at source firewall capabilities

The process to install the Guest Introspection service on an ESXi cluster involves the following:

  • Installing Guest Introspection on Host Clusters
  • Installing the Guest Introspection Thin agent on Windows Virtual Machines
  • Additionally, if using Linux Virtual Machines, installing the guest introspection thin agent on Linux Virtual Machines.
  • The thin agent plays the role of detective and allows detecting the logon user id and IP address of the logon session coming from the user ID in question that we want to build the firewall policy around. This information is relayed to the NSX manager.

This is accomplished with guest introspection infrastructure. After the user logs in, VMware Tools Guest Introspection sees the login and sends the IP and user ID to the Service Virtual Machine (SVM). The SVM updates the NSX Manager with the IP and user ID details as well as the directory groups the user is a member of. The NSX Manager then applies the correct firewall policy based on these details.

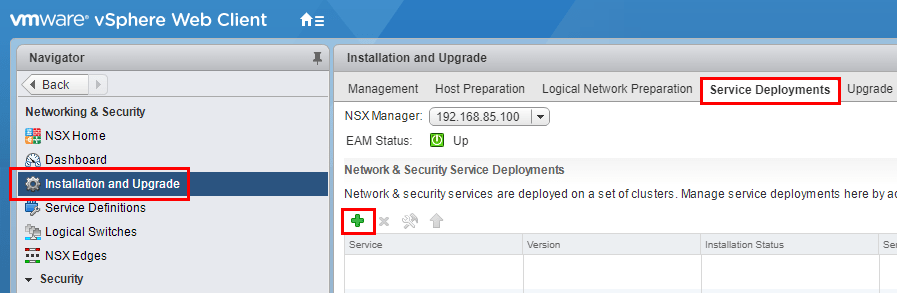

To begin the installation of the guest introspection service deployment, navigate toย Installation and Upgrade >> Service Deploymentsย and click the green “+” sign.

Beginning-to-install-the-Guest-Introspection-service-deployment-for-the-clusterBeginning to install the Guest Introspection service deployment for the cluster

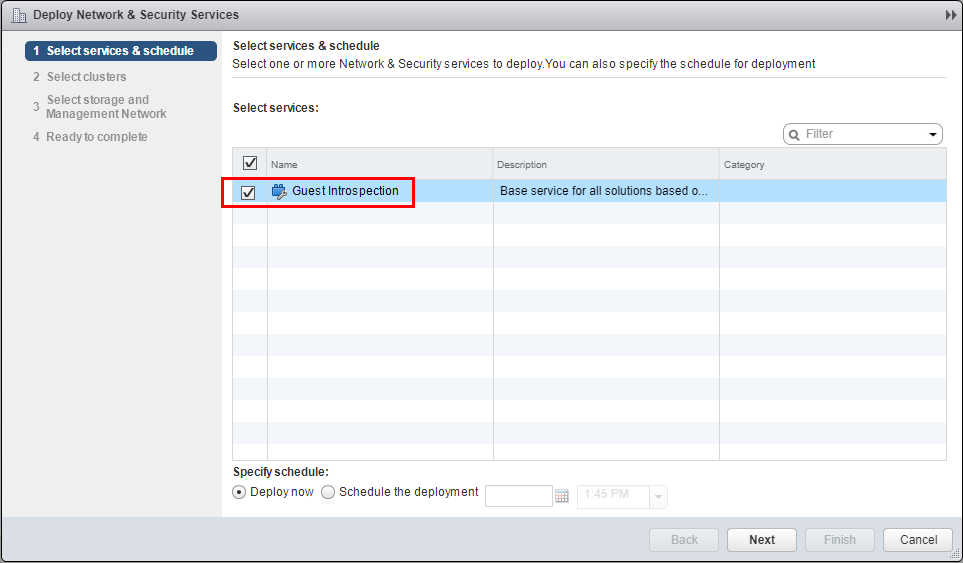

Select theย Guest Introspection option.

Choose-Guest-Introspection-services
Choose Guest Introspection services

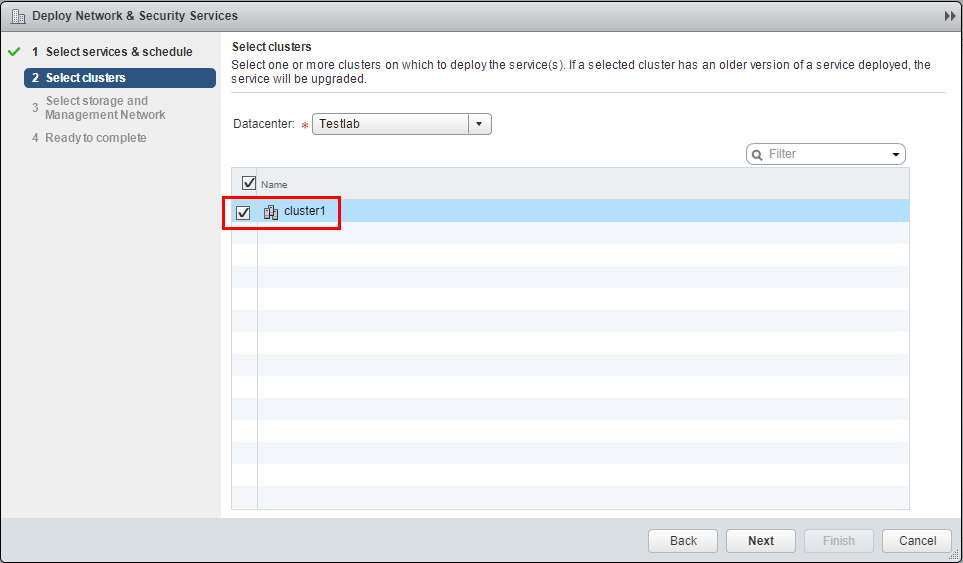

Next, we select the cluster name of the cluster for which we want to enable the guest introspection service.

Select-Clusters-to-deploy-the-Guest-Introspection-services-to
Select Clusters to deploy the Guest Introspection services to

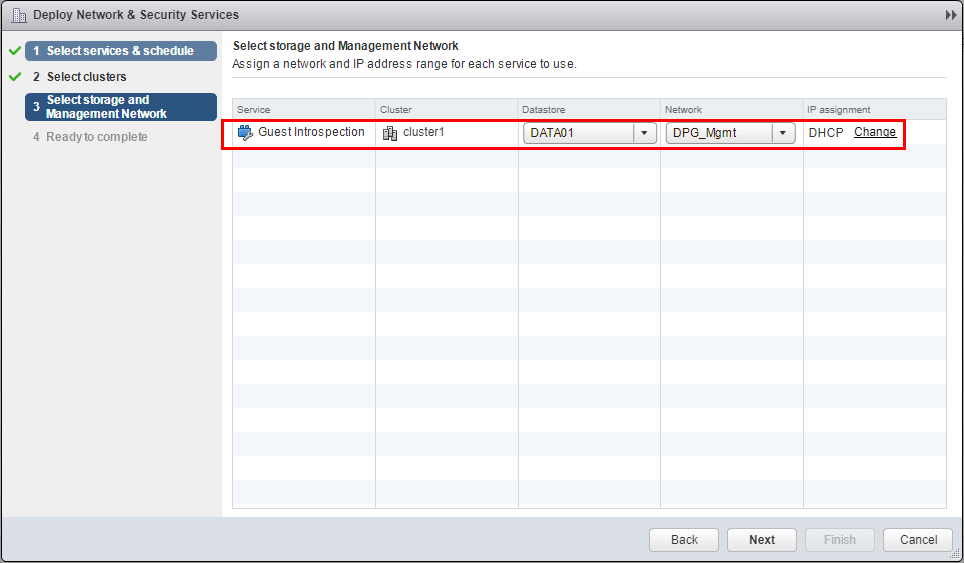

We need to select storage and management network configuration for the SVM virtual machines that will be created to enable the guest introspection service.

Select-the-storage-and-management-configuration-for-the-Guest-Introspection-SVMs
Select the storage and management configuration for the Guest Introspection SVMs

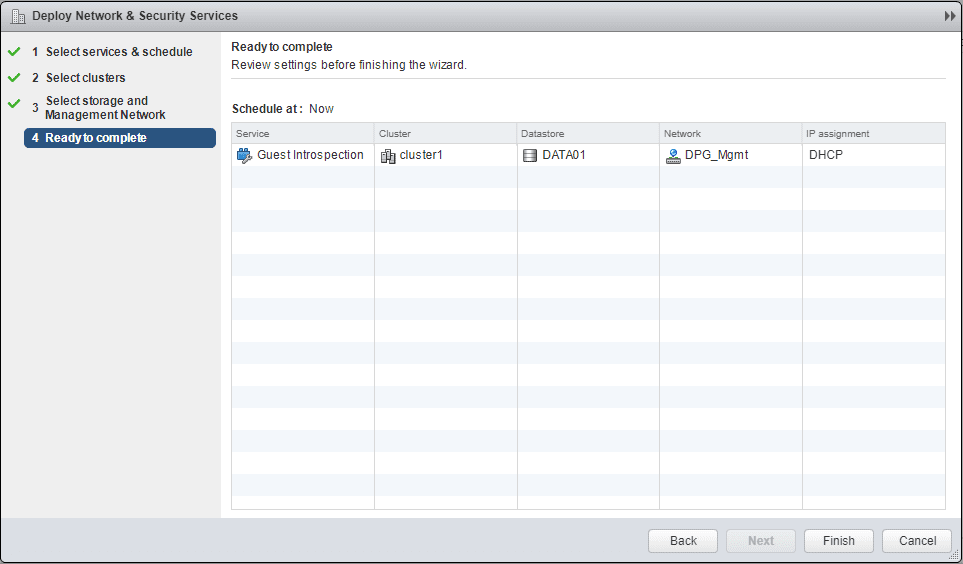

Finally, review the options for the guest introspection service deployment.

Review-the-Guest-Introspection-SVM-installation-options
Review the Guest Introspection SVM installation options

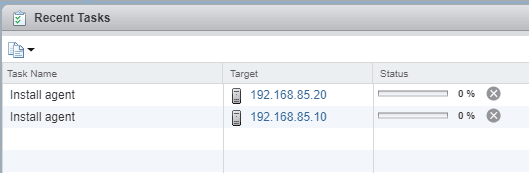

We will note several tasks that begin kicking off.ย  Theย Install agentย task will begin on both hosts.

Agent-installation-begins-on-the-hosts
Agent installation begins on the hosts

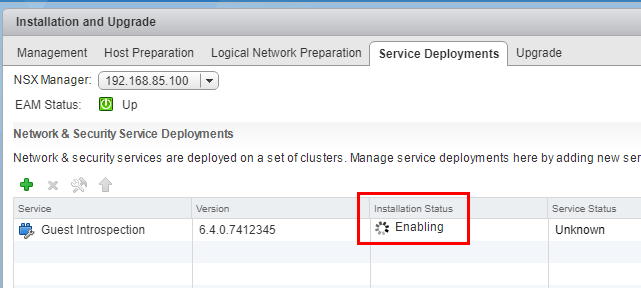

In theย Installation Status you will see theย Enabling status listed while the service is deployed.

Status-for-Guest-Introspection-shows-to-be-Enabling
Status for Guest Introspection shows to be Enabling

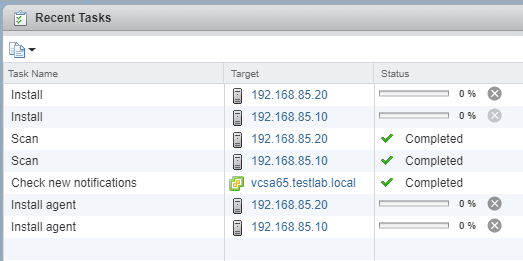

Installation continues…

We-see-the-installing-process-while-SVMs-are-deployed
We see the installing process while SVMs are deployed

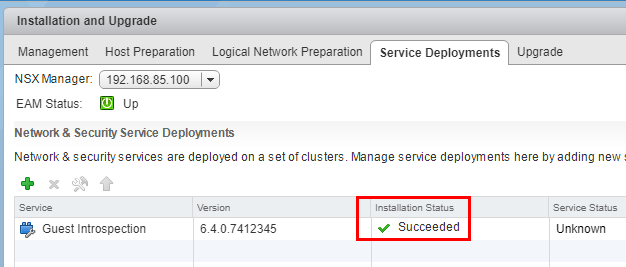

After a couple of minutes, theย Guest Introspection installation will show asย Succeeded.

Installation-status-shows-succeeded-for-Guest-Introspection-service-deployment
Installation status shows succeeded for Guest Introspection service deployment

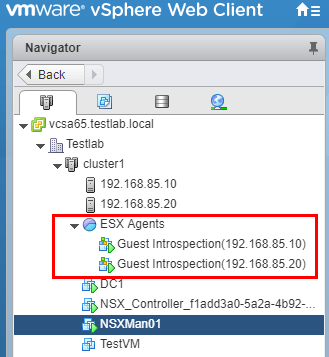

The specialย SVM virtual machine (security virtual machines) are created for every host in the cluster.

The-SVM-virtual-machines-are-created-as-part-of-the-guest-introspection-service-deployment
The SVM virtual machines are created as part of the guest introspection service deployment

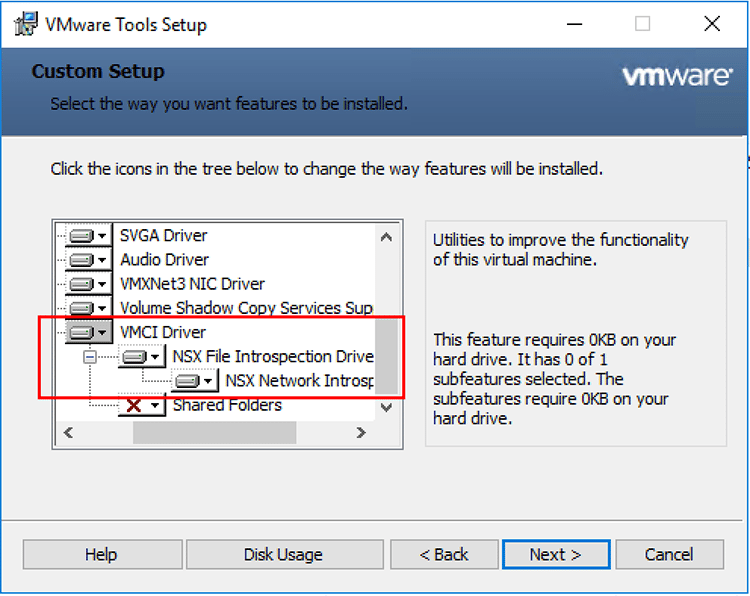

In addition to installing the guest introspection service deployment on the vSphere ESXi cluster, we also need to make sure the guest introspection services are enabled within the virtual machines we want to work with guest introspection.ย  This is part of the VMware Tools package and is an option that needs to be configured as it is not turned on by default.ย  If VMware Tools is already install, we canย modify the installation and include theย VMCI Driver including theย NSX File Introspection Driver andย NSX Network Introspection Driver.

Installing-VMware-Tools-Guest-Introspection
Installing VMware Tools Guest Introspection

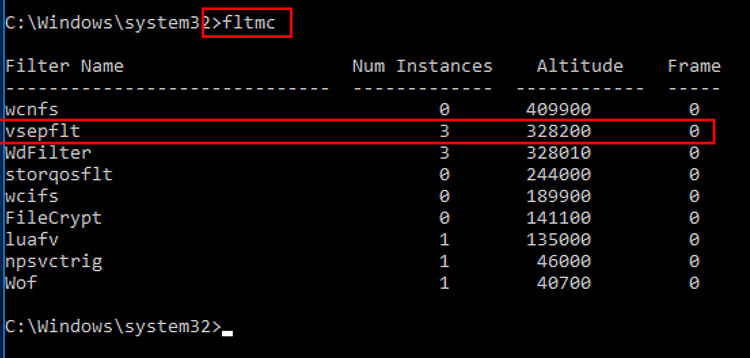

You can verify the driver is loaded by typingย fltmc at an administrator command prompt.ย  You should be able to see theย vsepflt filter driver loaded.

Verifying-the-guest-introspection-driver-is-running-in-a-virtual-machine
Verifying the guest introspection driver is running in a virtual machine

Concluding Thoughts

The guest introspection service is an extremely important service that allows special insight into the network flows and other functionality of a virtual machine.ย  Hopefully this post –ย What is VMware NSX Guest Introspection and how is it configured? will help any who may have wondered what the service is and what it is used for.ย  The new NSX 6.4 identity firewall features depend on the guest introspection services running.
