GNS3 2.0 released new features

Great news for networking nerds/professionals today - GNS3 2.0 released new features and is available to download now. Let's take a look at the new version

For those networking geeks out there like myself, no doubt you have used and continue to utilize GNS3 as a tool for mock ups, learning, and just about anything else you can think of. GNS3 today has some major news with the GA release of GNS3 2.0 that touts a lot of new features. If you are like me you have been running the beta release of 2.0 for a while now and are loving it. Today the wait for 2.0 to be official is over. Let’s take a look at GNS3 2.0 released new features.

GNS3 2.0 released new features

There is a long list of new features with GNS3 2.0, but below are some of the major feature points with this release.

  • Save as you go – the project is automatically saved as changes are made
  • Multiple users can access the same project and see commands sent by other users in a router console for instance
  • Smart packet capture – Just click and link and choose to start a new capture
  • No capture restrictions – You no longer are limited in which type of device you can collect captures on
  • Delete projects from the GNS3 GUI
  • Cloud is now viewed as a real node – no emulation and packet captures are possible
    • New cloud templates
    • New cloud interface
  • Snap to grid for all objects
  • New NAT mode – no configuration to connect GNS3 nodes to the Internet
  • New support for profiles – can differentiate between environments where you run GNS3 – home vs work, etc

The above are just a few of the features that I am excited about with GNS3 2.0. ย To see the full listing, take a look at the full what’s New in GNS3 2.0 link.

Upgrading

A note from GNS3 about upgrading. ย There is NO rollback possible once you upgrade for your projects. ย It is recommended that you backup all your projects, settings and snapshot the GNS3 VM beforehand.

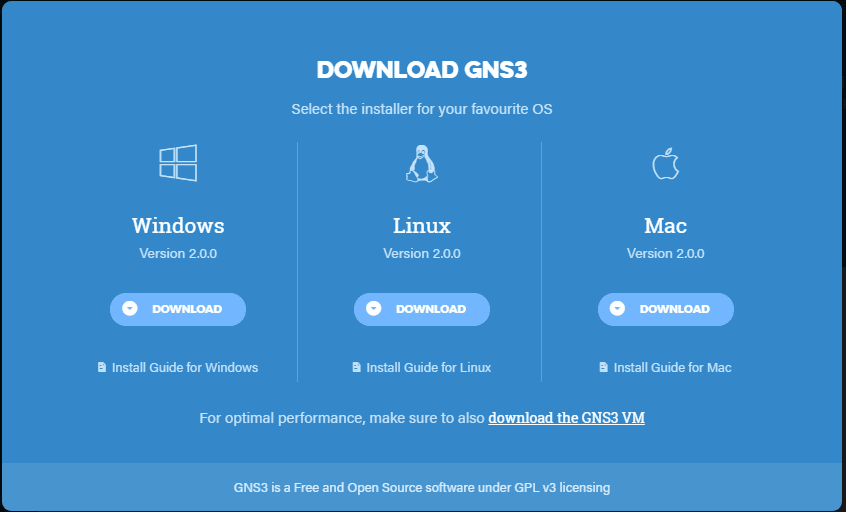

The upgrade process for the software is the same point and click, next, next, installer process we are used to. ย Simply grab a copy of the new GNS3 2.0 version and run the installer.

gns32_01

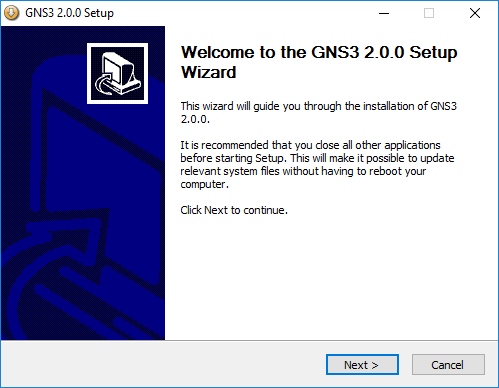

Not showing all the screenshots here, but simple next, next, finish, process.

gns32_02

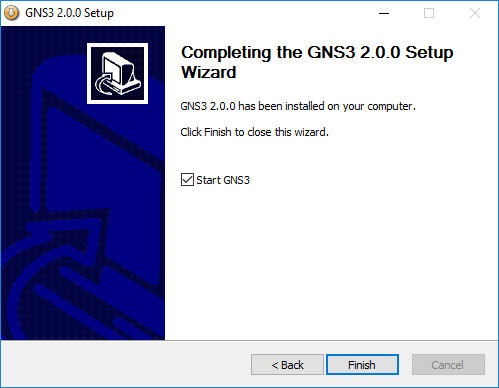

Wizard finishes…

gns32_11

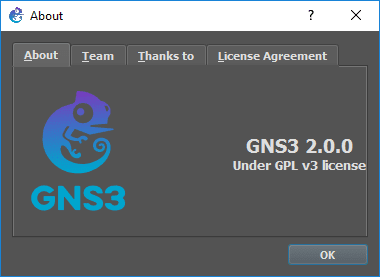

In checking the GNS3 version now, we see GNS3 2.0.0.

gns32_12

Be sure to snapshot your GNS3 VM first before upgrading. ย After creating a snapshot, choose to run the upgrade in the console menu of your GNS3 VM. ย The upgrade process directs you to create a snapshot.

gns32_13

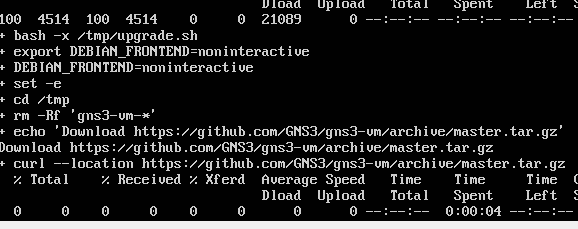

The upgrade process will begin pulling files down from github and applying the update.

gns32_14

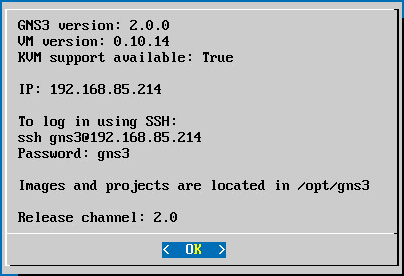

After running the update, we now see the GNS3 version is 2.0.0 with no beta designation.

gns32_15

Thoughts

GNS3 2.0 released new features is great news for networking geeks who love great software that allows them to simulate, test, mock up, and just plain figure out how things work. ย GNS3 is a great tool that just keeps getting better. ย Version 2.0 is a milestone release which takes features and functionality to the next level. ย Be sure to visit GNS3 and download a copy of 2.0 today.
