Beelink EQ12 Pro: Cheap Home Server with 8 Cores and 32 GB RAM

The Beelink EQ12 Pro Mini PC featuring the Intel Core i3-N305 has a lot of potential as a home server and you can install 32 gigs of RAM!

Beelinkโ€™s EQ12 Pro might be a great option if you are looking for a cheap home server solution. It has 8 CPU cores and is power efficient, making it even “cheaper” over time compared to other server options. We will even consider how it can unofficially support 32 GB of RAM.

Intel Core i3-N305

The Beelink EQ12 Pro is configured with the Intel Core i3-N305. This processor is part of Intel’s Alder Lake-N series, laptop CPUs tailored for mobile applications. With many features included with the i3-N305, let’s take a closer look at its technical aspects.

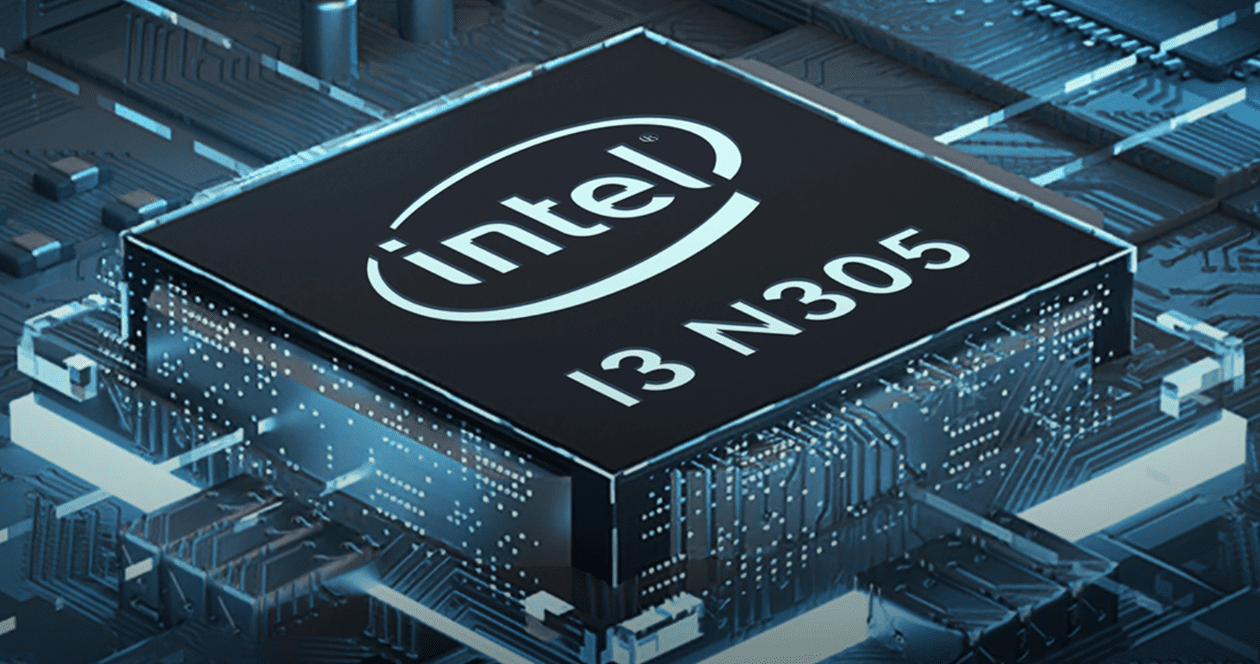

Intel i3 n305 processor
Intel i3 n305 processor

Essentials

  • Product Collection: Intelยฎ Coreโ„ข i3 Processor N-series

  • Code Name: Products formerly Alder Lake-N

  • Processor Number: i3-N305

  • Lithography: Intel 7

  • Recommended Customer Price: $309.00

CPU Core Specifics

  • Total Cores: 8

  • Total Threads: 8

  • Max Turbo Frequency: 3.80 GHz

  • Cache: 6 MB Intelยฎ Smart Cache

  • TDP: 15 W (Configurable down to 9 W)

Memory and Graphics

  • Maximum Memory Size: 16 GB

  • Supported Memory Types: DDR4 (3200 MT/s), DDR5 (4800 MT/s), LPDDR5 (4800 MT/s)

  • Maximum Memory Speed: 4800 MHz

  • Max # of Memory Channels: 1

  • Processor Graphics: Intelยฎ UHD Graphics with a max dynamic frequency of 1.25 GHz and 32 execution units.

  • Graphics Output Options: eDP 1.4b, DP 1.4, HDMI 2.1, MIPI-DSI 1.3

  • Supported Resolutions: Up to 4096 x 2160@60Hz for both HDMI and DP

  • DirectX Support: 12.1

  • OpenGL Support: 4.6

  • OpenCL Support: 3.0

Expansion and I/O Specs

  • PCIe Revision: Gen 3 with a max of 9 PCI Express lanes.

  • USB Revision: Supports 2.0/3.2.

  • General Purpose IO: Yes

Package and Technology Features

  • Socket Type: FCBGA1264 with a package size of 35mm x 24mm

  • Max CPU Configuration: 1

  • TJUNCTION: 105ยฐC

  • Advanced Technologies: Includes features like Intelยฎ Gaussian & Neural Accelerator 3.0, Image Processing Unit 6.0, Smart Sound, and more.

  • Instruction Set: 64-bit, with extensions including SSE4.1, SSE4.2, and AVX2.

Security and Virtualization

  • Security Features: Intelยฎ AES New Instructions, OS Guard, Boot Guard, among others.

  • Virtualization Technologies: VT-x, VT-d, and VT-x with Extended Page Tables (EPT) are supported.

Given these specs, the i3-N305 may not win performance benchmarks, but it is equipped to handle many tasks efficiently, from running server applications to managing virtual machine deployments.

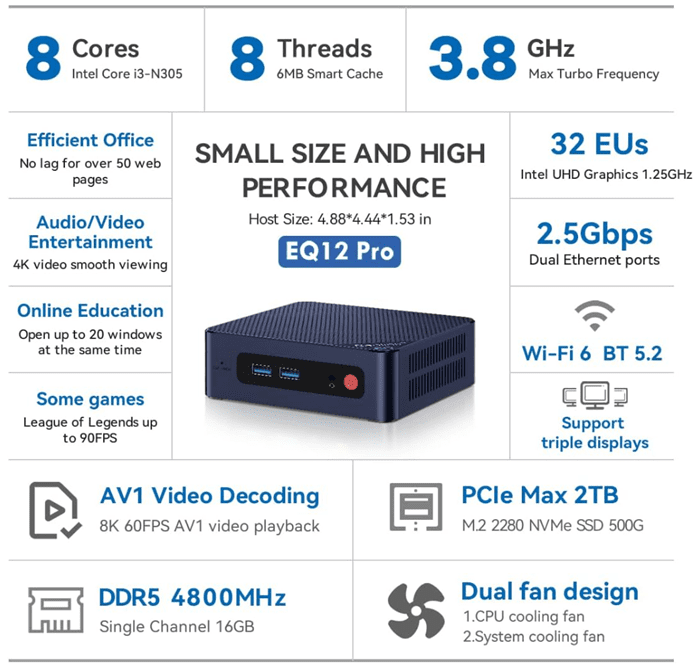

Note the following other specs of the Beelink EQ12 Pro:

The technical specs of the beelink eq12
The technical specs of the beelink eq12

Advanced Graphics and Display Capabilities

Regarding GPU power, the Beelink EQ12 unit doesnโ€™t disappoint. Its “Intel UHD graphics” with 32 EUs, clocking in at a dynamic max frequency of 1.25 GHz, ensures that any video or graphical data processed on this mini PC is smooth and free from lags. Moreover, the Beelink EQ12 Pro supports triple displays, which is great for multitaskers, meaning you can monitor different server tasks or systems simultaneously.

High-Speed Memory

Memory plays a pivotal role in any server’s operation. The Beelink EQ12 Pro’s single-channel memory offers 16 GB of DDR5 at a max of 4800 MHz. Given that it’s DDR5, it’s on the cutting-edge of memory technology, giving your home server a future-proof edge.

Connectivity and Expansion

Beyond its impressive CPU and memory specifications, the Beelink EQ12 Pro shines in its connectivity options. With support for Wi-Fi 6, BT 5.2, and dual 2.5 Gbps Ethernet ports, it promises seamless data transfer and uninterrupted connections. The mini pc also comes with PCIe support up to 2TB, making it suitable for extensive data storage or backups.

Cooling and Power Efficiency

A good server must run efficiently, especially in a home environment. The dual-fan design in the Beelink EQ12 Pro, featuring both a CPU cooling fan and a system cooling fan, ensures optimal temperatures during intensive tasks. With a TDP of 15 Watts and the ability to go down to 9 W, its power consumption is both eco-friendly and budget-conscious. Running in Turbo mode will boost up to 25 Watts and a bit higher. But this is still great compared to beefy rack mount servers.

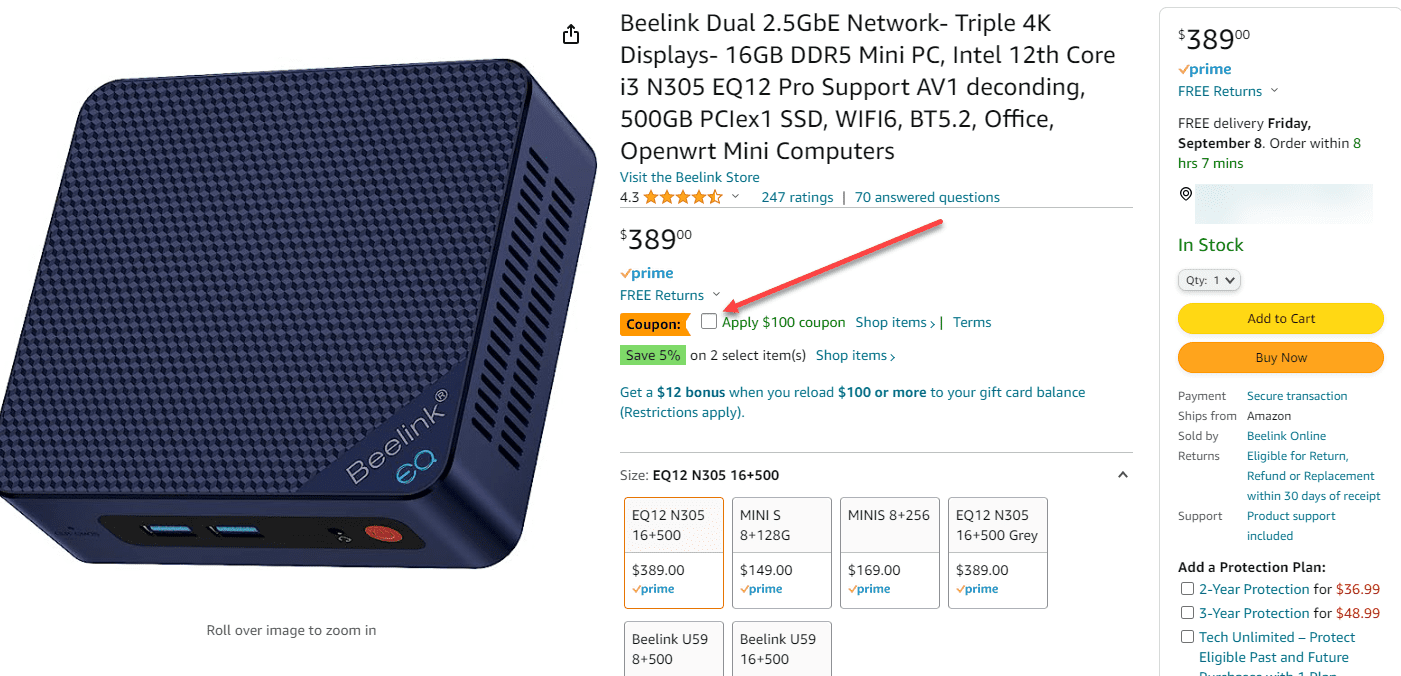

Right now at Amazon, you can pick up a Beelink EQ12 Pro with a $100 off coupon.

Price of the beelink eq12 pro on amazon
Price of the beelink eq12 pro on amazon

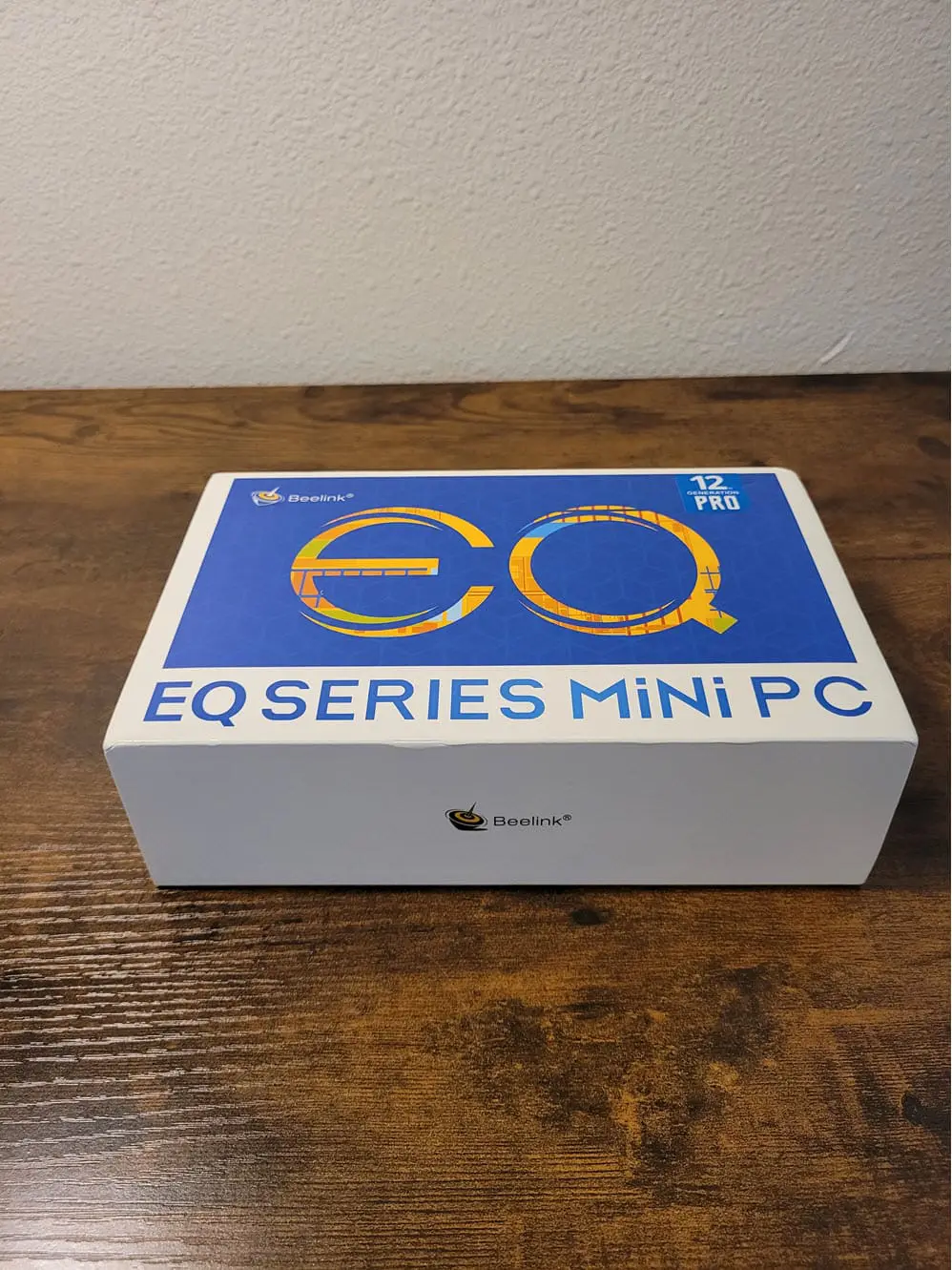

The Beelinks come packaged very well.

Boxed view of the beelink eq 12 pro
Boxed view of the beelink eq 12 pro

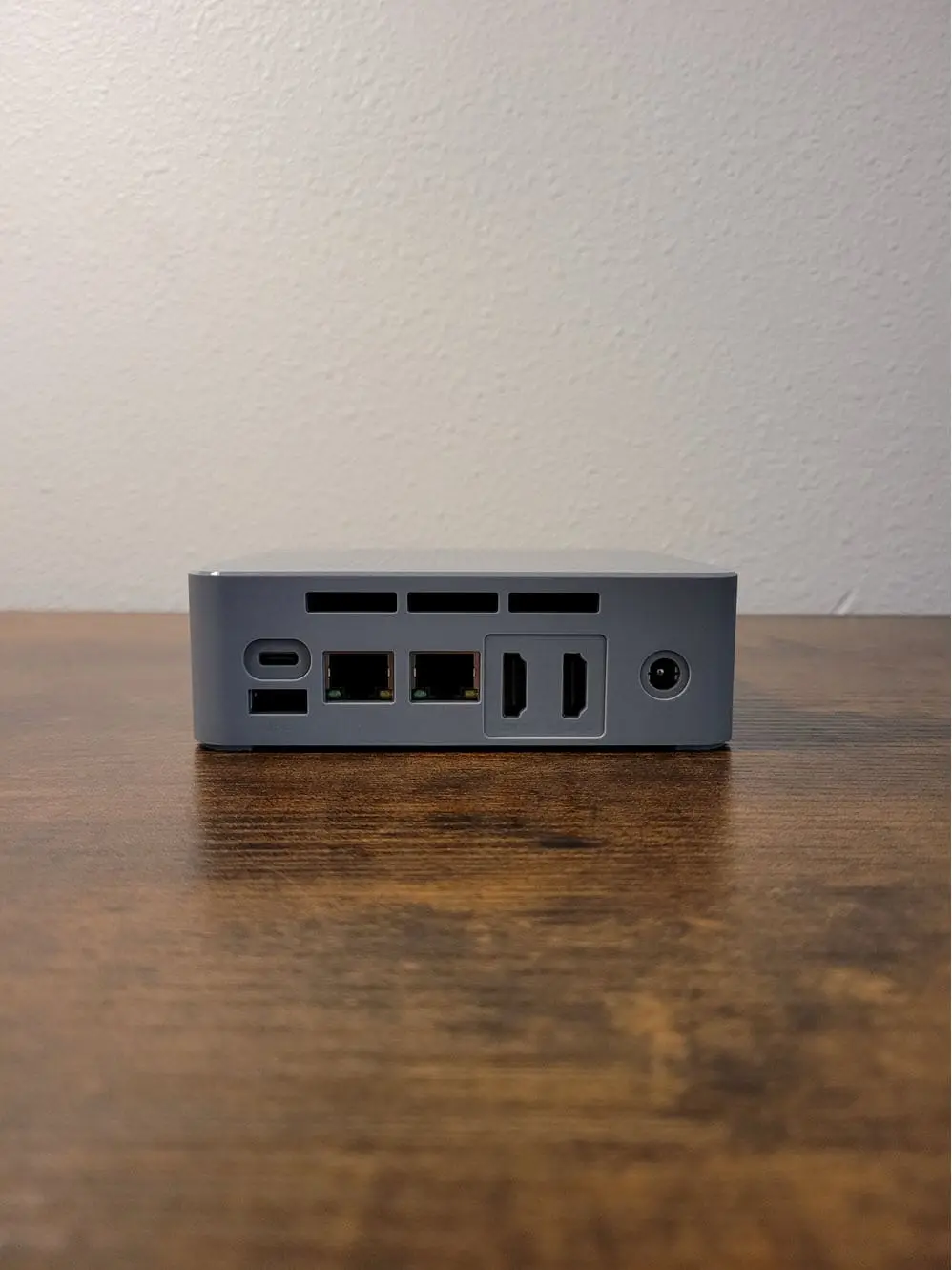

After unboxing the unit, here is the side with main I/O panel. I like how everything is on one side of the unit. A lot of the minis spread I/O on multiple sides. It does also have USB ports in the front. However, you can access everything you need to effectively route cables from the same place: the power supply, HDMI connections, USB ports, network ports, etc.

Also, I like this color. It is a light grey color compared to the black.

Rear ports view of the beelink eq12 pro
Rear ports view of the beelink eq12 pro

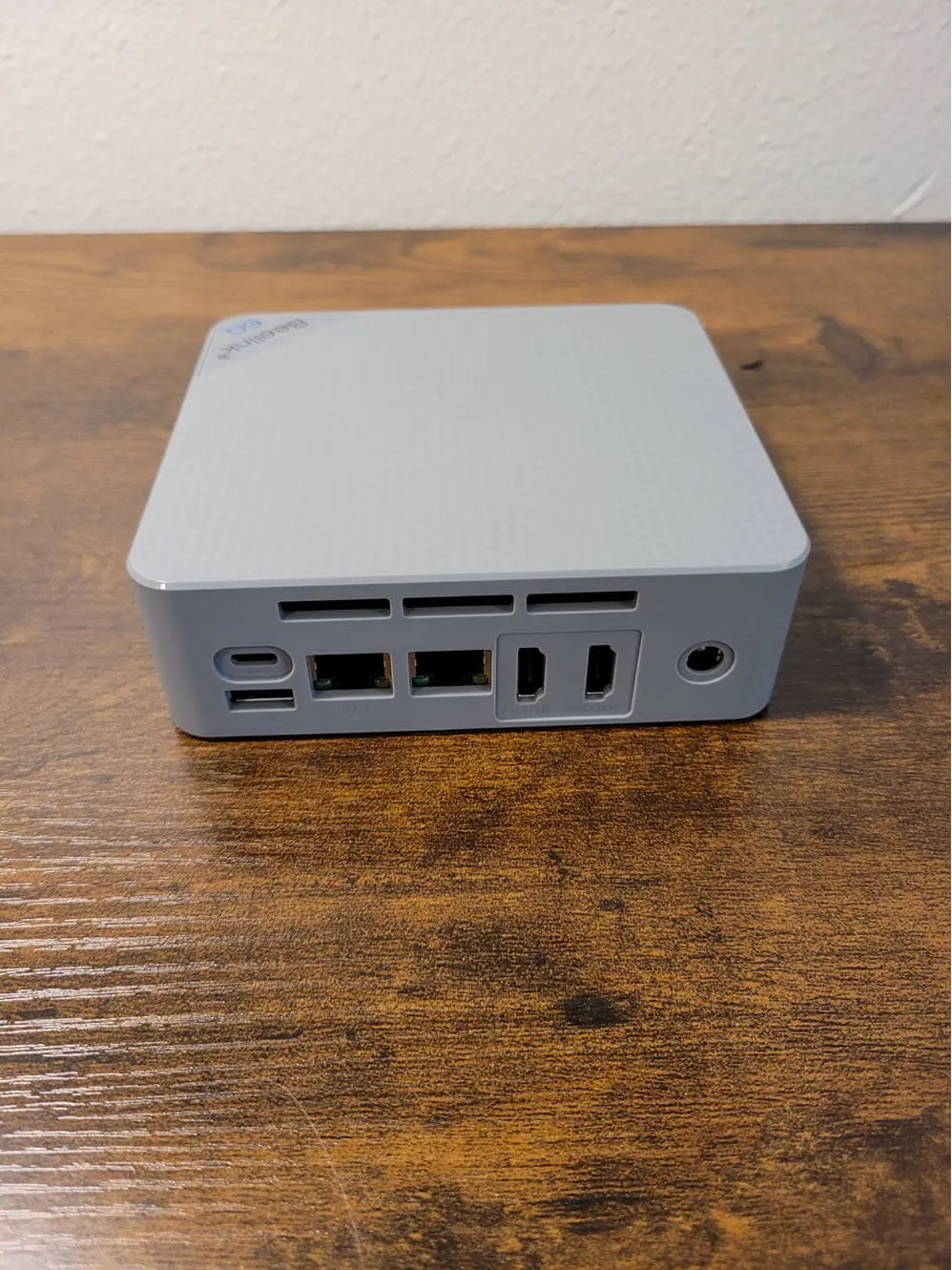

Another angle of the rear of the unit.

Another rear ports view
Another rear ports view

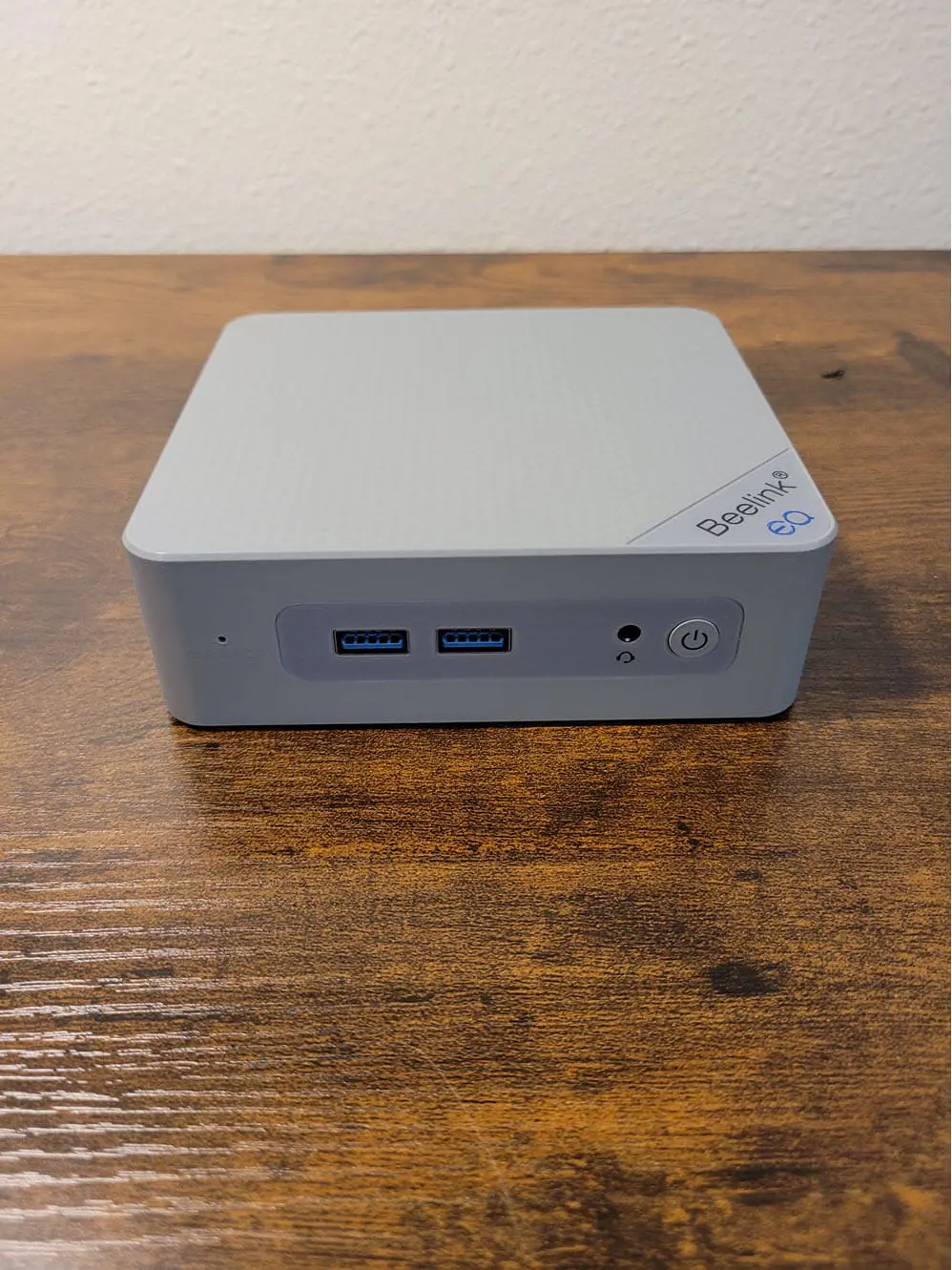

Here is the front of the unit with the two USB ports, clear CMOS (who uses this these days?) and the power button.

The front ports and power button view
The front ports and power button view

Taking it apart

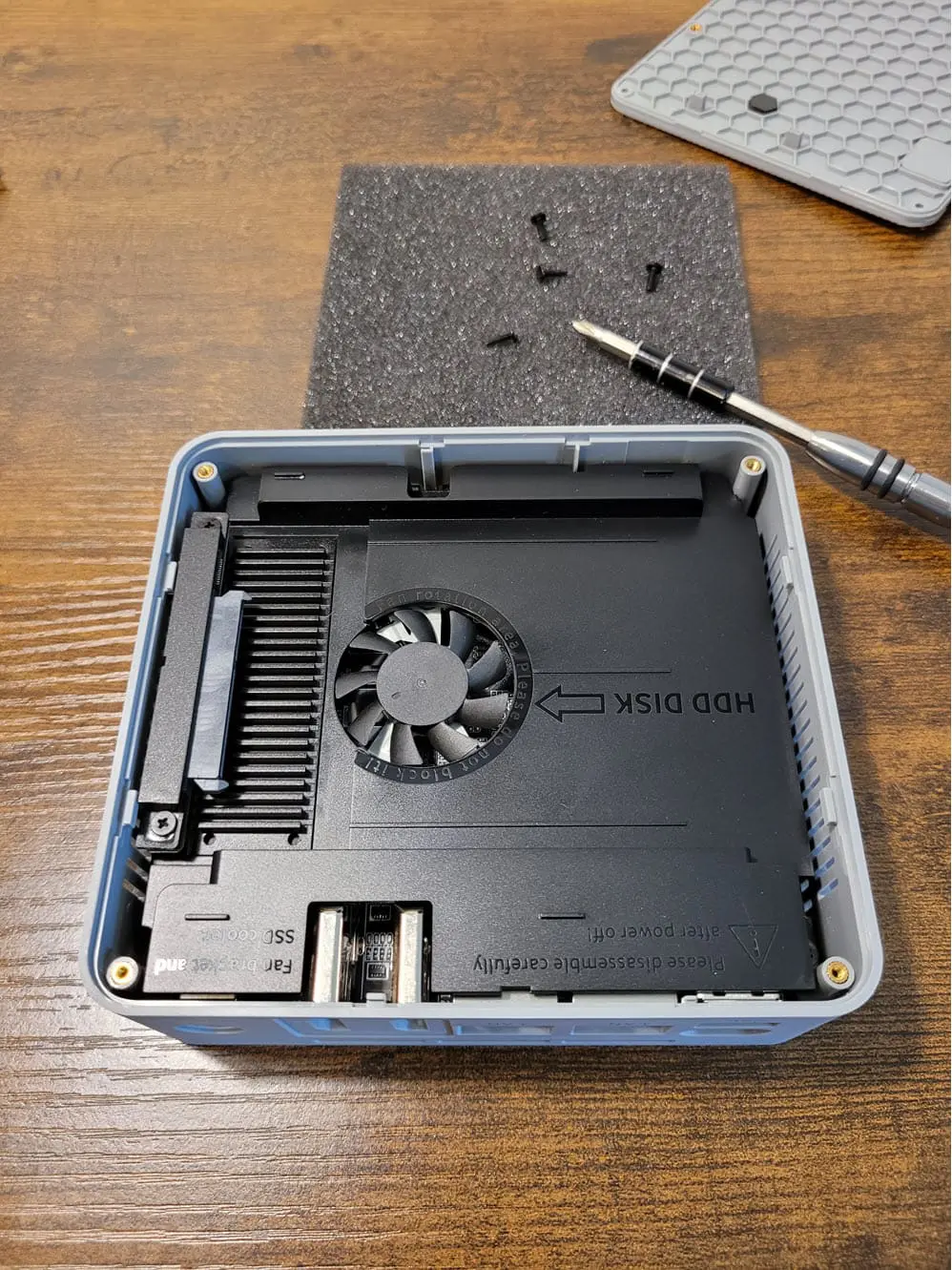

After taking out the 4 screws on the bottom feet and pulling the rubber pull tab, you will see the SATA bay and fan unit. This is where you would install a 2.5 inch hard drive. However, to change out the NVMe drive or RAM, we need to take out the fan unit.

Taking the bottom plate off
Taking the bottom plate off

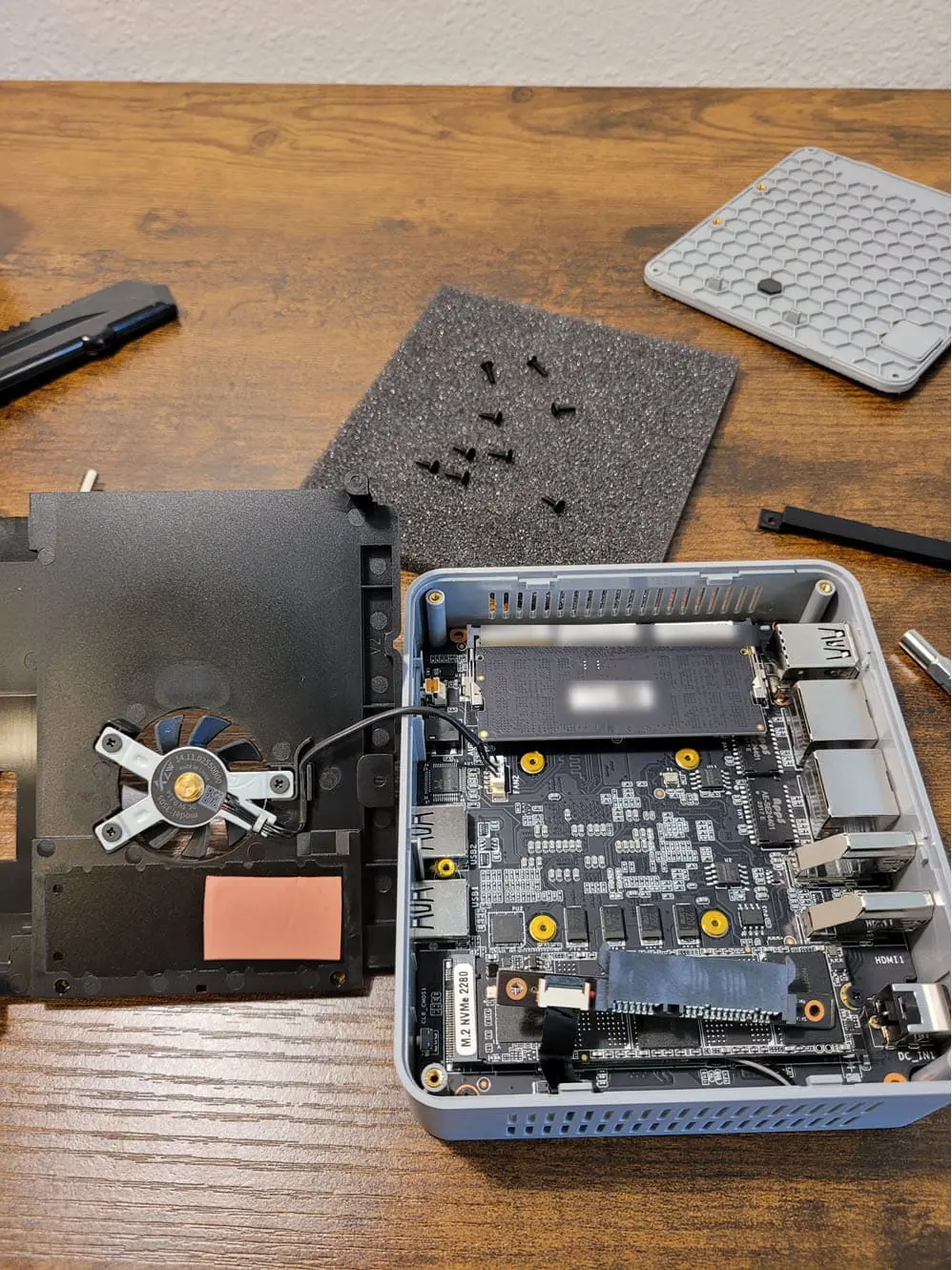

You have to remove the screws on each side of the SATA connector. Then there are (3) screws that hold in the fan unit. One is visible. The other two are deep in the corners of the unit. So you will need a long Phillips screwdriver to get those two out.

Taking off the fan assembly in the sata compartment 2
Taking off the fan assembly in the sata compartment 2

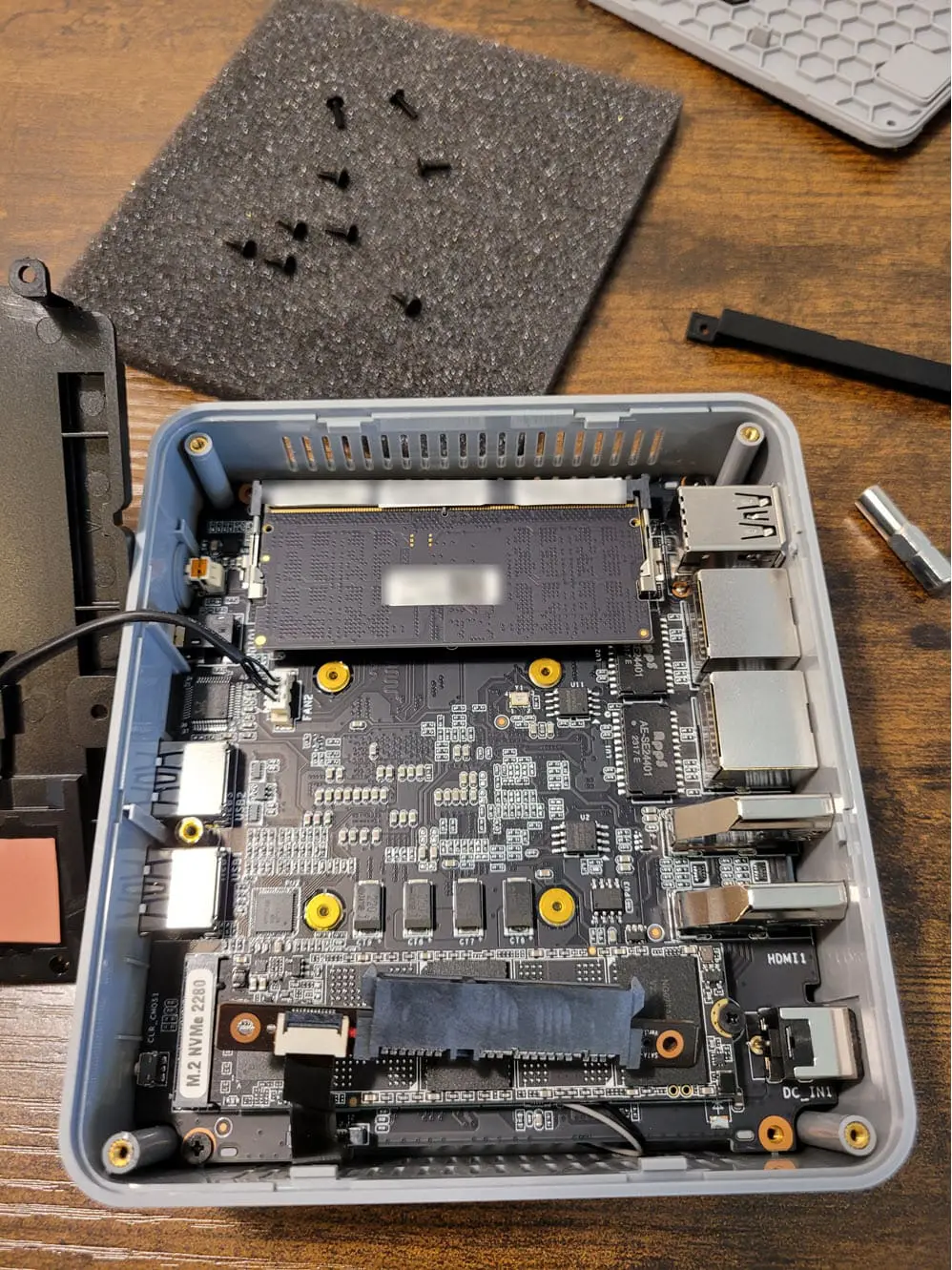

Another view with the RAM and NVMe slots.

Another view of the ram and nvme drive
Another view of the ram and nvme drive

Intel network adapters

One of the things I really like about the Beelink EQ12 Pro is the fact is is running (2) 2.5 Gbps Intel network adapters. Rather than running the Realtek adapters seen in the cheaper models I have looked at, the EQ12 allows you to easily install VMware vSphere 8.x with out-of-the-box drivers. You don’t even have to use the Community Networking Drivers fling. Plus you get the additional bandwidth of the 2.5 Gbps adapters if you have a 2.5 Gbps network switch.

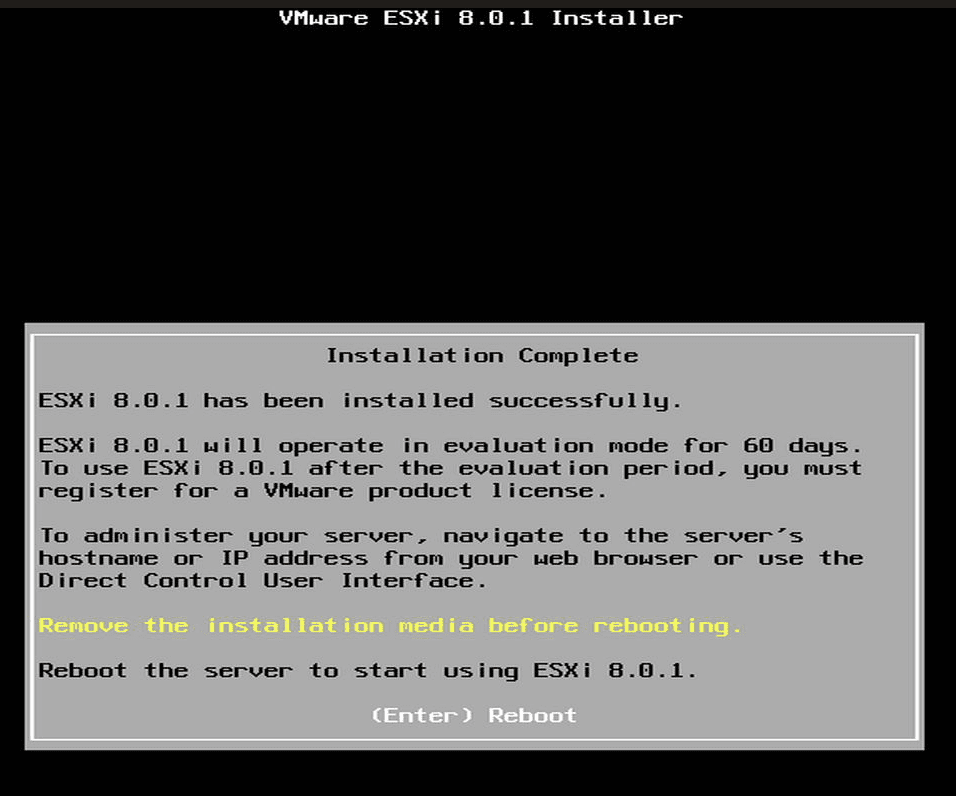

Installing vmware vsphere 8
Installing vmware vsphere 8

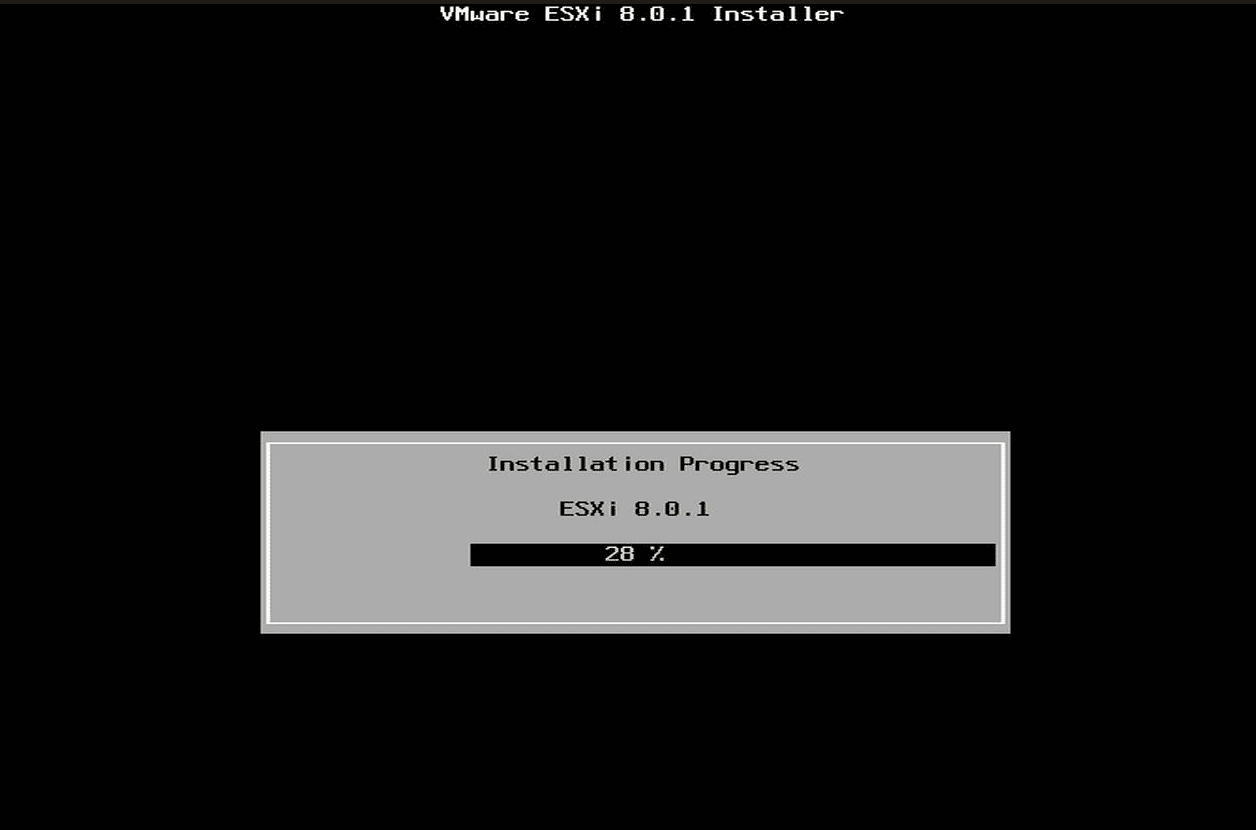

The installation of esxi 8 goes smoothly with the intel network adapters
The installation of esxi 8 goes smoothly with the intel network adapters

Proxmox or XCP-ng also have the network drivers out of the box for the Intel adapters. So, it makes this little mini PC great for any of the leading hypervisors ones are using in their home labs.

16 GB Max RAM or 32 GB?

In case you didn’t know, when you look at the documentation for the i3-N305, you will see the max RAM documented as 16 GB. However, those who tinker around with things will tell you the N305 can recognize 32 GB of RAM.

Since I had the Beelink EQ12 Pro coming, I pulled the trigger on 32 GB DDR5 4800 MHz modules as I know I can put these to good use in testing and in a unit that I settle on with DDR 5. So, in my opinion, it makes these little boxes even more desirable since you can squeeze 32 GB of memory into them, making them even better at running self-hosted services.

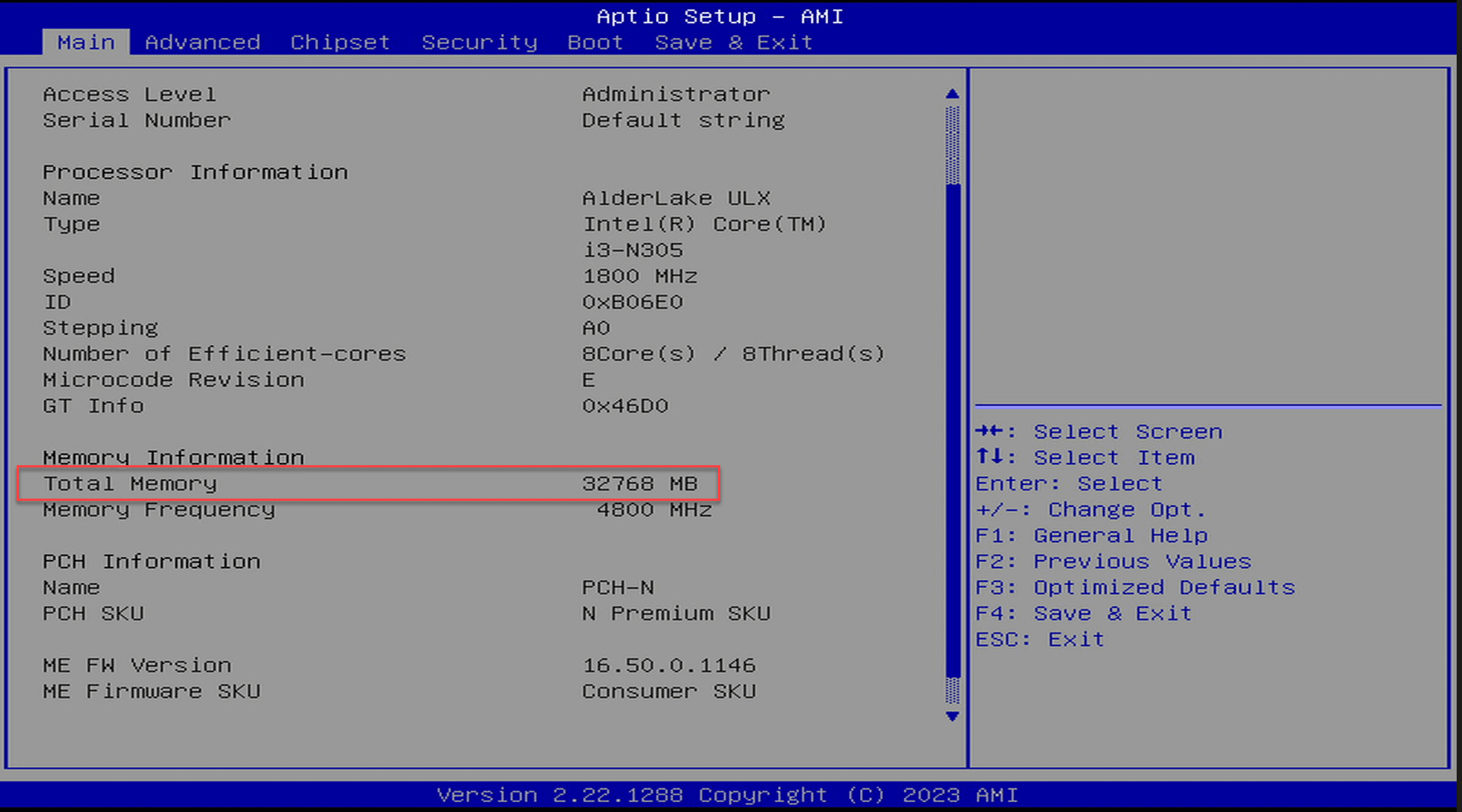

Below is a screenshot after I added the 32 GB Corsair 4800 MHz DDR 5 module.

It does accept 32 gigs of memory
It does accept 32 gigs of memory

Running Virtual Machines!

With 32 GB of memory and 8 cores, I wanted to see what this little mini PC could do in terms of running virtual machines. It definitely has the potential to be an Intel NUC replacement for the home lab on a budget.

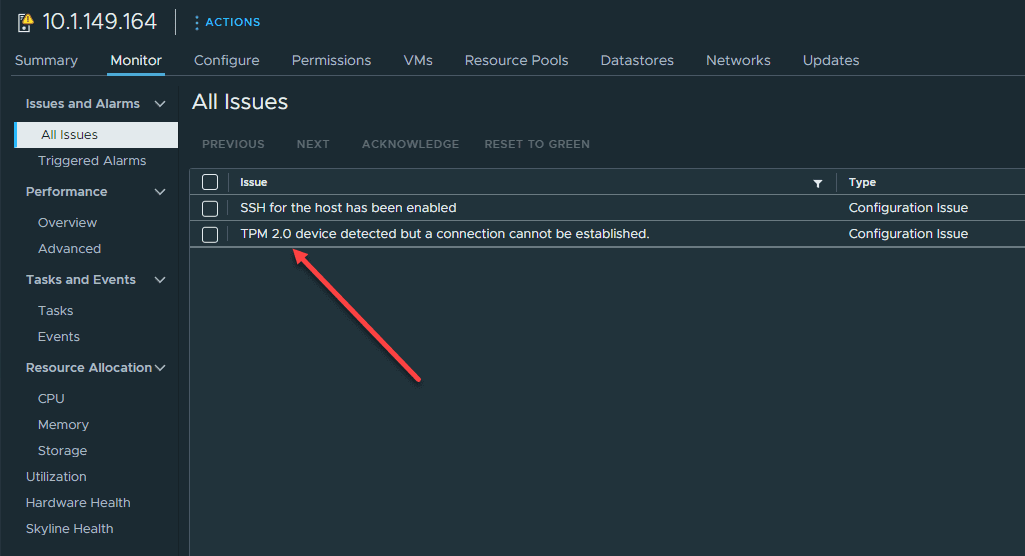

After loading up ESXi (since I can use Intel drivers :), I added the little host to my vCenter Server in the lab. All smooth sailing. I did see the TPM error that is expected.

William Lam has a good write up about this, describing the reason for the error. The TPM doesn’t operate correctly because fTPM uses a CRB interface, not the TIS/FIFO that ESXi needs. To eliminate the warnings and errors, turn off the TPM in the BIOS by going to Advanced -> Trusted Computing -> Security Device Support -> Disabled. Even without a physical TPM, you can still make use of vTPM.

Tpm warning in esxi 8
Tpm warning in esxi 8

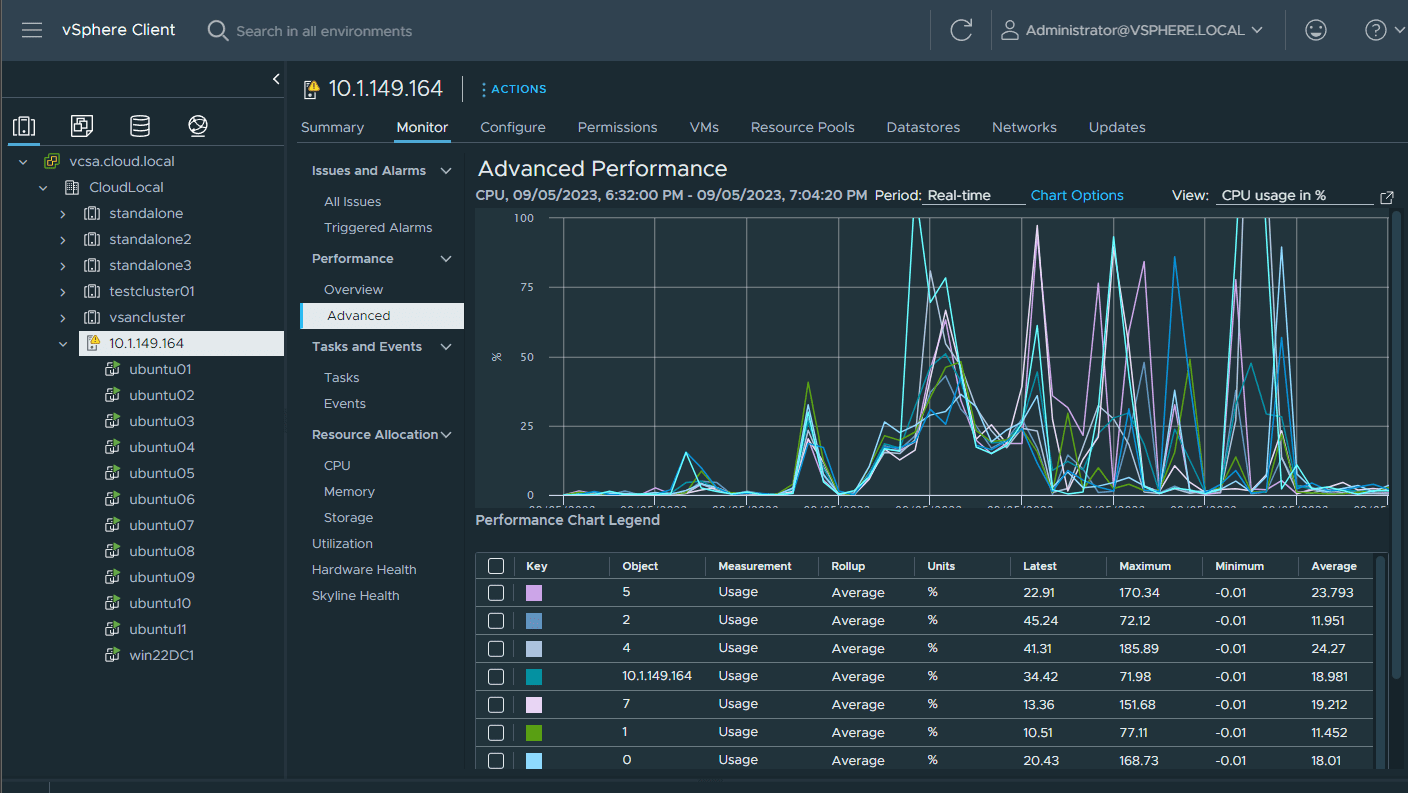

I started cloning over virtual machines and it doesn’t break a sweat as we get a dozen or so spun up.

Beginning to clone over vms
Beginning to clone over vms

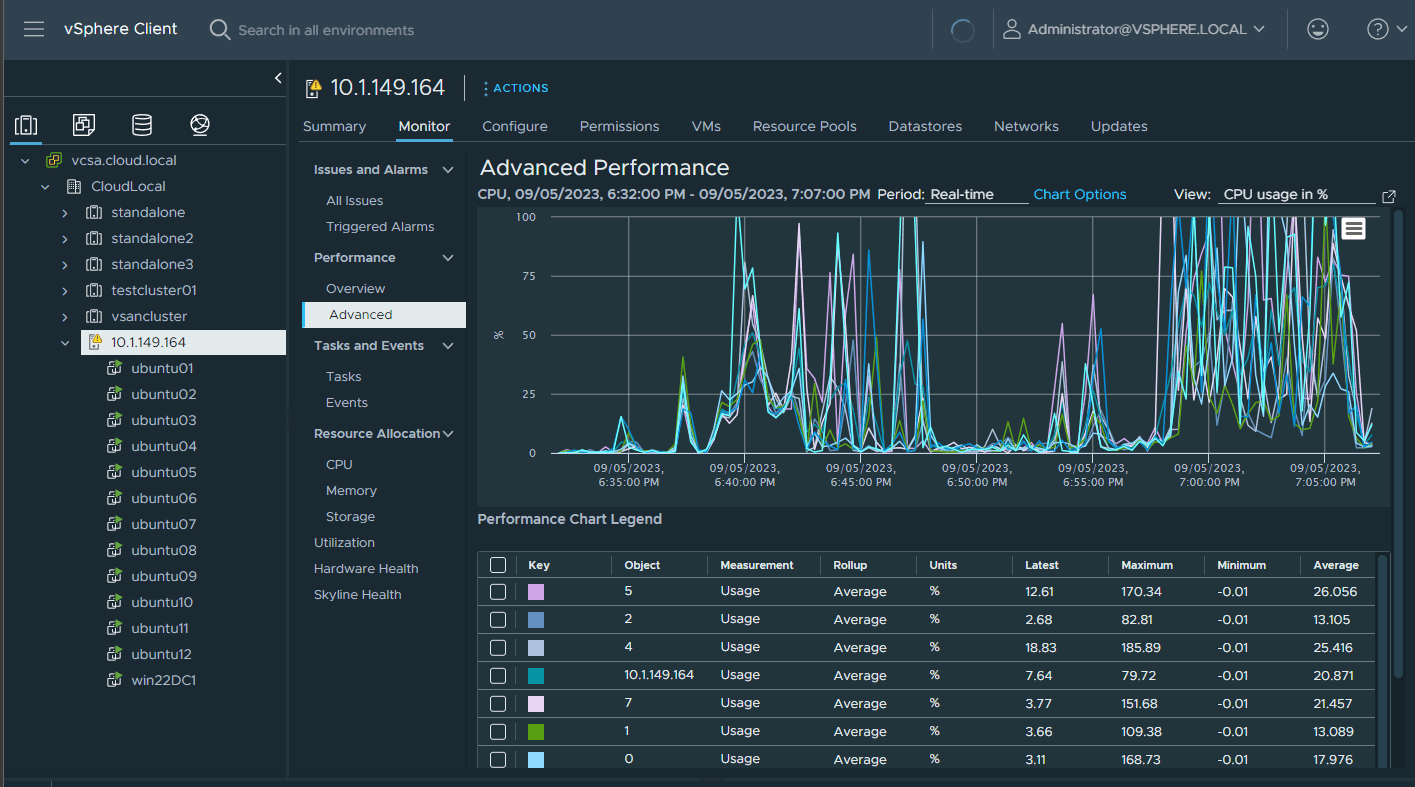

Another look at the CPU graph.

The cpu graph with a dozen vms
The cpu graph with a dozen vms

Memory usage continues to rise as expected as more VMs are cloned up.

2023 09 05 19 20 14
2023 09 05 19 20 14

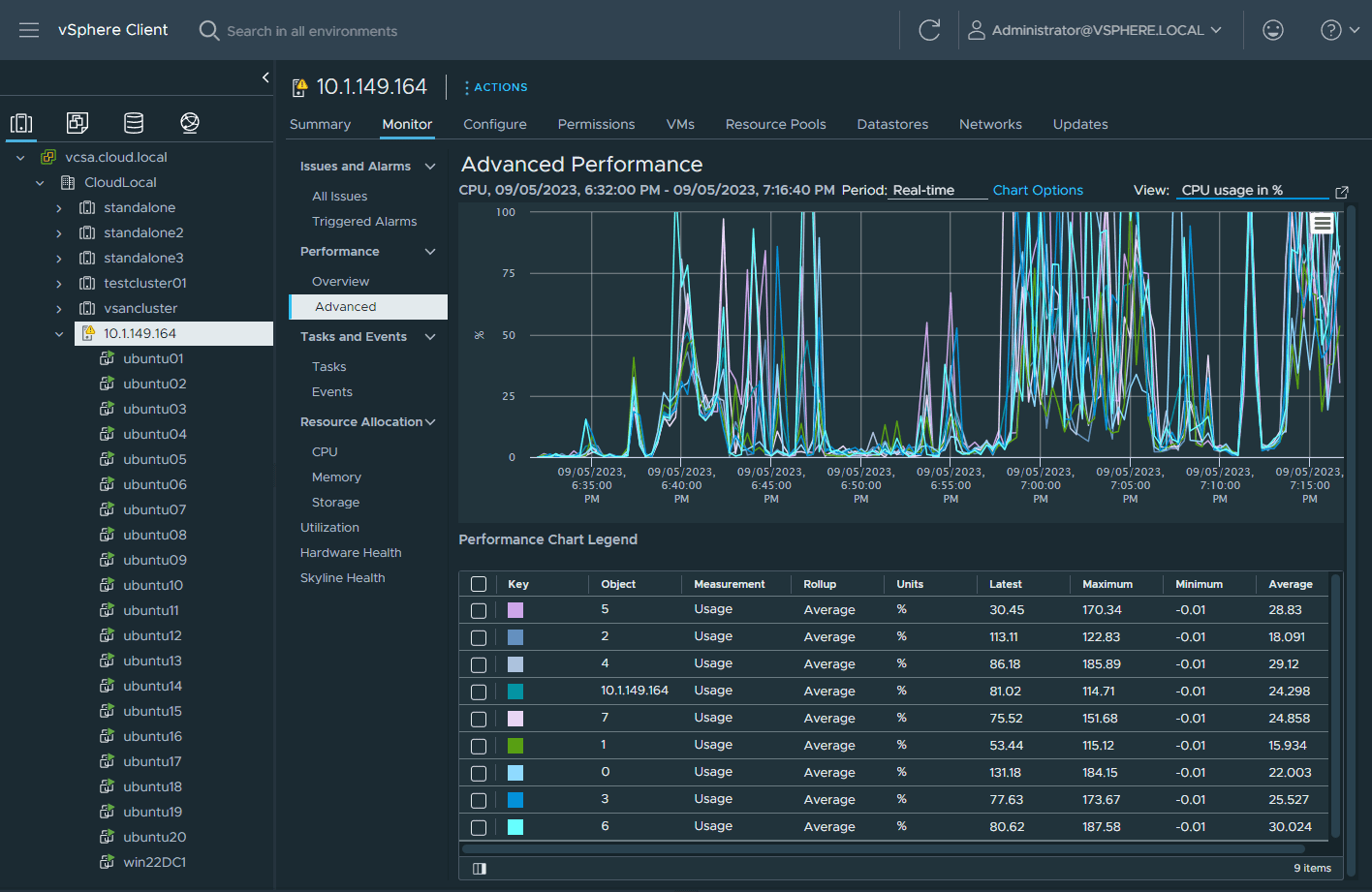

Finally I get to 21 virtual machines and the little PC is still holding its own.

Twenty one vms up and running
Twenty one vms up and running

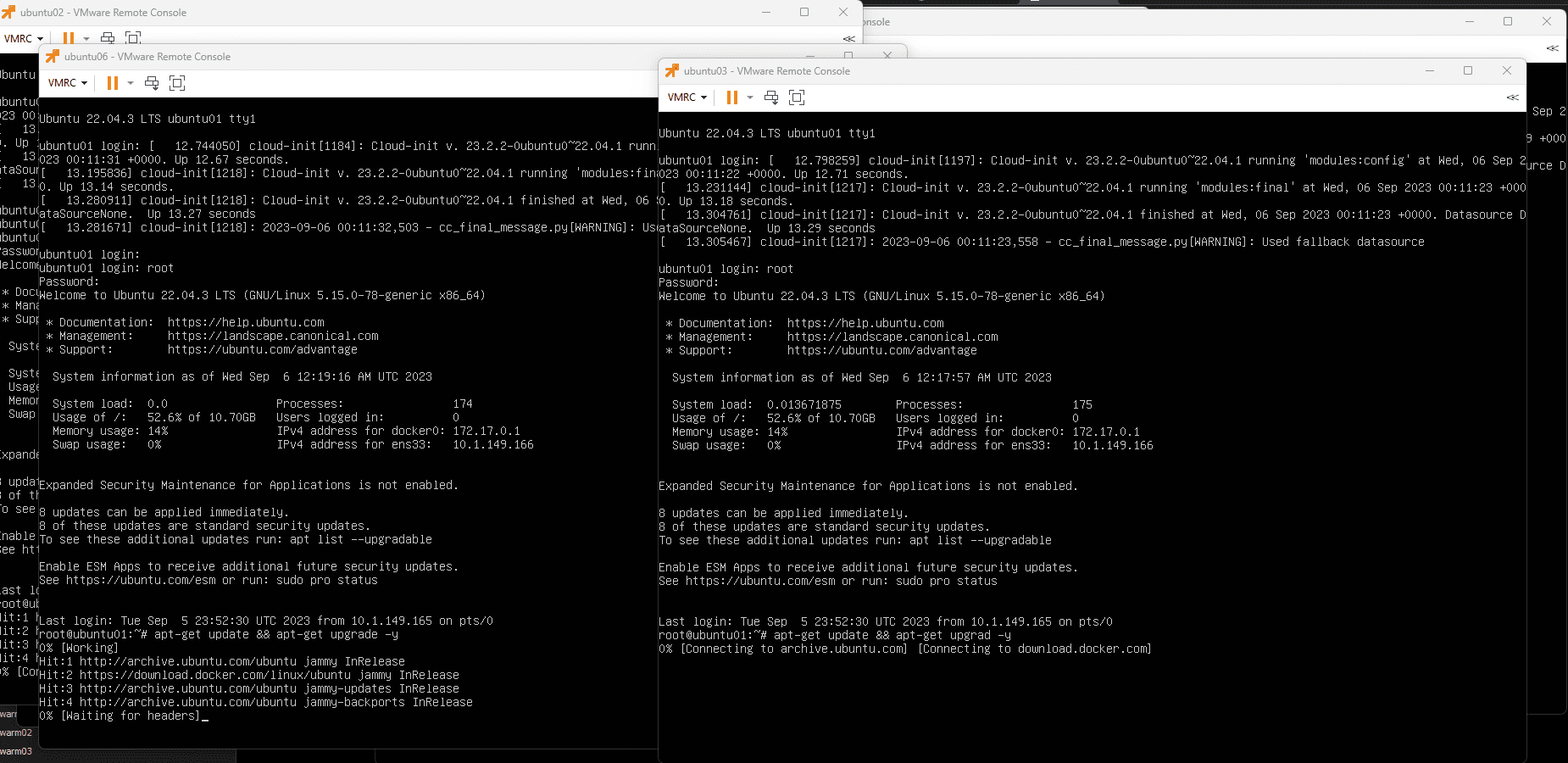

To simulate some real-world work I kick off updates on 6 of the Ubuntu Servers at once at the same time. I noticed a bit of laboring on the other virtual machines, but nothing that was just a show stopper.

Running ubuntu server updates at the same time
Running ubuntu server updates at the same time

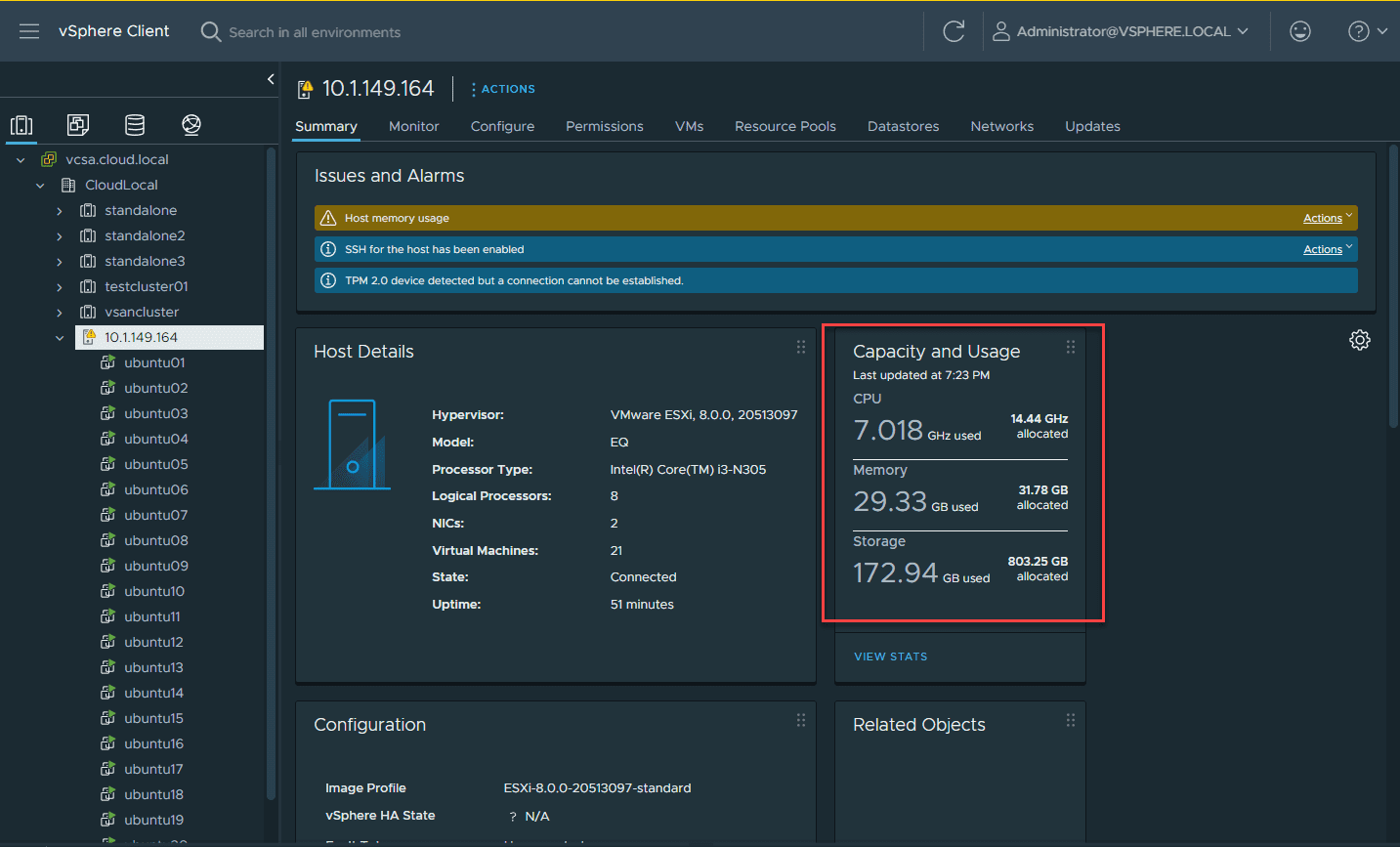

As you can see this is where I got to with the VMs, configured with 2 vCPUs and 2 GB of memory. I could have probably doubled the number of VMs by cutting this back to 1 GB of RAM for each as we still had CPU headroom.

Resource usage in the end
Resource usage in the end

Video overview

Wrapping up

I am really impressed with the little Beelink EQ12 Pro unit. It is more than capable of handling the role of a home server. The Intel i3-N305 and the 32 GB of advanced memory type DDR5 memory make this a great little unit with enough cores and memory headroom to run some real workloads and runs against other popular comparisons quite well.

Even with 21 VMs up and running and updates pulling down on 6 of them or so, the little box buzzed along quite well. I saw it hit between 27-30 watts at full load which is not bad!

If you are in search of a device that offers a blend of power, efficiency, and advanced features without burning a hole in your pocket, the Beelink EQ12 Pro might be the perfect fit, especially since you can buy them at Amazon and clip a $100 coupon to boot.

Subscribe to VirtualizationHowto via Email ๐Ÿ””

Enter your email address to subscribe to this blog and receive notifications of new posts by email.



Brandon Lee

Brandon Lee is the Senior Writer, Engineer and owner at Virtualizationhowto.com, and a 7-time VMware vExpert, with over two decades of experience in Information Technology. Having worked for numerous Fortune 500 companies as well as in various industries, He has extensive experience in various IT segments and is a strong advocate for open source technologies. Brandon holds many industry certifications, loves the outdoors and spending time with family. Also, he goes through the effort of testing and troubleshooting issues, so you don't have to.

Related Articles

13 Comments

    1. So in my haste to answer this question, I ordered a 48GB DDR5 SODIMM to test in my N100 based EQ12. It arrived today!
      I installed a stick of “Crucial 48GB 5600MT/s CT48G56C46S5” and successfully confirmed (nearly)48GB of available memory on Proxmox VE 8.0!
      Obviously 48GB is a bit overkill for the N100, but with a future N305 node, this could be a game changer!
      FYI the N305 EQ12 Pro is on Amazon for $389 – $100 coupon = $289 right now.
      Throw in the 48GB of RAM for $147 = $436 + taxes for a pretty powerful little HomeLab!

      1. Joe,

        That is fantastic news! Thanks so much for sharing your findings and definitely great to know this is possible. I think this is definitely a tick in the box of opting for DDR5 since the 48 GB kits are becoming available. Man that is awesome. Thanks again Joe.

        Brandon

        1. Thanks for doing these informative write-ups Brandon, I wouldn’t have pulled the trigger without following your progress. And of course, now I have an N305 EQ12 Pro on it’s way, with it’s pre-installed 16GB destined for my N100 EQ12, for a multi-node 12-core, 64 GB, 1TB, quad-2.5Gb/s, $650 HomeLab.
          My poor Turing Pi 2 is collecting dust while I still can’t get ahold of CM4s.

          1. Joe,

            That is awesome. Glad these are informative and helping those in the community who are looking to upgrade or get into home labs. I am definitely making the switch to a low powered home lab moving into next year with mini PCs. I have another couple of models coming in soon that will also be interesting write ups and testing, so stay tuned!

            Brandon

    1. Oversubscribing. He covers it somewhere, either in this article, or one of his N100 articles, but it’s a commonly understood concept. reserving 1-2 cores, 1-2 GB of RAM, doesn’t block off those resources from use by anyone else. It reserves them for potential use, kind of like a time share. The hypervisor knows that all of it’s VMs won’t be utilizing 100% of it’s resources simultaneously, so it allows multiple VMs to “share” the resources.

  1. Question for Joe – given that the EQ12 Pro is marked as being max 4800 MT/S for RAM, have you had any stability issues with the 48GB Crucial RAM at 5600? Have you had to tweak any voltage settings or anything for it to run consistently? Also, is your plan to do the same with the N305 node? I’m looking at doing something pretty similar and would love to draw on your experience to get this right. Thanks in advance.
