Easy SSL Certificates for Lab Environments

0

In a home lab environment, we often want to test various functionality as we would use in production or otherwise. Nowadays, SSL connectivity is for the most part the standard when it comes to connecting to any type of web interface, console, etc. For most applications, in a home lab we can most likely deal with the certificate warnings presented when it comes to browser connectivity. However, at times we may want to have true SSL connectivity without warnings or errors presented to truly test applications in the home lab environment by provisioning a root CA and having the ability to provision multiple certificates. Recently, I was working with a home lab installation of VMware Horizon View and wanted to install a true SSL certificate on the Horizon View Security Server installation. Instead of having to spin up a Windows domain based PKI or even Linux PKI of some sort, and all the prerequisites required, I wanted to be able to stand up a quick and dirty CA certificate server and be able to issue certificates from it. Let’s look at a really powerful little free utility that allows easy ssl certificates for lab environments.

Easy SSL Certificates for Lab Environments

I stumbled on a free utility that I think many may benefit from knowing about called Certificate Management Tool from Real Time Logic that allows quickly standing up a certificate authority, issuing root certificates, and also server certificates for your resources. It is a nifty little install that provides a web-based wrapper around OpenSSL and allows a quick and easy way to provision a PKI infrastructure of sorts for various testing purposes.  Let’s look at the installation process.

Installing Certificate Management Tool

The download of the Certificate Management Tool is a single executable – certmgr.install.exe.  Running the installer is intuitive and easy with only a couple of choices involving the installation directory, etc.

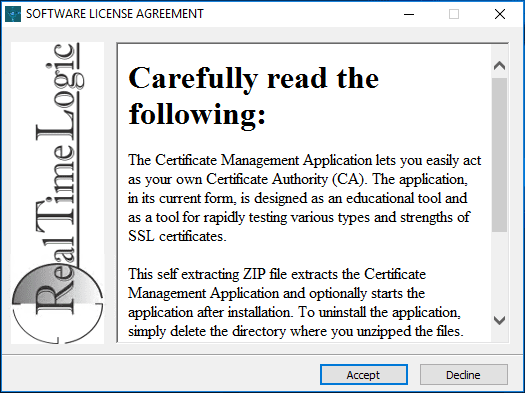

Beginning-the-Certificate-Managemet-Tool-installation Easy SSL Certificates for Lab Environments

Beginning the Certificate Management Tool installation

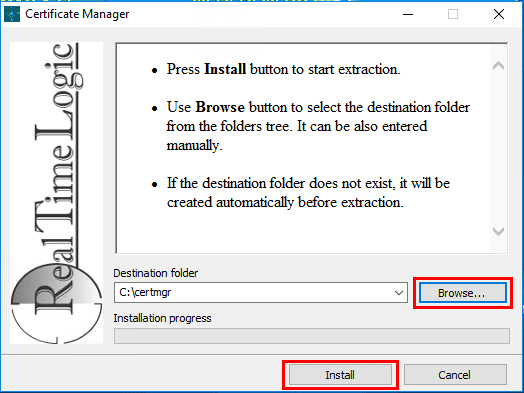

Browse-and-choose-the-installation-directory Easy SSL Certificates for Lab Environments

Browse and choose the installation directory

Directory-structure-of-the-Certificate-Management-Tool-after-installation Easy SSL Certificates for Lab Environments

Directory structure of the Certificate Management Tool after installation

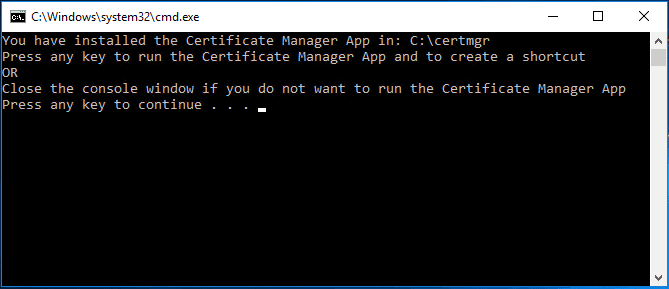

CMD-window-confirming-you-want-to-start-the-certificate-server Easy SSL Certificates for Lab Environments

CMD window confirming you want to start the certificate server

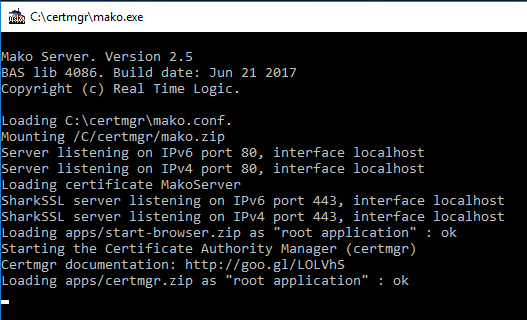

The-Certificate-Management-Tool-Mako-server-starts Easy SSL Certificates for Lab Environments

The Certificate Management Tool Mako server starts

Creating the Certificate Database and Root Certificate

After a few moments, the Certificate Management Tool will automatically launch a browser with the Create Certificate Database showing by default.  Here we select a DB Name for the certificate database and the type.  For type, I chose the RSA Certificate type.  The other option is Elliptic Curve Certificate which is a newer type of certificate that is smaller in size, but not as well supported.

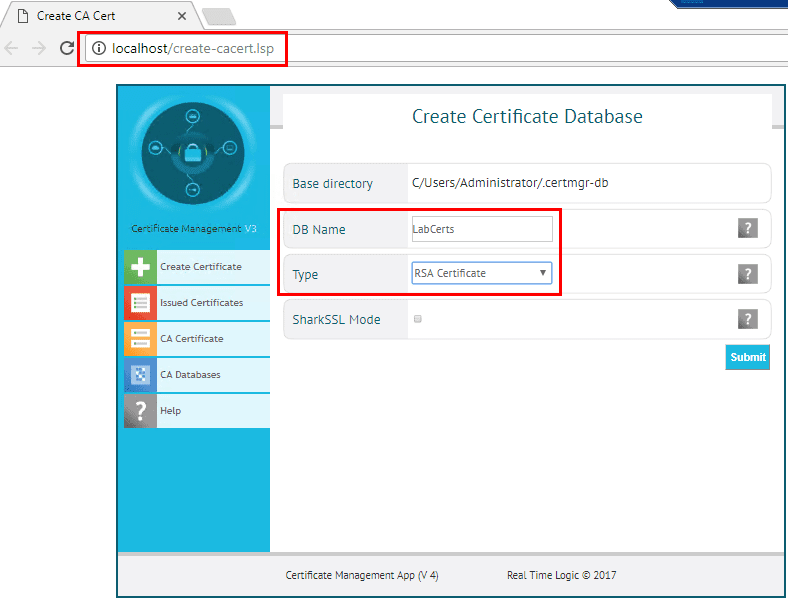

Web-browser-sessions-starts-and-begins-setting-up-the-certificate-database Easy SSL Certificates for Lab Environments

Web browser sessions starts and begins setting up the certificate database

In creating the root certificate, we can simply fill in the usual common information.  The main difference with the root certificate creation is we can simply place a descriptive phrase in the Common Name field.  When finished, click the Create Key & Certificate button.

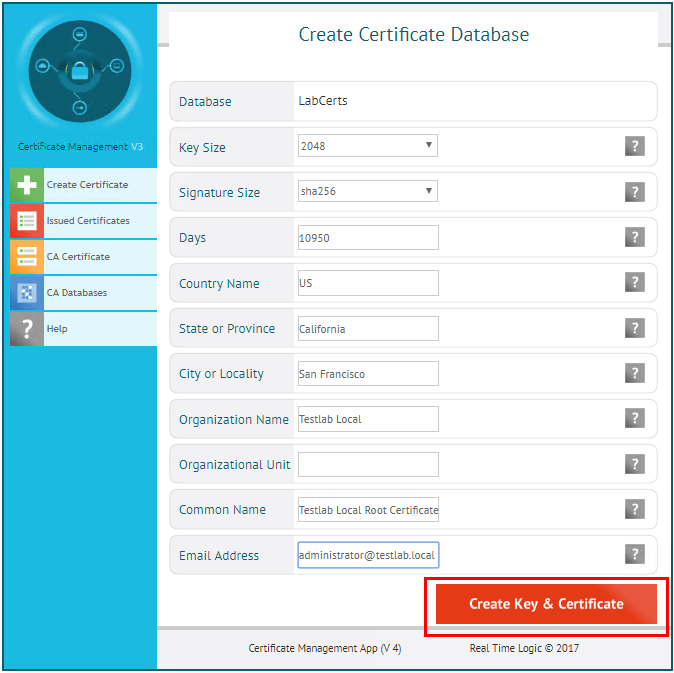

Create-the-root-certificate-for-the-SSL-certificate-authority Easy SSL Certificates for Lab Environments

Create the root certificate for the SSL certificate authority

A summary screen will display.  Click the CA Certificate Browser Installation Instructions to display a page where we can pull down the root certificate.

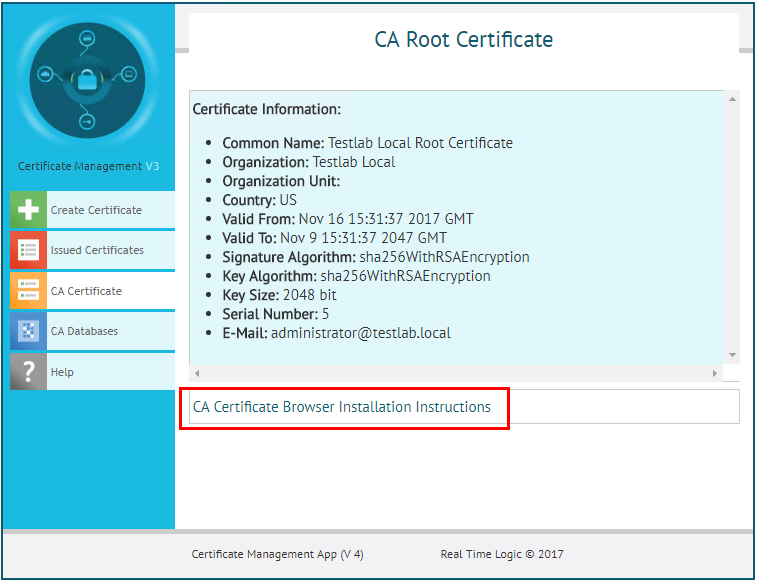

Choose-to-download-the-root-certificate Easy SSL Certificates for Lab Environments

Choose to download the root certificate

Download the root certificate by clicking the link.

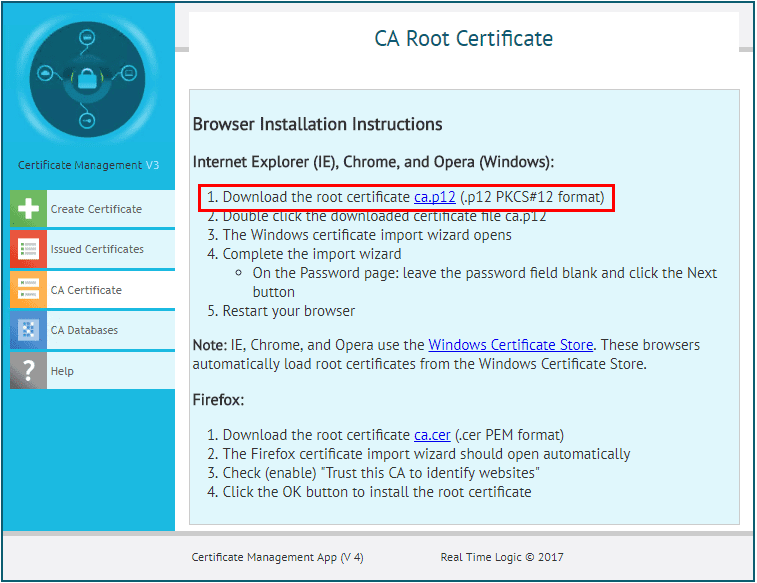

Click-the-link-to-download-the-root-certificate Easy SSL Certificates for Lab Environments

Click the link to download the root certificate

Below, I have downloaded the root certificate and placed in the root certificates store of the server.

Installing-the-root-certificate-on-a-lab-server- Easy SSL Certificates for Lab Environments

Installing the root certificate on a lab server

Creating a Server Certificate

Now, we can get started creating our server certificates.  Click the Create Certificate button on the left to display the form for creating our certificate.

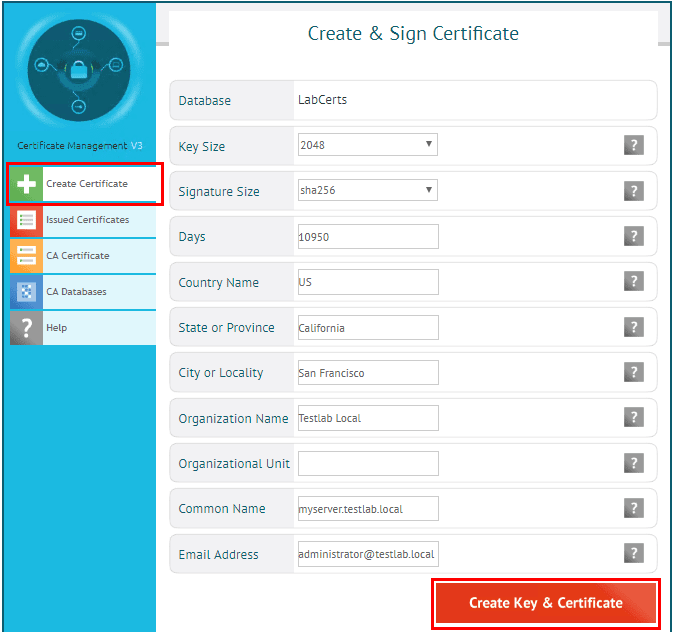

Create-a-new-server-certificate Easy SSL Certificates for Lab Environments

Create a new server certificate

The difference here is once the certificate is created, we don’t get a download option.

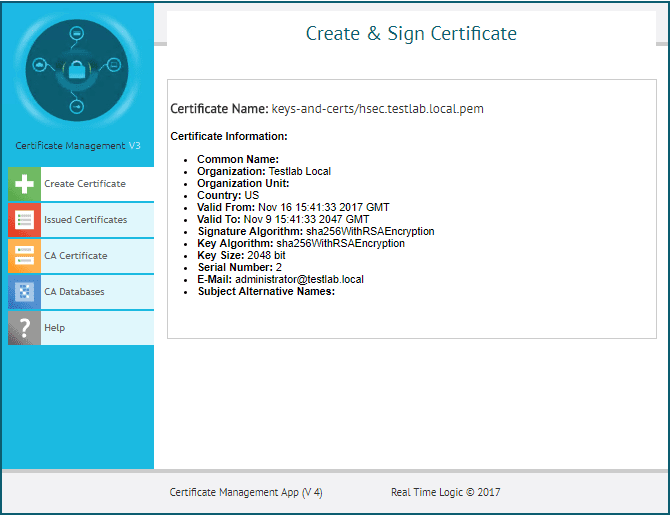

Server-certificate-is-created Easy SSL Certificates for Lab Environments

Server certificate is created

The server certificates are created in the profile directory of the user you are running it as under the .certmgr-db directory and then the name of your database you created. The subfolder called keys-and-certs houses server certificates that are created.  There will be a pair of files a .pem file which is the certificate file and a .key file which is the private key.

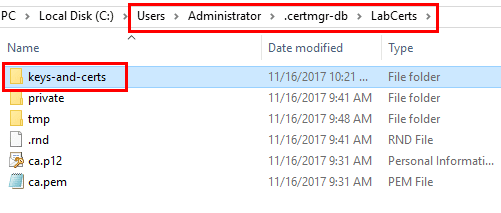

Server-certificates-are-created-in-the-profile-directory-of-the-certificate-database Easy SSL Certificates for Lab Environments

Server certificates are created in the profile directory of the certificate database

To easily create a .PFX file format that contains both the server key and the private key, we can run a simple OpenSSL command to combine the two files.  ***Note***, installing the Certificate Management Tool, installs OpenSSL in the installation directory.  We can use this to perform the combine operation.  Also, note below, I received a “unable to write random state” error, which is an OpenSSL error most likely related to permissions even though I am using an administrator prompt.  I am still looking into this, however, it did not affect the resulting PFX that worked perfectly.

openssl pkcs12 -export -in <path to .pem file> -inkey <path to .key file> -out <path of resulting .PFX>
Using-OpenSSL-to-create-a-PFX-file-containing-the-private-key Easy SSL Certificates for Lab Environments

Using OpenSSL to create a PFX file containing the private key

The-resulting-PFX-file-along-with-the-source-files Easy SSL Certificates for Lab Environments

The resulting PFX file along with the source files

Testing the Easy SSL certificate

After importing the resulting PFX file onto my server, which as mentioned above, is a Horizon Security server, I was able to test the browser session and it worked like a charm.  Below are a few screenshots of checking the certificate out from the browser as well as viewing the certificate itself along with the certification path.

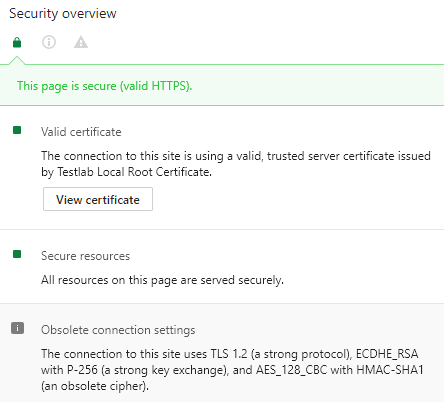

Chrome-reports-the-SSL-certificate-is-valid Easy SSL Certificates for Lab Environments

Chrome reports the SSL certificate is valid

Viewing-the-resulting-certificate Easy SSL Certificates for Lab Environments

Viewing the resulting certificate

SSL-Certificate-certification-path-looks-good-also Easy SSL Certificates for Lab Environments

SSL Certificate certification path looks good also

Thoughts

The Certificate Management Tool is a great little utility that allows creating Easy SSL Certificates for Lab Environments.  Using self-signed certificates is okay in most cases in lab environments, however, the Certificate Management Tool allows quickly spinning up your own root CA and issuing certificates for testing which greatly shortcuts the process to standing up your own PKI infrastructure.
