Setup VMware Horizon View Connection Server vCenter Connection

Moving forward looking at VMware Horizon View, let's take a look at how to Setup VMware Horizon View Connection Server vCenter Connection and Composer link

In continuing our setup of the View Connection Server, let’s take a look at how to setup VMware Horizon View Connection Server vCenter Connection. The vCenter Server connection provides the connection server hooks into vCenter as well as gives us the ability to define our Composer server as well.

Setup VMware Horizon View Connection Server vCenter Connection

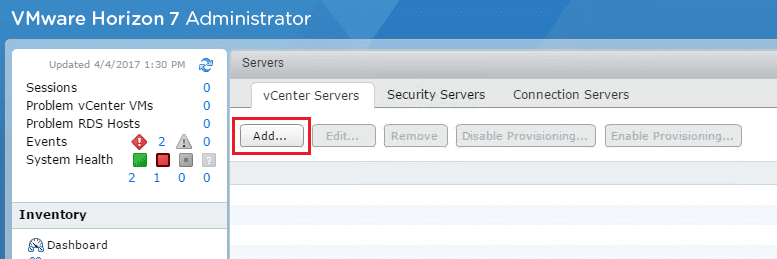

The first thing we need to do to setup our connection to vCenter as well as our Composer server is navigate toย View Configuration >> Servers >> vCenter Serversย >>ย Add.

connectsrv01

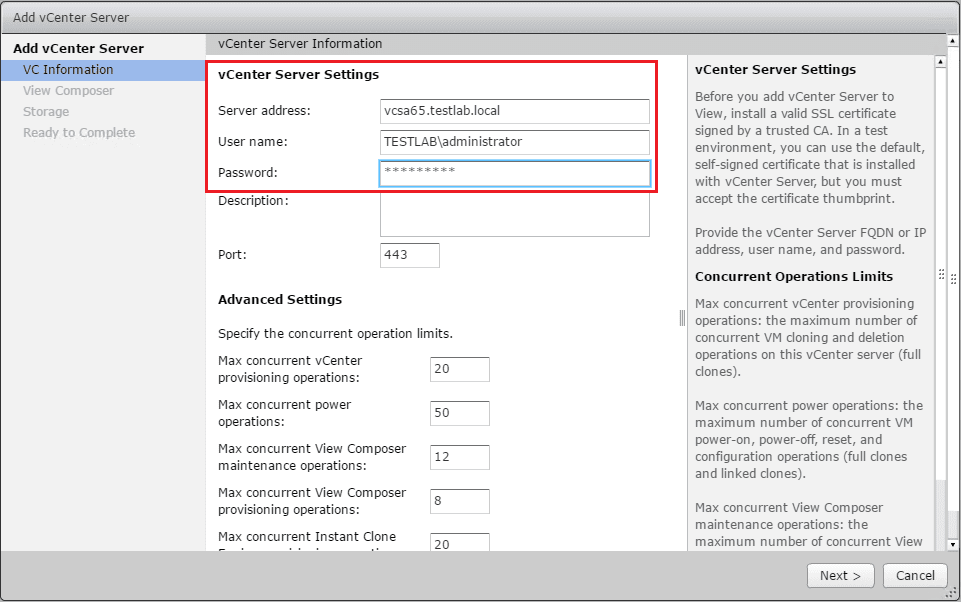

Enter your vCenter Server Address as well as the user name and password to authenticate with vCenter.

connectsrv02

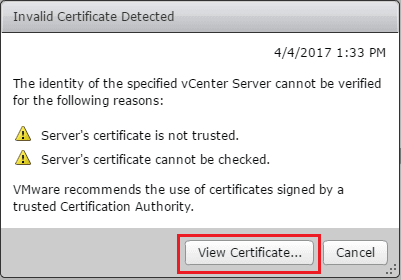

Here if using self signed certificates, you will see a certificate warning. ย To move forward and actually accept the certificate, you have to click theย View Certificate button.

connectsrv03

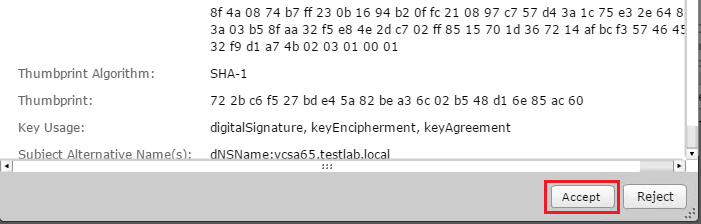

At the bottom of the “view certificate” window, you canย Accept the certificate.

connectsrv04

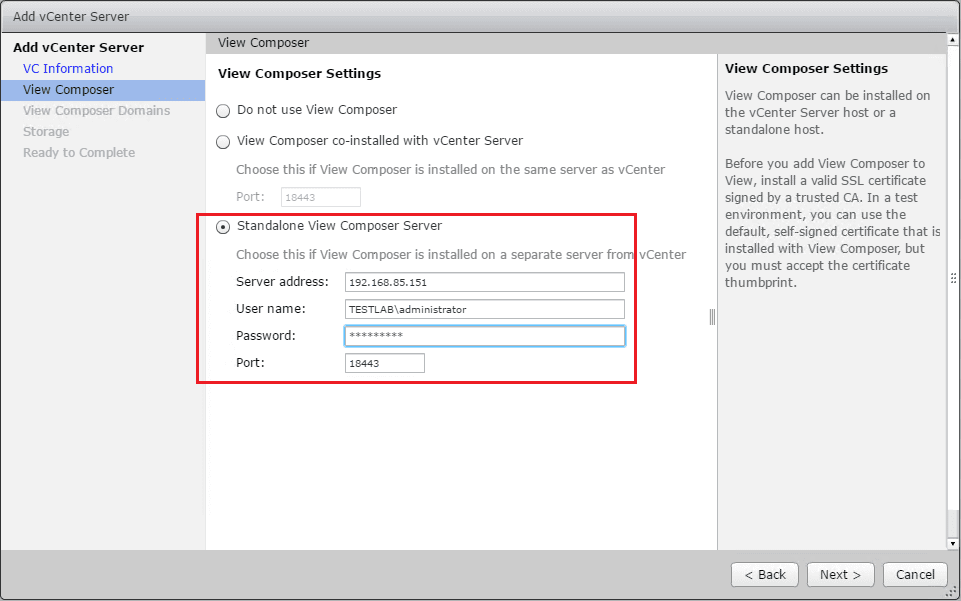

Next, we configure theย View Composer Settings. ย I am choosing to use aย Standalone View Composer Server since I have that installed on a separate VM. ย View Composer is needed for linked clones and instant clone technology.

connectsrv05

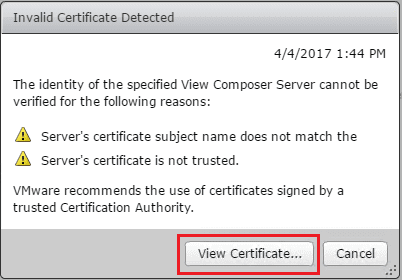

Again we have to use the same trick to view and accept the certificate.

connectsrv06

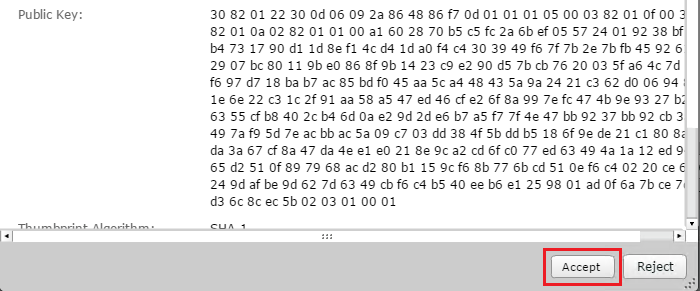

Accept the View Composer certificate.

connectsrv07

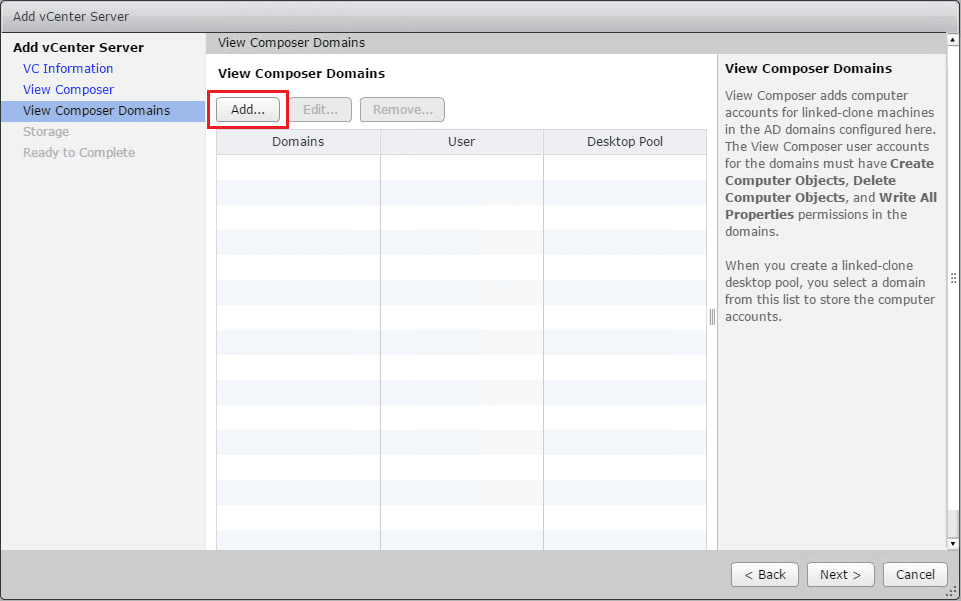

On theย View Composer Domains, we can configure Active Directory domains here t have the View Composer to automatically be able to add computer accounts to.

connectsrv08

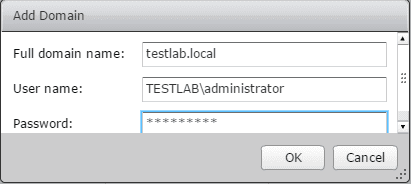

As shown in the screenshot above, you need to use a user who has theย Create Computer Objects,ย Delete Computer Objects, andย Write All Propertiesย permissions in the domains. ย For the lab, I am simply using my administrator account.

connectsrv09

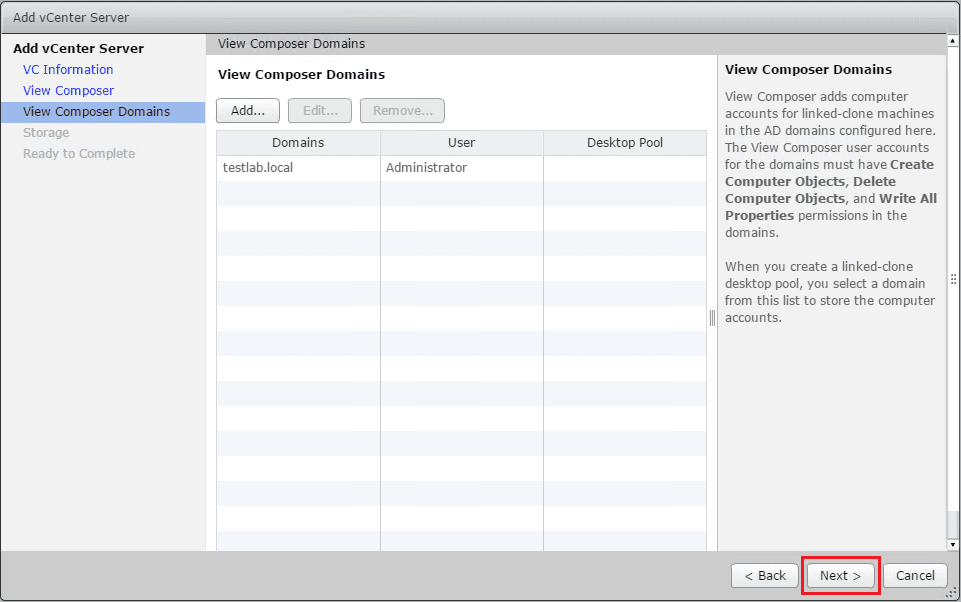

Now we have added a Composer Domain.

connectsrv10

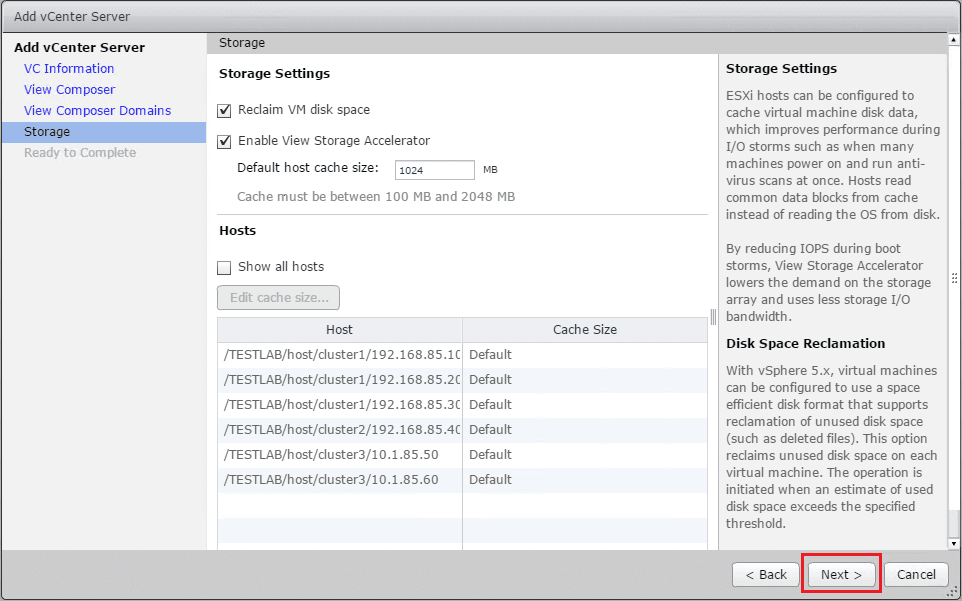

On theย Storage Settings screen, ESXi hosts can be configured to cache virtual machine disk data to improve performance during boot storms, etc. ย The storage accelerator lowers the demand on the storage subsystem. ย If you receive an error “View Storage Accelerator is unavailable because vSphere 5.0 or higher is required” you need to make sure the user you are using for your vCenter connection is correct or has the right permissions.

connectsrv11

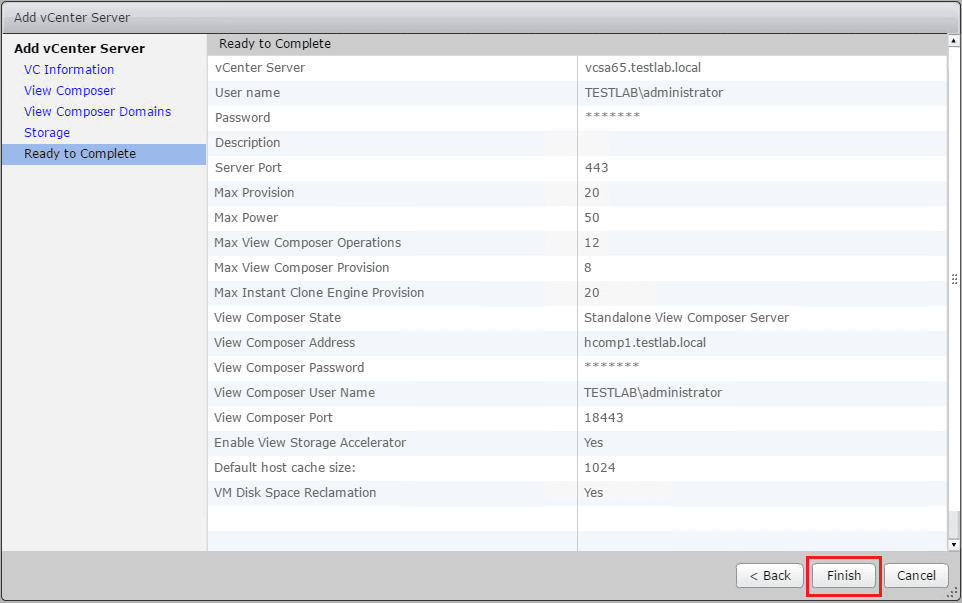

Finally we see theย Ready to Complete screen that shows a summary of our settings.

connectsrv12

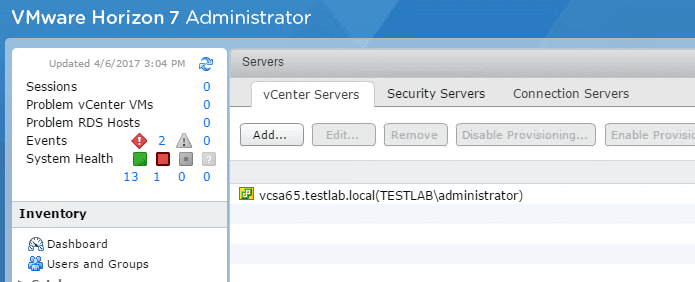

You should now see your vCenter connection listed under theย vCenter Servers tab in your Servers configuration.

connectsrv13

Thoughts

Here we have covered how toย Setup VMware Horizon View Connection Server vCenter Connection and link the connection server with your View Composer server. ย Stay tuned as we delve deeper into VMware Horizon View!

Part 1 – Installing VMware Horizon View 7.1 Connection Server
Part 2 – VMware Horizon View 7.1 Composer Install
Part 3 – Setup VMware Horizon View Connection Server vCenter Connection
Part 4 – Optimize Windows 10 for VMware Horizon View 7.1
Part 5 – Create VMware Horizon View 7.1 Desktop Pool
