Kubernetes

Kubectl Port Forwarding: Easy Kubernetes Ports Access

Kubectl, a vital command-line tool for managing Kubernetes clusters, has many features to streamline operations and provide quick access to cluster resources. One powerful capability of the kubectl port forward command, allowing port forwarding from a local port to a port within a Kubernetes pod. This kubectl port forwarding command establishes a secure tunnel between your local machine and the cluster, unlocking internal resources and services access.

What is the Kubectl command?

Before diving into the details of kubectl port forward, it’s essential to understand what kubectl is. Kubectl is a powerful command-line tool developed by Kubernetes. It serves as the primary method of communication between a user and their Kubernetes cluster. Kubectl commands enable various functions, from deploying applications and inspecting resources to viewing logs and managing cluster configurations.

The kubectl tool interacts with the Kubernetes API Server, the primary interface for managing all aspects of the Kubernetes cluster. The command-line tool sends requests to the API Server, performing the requested operation or fetching the requested data.

The term kubectl is derived from two words: kube, short for Kubernetes, and ctl, short for “control”. This straightforward naming convention accurately represents the command’s purpose – controlling your Kubernetes cluster.

Examples using the kubectl command line tool

A typical kubectl command follows the syntax:

kubectl [command] [TYPE] [NAME] [flags]

Here, the command refers to the operation you wish to perform (like get, describe, delete), TYPE is the resource type, NAME is the resource’s name, and flags are optional extra parameters you can define.

If you want to view information about your Kubernetes cluster nodes, you can use the following command:

kubectl get nodes

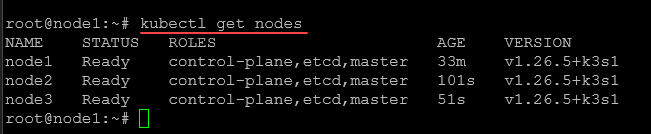

Kubectl get nodes command
Kubectl get nodes command

Creating an NGINX pod kubectl command.:

kubectl create depoy nginx --image nginx
Deploy NGINX using kubectl
Deploy NGINX using kubectl

You can check the deployment with the command below:

kubectl get deployment -A

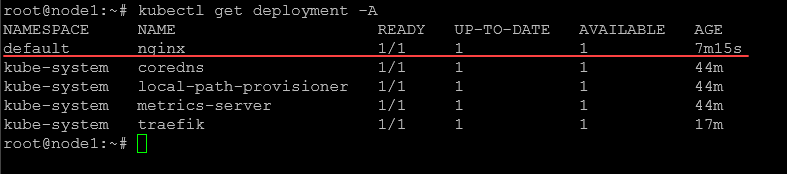

Looking at the deployment using kubectl
Looking at the deployment using kubectl

For instance, if you want to get details about a pod named my-pod, you would use the following command:

kubectl get pod my-pod

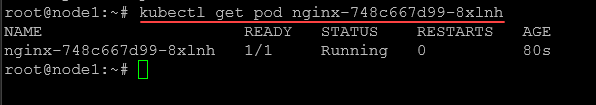

Kubectl get pod in a deployment
Kubectl get pod in a deployment

In the context of this article, we’re focusing on the port-forward command of kubectl. It’s one of the many powerful commands kubectl offers, enabling users to forward one or more local ports to a pod. This command is handy when accessing specific applications or services running on pods inside the Kubernetes cluster from your local machine.

Remember, whether you’re debugging applications, managing resources, or monitoring your cluster’s health, kubectl is the Swiss Army Knife at your disposal. It’s an indispensable tool for anyone managing or interacting with Kubernetes clusters.

How does Kubernetes Port Forwarding Work?

Kubernetes port forwarding works as a technique enabling secure communication with specific pods in a Kubernetes cluster. The Kubernetes API server establishes this connection, creating a single HTTP connection that forwards traffic from a designated local port to a specified pod within the cluster via the cluster IP service. So, you configure an IP address and port number to which traffic will be forwarded into the K8s cluster.

When executing the port forward command, a conduit for data transfer forms between your local machine and the chosen pod, making this a versatile tool for accessing a Kubernetes service from your local network.

Importantly, this eliminates the necessity for the service to be accessible from the public internet, which provides an advantage in certain scenarios, such as debugging applications or accessing services not publicly available.

Kubectl Port Forward Command Syntax

Mastering the kubectl port forward command requires understanding its basic syntax:

kubectl port forward TYPE/NAME [LOCAL_PORT:]REMOTE_PORT

The TYPE/NAME in the above command signifies the target resource name, be it a pod, service, or deployment name. LOCAL_PORT is the port on your local machine, whereas REMOTE_PORT is the port on the target pod or service in the Kubernetes cluster.

Interestingly, multiple ports can be forwarded concurrently by specifying different ports separated by a space within the command. Here’s an illustrative command: kubectl port forward deployment/myapp 5000 6000. This command implies forwarding local ports 5000 and 6000 to corresponding ports on the pods created by the myapp deployment.

Exploring Real-World Applications of Kubectl Port Forward

The kubectl port forward command is an indispensable tool for accessing services within a Kubernetes cluster from a local machine. By establishing a connection between a specific port on your local system and a port in the cluster, one can directly interact with a service as if it was running locally.

For instance, suppose there’s a web server operating within a pod in the Kubernetes cluster. Running the kubectl port forward command and specifying the pod name and the necessary ports enables you to forward traffic from your local machine to this web server.

As such, you can access the server without exposing it to the public internet – an invaluable feature for services needing protection from outside access.

Another practical application of port forwarding is when you need to debug applications within the Kubernetes cluster. The command facilitates direct interaction with the running pods, making it an efficient tool for understanding the application’s behavior without exposing it to the outside world.

Insights into Kubernetes API Server’s Role in Port Forwarding

The Kubernetes API server plays a pivotal role in port forwarding. By establishing a single HTTP connection, it enables traffic from a specific port on your local machine to be forwarded to a designated port within a pod in the Kubernetes cluster. This mechanism provides a secure, controlled, and straightforward way to access internal resources on specific cluster ports.

Understanding the Potential of Port Forwarding with Services and Deployments

While kubectl port forward primarily focuses on forwarding ports to pods, it’s also possible to use this command to access Kubernetes services and deployments. By using the kubectl port forward svc/[service-name] or kubectl port forward deploy/[deployment-name] command structure, you can quickly access services or deployments within the cluster from your local machine.

For example, to forward traffic to a service named my-service that’s listening on port 8080, the command would be the following:

kubectl port forward svc/my-service 8080:80

Similarly, for a deployment named my-deployment running on the same port, the command would be the following:

kubectl port forward deploy/my-deployment 8080:80
Kubectl port forwarding to a deployment
Kubectl port forwarding to a deployment

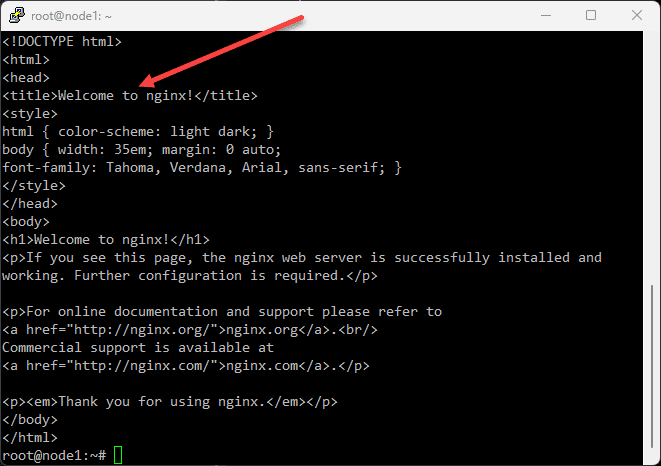

Curling the NGINX web page that is port forwarded
Curling the NGINX web page that is port forwarded

These examples highlight how Kubernetes port forwarding can facilitate access to different resources within the cluster, making it an essential tool for any Kubernetes user.

Safeguarding Your Connection – The Secure Tunnel

The kubectl port forward command establishes a secure tunnel between your local machine and the Kubernetes cluster, ensuring that your connection to internal resources is protected. This feature is an added advantage when dealing with sensitive data or applications, as it prevents exposure to the public internet.

When you execute the kubectl port forward command, all the HTTP traffic that passes through the tunnel is encrypted, providing a secure pathway for data transfer. This layer of security is crucial in today’s world of increasing cybersecurity threats.

Decoding the Essentials of Port Forwarding for Debugging Applications

Debugging applications running within a Kubernetes cluster can be challenging, especially when the application is not exposed to the public internet. However, with the kubectl port forward command, you can connect to the application via a specific port on your local machine.

This feature allows you to access application logs, interact with HTTP endpoints, or even connect a debugger to the application, all from the comfort of your local machine. The ability to forward traffic to a specific pod provides a unique advantage when troubleshooting applications, making kubectl port forward a must-know command for any developer working with Kubernetes.

Frequently Asked Questions About Kubectl Port Forward and Kubernetes

Can I Use Kubectl Port Forward for Multiple Ports at Once?

You can use the kubectl port forward command to forward multiple ports simultaneously. You simply specify all the port pairs (local:remote) in the command. For example: kubectl port forward pod/my-pod 8080:80 8081:81.

How Does Kubectl Handle Version Compatibility with Different Kubernetes Clusters?

Kubectl handles version skew, the difference between the versions of the kubectl client and the Kubernetes API server. It maintains compatibility with multiple versions of the Kubernetes API server, usually within one minor version difference of the client.

How Do I Stop the Kubectl Port Forward Process?

You can stop the kubectl port forward process by using the Ctrl+C command in the terminal window where the process is running. This action terminates the port forwarding.

Can I Access a Service Running in a Specific Namespace Using Kubectl Port Forward?

Yes, you can access a service running in a specific namespace. To do this, append the namespace to the resource name in the kubectl port forward command. For example: kubectl port forward svc/my-service -n my-namespace 8080:80.

What Happens If the Pod I’m Forwarding Ports to Fails?

The port forwarding operation will also fail if the targeted pod fails or restarts. However, you can re-establish the connection by re-running the kubectl port forward command once the pod is back online.

How Secure is Kubectl Port Forward?

The kubectl port forward command creates a secure tunnel between your local machine and the Kubernetes cluster. All traffic passing through this tunnel is encrypted, ensuring the secure transmission of data.

Can I Use Kubectl Port Forward to Connect to Databases Running Inside the Cluster?

Yes, kubectl port forward can be a handy tool for connecting to databases running inside your Kubernetes cluster for debugging or testing. However, port forwarding is not recommended for ongoing production database connections.

Is Kubectl Only Used with Kubernetes?

While kubectl is designed to interact with Kubernetes, its use isn’t limited to Kubernetes alone. Kubectl can also be used with any system that implements the Kubernetes API, such as OpenShift.

Remember, the best way to master kubectl port forward and other Kubernetes concepts is by practicing and experimenting in a safe environment. Happy exploring!

Wrapping up

kubectl port forward is a critical tool that opens up a world of possibilities for accessing and managing resources within Kubernetes clusters. From establishing a secure tunnel for data transfer to providing a quick way to access services and debug applications, this command-line tool is a crucial asset in any Kubernetes practitioner’s toolkit.

While the concepts may seem complex initially, practice and command familiarity simplify managing Kubernetes clusters. Remember, keeping your Kubernetes version updated is essential to take advantage of the latest security and performance improvements.

With the kubectl port forward, the Kubernetes cluster’s internal resources are just a command away. So, power up your terminal window and explore your Kubernetes cluster services at will. Happy Kubernetes-ing!
