Upgrade vRealize Automation with vRealize Suite Lifecycle Manager vRSLCM

Upgrade vRealize Automation with vRealize Suite Lifecycle Manager vRSLCM. A look at how to upgrade vRA step-by-step

Highlights

  • Let’s look at how to upgrade vRealize Automation with vRealize Suite Lifecycle Manager vRSLCM, as it provides a straightforward way to upgrade your vRA environment to the latest version.
  • 6 onlyAzure properties under protectedSettings is now encryptedAllow global configuration of memory allocation limitsSupport change owner Day2 action for single user that is part of an AD groupSupport file upload component in Custom FormsEnhance day-2 operations for TKGs clusters- Update K8s version, Update Tanzu Cluster VM classes, Scale worker nodesApproval policy now includes multi-level approvalsProvisioning now supports an approval policy with limit > 2 daysRequest ID is now displayed in deployment request historyDisk resizing and VM tagging – Scale and minor feature fixes in vRA/VCD integrationCustom forms supports workflows with legacy presentations from vRO java clientAbility to provision NSX-T On-Demand VLAN Segments – VCT supportCustom Naming has been revamped to include expanded functionality.
  • You may wonder, why do I need to upgrade to the latest version of vRealize Automation.

I have been doing a bit of upgrading and updating the home lab environment recently. One of the solutions that I run in my VMware-powered home lab environment is vRealize Automation. I have this, and my vRealize Operations Manager environments managed and maintained with vRealize Suite Lifecycle Manager (vRSLCM). Let’s look at how to upgrade vRealize Automation with vRealize Suite Lifecycle Manager vRSLCM, as it provides a straightforward way to upgrade your vRA environment to the latest version.

What is vRealize Suite Lifecycle Manager (vRSLCM)?

If you are not familiar with vRealize Suite Lifecycle Manager (vRSLCM), you need to be. If you run many of the vRealize Suite solutions in your home lab environment or production, vRSLCM makes managing the lifecycle state of these solutions much easier. You can use vRSLCM to deploy these solutions initially, onboard solutions you have already provisioned manually (using import), and then manage the lifecycle of these solutions using the built-in patching and upgrading functionality.

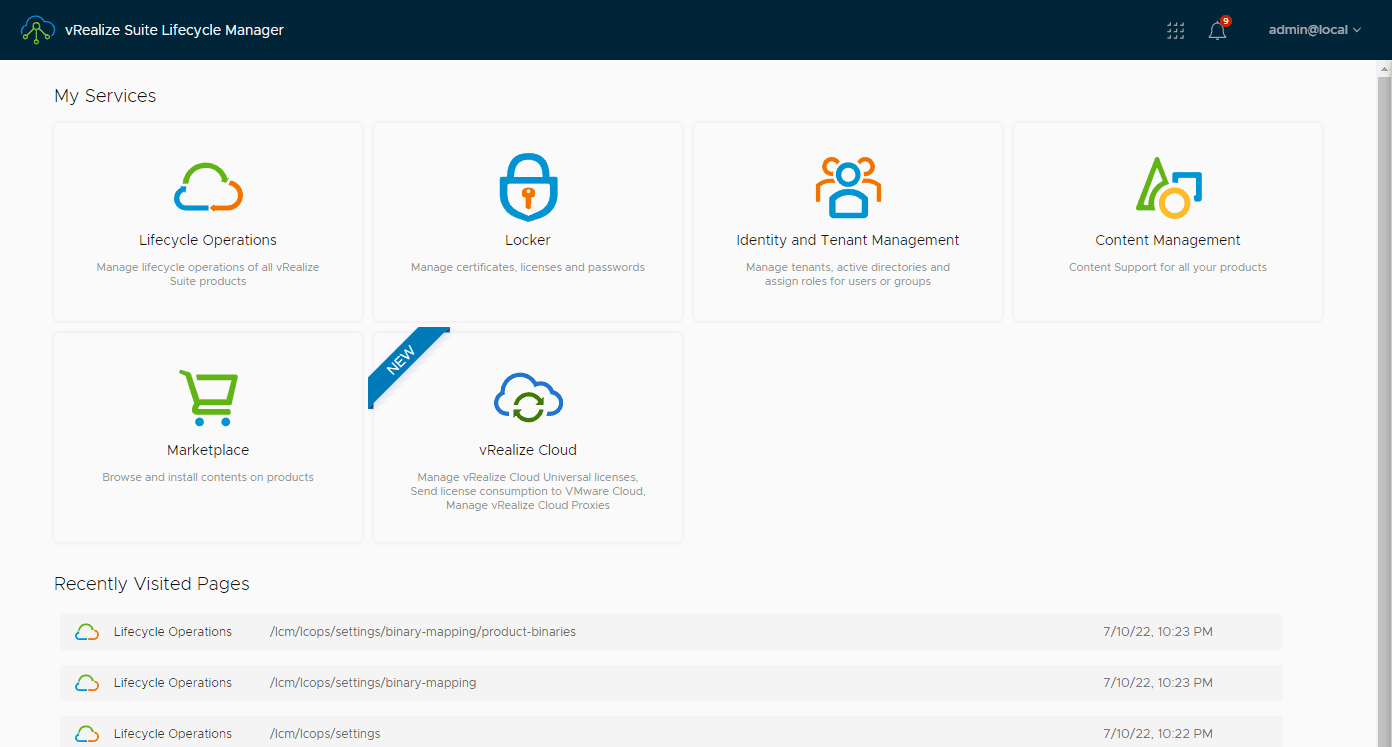

vRealize Suite Lifecycle Manager provides automated lifecycle operations
vRealize Suite Lifecycle Manager provides automated lifecycle operations

New Features of vRealize Automation 8.8

You may wonder, why do I need to upgrade to the latest version of vRealize Automation? It contains many great new features, including the following:

  • vRA Migration Assistant supports vRA 7.6 only
  • Azure properties under protectedSettings is now encrypted
  • Allow global configuration of memory allocation limits
  • Support change owner Day2 action for single user that is part of an AD group
  • Support file upload component in Custom Forms
  • Enhance day-2 operations for TKGs clusters- Update K8s version, Update Tanzu Cluster VM classes, Scale worker nodes
  • Approval policy now includes multi-level approvals
  • Provisioning now supports an approval policy with limit > 2 days
  • Request ID is now displayed in deployment request history
  • Disk resizing and VM tagging – Scale and minor feature fixes in vRA/VCD integration
  • Custom forms supports workflows with legacy presentations from vRO java client
  • Ability to provision NSX-T On-Demand VLAN Segments – VCT support
  • Custom Naming has been revamped to include expanded functionality

You can read the full vRealize Automation 8.8 release notes here:

Upgrade vRealize Automation with vRealize Suite Lifecycle Manager vRSLCM

Let’s look at the vRealize Automation upgrade process with vRealize Suite Lifecycle Manager vRSLCM and see the steps involved. First, it is assumed you already have a vRealize Automation environment already onboarded into vRSLCM and managed. Without vRSLCM managing your vRA environment, you won’t be able to have it manage the lifecycle operations.

Next, download the VMware vRealize Automation 8.8.0 Update Repository from VMware. We will use this to upload to our vRSLCM appliance to upgrade vRealize Automation.

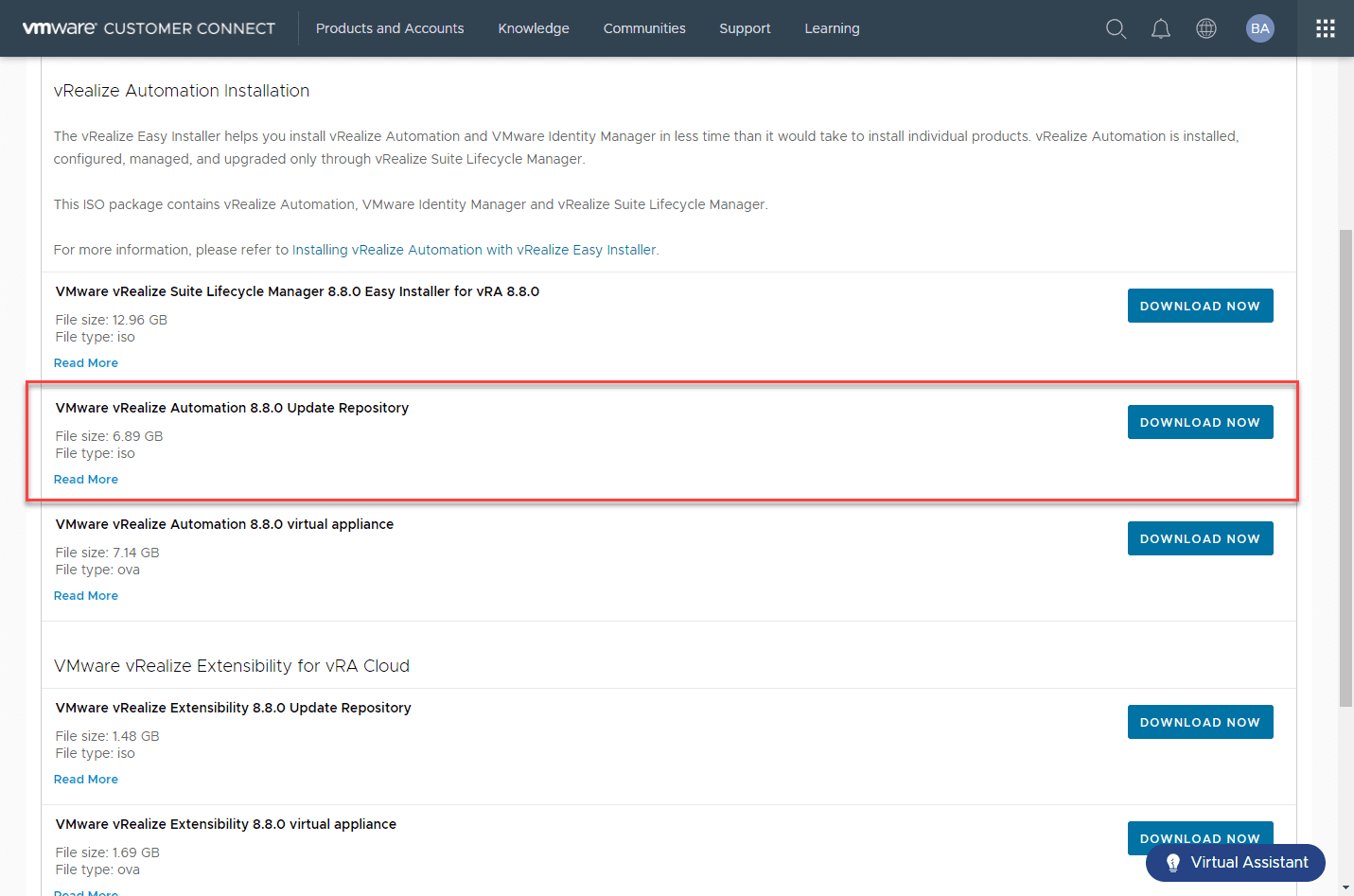

Download the vRealzize Automation Update Repository to upgrade vRealize Automation using vRLCM
Download the vRealzize Automation Update Repository to upgrade vRealize Automation using vRSLCM

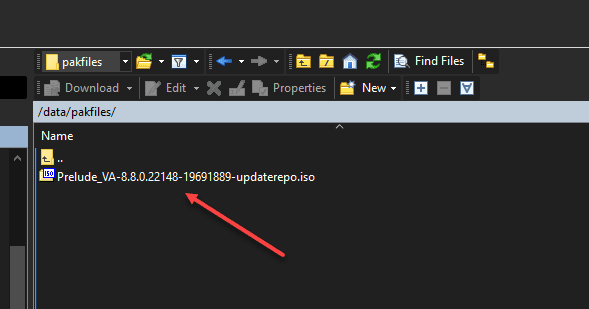

Upload the vRealize Automation Update Repo to upgrade vRealize Automation using vRSLCM 1
Upload the vRealize Automation Update Repo to upgrade vRealize Automation using vRSLCM 1

Next, we add the product binary to the vRSLCM appliance.

Adding the vRealize Automation updater repo to upgrade vRealize Automation
Adding the vRealize Automation updater repo to upgrade vRealize Automation

You can jump over to the Requests dashboard and see the request for adding the update repo ISO.

Request for the OVA upload to upgrade vRealize Automation completes successfully
Request for the OVA upload to upgrade vRealize Automation completes successfully

Click the Upgrade button next to vRealize Automation.

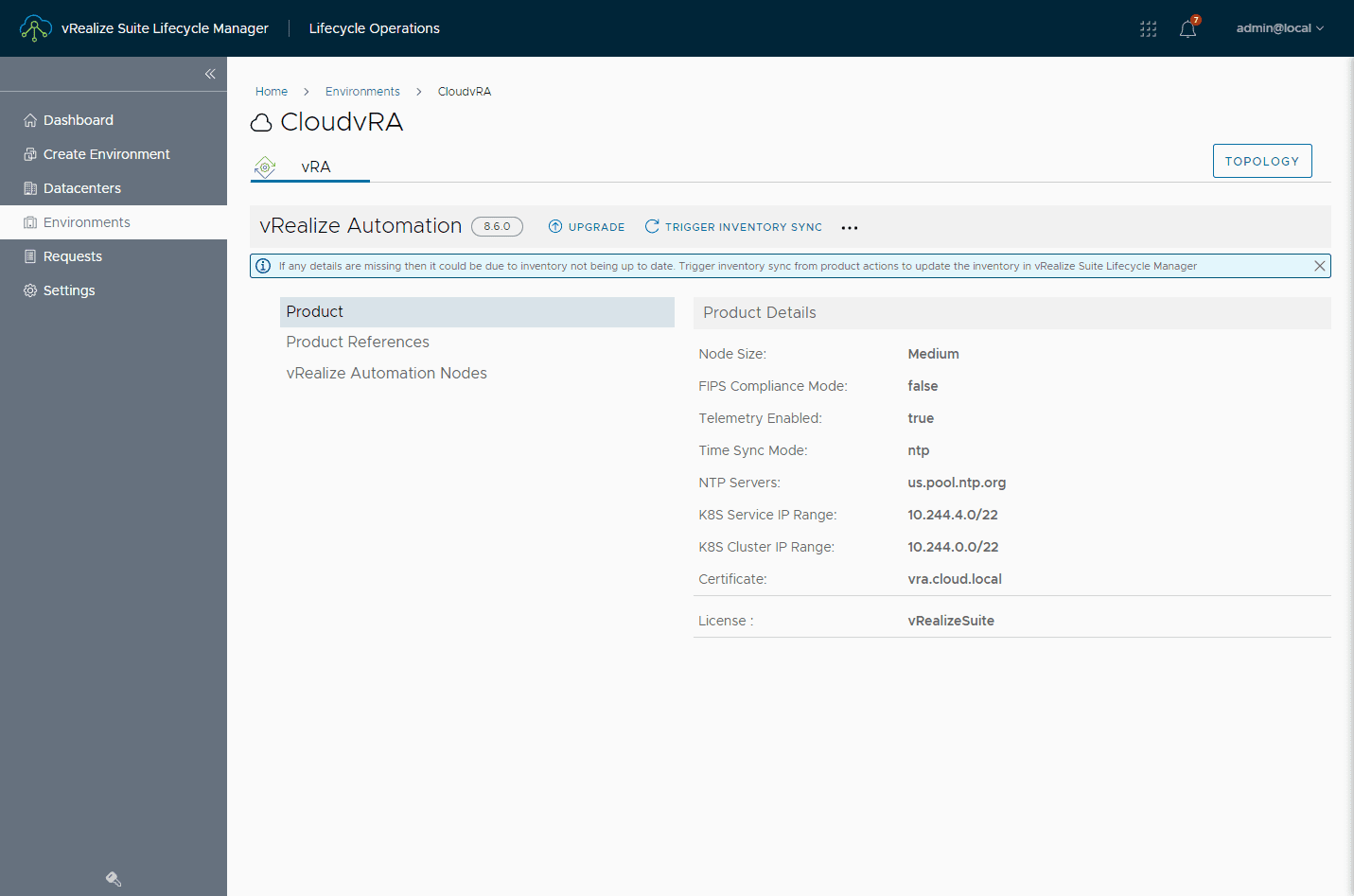

Kicking off the process to upgrade vRealize Automation
Kicking off the process to upgrade vRealize Automation

This will launch the Proceed to Upgrade dialog box. You can trigger an inventory sync to ensure you have the latest details about the solution’s inventory. Click Proceed.

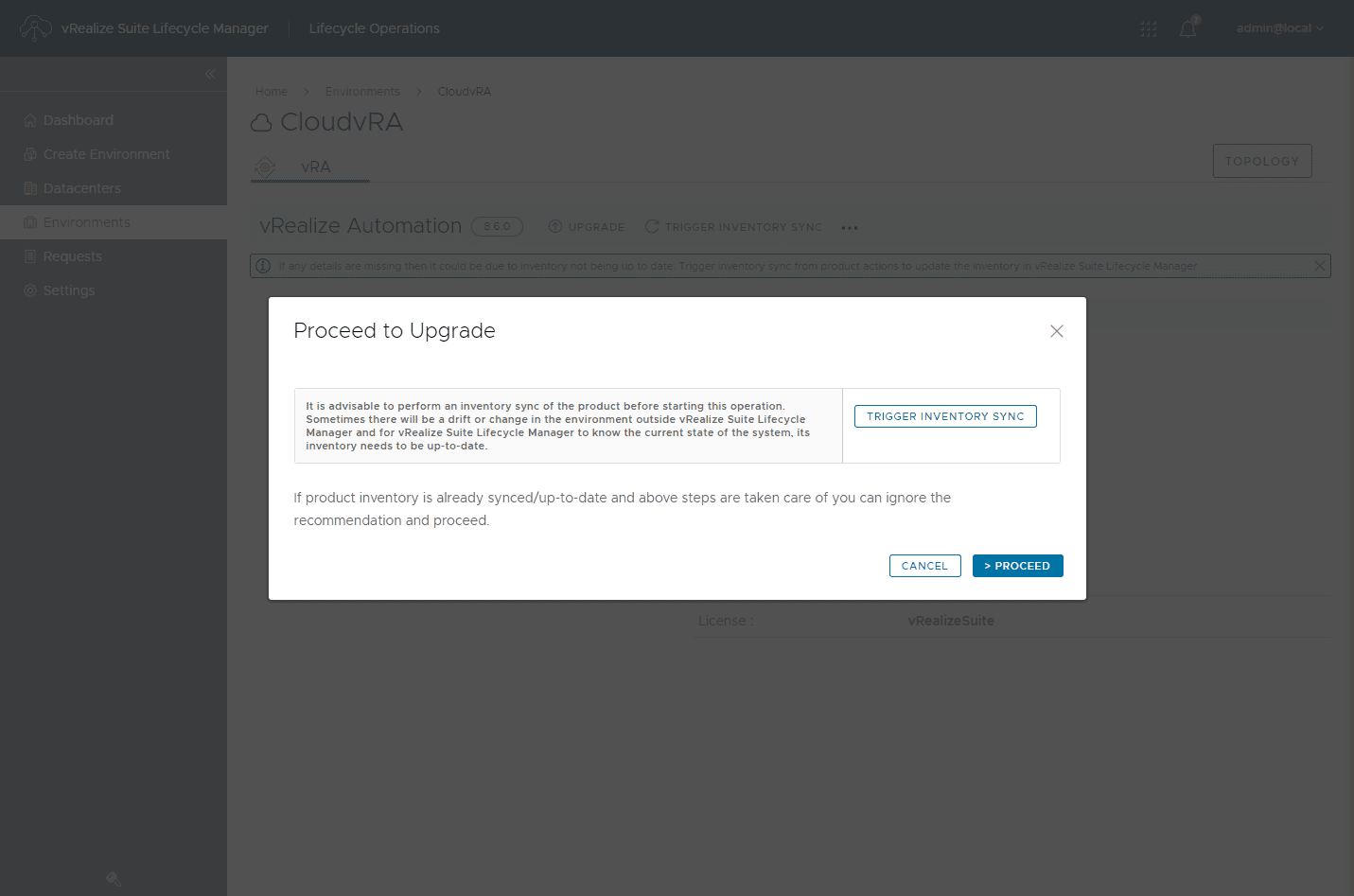

Triggering an inventory sync if needed
Triggering an inventory sync if needed

The request to add the update repo completes successfully.

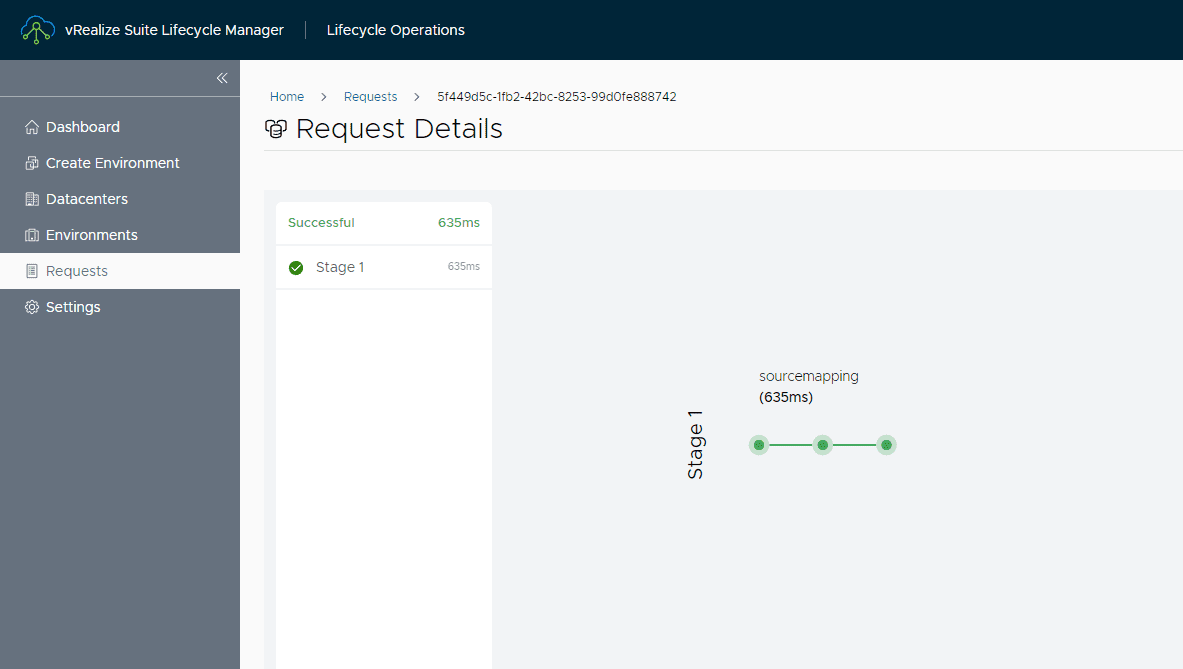

Request for the OVA upload to upgrade vRealize Automation completes successfully 1
Request for the OVA upload to upgrade vRealize Automation completes successfully 1

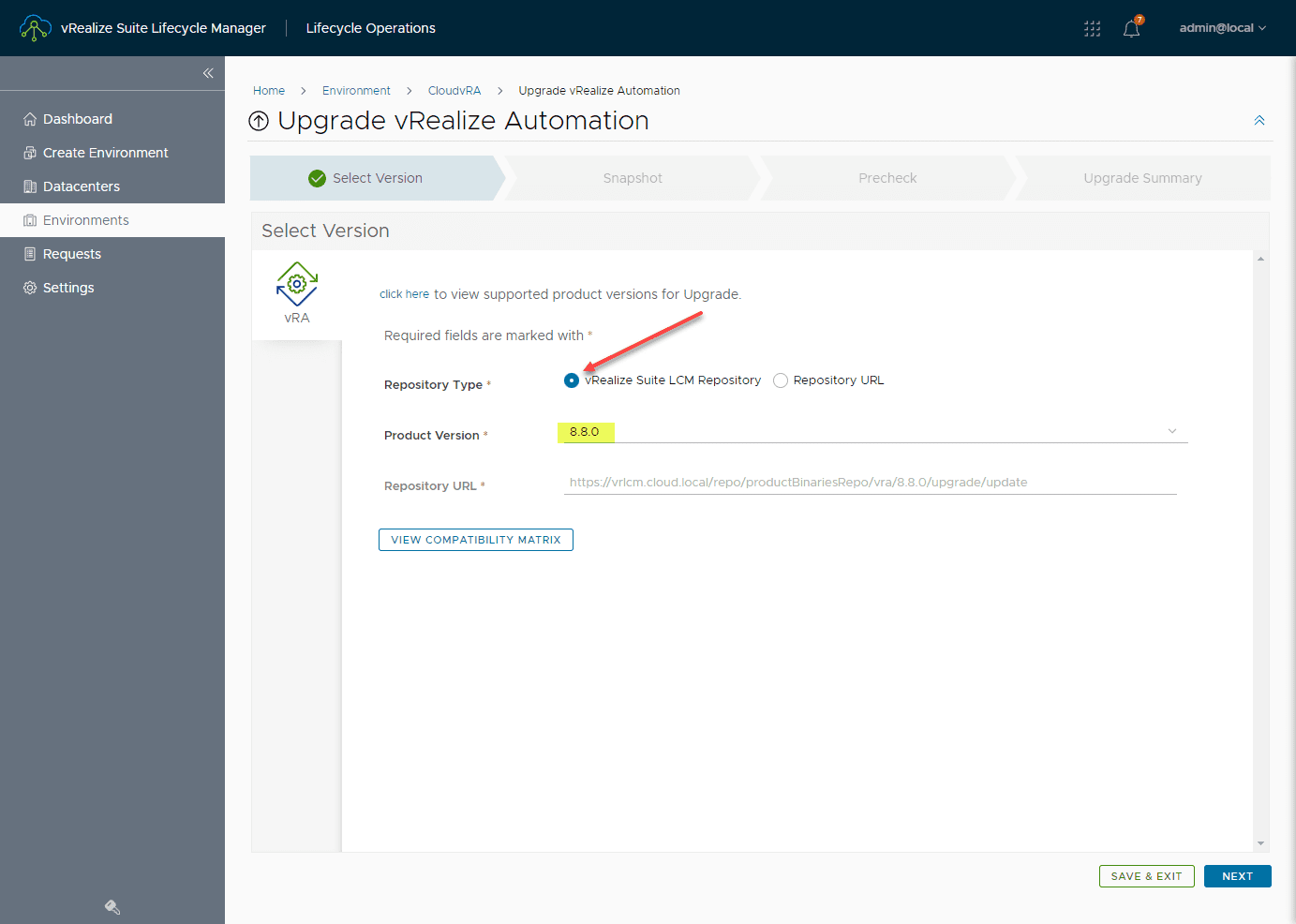

The wizard launches for configuring the details fo the upgrade. Select the relevant information:

  • Repository Type
  • Product Version
  • Repository URL (when Repository URL Repository type is selected)

Click Next.

Selecting the version of vRealize Automation to upgrade vRealize Automation
Selecting the version of vRealize Automation to upgrade vRealize Automation

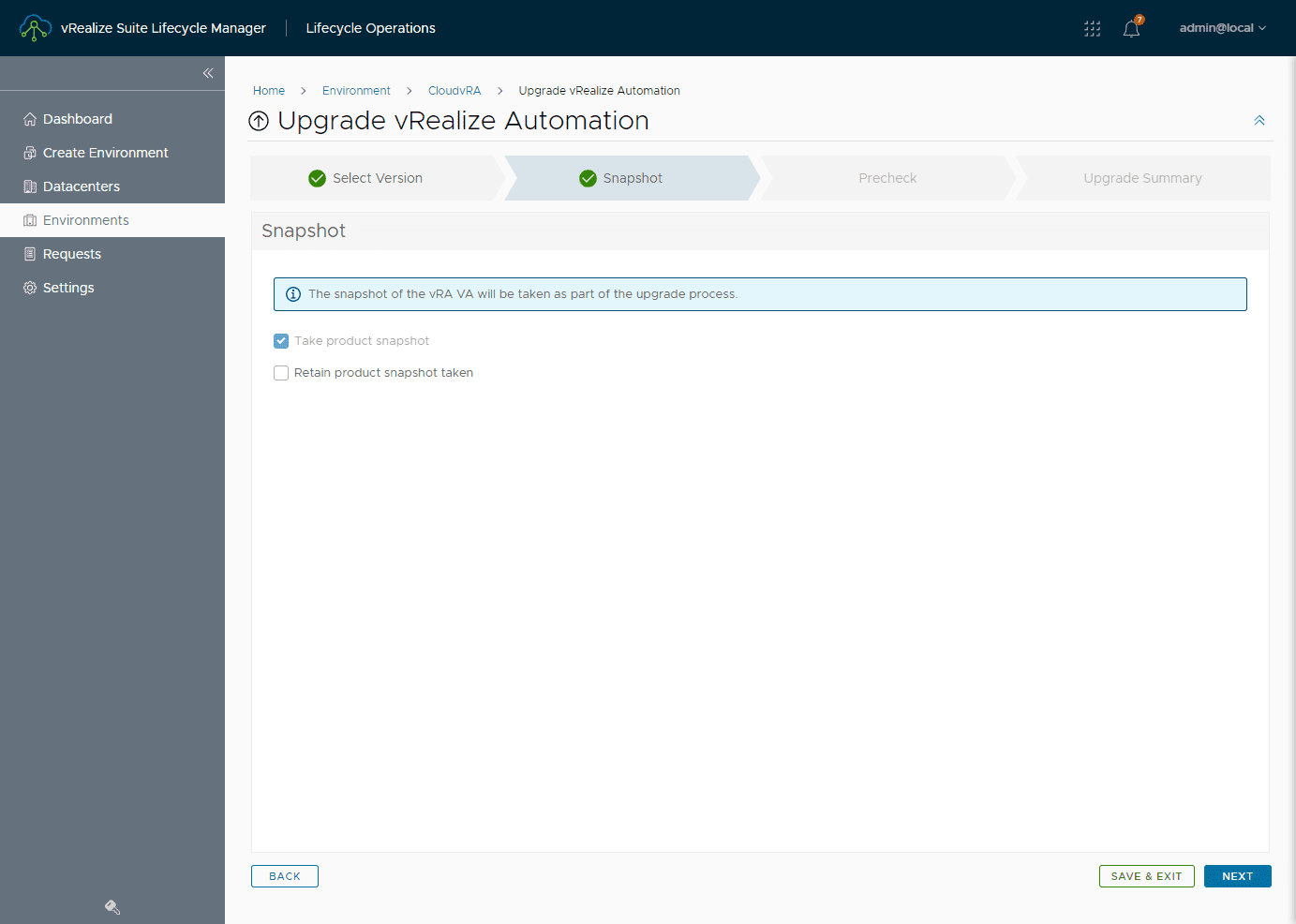

Take a snapshot of the vRA appliance. The wizard will automatically take a VM snapshot of your existing vRA appliance. Click Next.

Take a product snapshot of your existing vRealize Automation virtual machine
Take a product snapshot of your existing vRealize Automation virtual machine

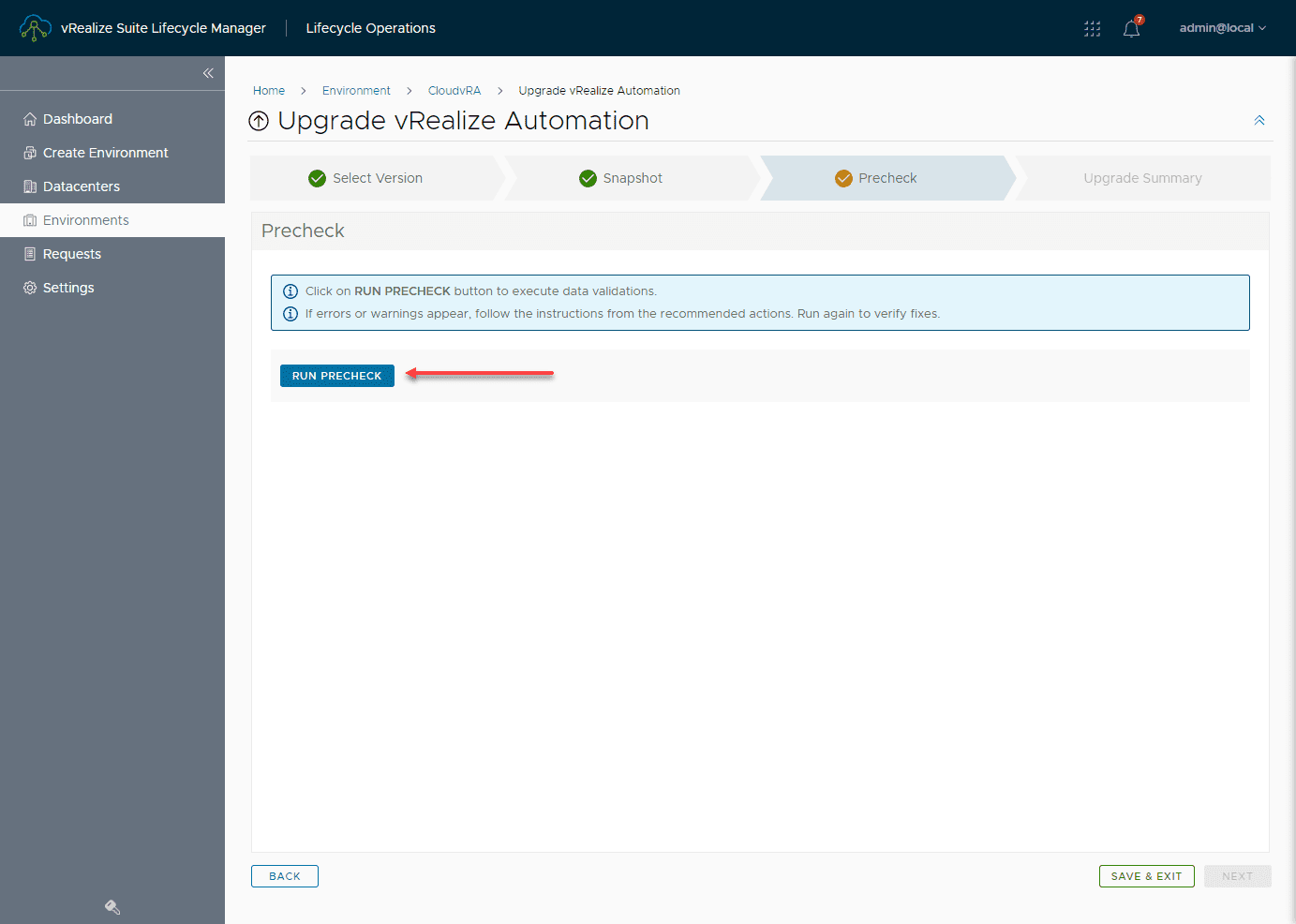

Click the Run Precheck button to run a precheck of the environment before proceeding. As you can see, this is required before you can click Next.

Run a precheck to upgrade vRealize Automation using vRSLCM
Run a precheck to upgrade vRealize Automation using vRSLCM

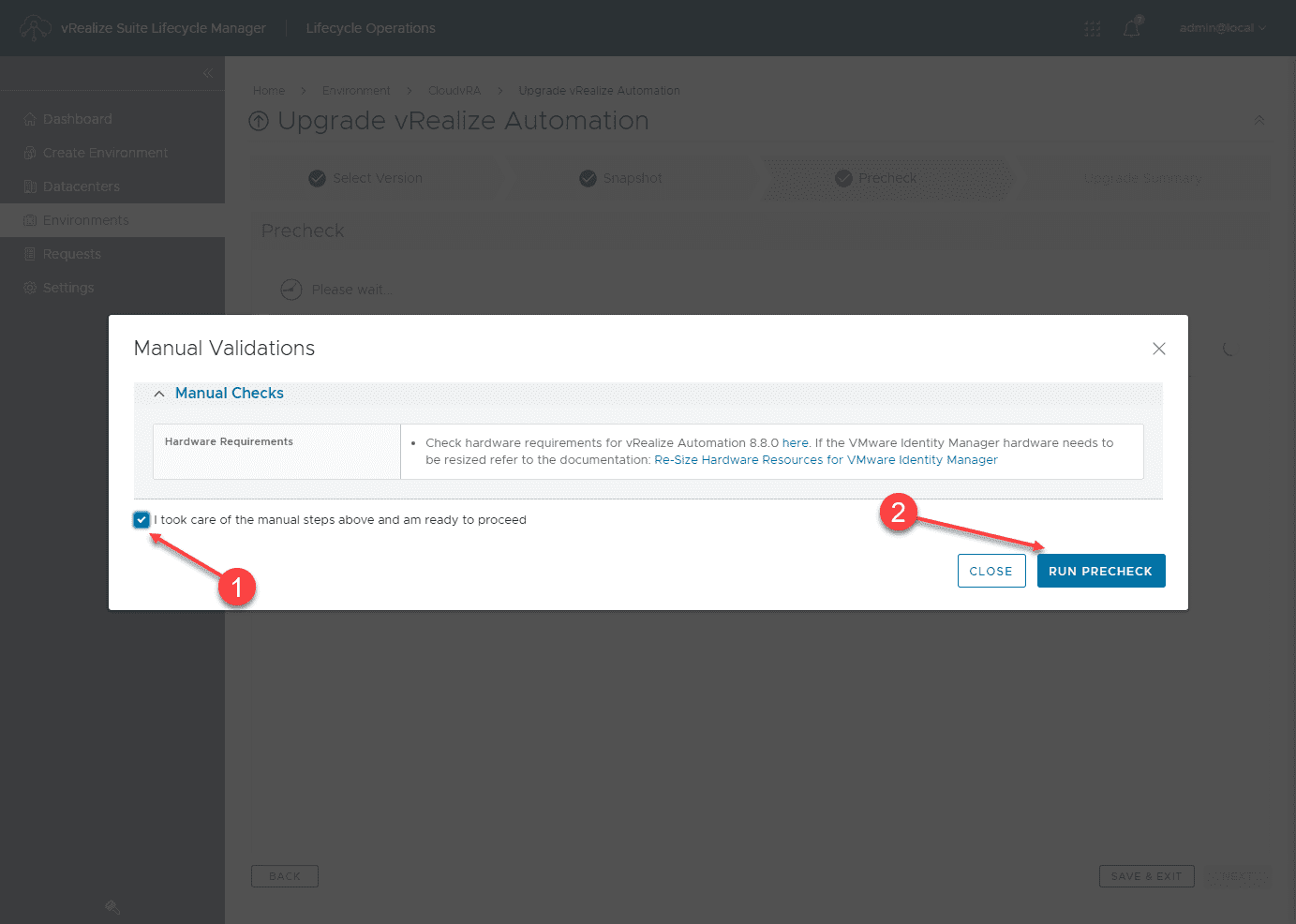

Select the I took care of the manual steps above and am ready to proceed, acknowledging you have taken care of the requirements listed. Click the Run Precheck button.

Validate manual steps before precheck
Validate manual steps before precheck

The precheck runs and is successful. Click Next.

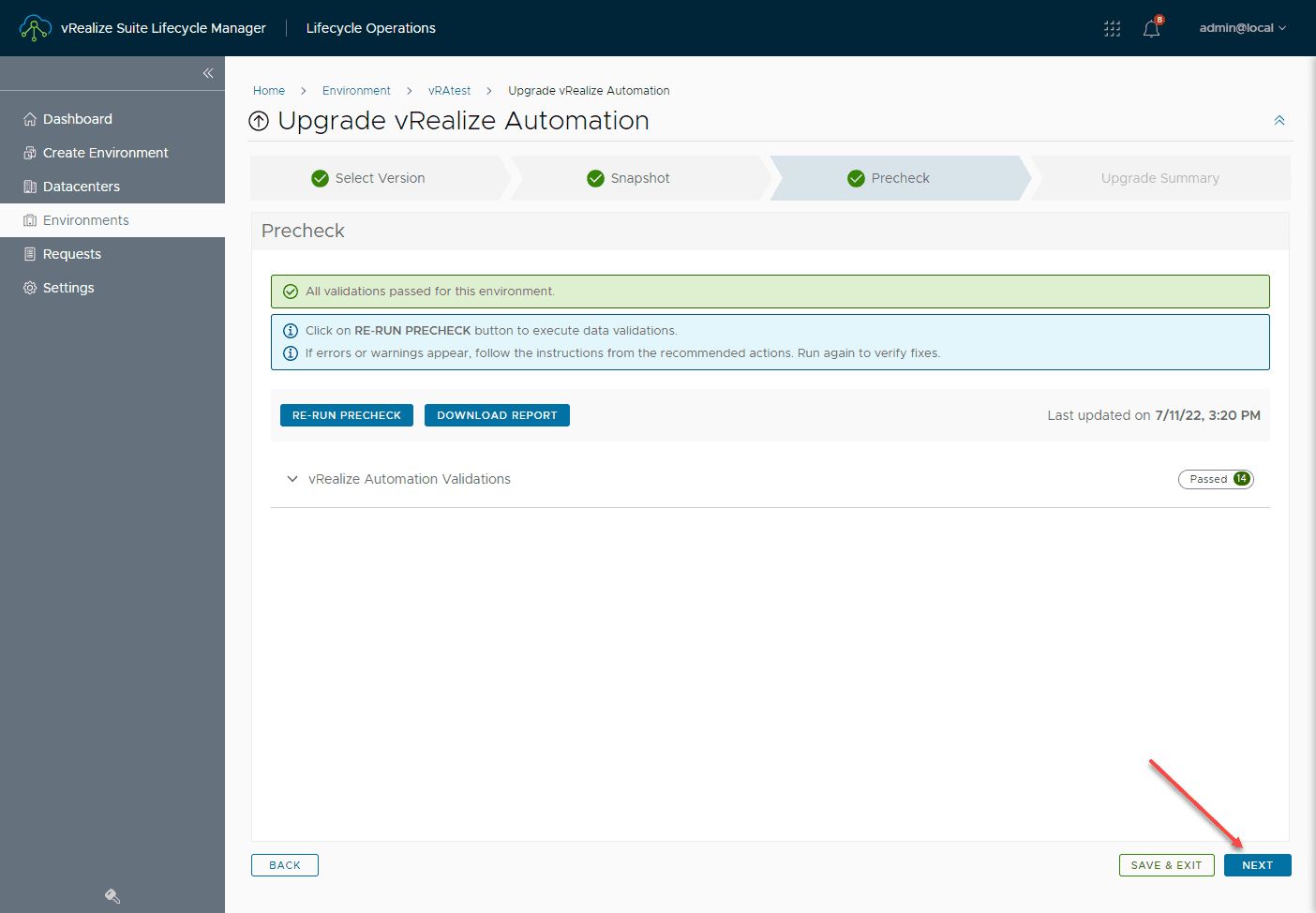

Precheck ran and passed to upgrade vRealize Automation
Precheck ran and passed to vRealize Automation upgrade

Finally, we are ready to proceed with the Upgrade. View the details on the Upgrade Summary screen. Click Submit.

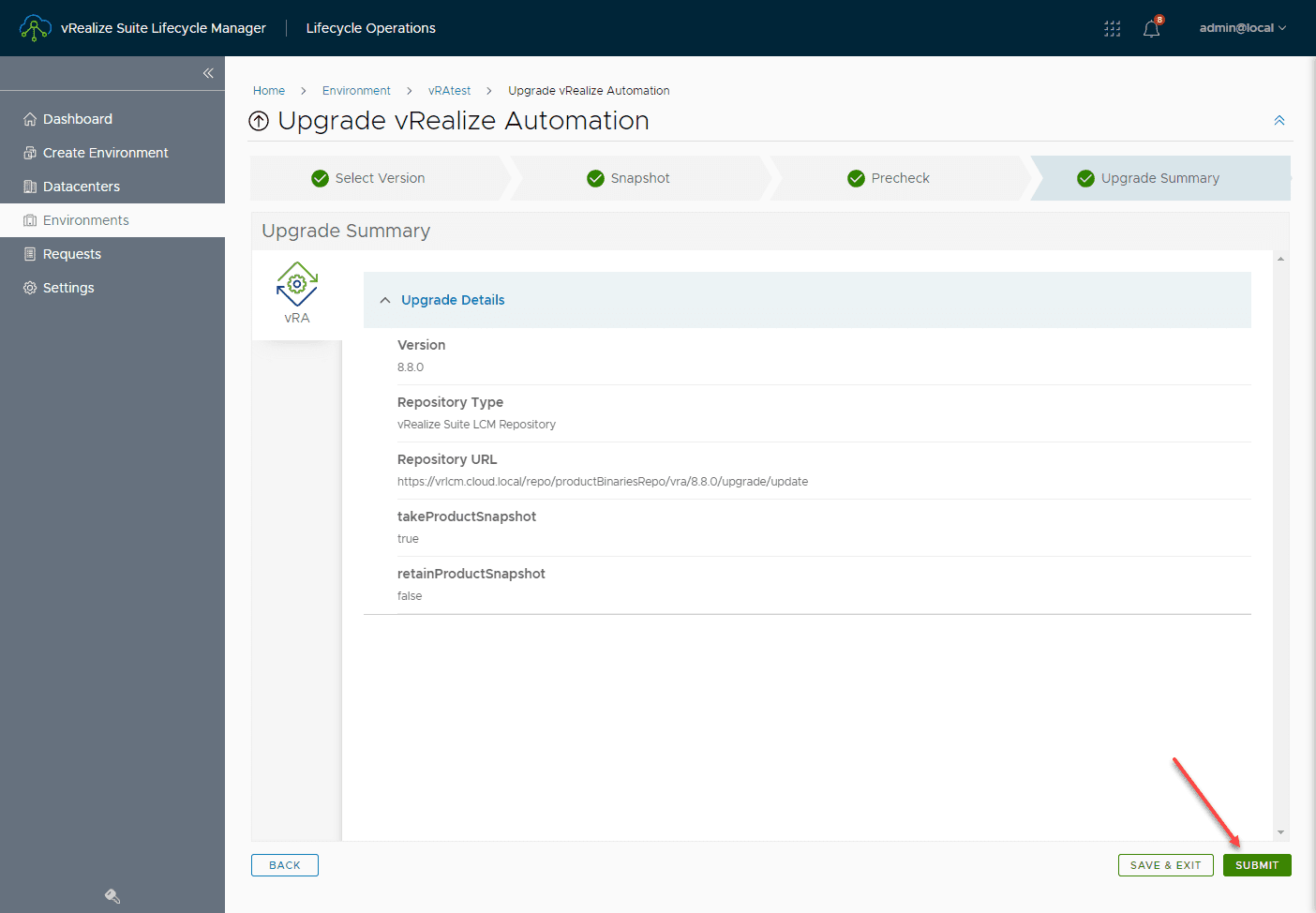

Submit the upgrade upgrade request for upgrading vRealize Automation to v8.8
Submit the upgrade request for upgrading vRealize Automation to v8.8

If you navigate to the Requests dashboard, you should see the upgrade process working its way through the upgrade of vRealize Automation. As a note, depending on the performance of your vSphere hosts, this process will take quite a long time.

The process to upgrade vRealize Automation with vRSLCM begins and progresses
The vRealize Automation upgrade process with vRSLCM begins and progresses

Wait for the process to finish, and you should be good with a newly upgraded vRealize Automation environment.

Upgrade vRealize Automation FAQs

  • Why upgrade vRealize Automation? There are many great new features in the latest version of vRA to note. See the features listed above, or look at the official release notes: vRealize Automation 8.8 Release Notes (vmware.com)
  • What is vRealize Suite Lifecycle Manager? It is a tool that allows managing all your vRealize solutions from a single pane of glass. It allows deploying vRealize solutions, managing them, and also managing lifecycle operations for vRealize
  • How do you upgrade vRealize Automation with vRSLCM? You do this by downloading the update repo, adding this to vRSLCM, and then executing an upgrade on your vRA appliance. During the upgrade process, vRSLCM will take a snapshot of the vRA VM. This snapshot is deleted after the upgrade is successful.

Wrapping Up

The vRealize Automation upgrade process is easily accomplished using the vRealize Suite Lifecycle Manager solution. It allows easily managing lifecycle operations such as upgrades. Hopefully, this walkthrough will help anyone who may have been intimidated to use vRSLCM for upgrading vRA. It takes much of the stress out of upgrading your vRealize environments with good checks and balances, prechecks, built-in snapshots, etc.
