Ubiquiti NanoBeam 5AC Gen2 Bridge VLAN Configuration

As I have written about recently, I have been working with a pair of Ubiquiti NanoBeam 5AC Gen2 bridge devices to connect my house with a shop for PTP connectivity from my main home data center out to what I am using for my DR location for the home lab. So far, the units are working great and doing exactly what I need them to do. I wanted to write up a quick little article on the VLAN configuration on the devices and how I have mine configured in case this helps others to configure theirs out of the box. Let’s take a look at Ubiquiti NanoBeam 5AC Gen2 Bridge VLAN configuration to see how you get a general VLAN configuration up and running out-of-the-box.

Ubiquiti NanoBeam 5AC Gen2 Bridge VLAN Configuration

I have to admit, I didn’t do a lot of reading before simply throwing these two units up and playing with them. But, that’s part of the fun right? So, I discovered a few things along the way that led to a couple of resets to factory.

My use case was simple. I had a management VLAN that I wanted to be able to use to connect to the two units on my management network. However, I also had three VLANs or so that I wanted the unit to be able to “trunk” across the wireless bridge point-to-point link.

I assumed there was some special configuration that I needed to put in place to make this happen, however, as it turns out, this wasn’t the case.

Configuration for Trunking All VLANs

To get started, you can either get this initial configuration up and running via the UBNT mobile app or you can connect to the units via a laptop. I went the mobile route for the initial configuration, so what I am showing below is “after the fact” connected via a machine on the network.

As I described in my previous article, the NanoBeam 5AC Gen2 bridge unit has a management radio that becomes active for 15 minutes by default to allow management activities on the units. After that time period (configurable) the management radio turns off.

Login to your unit with the default user account/password (if default settings). Default credentials are ubnt/ubnt.

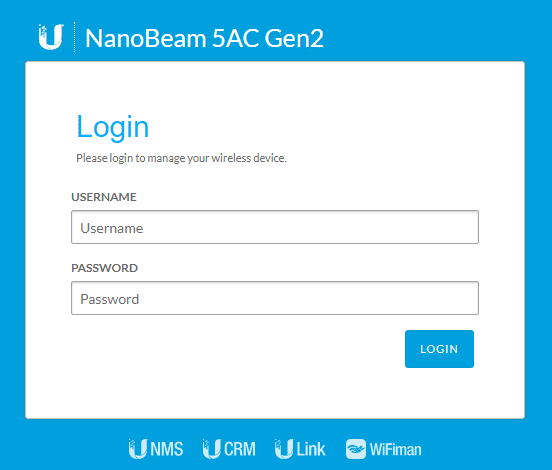

Login to Ubiquiti NanoBeam 5AC Gen2 Bridge

In simple bridge mode, the wireless bridge will forward on all VLAN tags between the link. So, you do not have to define those under advanced configuration mode as I mistakenly assumed.

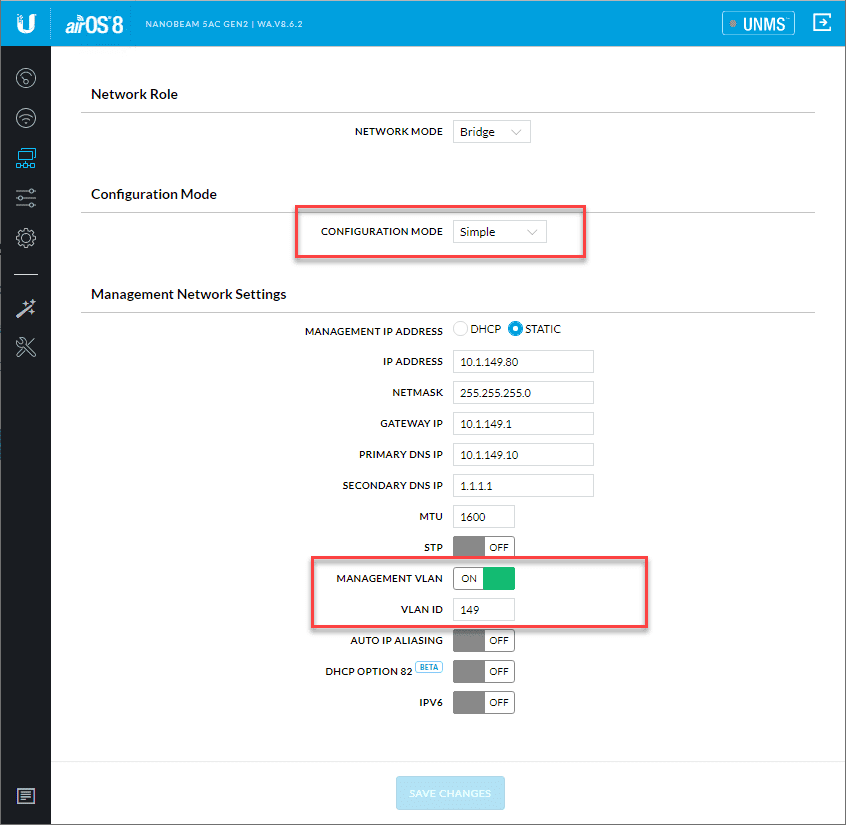

As you can see below, I have the unit set to Simple configuration mode. Also, I did want to specify the management VLAN. This defines the VLAN for the management network if you want to tag the management traffic with a specific VLAN ID as I did.

Flip the toggle to On and enter your VLAN ID information.

Ubiquiti NanoBeam 5AC Gen2 Bridge VLAN Configuration

Aside from defining the management VLAN, the bridge units will pass all VLAN IDs between them.

One thing that did cause an issue for me initially which was self-imposed. Make sure your native VLAN configured on one side matches the native VLAN ID on the other side.

Cisco devices will display a “Native VLAN mismatch detected” in the console. I had a mismatch between one side and the other and was not seeing the VLAN ID trunked across initially. The exact message:

14-Jan-2020 13:19:53 :%CDP-W-NATIVE_VLAN_MISMATCH: Native VLAN mismatch detected on interface gi1.

This led me down a rabbit hole of trying different advanced settings and such all to no avail. Then after scrutinizing the switch config on both sides of the bridge, I was able to determine there was a mismatch in my configuration.

After correcting the native VLAN configuration on both sides, I was able to see all VLANs bridged across without any issues. My Ubiquiti AP on the DR side was able to be provisioned correctly and pass along VLAN tagged traffic from the various wireless networks configured.

Wrapping Up

Ubiquiti NanoBeam 5AC Gen2 Bridge VLAN configuration turned out to be easier than I thought it would be, especially after correcting the native VLAN configuration issue that I had between the two locations.

It is nice to see that you do not have to have any kind of special configuration to pass VLAN IDs between two locations. By default, even in simple mode, this is the case.
