Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

0

One of the fantastic new features of Windows Server 2019 is the Storage Migration service that allows easily migrating off an old server. Over the years Microsoft has introduced tools that allowed copying files and such, but there was always part of the desired functionality that you would want that was left out. Administrators have long wanted a tool that could fully automated the process of migrating off an old server over to a new server. This includes the ability to both move the files, shares, and permissions, but also assuming identity of the old server in cases where this is desired. The new Storage Migration tool found in the Windows Admin Center provides a powerful tool that allows this ability in an automated fashion. In this post, we will take a look at how to Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration.

Observations in Testing

So to begin with, I want to make a few observations of various things I noticed in testing.  Keep in mind the testing I was able to perform involved the Windows Insider releases along with taking a look as well as the RTM code in Eval form.  One of the interesting bits that I observed was the RTM code was missing the Storage Migration service and Proxy service.  Additionally, the Datacenter release, in various forms in the Insider release did not have the Storage Migration Service.

The release and testing that I performed was in the form of the Windows Insider build 17744.1001 which is the latest version of the Windows insider release.  Also, I noticed the Preview release of the Windows Admin center 1808 did not have the extension for the Storage Migration service by default.  The test that I ran involved using the 1809 release of the Windows Admin Center on top of the Standard edition version of Windows Server 2019 17744 build.  As you will see, I ran into some hurdles with testing Windows 2003 migration.  Of course, everything is still so new with the Storage Migration service that it is very lightly documented if at all at this point.

In testing I had the following:

  • Windows 2003 R2 x64 build – no patches installed
  • Windows Server 2019 Standard – 17744 build

Let’s take a look at the process of running the storage migration service and the requirements and the outcome for me in the lab.

Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

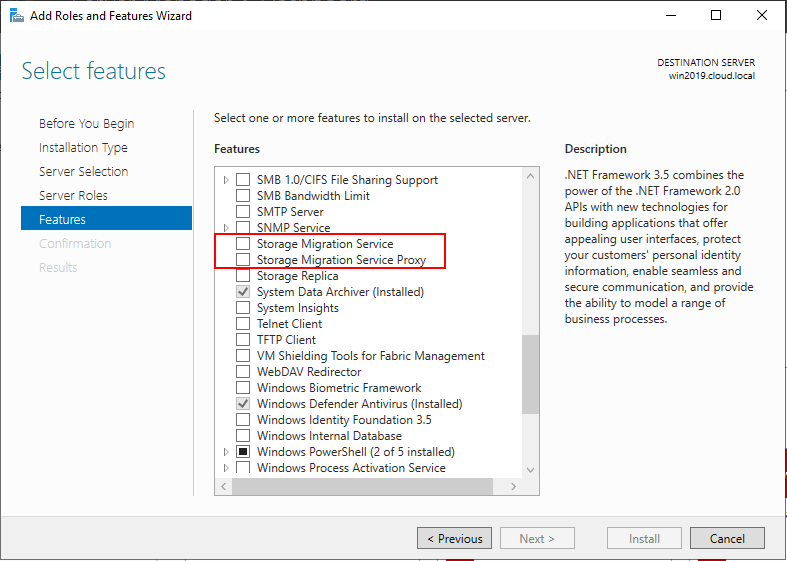

The first thing I needed to do is install the Storage Migration Service and Storage Migration Service Proxy on the 17744 build server.

Installing-the-Storage-Migration-Service-and-Storage-Migration-Service-Proxy-in-Windows-Server-2019 Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Installing the Storage Migration Service and Storage Migration Service Proxy in Windows Server 2019

You can see it from a different view here in PowerShell.

Different-view-at-the-Storage-Migration-Services-in-PowerShell Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

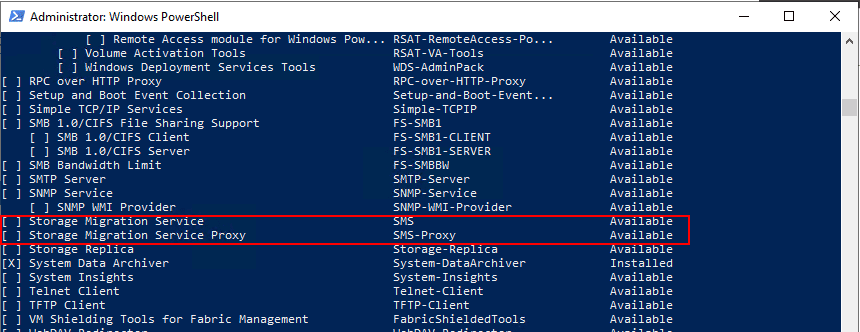

Different view at the Storage Migration Services in PowerShell

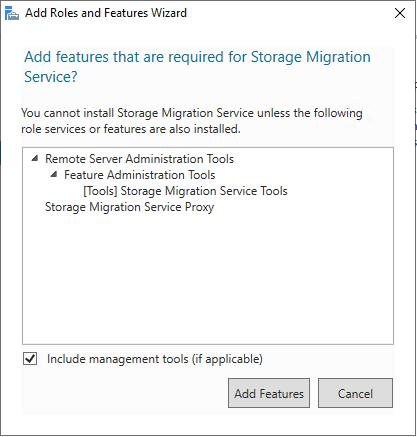

Add the required subfeatures needed…

Include-additional-components-when-adding-the-Storage-Migration-Service Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Include additional components when adding the Storage Migration Service

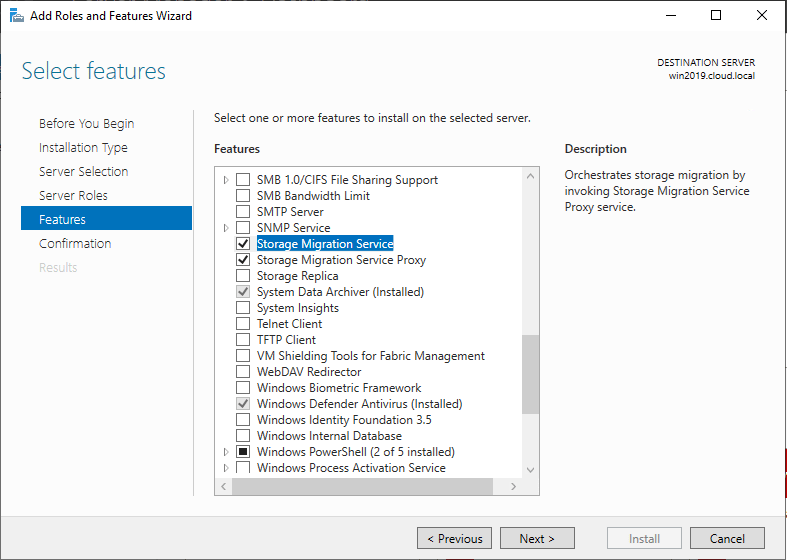

Added and ready to install…

Storage-Migration-Service-and-Storage-Migration-Proxy-Service-added Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Storage Migration Service and Storage Migration Proxy Service added

Feature installation is successful.  Now back to Windows Admin Center.

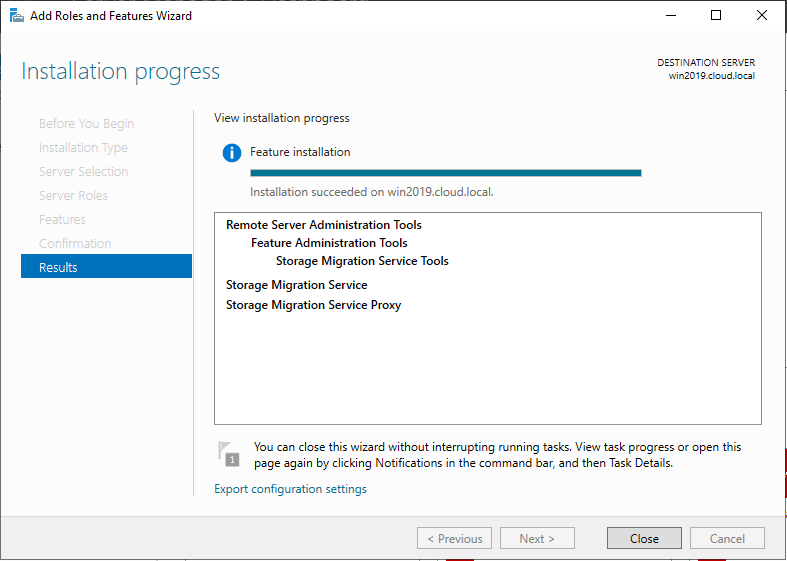

Storage-Migration-Service-and-Storage-Migration-Service-Proxy-installation-succeeded Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Storage Migration Service and Storage Migration Service Proxy installation succeeded

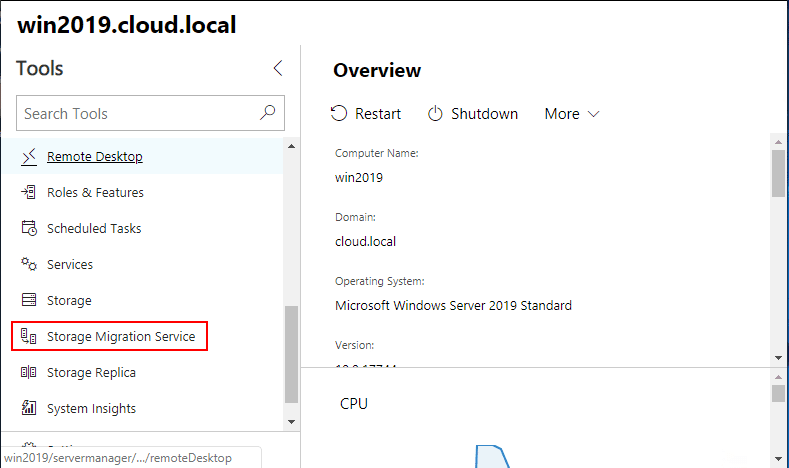

You now see the Storage Migration Service listed in Windows Admin Center.

Storage-Migration-Service-is-now-available-in-Windows-Admin-Center Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Storage Migration Service is now available in Windows Admin Center

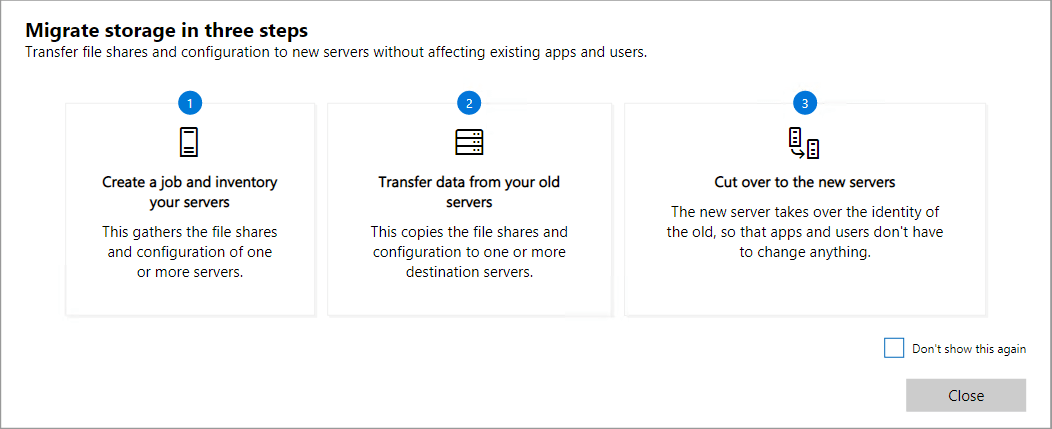

WAC displays the overview of the process including the steps:

  • Inventory
  • Transfer
  • Cut over
Overview-in-Windows-Admin-Center-of-the-Storage-Migration-Service-process Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Overview in Windows Admin Center of the Storage Migration Service process

Create a New job in the Storage Migration Service dashboard.

Run-a-new-Storage-Migration-Service-job Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

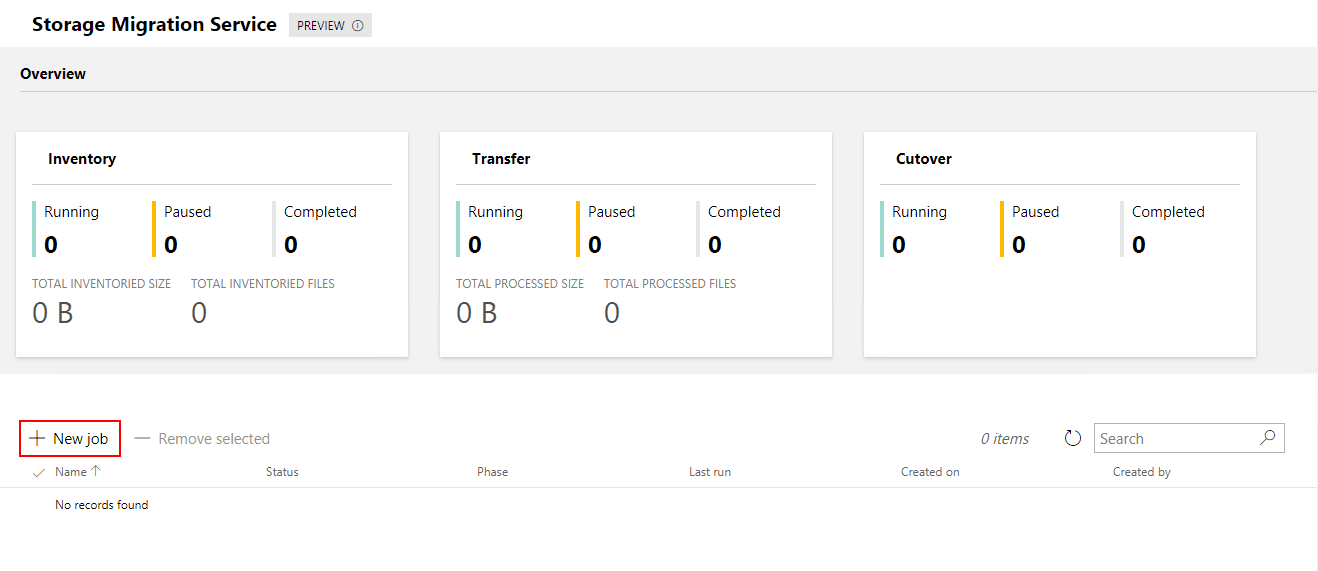

Run a new Storage Migration Service job

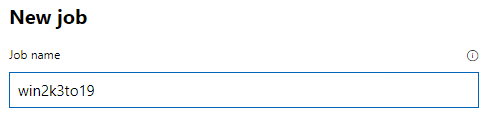

Name the new job.

Create-a-new-job-name Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Create a new job name

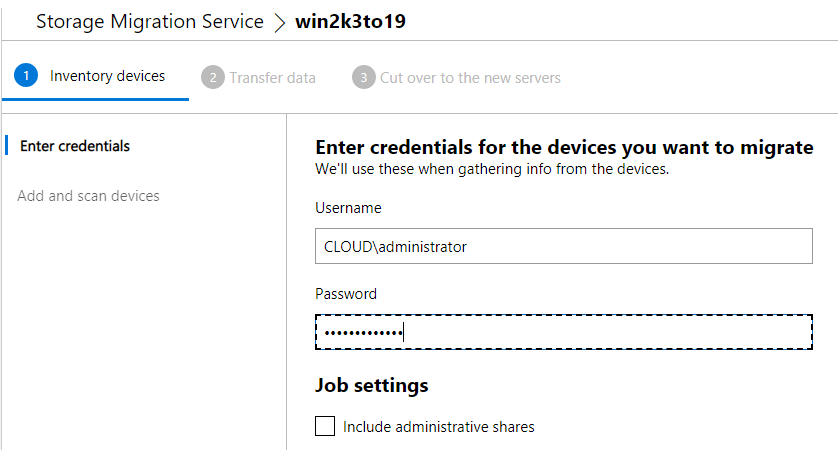

The first of the three step process involves the Inventory devices step.  Enter credentials here.

Enter-credentials-when-inventorying-the-source-of-the-Storage-Migration Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Enter credentials when inventorying the source of the Storage Migration

Add the source device to scan.  Click the Add a device button.

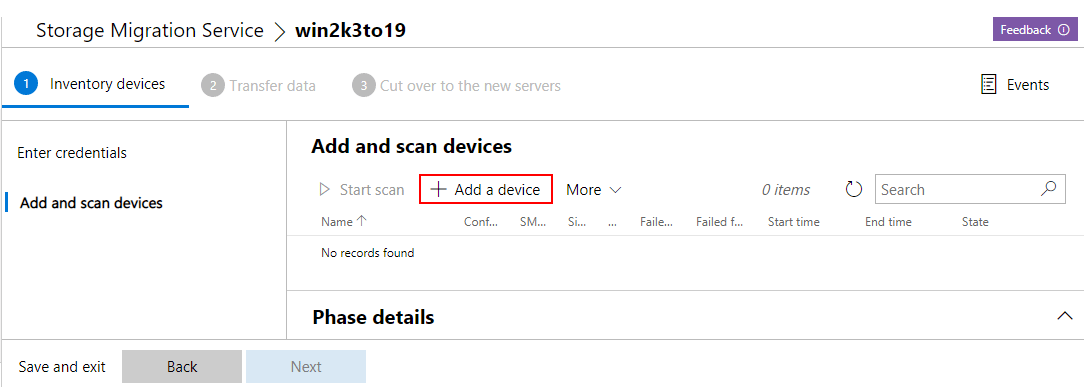

Add-and-scan-a-source-device Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Add and scan a source device

Add the source device – here using the FQDN.

Add-source-device-name Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

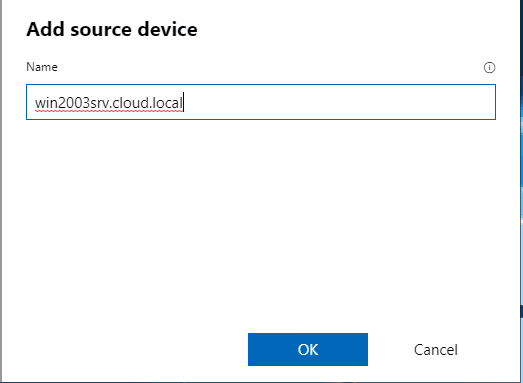

Add source device name

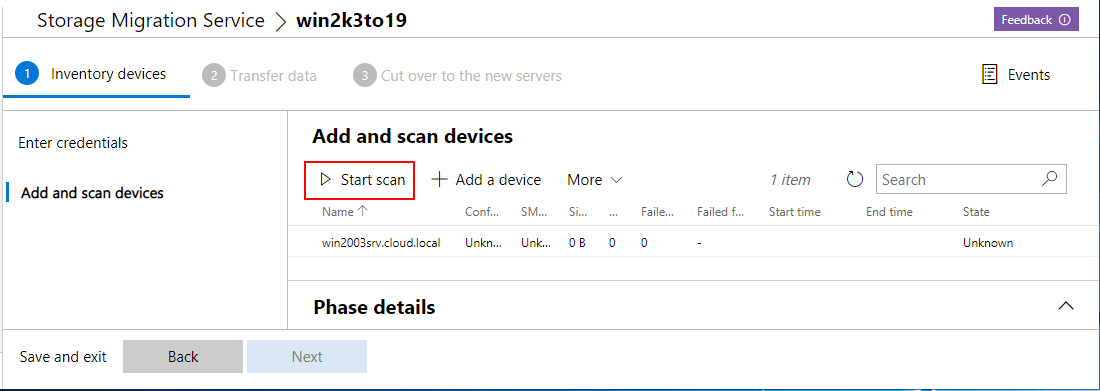

We need to scan the source device for shares, files, etc.  Click the Start scan button.

Start-scan-on-source-device Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Start scan on source device

The initial scan for me errored out.  Just working on a theory I tried to simply connect to the admin share of the Windows 2003 server and received the following error, related to SMB 1.0.

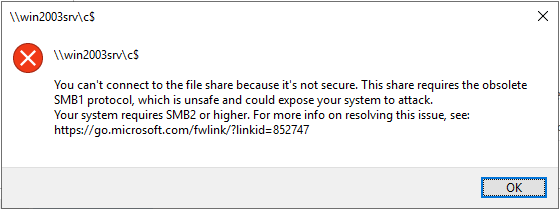

SMB-error-when-connecting-to-the-legacy-Windows-2003-server Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

SMB error when connecting to the legacy Windows 2003 server

Enabling SMB 1.0/CIFS File Sharing Support

Working on a hunch here this is why the Storage Migration Service failed to inventory the service.  I decided to add the SMB 1.0/CIFS support for Storage Migration to see if it gets me further.

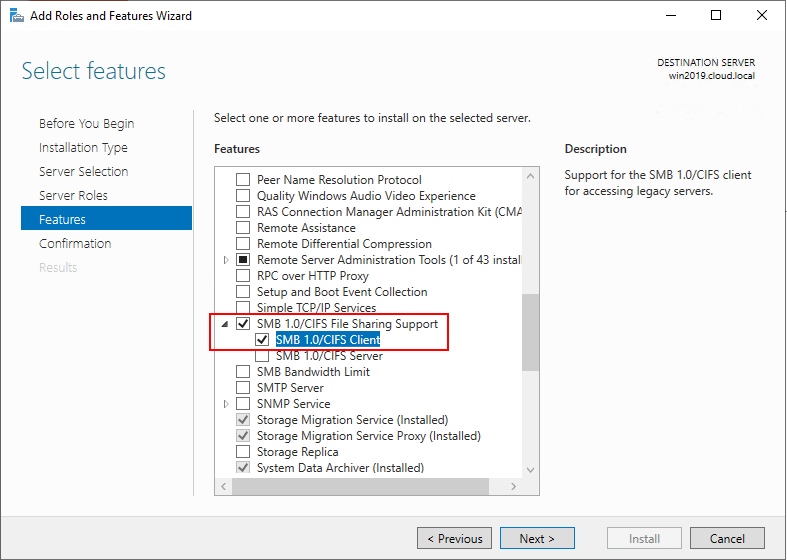

Add-support-for-SMB-1.0-and-CIFS-File-Sharing-in-Windows-Server-2019 Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Add support for SMB 1.0 and CIFS File Sharing in Windows Server 2019

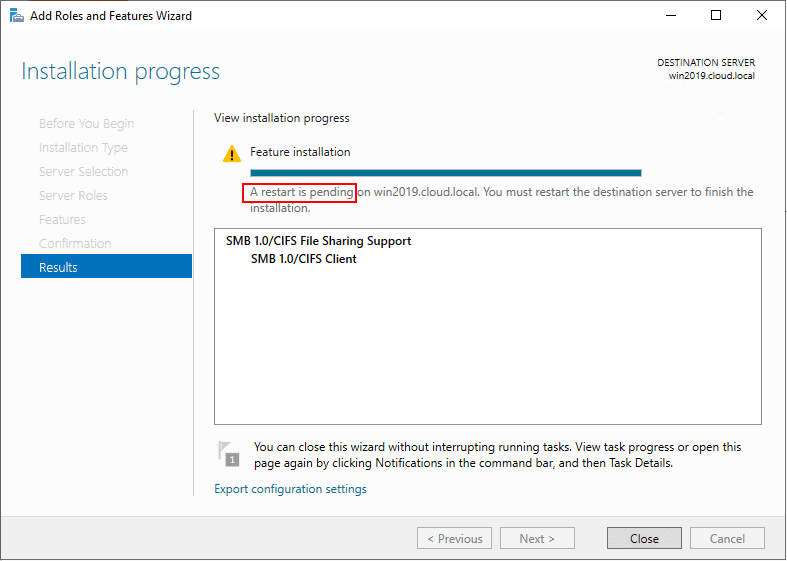

After adding SMB 1.0 you will need to restart.

Finish-out-the-wizard-and-restart-the-server Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Finish out the wizard and restart the server

After restarting, i tried again and was able to successfully connect to Windows 2003.

After-adding-SMB-1.0-I-can-now-browse-shares-on-the-Windows-2003-server Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

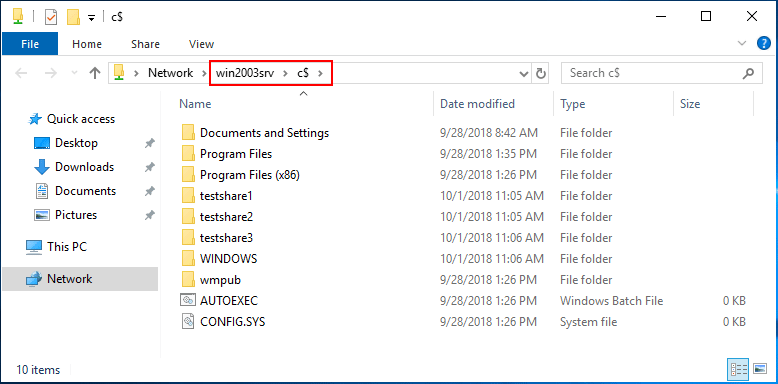

After adding SMB 1.0 I can now browse shares on the Windows 2003 server

Now, the inventory process is successful.

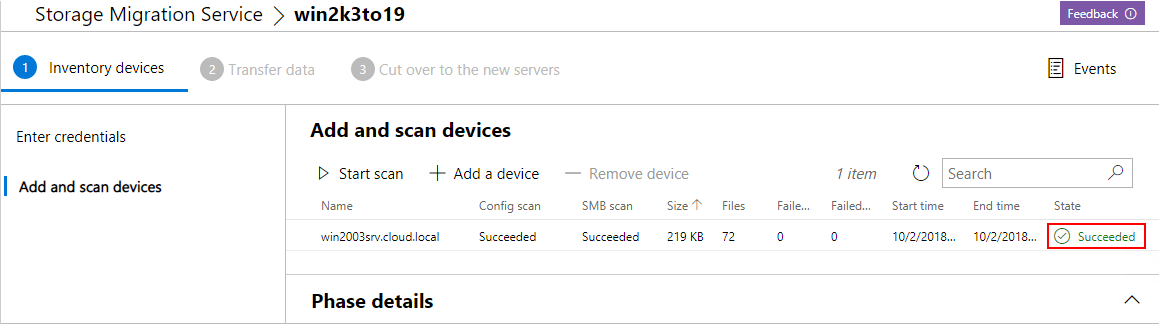

The-Windows-Server-2019-storage-migration-scan-now-completes-successfully Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

The Windows Server 2019 storage migration scan now completes successfully

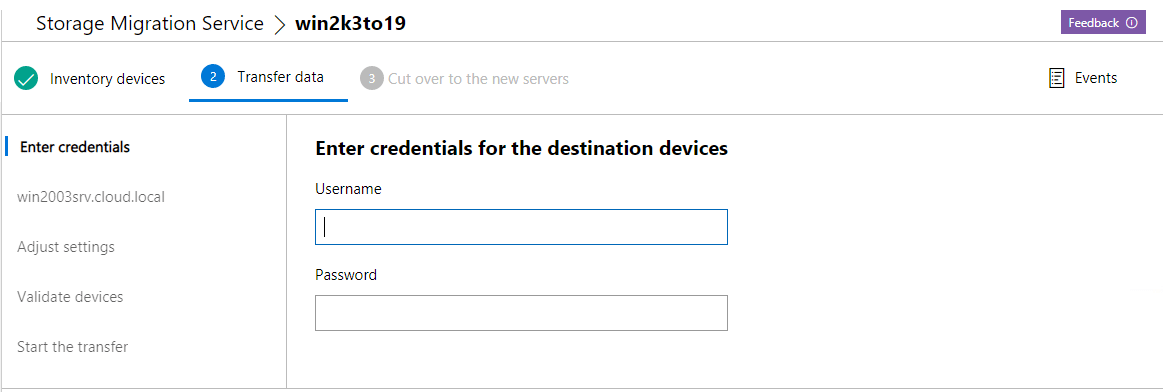

Moving along to the Transfer data step, enter the credentials.

Enter-credentials-for-the-destination-device-to-transfer-the-files Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Enter credentials for the destination device to transfer the files

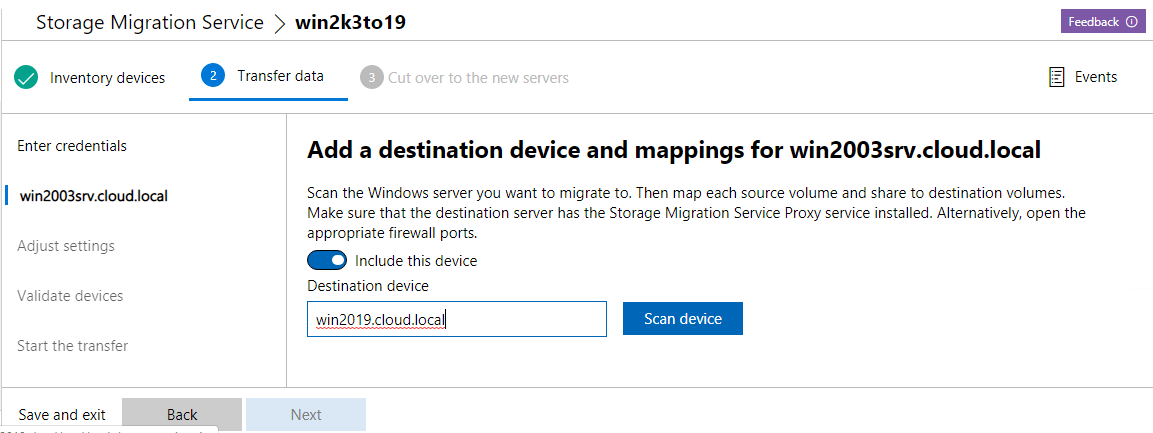

Enter the destination device name and scan the device.

Add-destination-device-and-scan-the-device Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Add destination device and scan the device

After scanning, you will see the list of shares, path, type, size and you can choose to include the share or not.  Also, you can map the destination server drive if different.

Choose-the-shares-to-migrate-and-the-destination-for-the-data Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

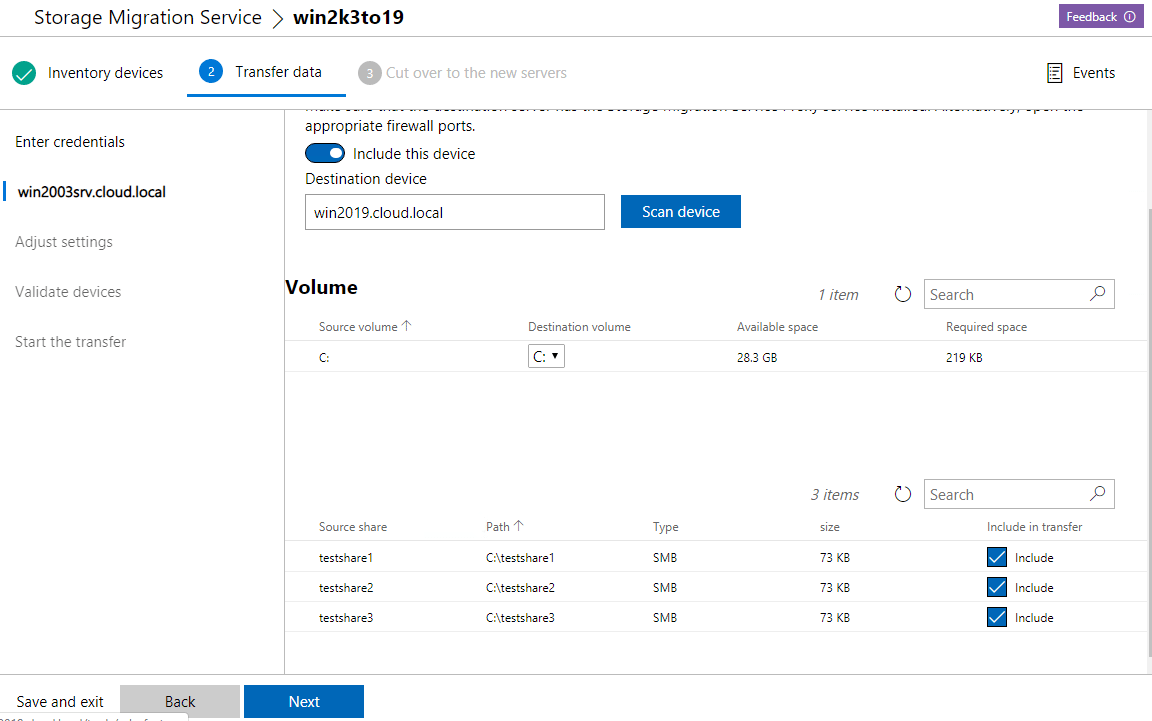

Choose the shares to migrate and the destination for the data

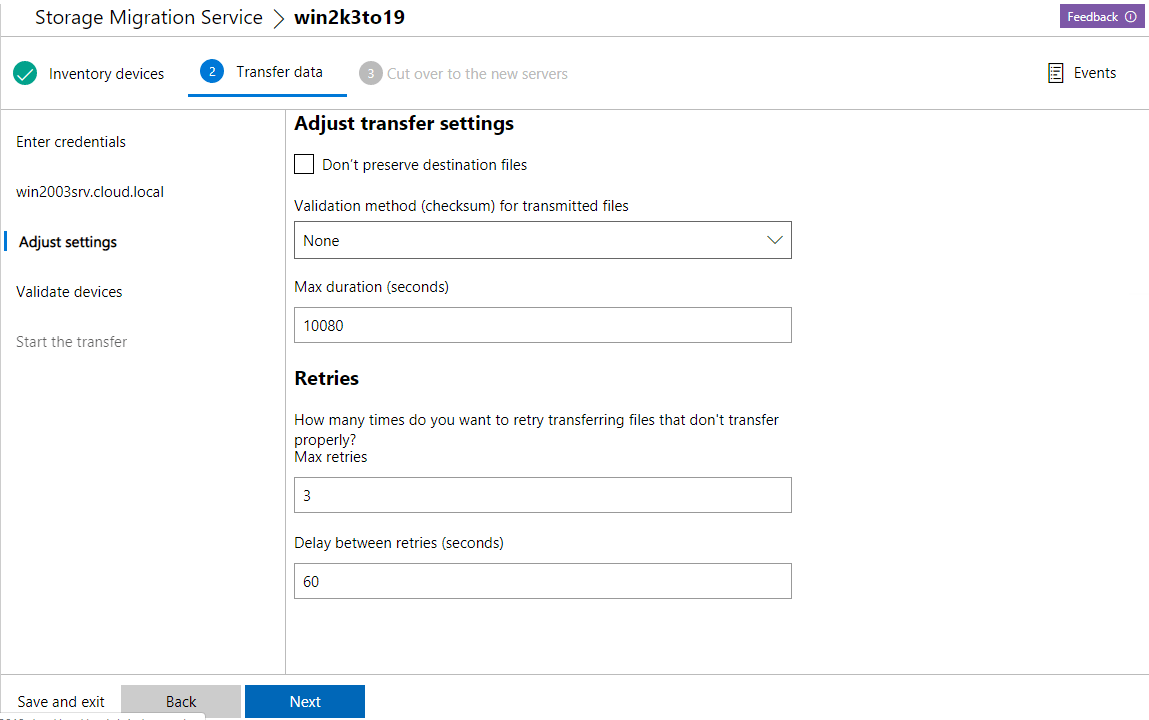

Adjust transfer settings including retries, etc.

Adjust-settings-for-the-data-transfer Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Adjust settings for the data transfer

Validate the settings by clicking the Validate button

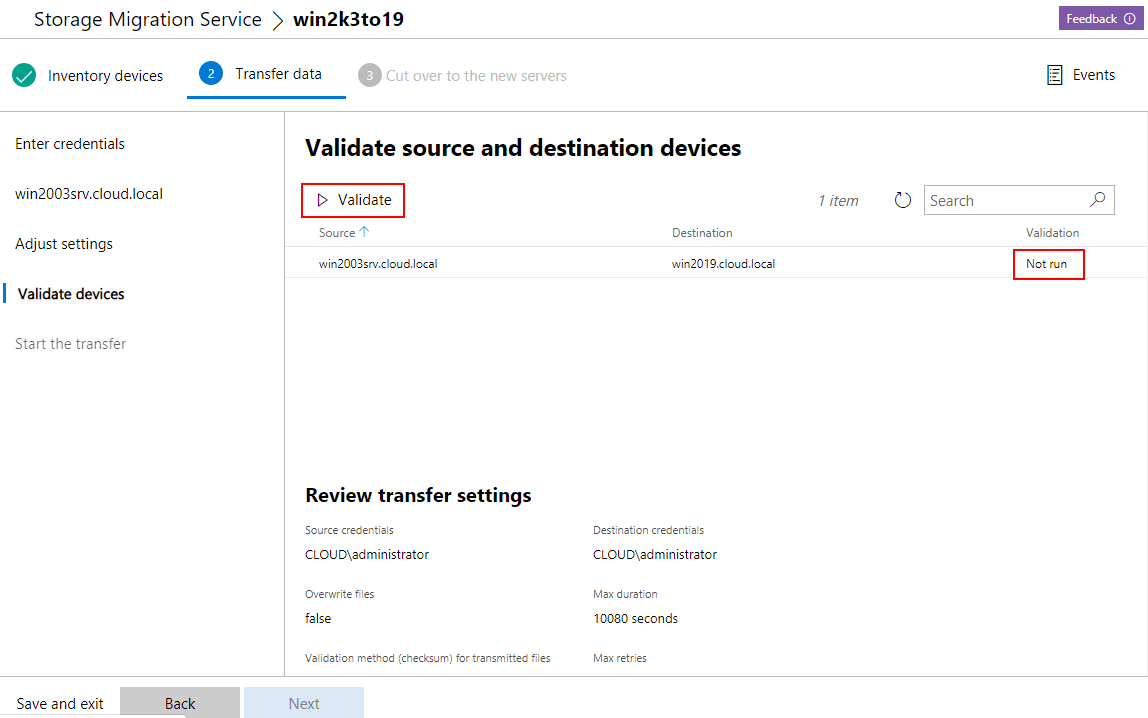

Validate-the-source-and-destination-devices Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Validate the source and destination devices

Next, you are down to the Start the transfer step.  Click the Start transfer button.

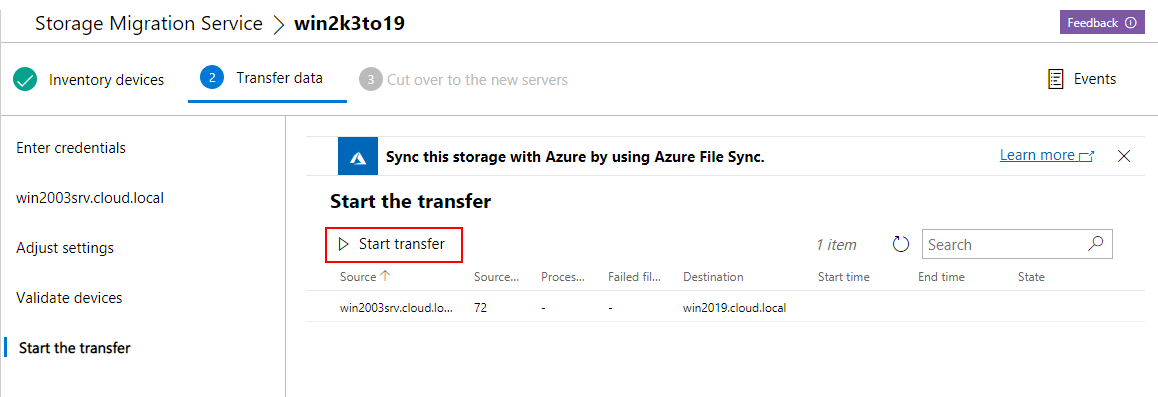

Start-the-transfer-of-files-from-the-2003-server-to-the-Windows-Server-2019-server Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Start the transfer of files from the 2003 server to the Windows Server 2019 server

In trying multiple times to get this to work with Windows 2003, I ran into the error below: Couldn’t transfer storage on any of the endpoints.  Things tried below:

  • Enabled server component of SMB 1.0 (didn’t think this was necessary but tried it anyway)
  • Disabled UAC in Windows Server 2019
  • Rebooted Windows 2003 and Windows Server 2019 servers
  • Tried different files inside the shares
  • Added a new virtual disk and targeted this drive instead of the system drive.

The weird thing is the folders get created and files, but they are “0” file size.

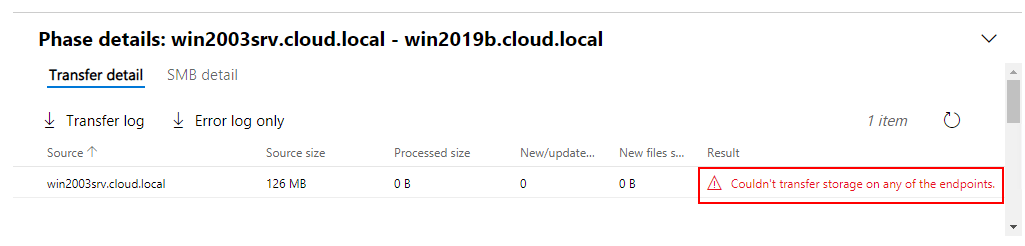

Error-migrating-from-Windows-2003-server-to-Windows-Server-2019-using-Storage-Migration-Service Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Error migrating from Windows 2003 server to Windows Server 2019 using Storage Migration Service

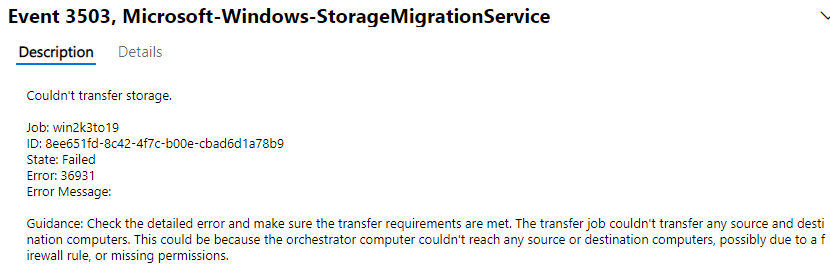

The following error is displayed in event view for Windows Server 2019.

Event-log-error-with-the-Storage-Migration-Service Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Event log error with the Storage Migration Service

I am sure I am missing something required here with Windows 2003, however, there is literally no information out there at this point for this functionality so working on trial and error.  I will keep this post updated as I continue to test.

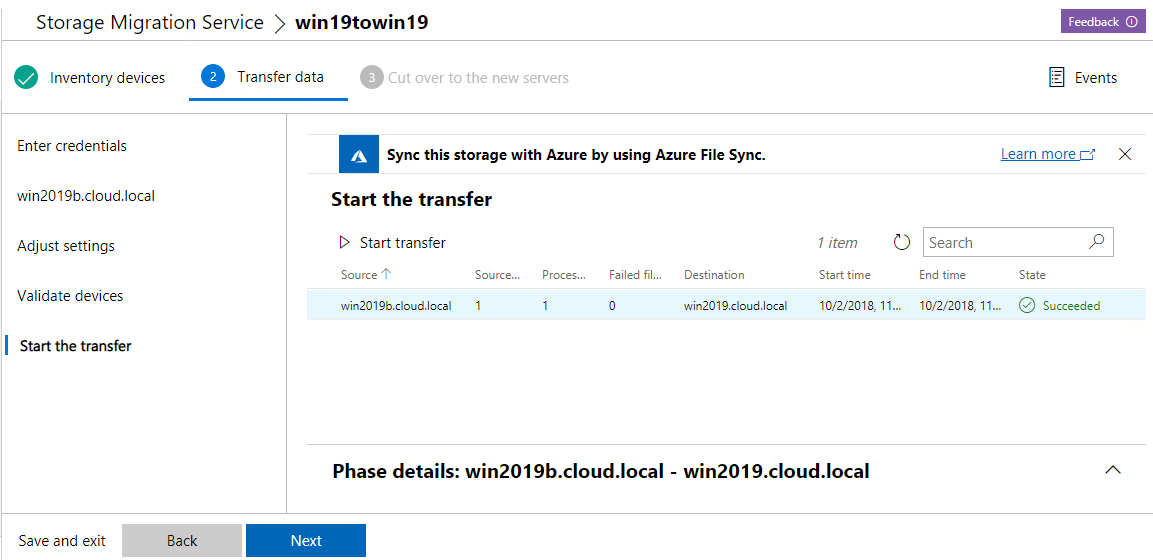

So to feel good about at least getting to test the functionality, I tried Windows Server 2019 to Windows Server 2019.  As you can see below, the transfer of the same files is successful, albeit on the Windows Server 2019 platform.

The-same-transfer-between-Windows-Server-2019-servers-is-successful Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

The same transfer between Windows Server 2019 servers is successful

Shares are properly created and NTFS permissions are brought across as well.

Share-and-NTFS-permissions-are-properly-brought-across Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

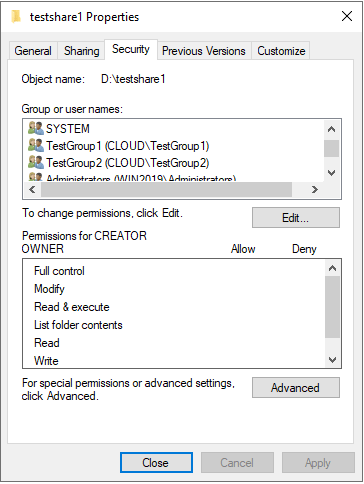

Share and NTFS permissions are properly brought across

Now, for the cutover stage.  This allows actually assuming the identity of the old server if you need.  Again, credentials.

Enter-credentials-for-the-cutover-process Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

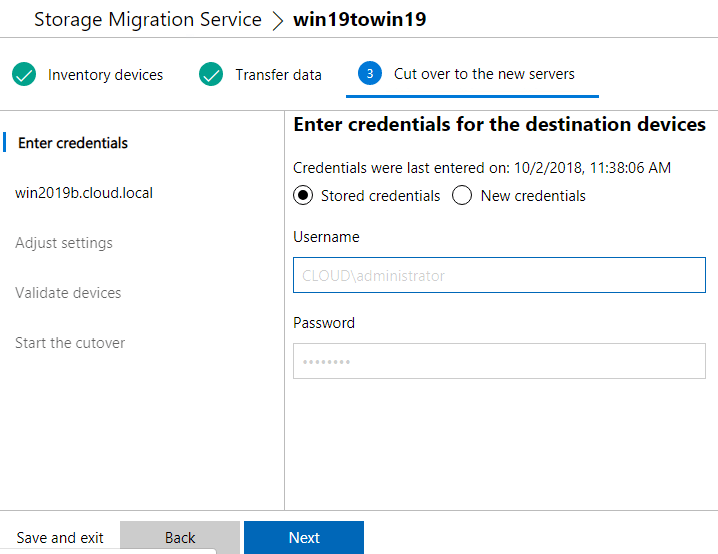

Enter credentials for the cutover process

Configure what you want to do with the network.  You can assume IP as well if you want.  Additionally, you can choose to generate a random computer name or specify what you want the old server to be renamed too after the new server assumes identity.

Configure-network-connection-parameters-for-the-cutover Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

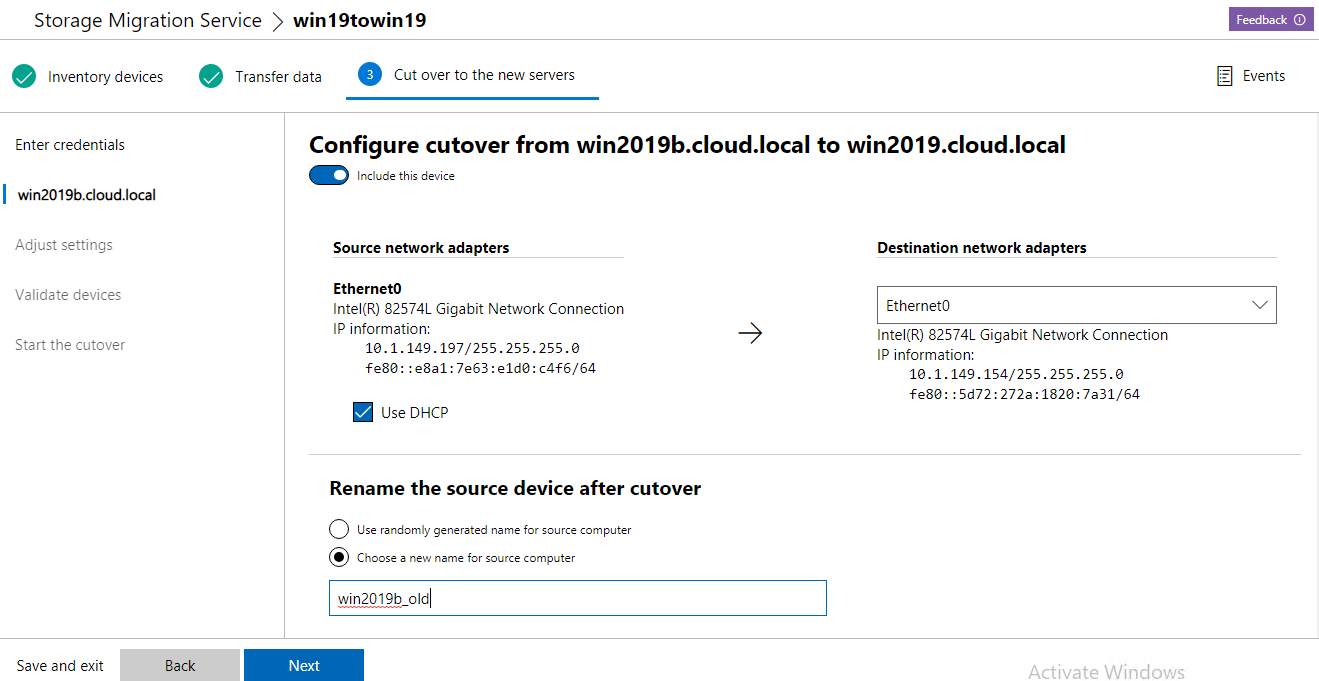

Configure network connection parameters for the cutover

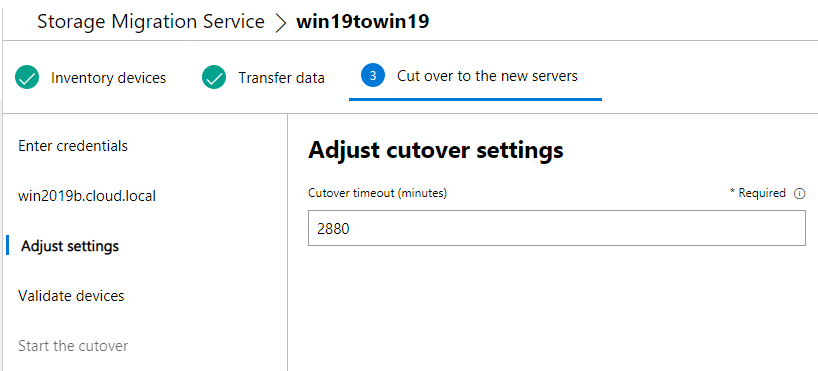

Adjust the cutover time.

Adjust-settings-of-the-cutover-time-allotted Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Adjust settings of the cutover time allotted

Validate the source and destination.

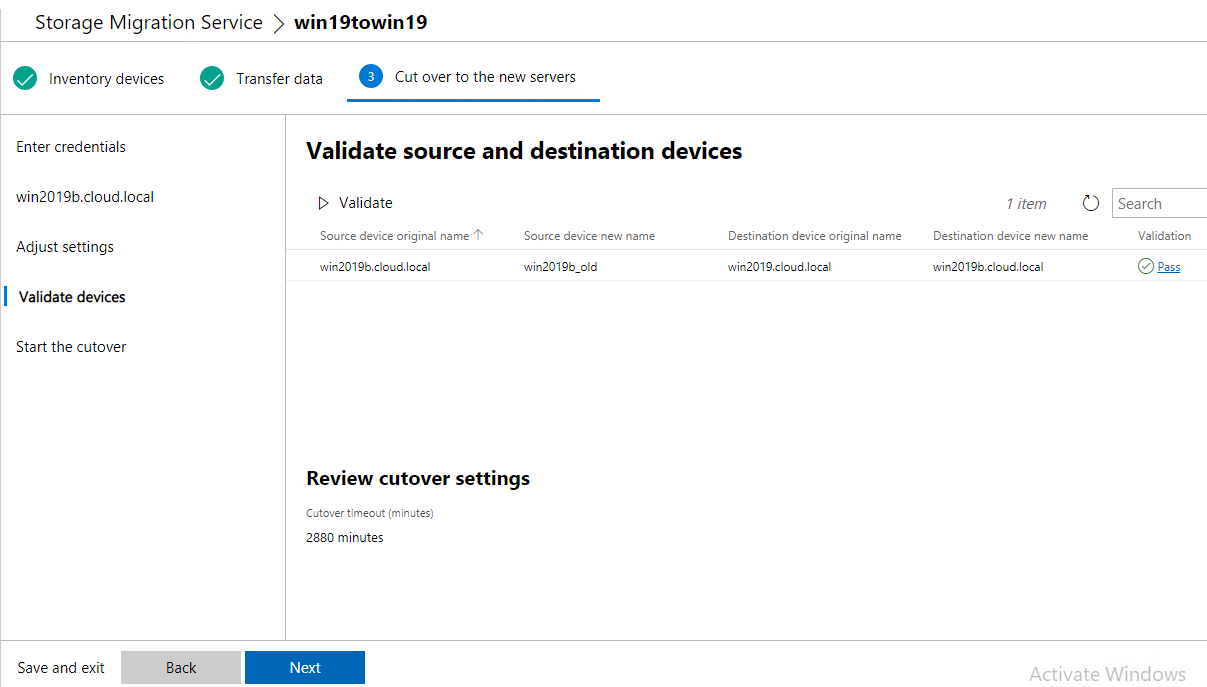

Validate-source-and-destination-for-cutover Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Validate source and destination for cutover

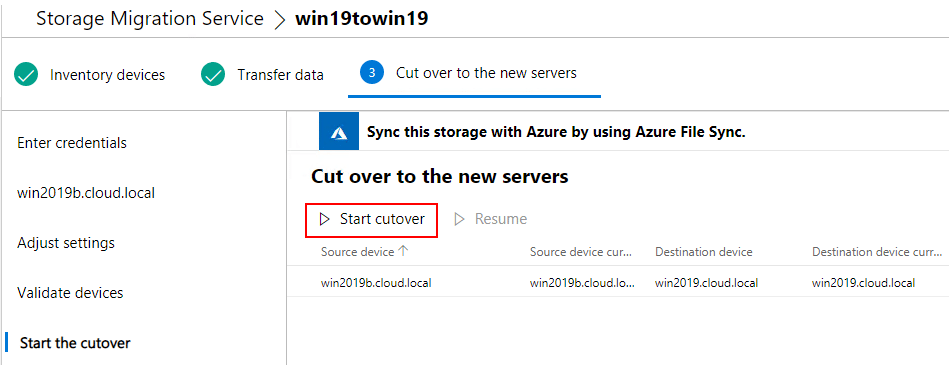

Start the cutover process.  This will reboot both servers a few times as each identity is changed.

Start-the-cutover-process Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Start the cutover process

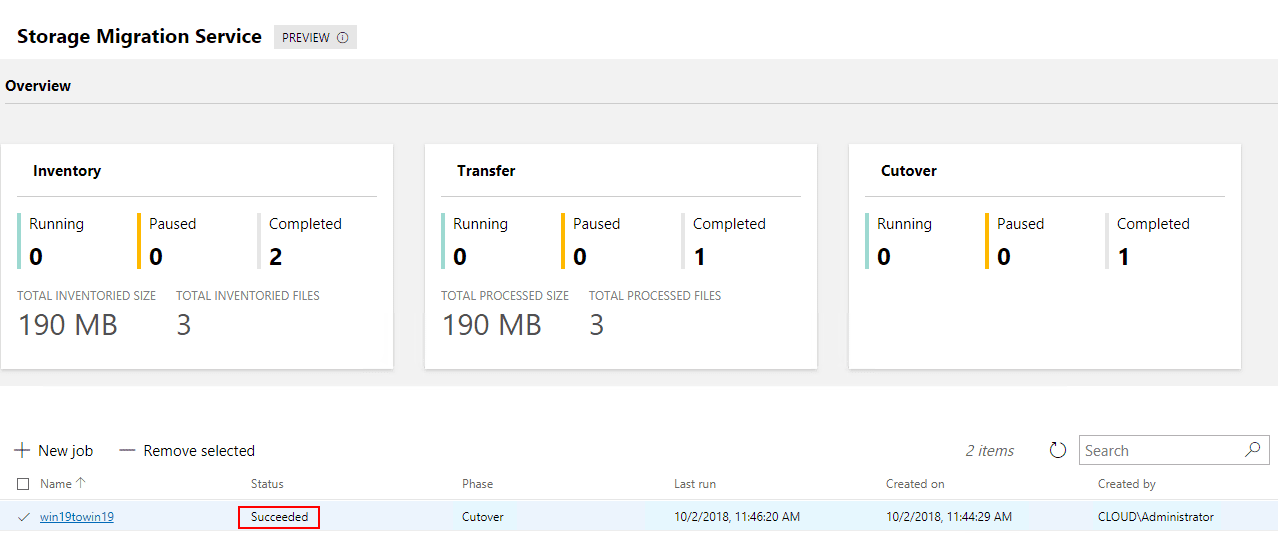

After the cutover process is successful.  I was able to verify that the old server was renamed and the new server assumed the identity of the old server.  Very cool!

Storage-Migration-Service-cutover-is-successful Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration

Storage Migration Service cutover is successful

Takeaways

I generally don’t like to create posts showing things I couldn’t get to work, however, this is showing preview functionality at this point and I know I am missing something for Windows 2003 functionality.  It is great to see that Microsoft is working on making this process to Migrate from Windows Server 2003 to Windows Server 2019 with Storage Migration as simple and easy as they can.  There is a ton of Windows 2003 servers still out in production environments according to Microsoft!  One documented and ironed out, this will eliminate all excuses to migrate off Windows 2003 up to Windows Server 2019 for file server platforms.  More to come…again, stay tuned to the post as I will keep it updated with findings.  Please comment if you have been experimenting with this also and have the key here that I am missing.
