Recently, we took a look at deploying ScaleIO in a VMware vSphere 6 environment. With the 2.0.1.3 release, vSphere 6.5 is supported. In the previous post, we only looked at the process of deploying the ScaleIO environment including the SDC vibs on the ESX hosts, the vSphere web client plugin, and then also creating the ScaleIO environment. Let’s look at the piece that we all are interested in after getting the system deployed. Let’s look at how to create ScaleIO Volume ESXi datastore.

Create ScaleIO volume ESXi datastore

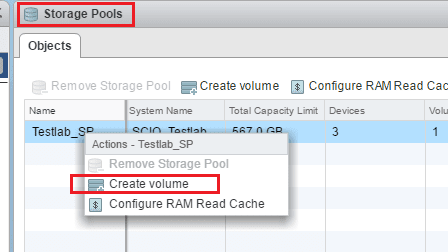

Using the vSphere web client to add a volume in ScaleIO after we have provisioned the system, we navigate to ScaleIO >> Storage Pools >> Create volume.

sciovol02a Create ScaleIO Volume ESXi datastore

The create volumes dialog box pops up.  Here we choose a name for the ScaleIO volume, volume size, volume provisioning, RAM Read Cache.  Also, we need to choose to Map volume to ESXs.  Below that, we select the ESXi servers we want to map the volume to.

sciovol02b Create ScaleIO Volume ESXi datastore

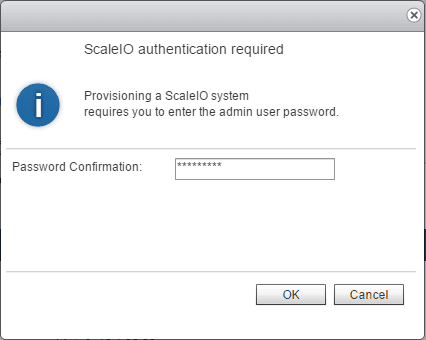

To provision the volume we enter the admin password.

sciovol03 Create ScaleIO Volume ESXi datastore

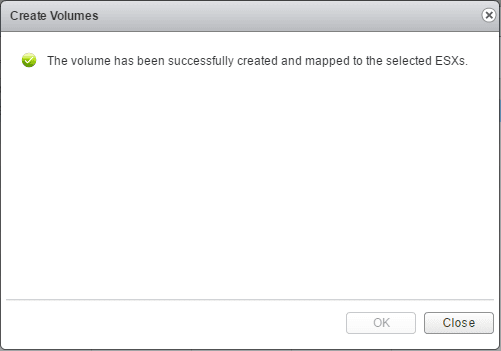

You should see the volumes are mapped successfully to the ESXi servers.

sciovol04 Create ScaleIO Volume ESXi datastore

EMC ScaleIO Windows client

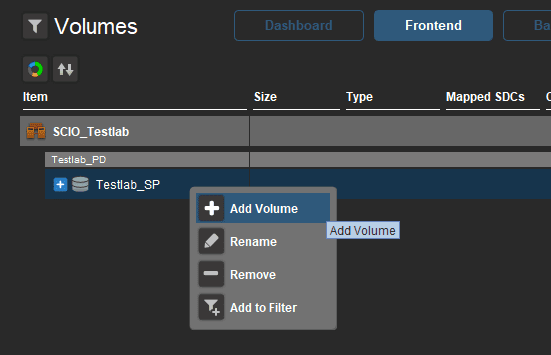

We can also perform this same operation using the EMC ScaleIO Windows client.  We can navigate to Frontend >> Volumes >> Add Volume.

sciovol10 Create ScaleIO Volume ESXi datastore

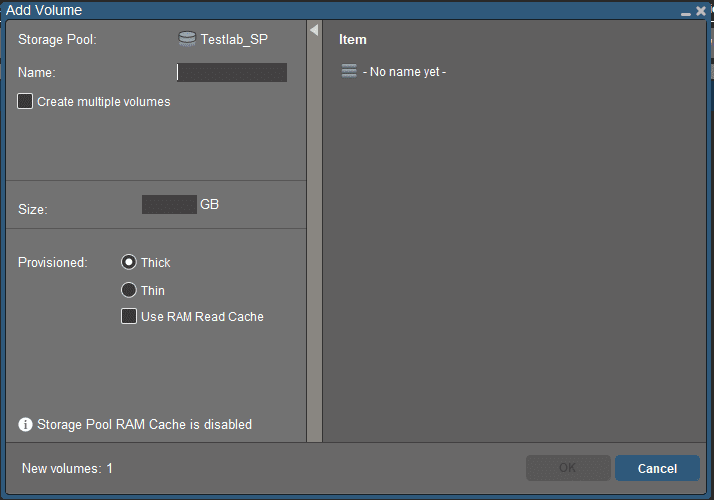

In the Add Volume box we have the same options that we saw in the vSphere web client.

sciovol11 Create ScaleIO Volume ESXi datastore

Add the ScaleIO Volume as a Datastore to ESXi

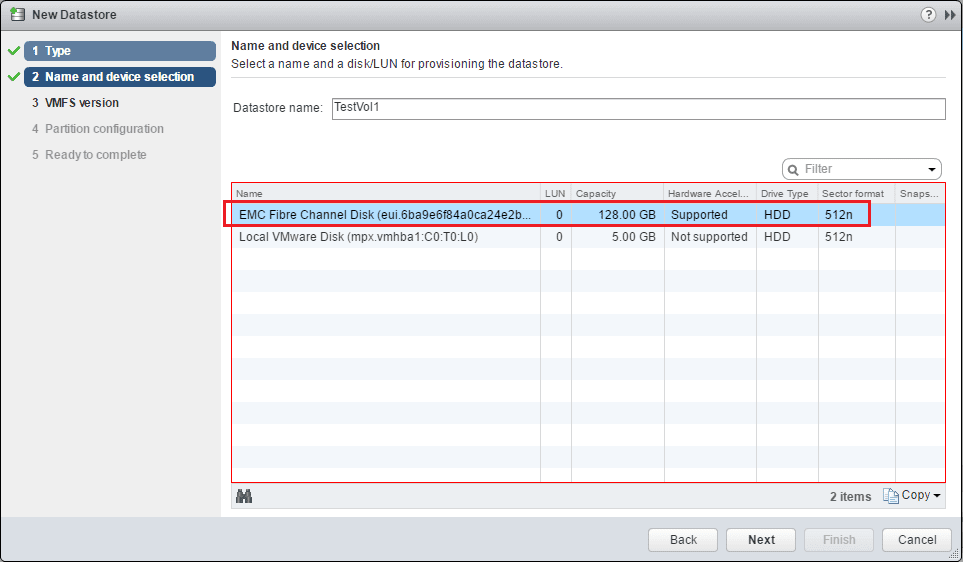

On our ESXi hosts, we need to rescan our storage adapters.  After we do a rescan, we should be able to Add a new datastore and see the EMC Fibre Channel Disk presented as available to our ESXi host.

sciovol05 Create ScaleIO Volume ESXi datastore

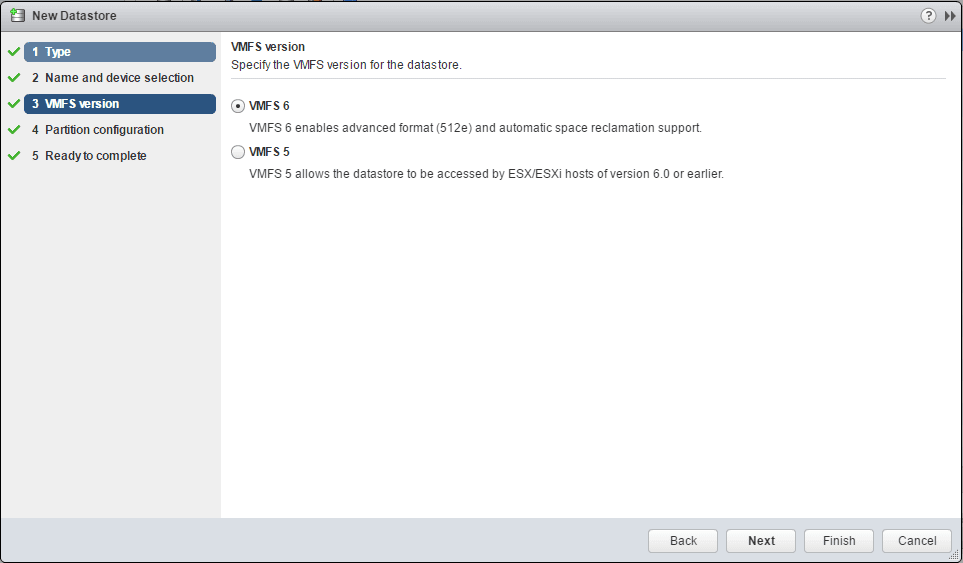

The rest is standard “add a datastore” options, including which VMFS version we want to format our datastore as.

sciovol06 Create ScaleIO Volume ESXi datastore

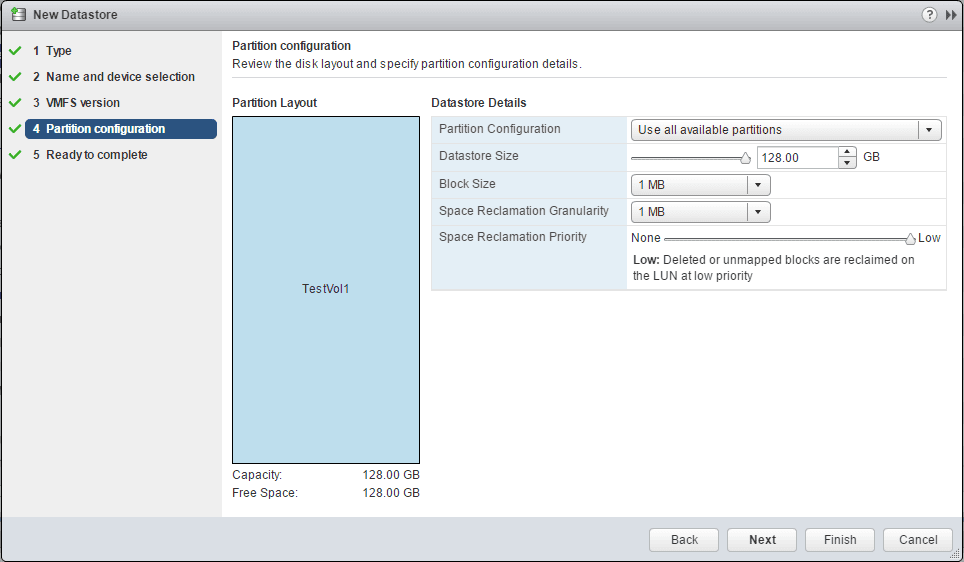

Here, simply accepting the defaults on the partition configuration.

sciovol07 Create ScaleIO Volume ESXi datastore

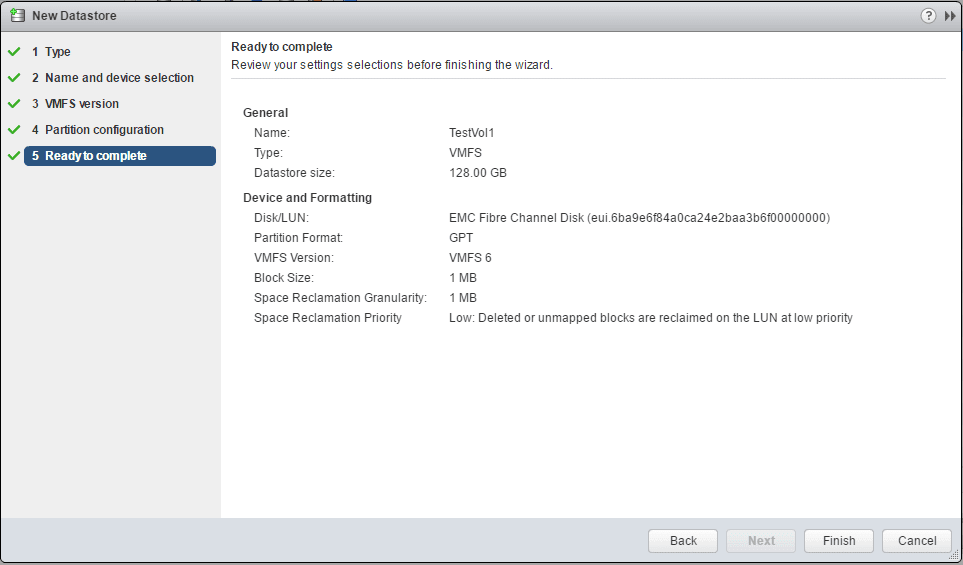

Finally, we are ready to complete the addition of the datastore.

sciovol08 Create ScaleIO Volume ESXi datastore

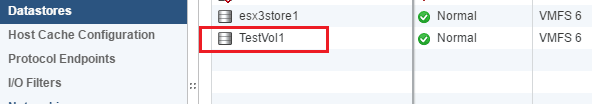

We should now be able to see the datastore on our ESXi host.  We should be able to rescan our other hosts and have the datastore appear.

sciovol09 Create ScaleIO Volume ESXi datastore

Thoughts

The process to create ScaleIO volume ESXi datastore is fairly straightforward and is just a matter of provisioning the volume in ScaleIO and then adding the datastore in ESXi as we would any provisioning of storage in vSphere.  The ScaleIO disk is presented in this case as a EMC fibre channel disk in vSphere.  Take a look here to download a copy of EMC ScaleIO.  Stay tuned for more ScaleIO tinkering!
