For those not familiar, Dell has a neat network management tool that can manage network equipment and others.  This is available by way of an OVA appliance download as well as other installs.  Let’s take a look at the Dell Openmanage Network Manager 6.2 Appliance Install and Configure.  The OMNM6.2 appliance is available as a free 30 day trial download if you want to download it and play around with installing and configuring.

Dell Openmanage Network Manager 6.2 Appliance Install and Configure

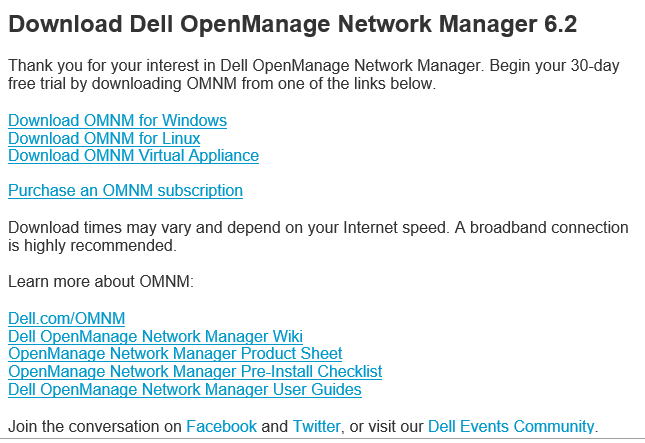

Once you sign up for the trial download, you will receive an email with the download links as well as all the documentation you need to spin the appliance up and configure.

omnm01 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

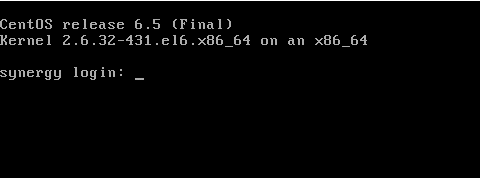

Once you deploy the OVA template in vSphere via the normal method of deploying, boot the appliance, and you will be prompted to login.  The default username and password for the appliance is:

user:  synergy
pass: synergyP@$$

omnm02 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

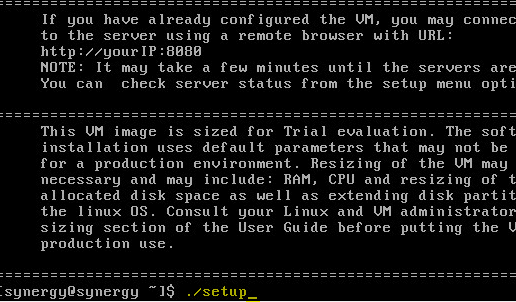

After logging in, type the following command to start the setup of the appliance:

omnm03 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

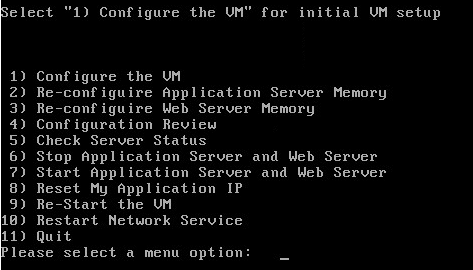

You should see a 1-11 menu that pops up that allows you to choose what you want to do next.

omnm04 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

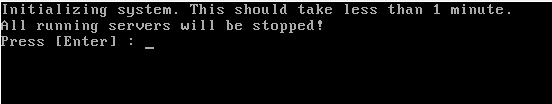

Choose the 1) Configure the VM option which will start the process.

omnm05 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

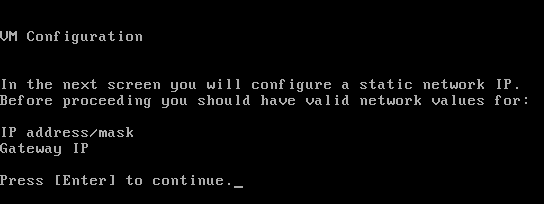

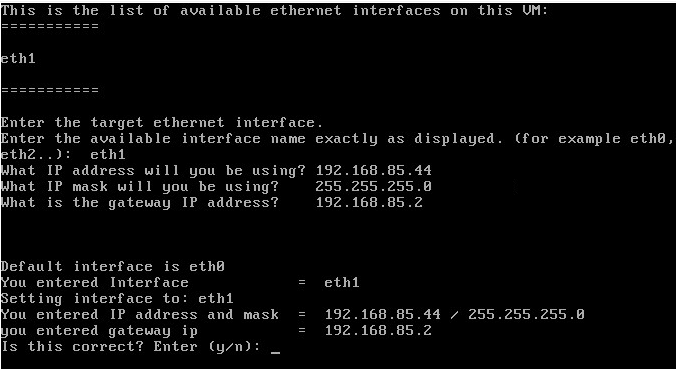

The main thing you will need to do is setup the network connectivity by setting IP address, subnet, gateway, etc.

omnm06 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

After setting up the network configuration…

omnm07 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

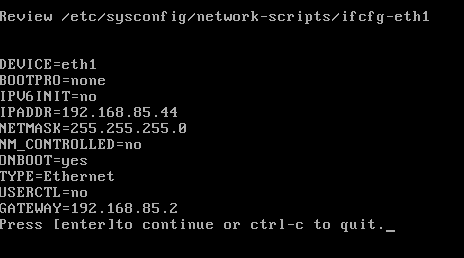

A review page with the settings will present once you are finished.

omnm08 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

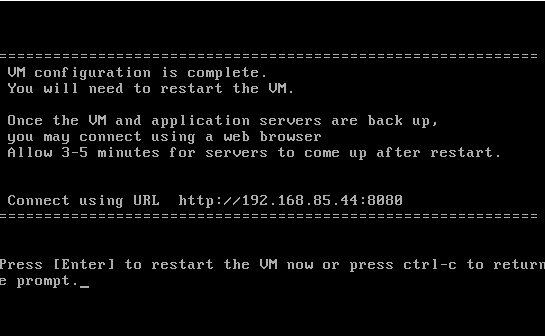

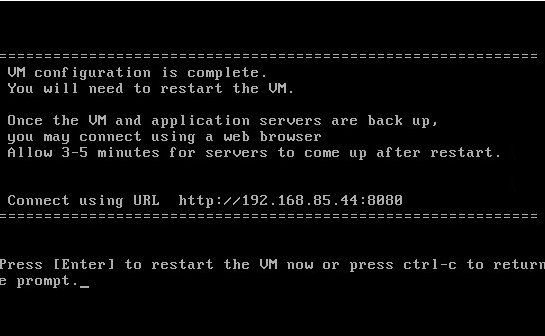

The setup of the appliance will prompt to restart the VM.

omnm09 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

Once you have configured the network and rebooted, simply navigate to https://<your ip>:8080 to get to a login screen.

omnm10 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

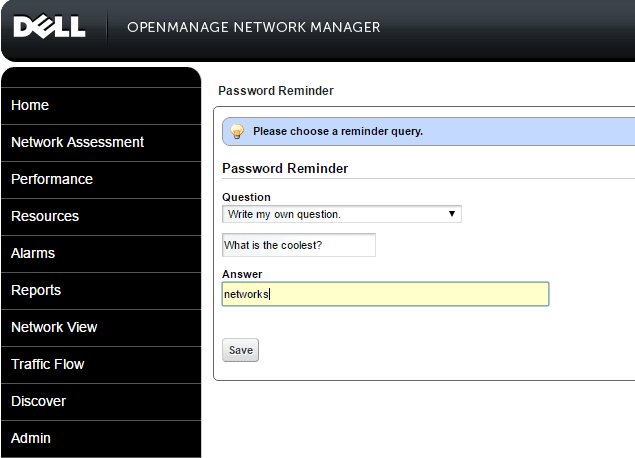

The first thing it will do is have you setup a password reminder question.

omnm11 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

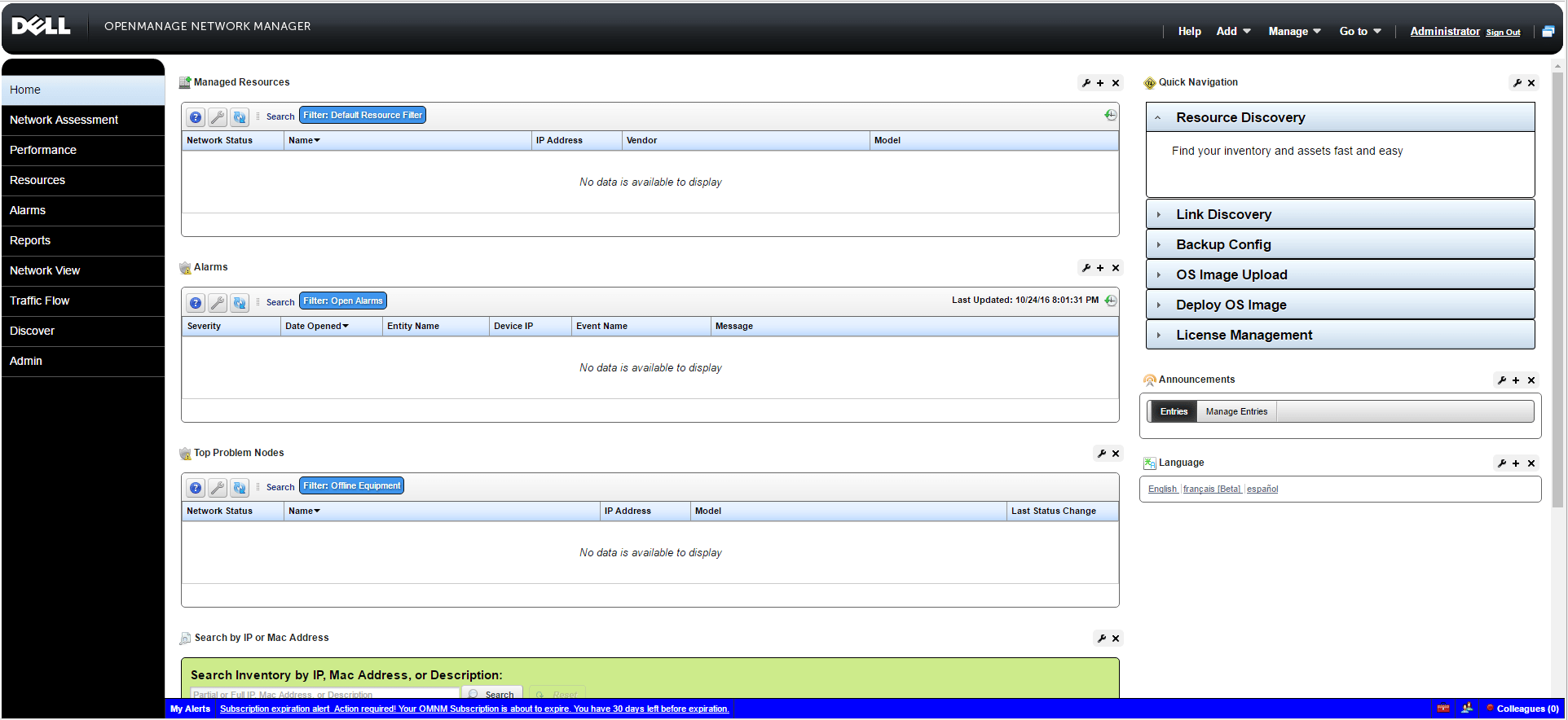

Next, you will see the plain console without any devices.

omnm12large Dell Openmanage Network Manager 6.2 Appliance Install and Configure

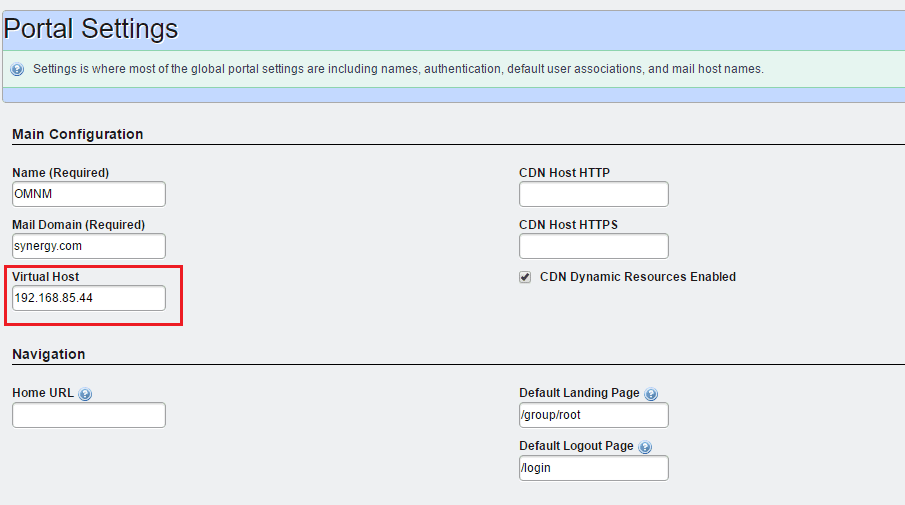

The setup documentation will prompt you to verify the portal settings to make sure the correct IP address is assigned to the virtual host.

omnm13 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

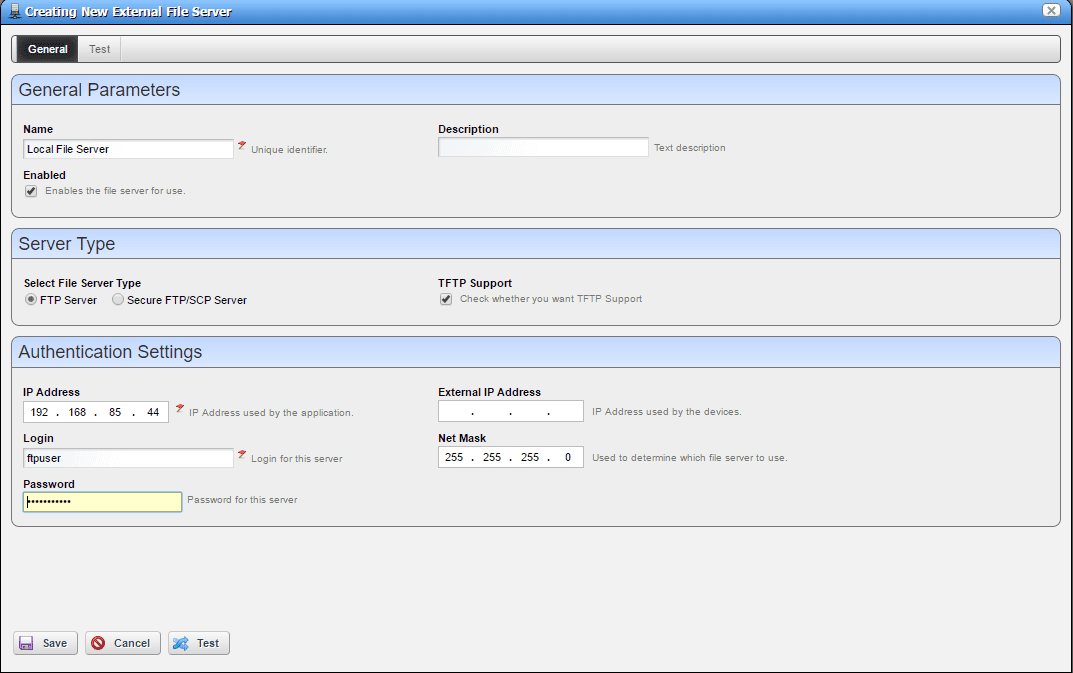

The final recommendation is to check the External File server settings and setup the appropriate parameters here.

omnm14 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

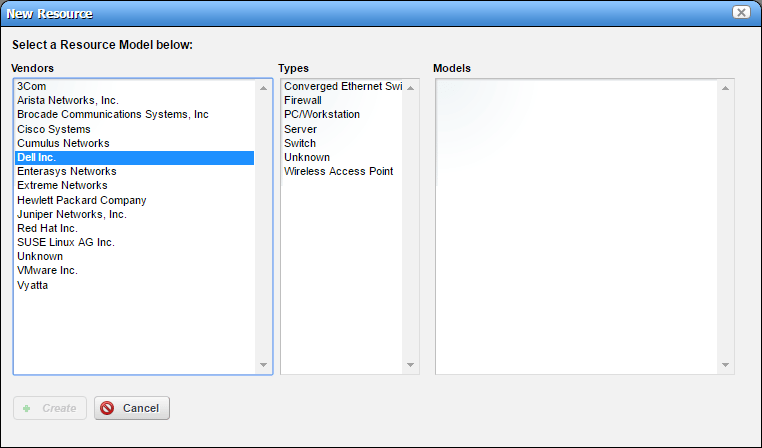

Finally, we can right click in the Managed Resources area and start adding devices.

omnm15 Dell Openmanage Network Manager 6.2 Appliance Install and Configure

Thoughts

The Dell Openmanage Network Manager 6.2 Appliance Install and Configure process was a breeze and simply involved deploying the OVA template, setting up the network, and then verifying a few parameters in the configuration of the appliance.  Look for more posts to come on how to use this tool and monitor your Dell and other devices.
