The vSphere Replication functionality which used to reside exclusively in VMware’s SRM product, is currently a standalone appliance now which gives virtualization administrators the replication functionality piece for free in any licensed version of vSphere.  The appliance is a small download from VMware and is of the SUSE flavor of linux that is in the format we have all grown to know and become familiar with in other appliances (i.e. VCSA).  Following the similarity of the new VCSA vSphere appliance, the replication appliance download is in the format of an ISO file.  You simply mount the ISO and deploy your appliance from the ISO ova files.

The replication appliance in vSphere 6 is super easy to deploy and adds the ability to replicate VMs between sites with RPO values ranging from 15 minutes to 24 hours.  The appliance falls in line with other linux appliances that VMware has used to deploy various pieces of functionality within vSphere.  The following are screenshots of the replication appliance being deployed within vCenter 6.

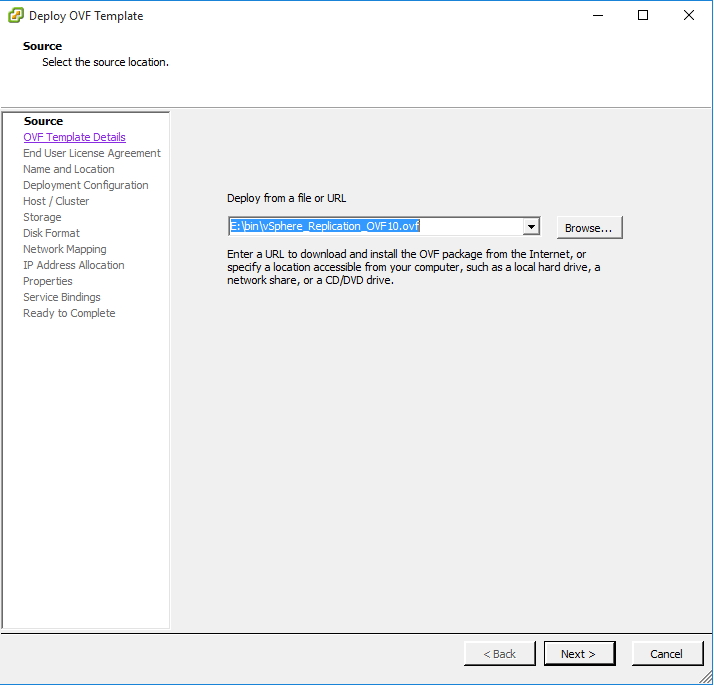

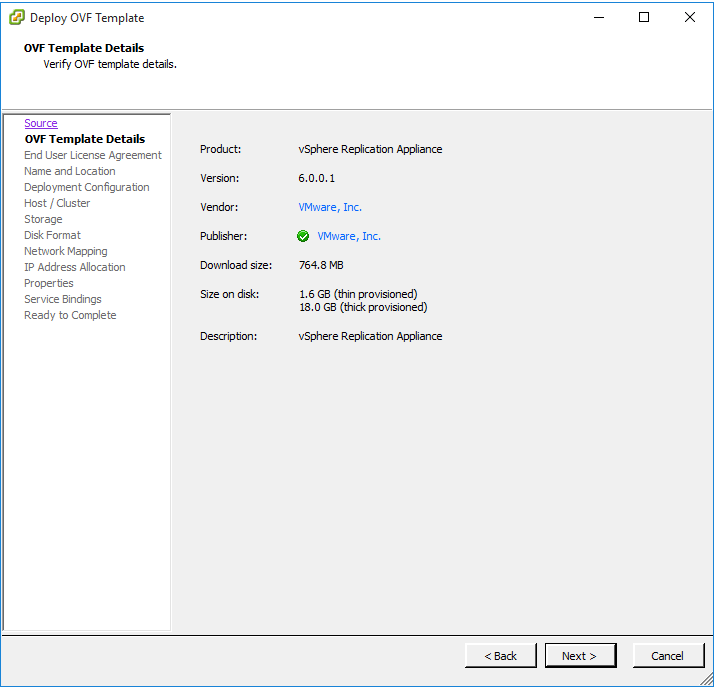

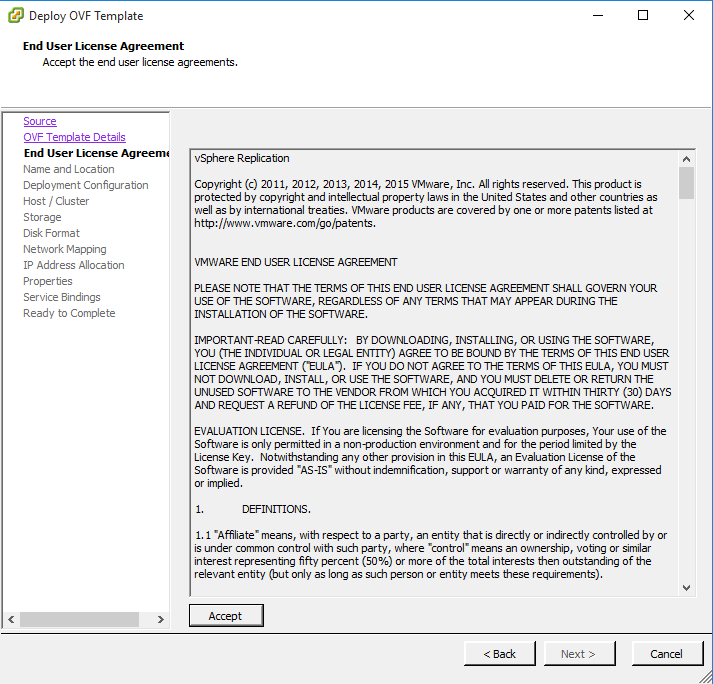

We start the install by starting the Deploy OVF wizard from within vcenter server.

replication01-300x288 Installing the vSphere 6 Replication Appliance
replication02-300x288 Installing the vSphere 6 Replication Appliance
replication03-300x288 Installing the vSphere 6 Replication Appliance

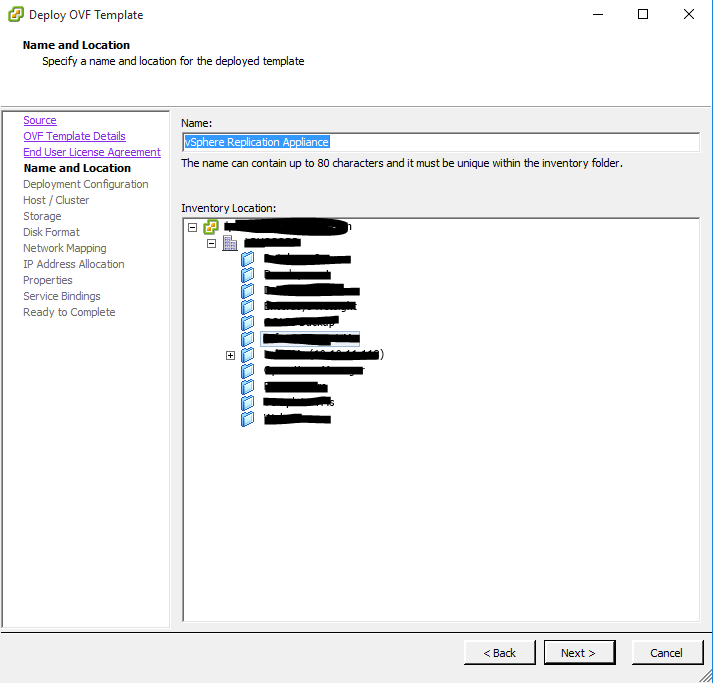

Here we name and locate the virtual appliance.


replication04-300x287 Installing the vSphere 6 Replication Appliance

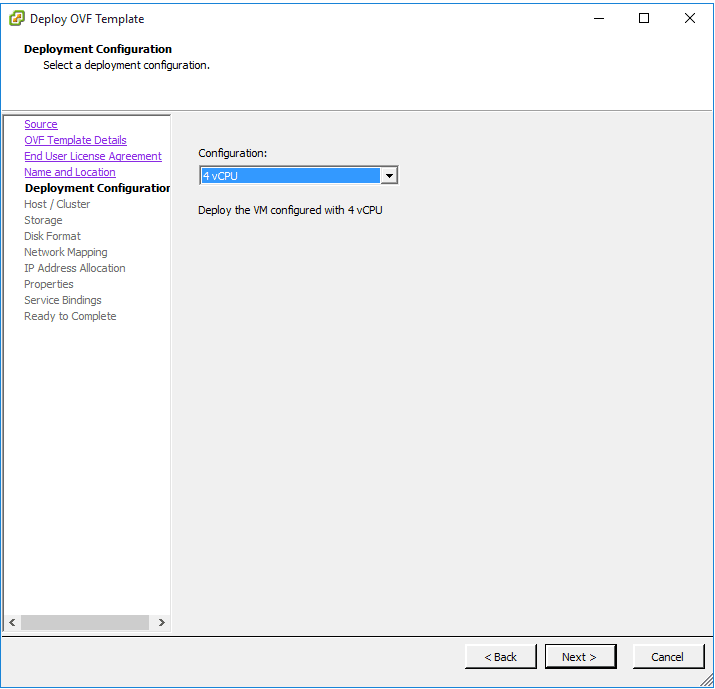

The choices here are 2 vCPU and 4 vCPU.  For most environments I would recommend choosing the 4 vCPU install.

replication05-300x289 Installing the vSphere 6 Replication Appliance

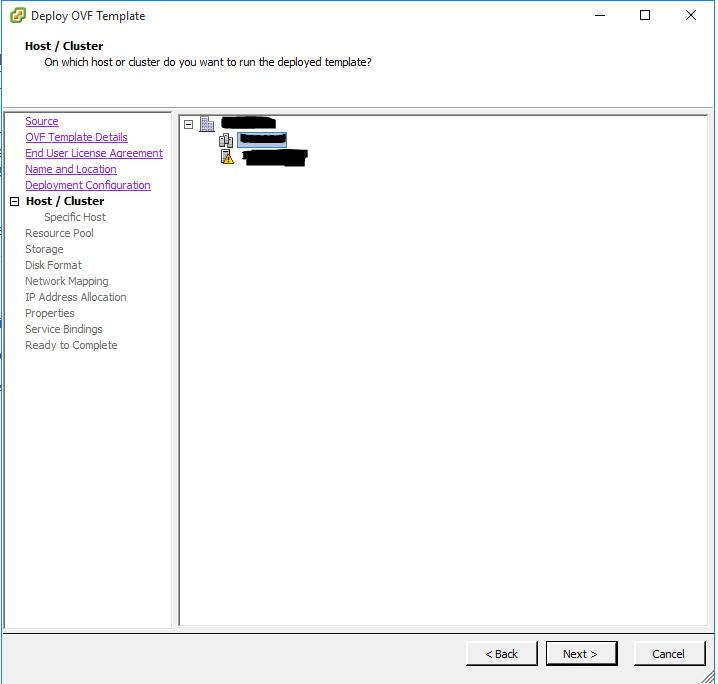

Host and cluster selection.


replication06-300x286 Installing the vSphere 6 Replication Appliance

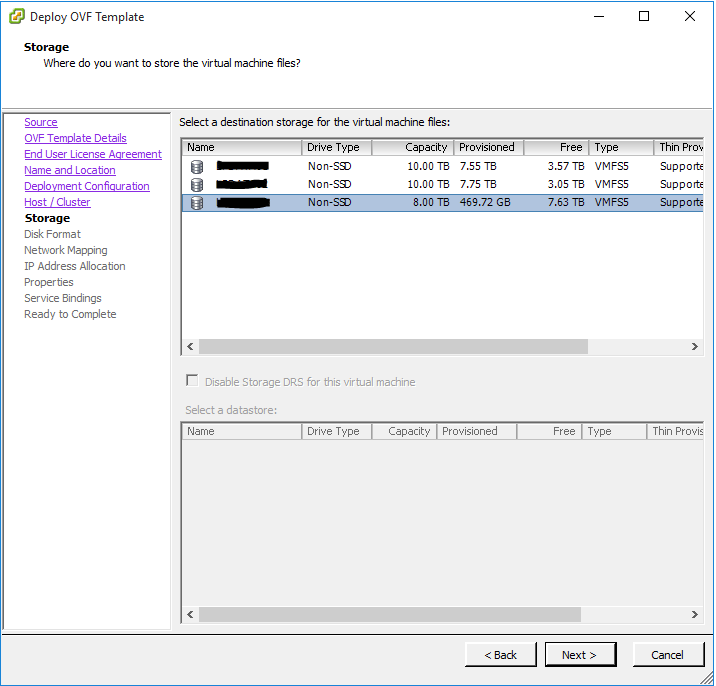

Where do we want to store the virtual machine files – select your datastore.


replication07-300x287 Installing the vSphere 6 Replication Appliance

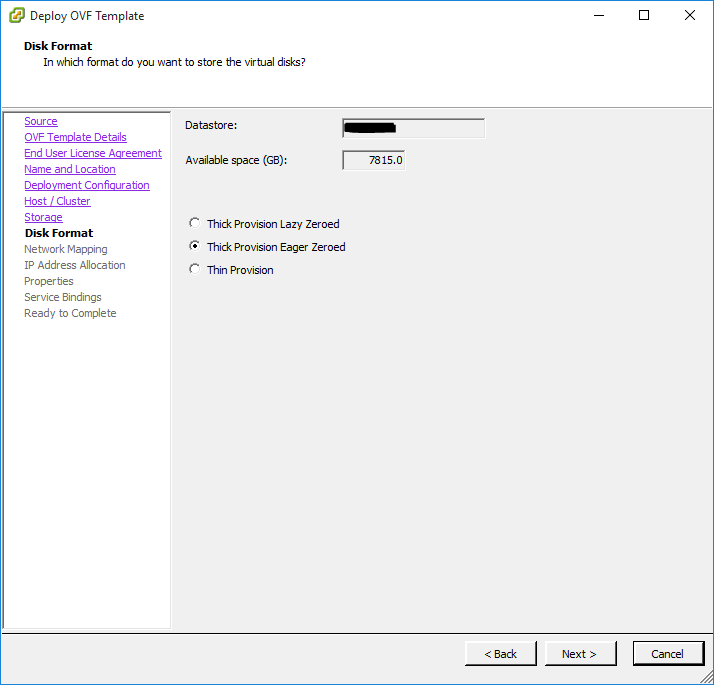

How do you want to provision the VM as thick-eager, thick-lazy, or thin.


replication08-300x288 Installing the vSphere 6 Replication Appliance

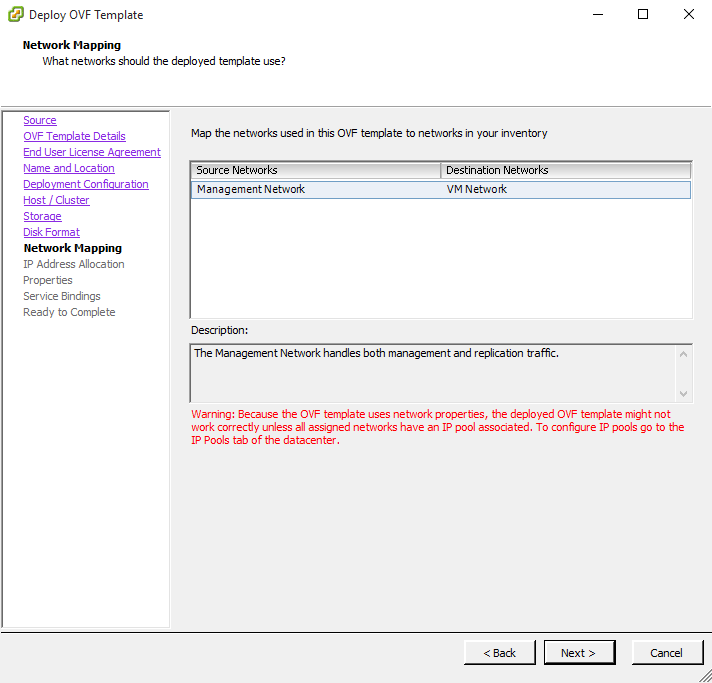

Here we select the networking configuration of the VM and choose the source and destination network – vswitch layout.


replication09-300x288 Installing the vSphere 6 Replication Appliance

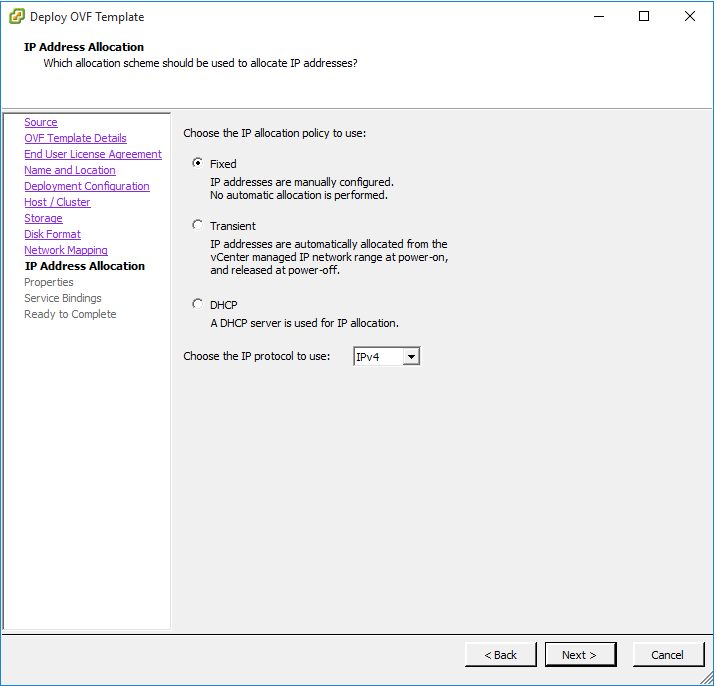

How do you want to address the VM?  You can select here to use the Fixed, Transient, or DHCP options.  Transient is managed from the IP Pools setup in the vCenter cluster config.


replication10-300x287 Installing the vSphere 6 Replication Appliance

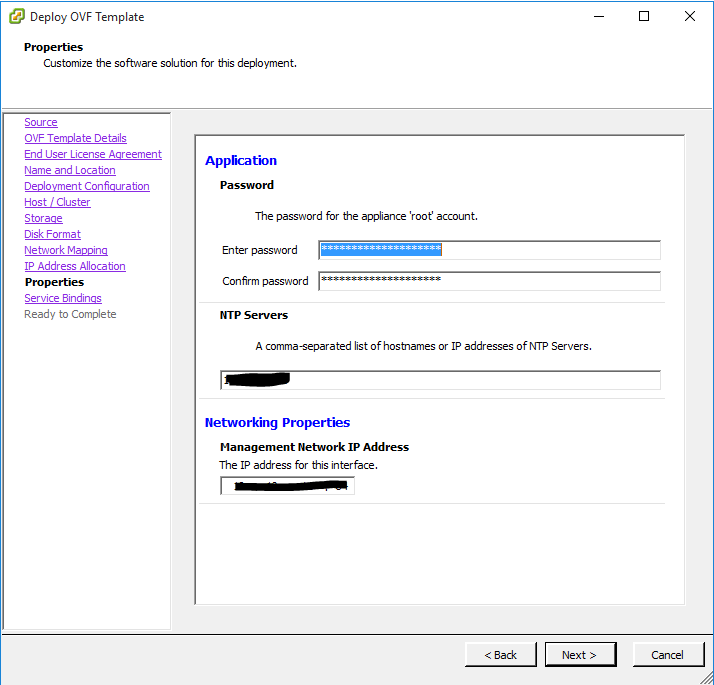

Normal password and NTP server configuration section.


replication11-300x288 Installing the vSphere 6 Replication Appliance

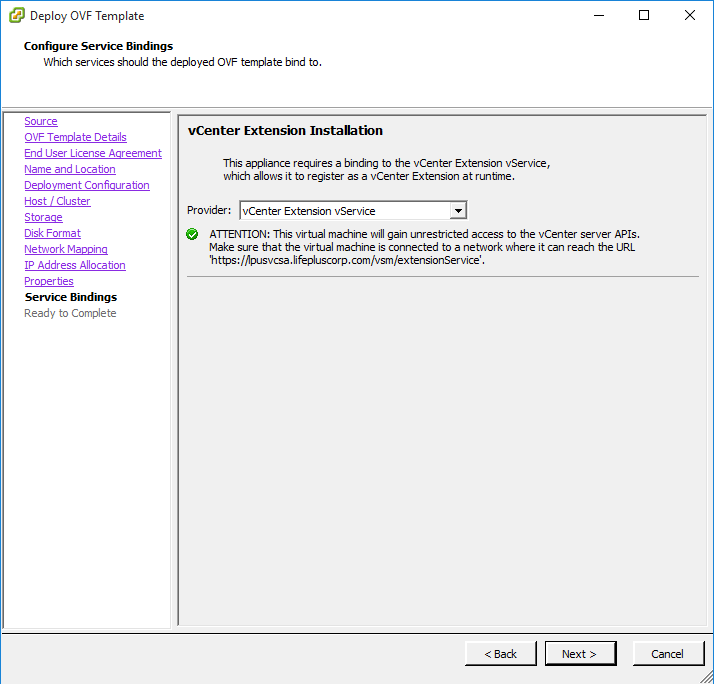

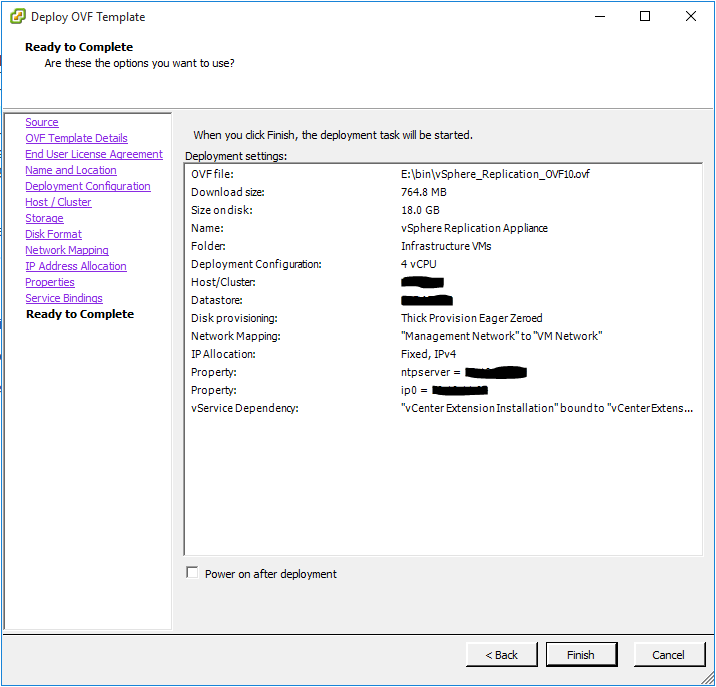

The next page shows the default setting which is to allow the appliance to register with vCenter to extend the funcationlity.  This is what allows the extra menu options in vCenter web client to view replication


replication12-300x287 Installing the vSphere 6 Replication Appliance
replication13-300x288 Installing the vSphere 6 Replication Appliance

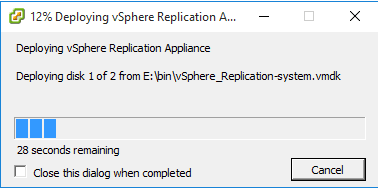

Deployment of the virtual appliance begins which literally takes a couple of minutes.


replication14-300x149 Installing the vSphere 6 Replication Appliance

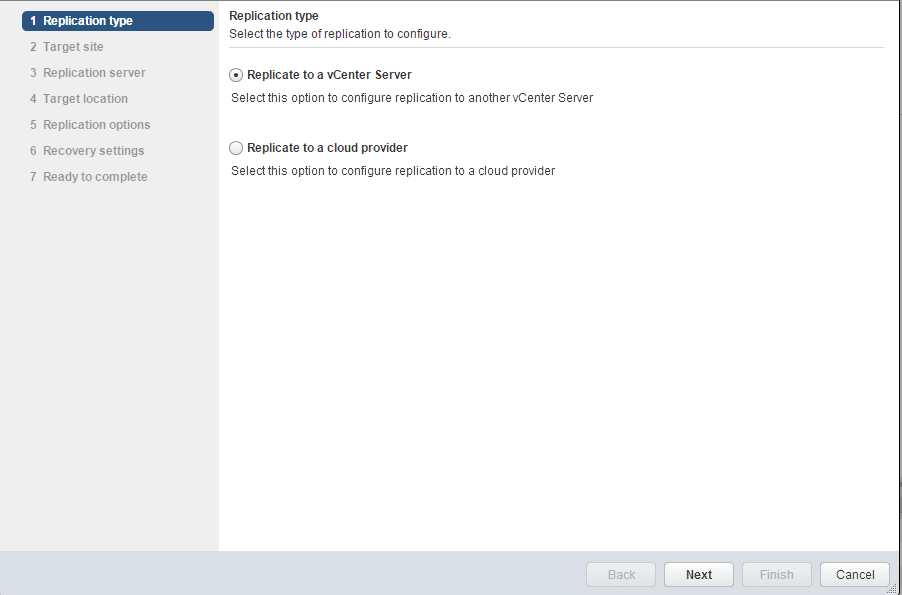

After deploying the appliance you should see the options now in vCenter web client under the All vSphere Replication Actions >> Configure Replication

replication15-300x198 Installing the vSphere 6 Replication Appliance



Final Thoughts

As you can see the replication appliance is easy to deploy within vCenter.  I will be posting soon on the ins and outs of configuring and setting up vSphere replication in version 6.
