iSCSI Synology VMware Configuration step-by-step

One of the lab additions made in the past couple of weeks is a new Synology DS1621xs+ 6-bay NAS device. I have been wanting to add a NAS device for quite some time and decided to pull the trigger. The NAS for my home lab will be for general file storage, backups, and to augment my storage solutions available for my home lab services. This will fit nicely alongside the VMware vSAN datastore and additional local datastores I have configured in the lab environment. The process to configure an iSCSI LUN for consumption in your VMware vSphere environment is straightforward. Let’s look at iSCSI Synology VMware Configuration step-by-step.

Why an iSCSI datastore in the home lab?

As a quick overview of why I want/need an iSCSI datastore in the home lab, in addition to other storage technologies such as VMware vSphere and local datastores, it all comes down to options. Having the traditional iSCSI storage available to my vSphere hosts gives me additional options to move workloads around and even as a target possibly for VM replicas.

It will also provide a good backup storage technology in case I have an outage on my main vSAN cluster. Also, I have always liked SANs NASs and other storage technologies. So, it is great to have this to play with, in the home lab environment once again.

iSCSI Synology VMware Configuration step-by-step

The process for the iSCSI Synology VMware configuration involved the following:

  1. Configuring the network interface for the iSCSI LUN
  2. Creating the iSCSI LUN in the Synology SAN Manager
  3. Adding the Distributed Port Group and VLAN for my iSCSI network
  4. Adding the iSCSI VMkernel port and IP address in vSphere
  5. Add the iSCSI Software Adapter and connect the VMkernel port to the iSCSI LUN
  6. Add the new iSCSI vSphere datastore

1. Configuring the network interface for the iSCSI LUN

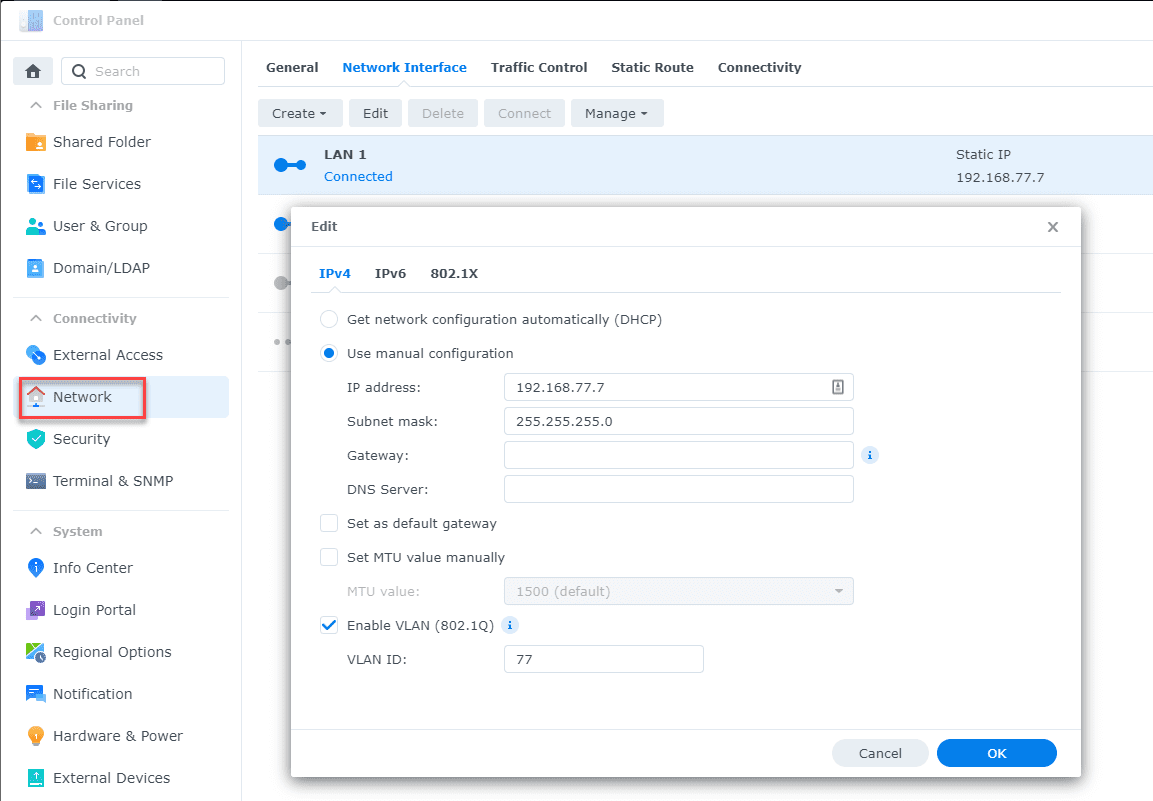

On the Synology DS1621xs+ NAS, the 1st LAN port is the 10 gig connection. Below, I am configuring the network interface IP address and VLAN tag for the iSCSI network (tagged on my 10 gig switch).

Configuring the IP address and VLAN tagging on the synology for iSCSI
Configuring the IP address and VLAN tagging on the synology for iSCSI

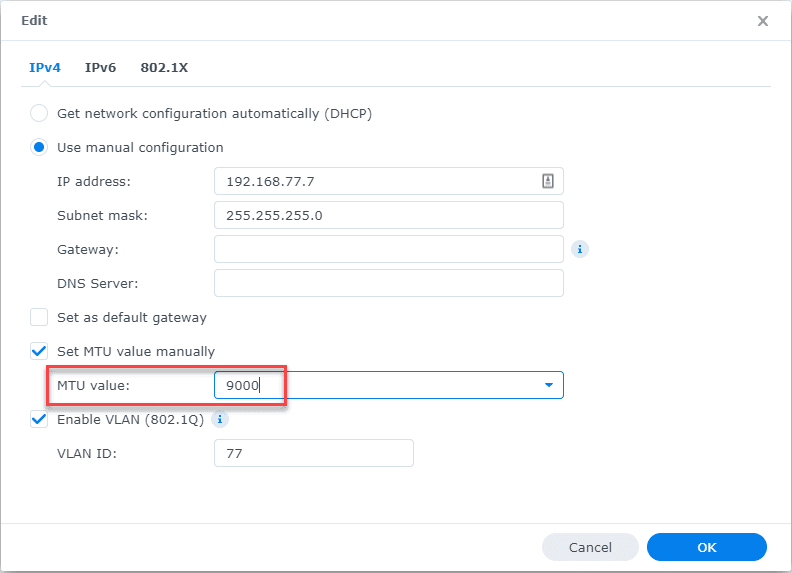

I didn’t capture this configuration in the above screenshot. However, below, I am setting the MTU value to 9000 for jumbo frames with iSCSI.

Set the jumbo frames MTU on the interface
Set the jumbo frames MTU on the interface

2. Creating the iSCSI LUN in the Synology SAN Manager

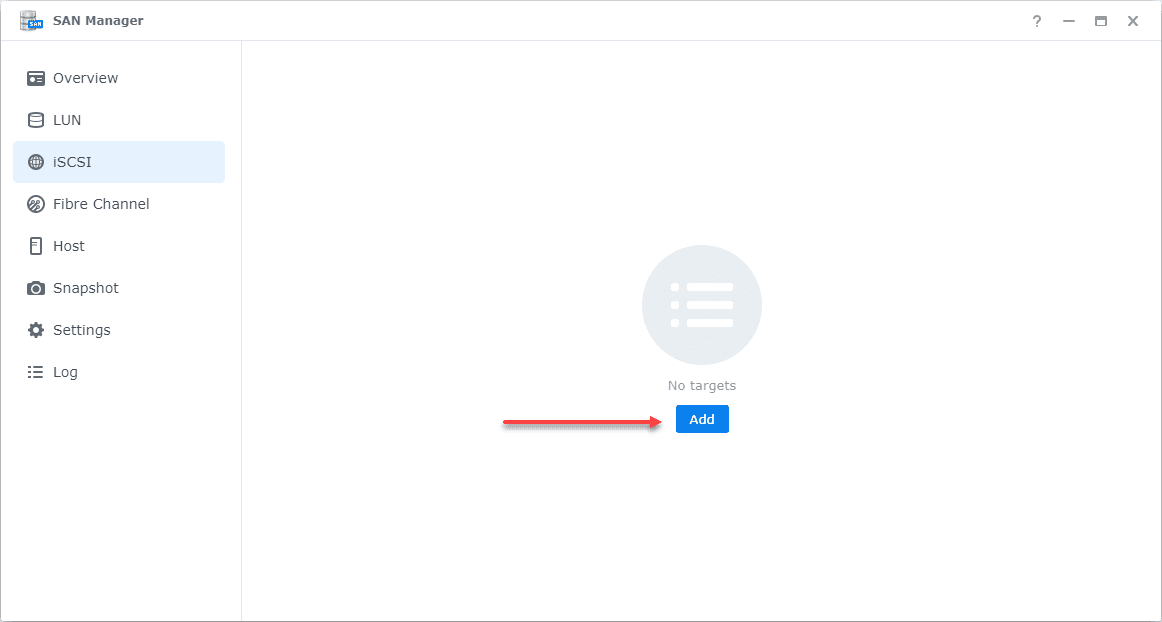

Launch the Synology SAN Manager and select iSCSI > Add.

Adding a new iSCSI target in the Synology SAN Manager
Adding a new iSCSI target in the Synology SAN Manager

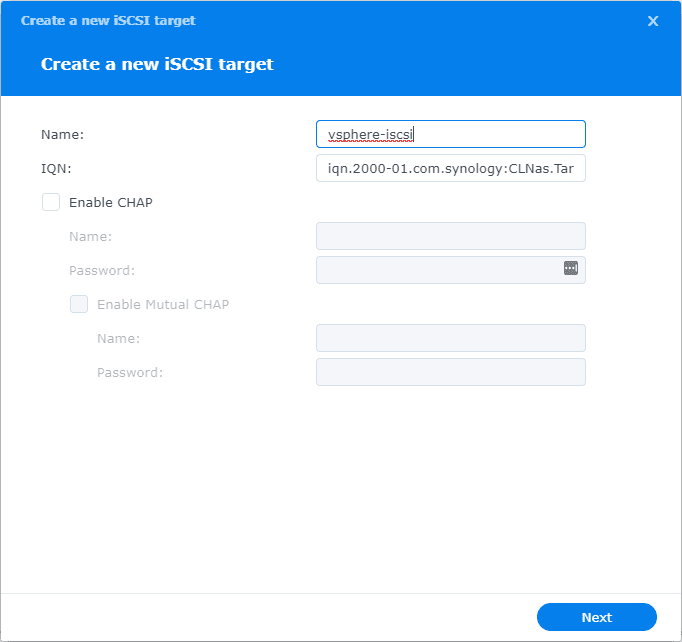

Name the iSCSI target and take note of the IQN address.

Name the iSCSI target and take note of the target address
Name the iSCSI target and take note of the target address

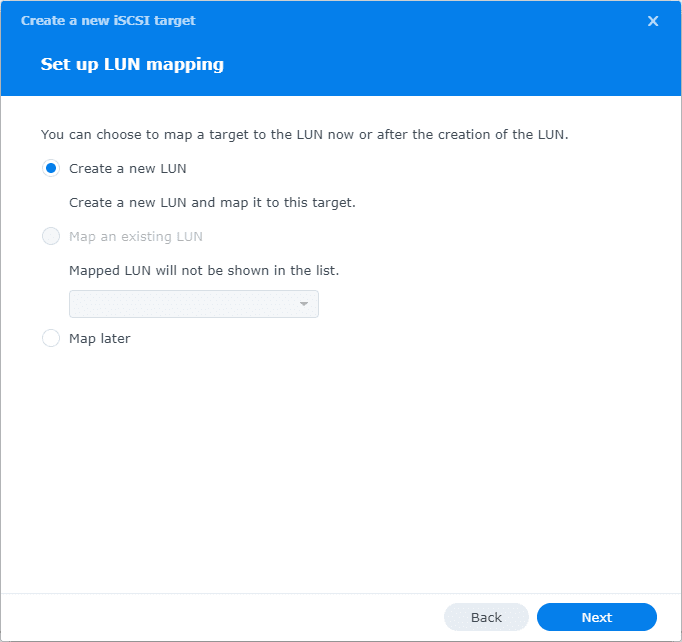

Next, we need to create a new LUN. Choose Create a new LUN.

Creating a new LUN to map to the new iSCSI target
Creating a new LUN to map to the new iSCSI target

Configure a name for the LUN and choose the location and space allocation scheme.

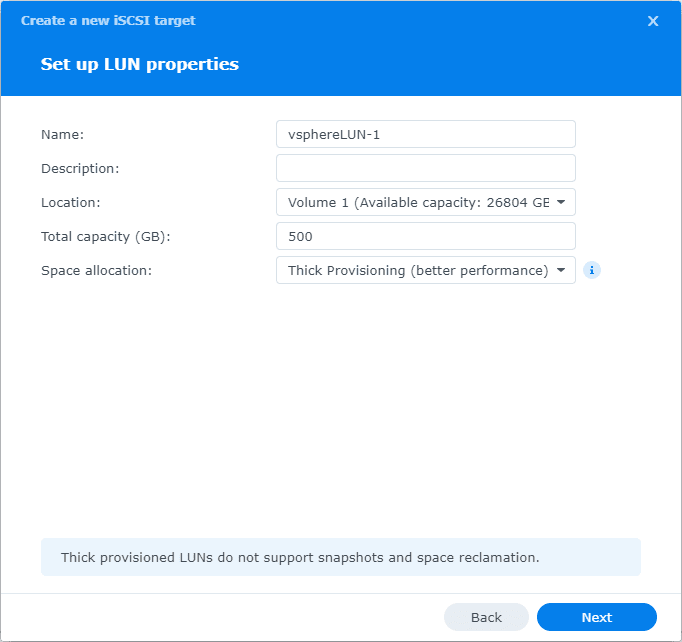

Name the LUN size and provisioning configuration
Name the LUN size and provisioning configuration

Confirm the settings by reviewing the configuration and click Done.

Confirm the iSCSI LUN configuration
Confirm the iSCSI LUN configuration

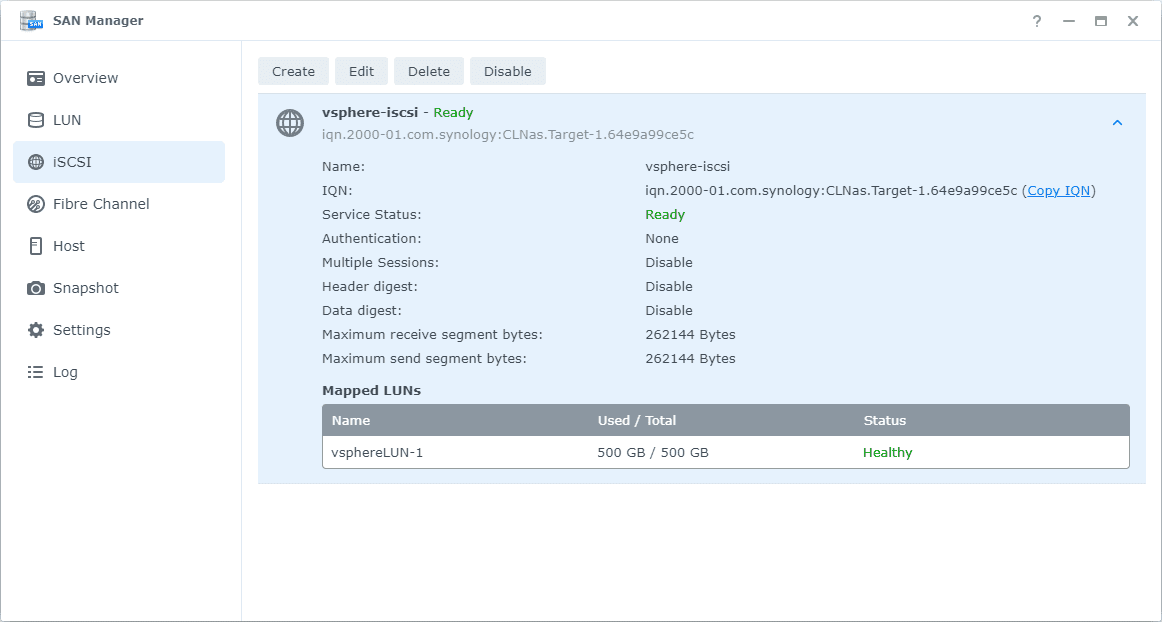

You should see the newly created LUN showing Ready.

New Synology iSCSI LUN created successfully
New Synology iSCSI LUN created successfully

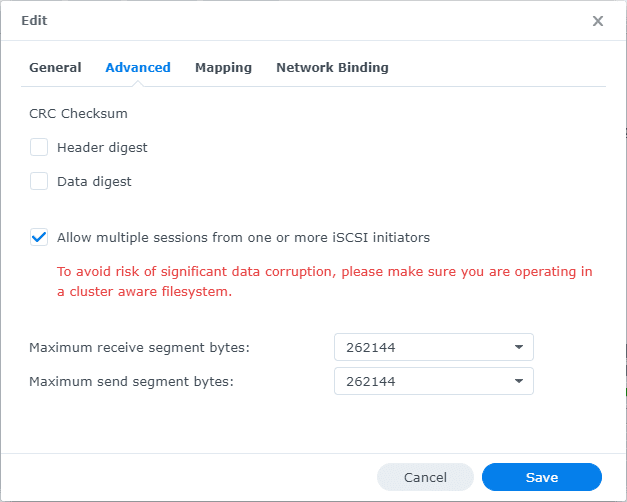

Next, click Edit on the LUN and under advanced settings, click the checkbox next to Allow multiple sessions from one or more iSCSI initiators. This allows you to have more than one ESXi host connected to the same LUN. VMFS is a cluster-aware file system so it is safe to do this with vSphere.

Allowing simultaneous connections to the iSCSI LUN
Allowing simultaneous connections to the iSCSI LUN

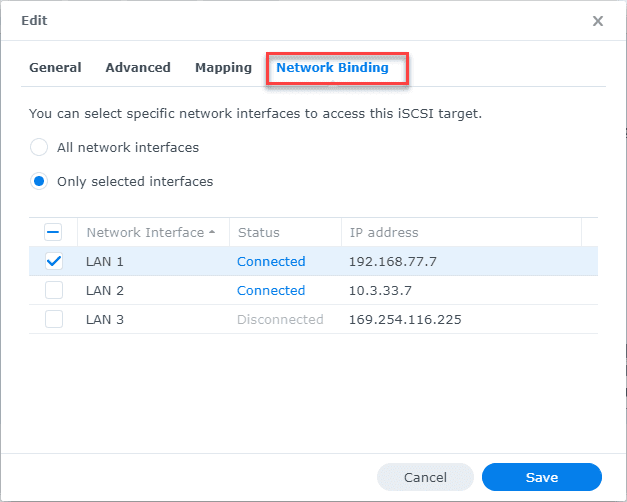

Under Network Binding, select the NIC you want to use for iSCSI. By default it presents the LUN to all network interfaces, which we don’t want for many reasons. Here, I am selecting my 10 gig connection.

Bind the iSCSI LUN to a specific network adapter
Bind the iSCSI LUN to a specific network adapter

3. Adding the Distributed Port Group and VLAN for my iSCSI network

In order to add a VMkernel port and IP address for iSCSI traffic, you need to add your port group or dedicated vSwitch to your ESXi hosts. I am using vSphere Distributed Switches in the home lab environment. So, below, I am adding a new DGP-iscsi port group and setting the Teaming and failover policy.

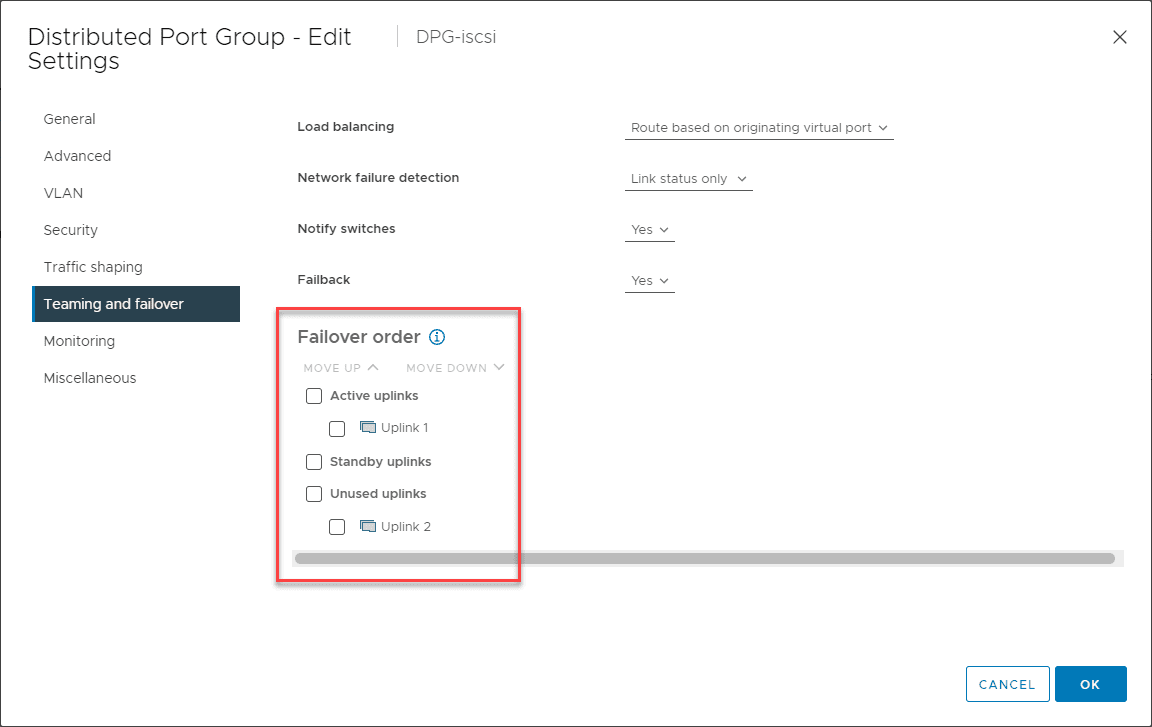

In order for vSphere to recognize this as a compliant iSCSI vSwitch port group, you need to ensure your binding is set to one connection per port group. For me I have (2) 10 gig connections backing the Distributed Switch. So, on this particular port group, I had to set the teaming and failover policy to one Active and one unused. To get the performance of both, you can add (2) new port groups with each one having the other 10 gig connection as Active.

Adding the Distributed Port Group for iSCSI traffic
Adding the Distributed Port Group for iSCSI traffic

4. Adding the iSCSI VMkernel port and IP address in vSphere

Next, we need to add the iSCSI VMkernel port and IP address in vSphere. Let’s step through that process.

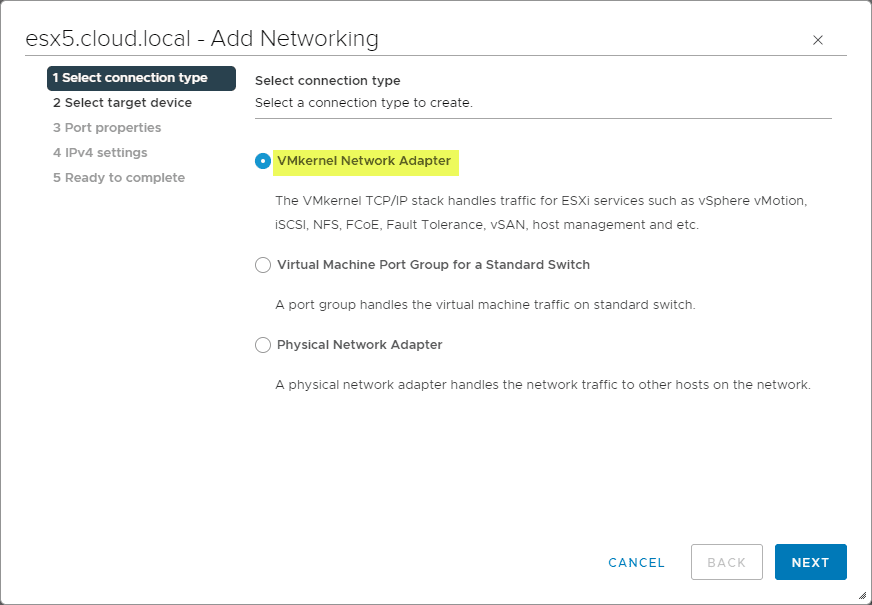

Adding and VMkernel network adapter in ESXi
Adding and VMkernel network adapter in ESXi

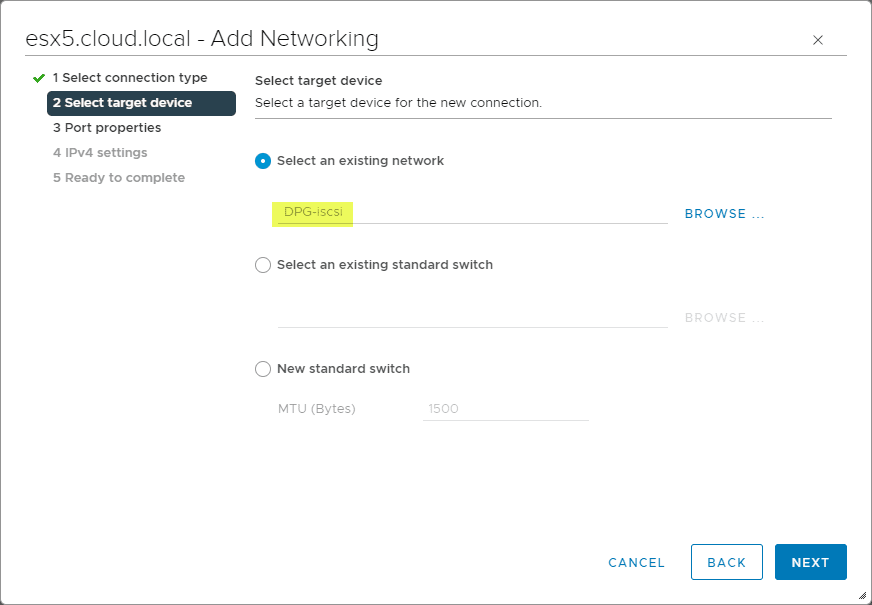

SElect the existing network you have previously configured for iSCSI.

Select a target device for the VMkernel port
Select a target device for the VMkernel port

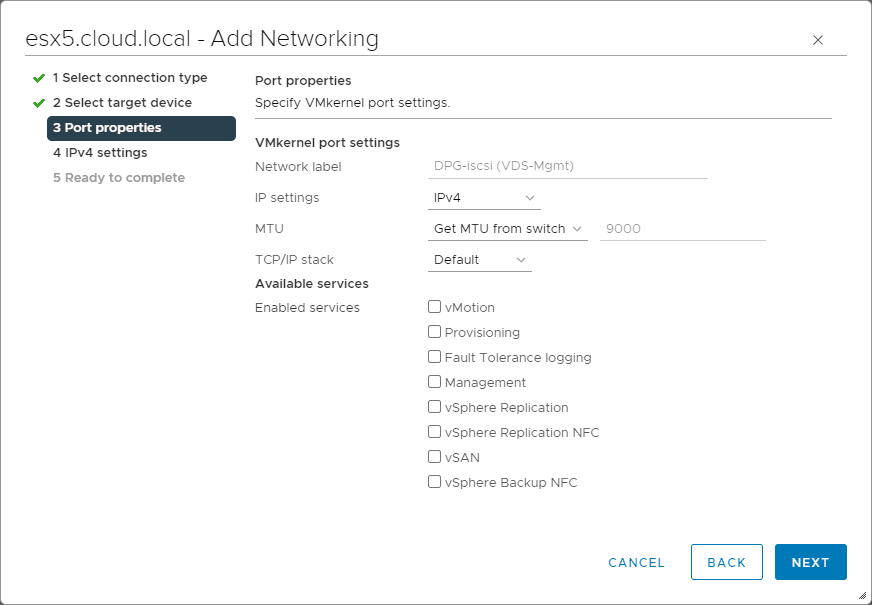

For iSCSI, you don’t select any services. Leave this screen as is and click Next.

Configure the VMkernel port properties
Configure the VMkernel port properties

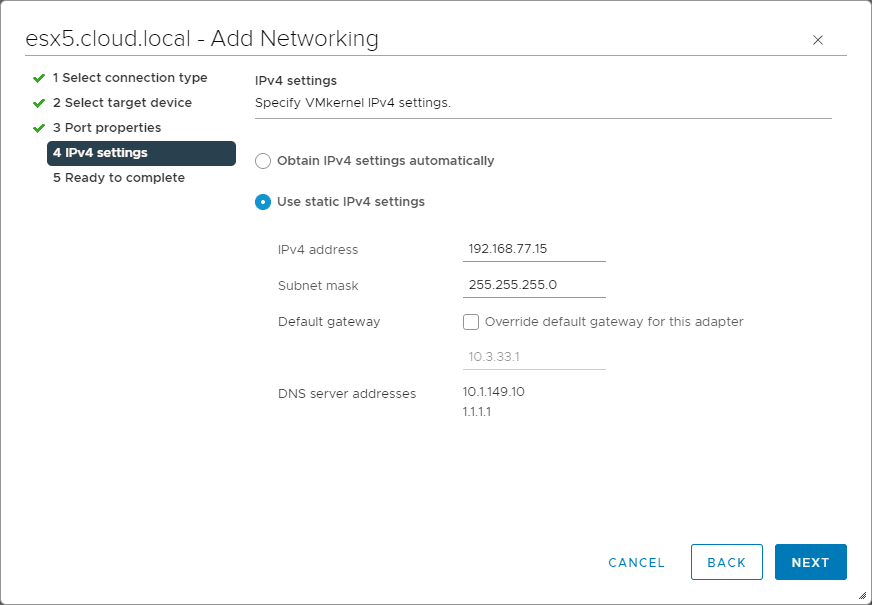

Configure the IP address information for iSCSI connectivity.

Finish adding the new VMkernel port to your ESXi host
Add the IP address for the new VMkernel port group in ESXi

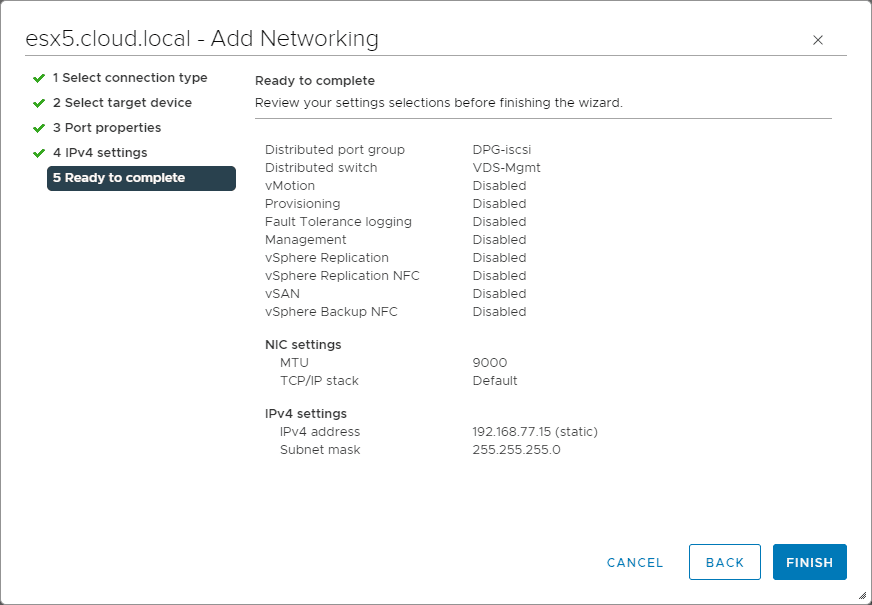

Review the configuration and click Finish.

Finish adding the VMkernel port in ESXi
Finish adding the VMkernel port in ESXi

5. Add the iSCSI Software Adapter and connect the VMkernel port to the iSCSI LUN

Now that we have added the iSCSI VMkernel port to our ESXi host, we need to add the iSCSI software adapter to the host and connect the VMkernel port to the ISCSI LUN on our Synology. First, let’s add the iSCSI software adapter.

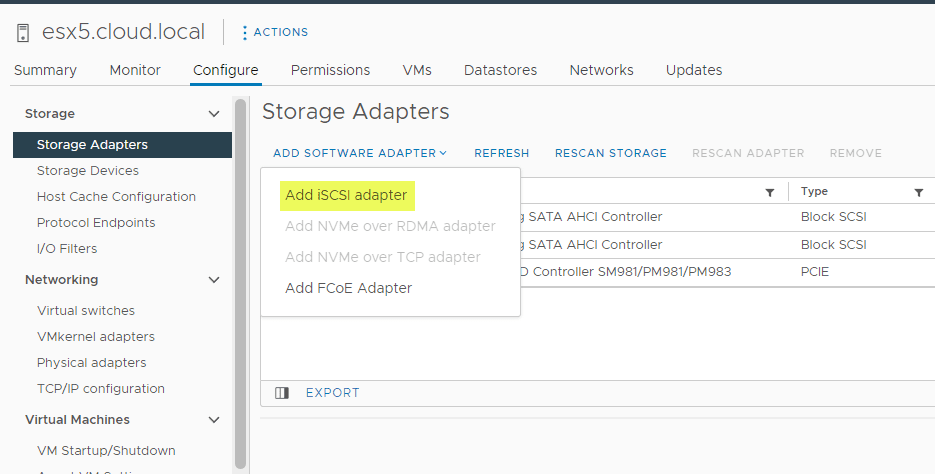

To that, navigate to your ESXi host Configure > Storage > Storage Adapters > Add Software Adapter > Add iSCSI adapter.

Add the iSCSI software adapter in ESXi
Add the iSCSI software adapter in ESXi

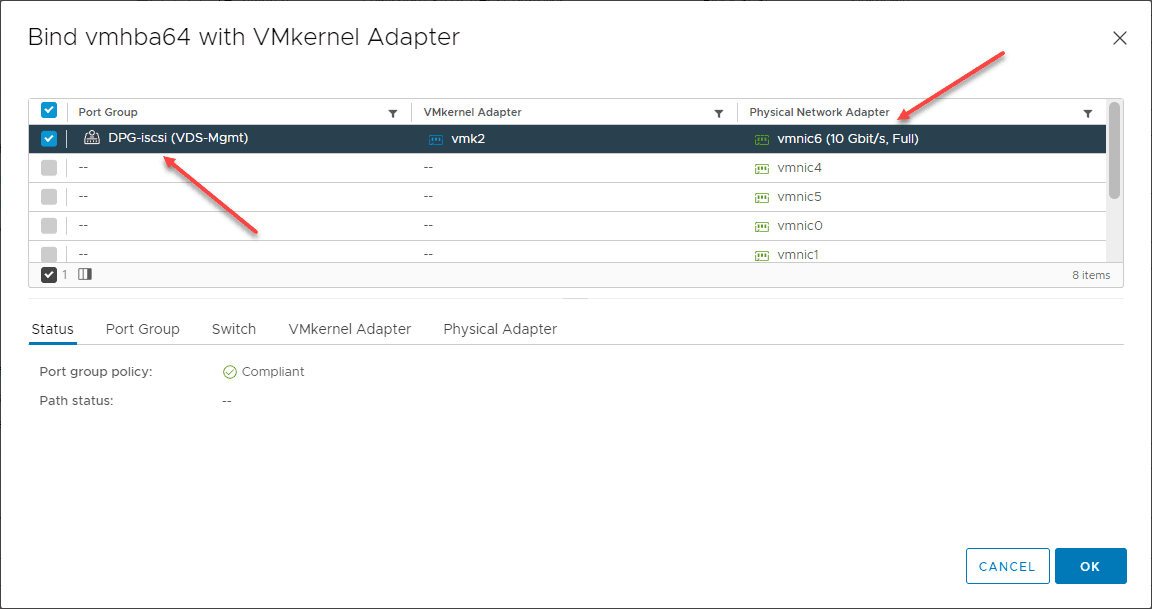

Under Network Port Binding click Add. If things are setup correctly, you should see the VMkernel port listed. Place a check in the box and click OK.

Add a Network Port Binding
Add a Network Port Binding

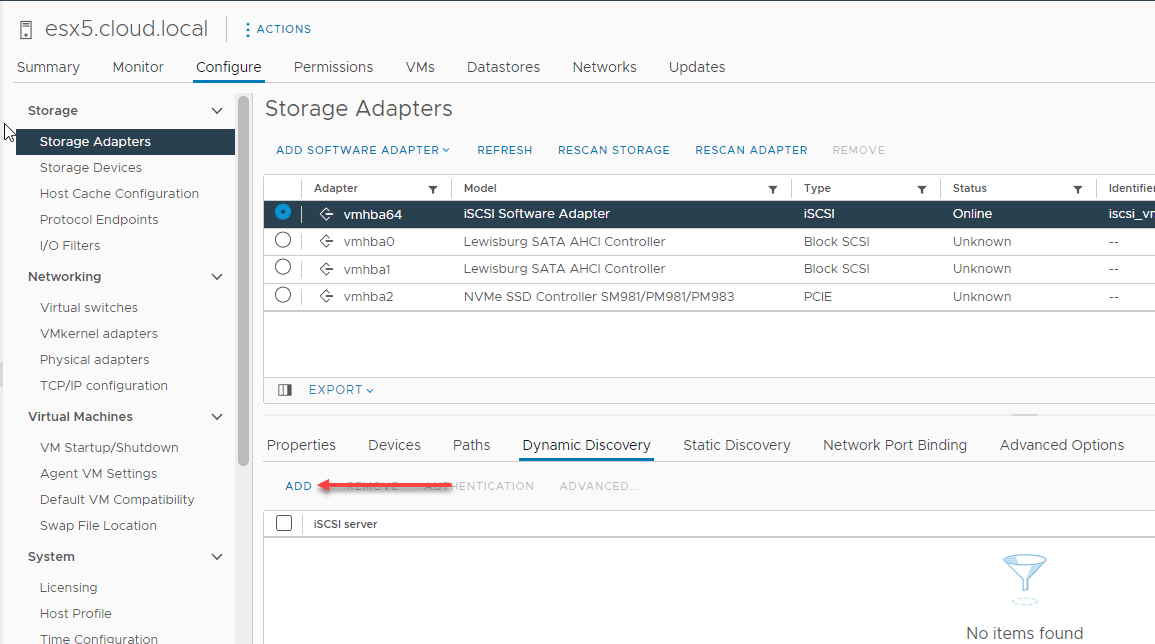

Under the Dynamic Discovery tab, click Add.

Using Dynamic Discover to add the iSCSI LUN
Using Dynamic Discover to add the iSCSI LUN

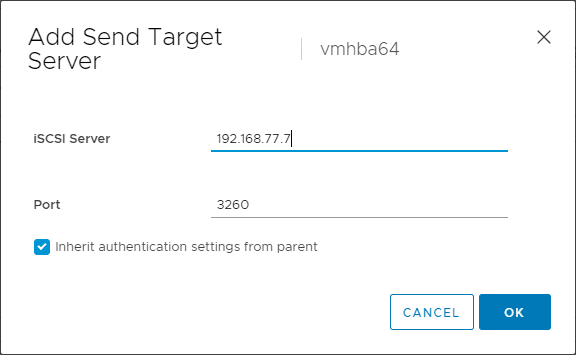

Enter the IP address for the iSCSI LUN on the Synology NAS.

Add Send target server
Add Send target server

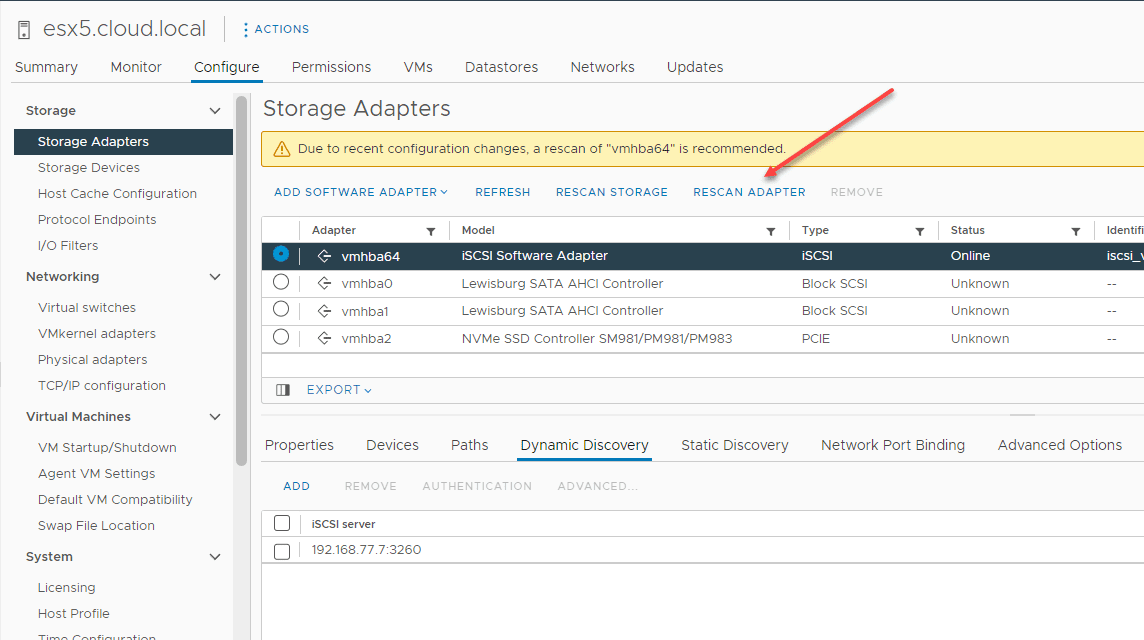

After adding the iSCSI target, you need to Rescan the adapter.

Rescan your adapter to discover the iSCSI LUN
Rescan your adapter to discover the iSCSI LUN

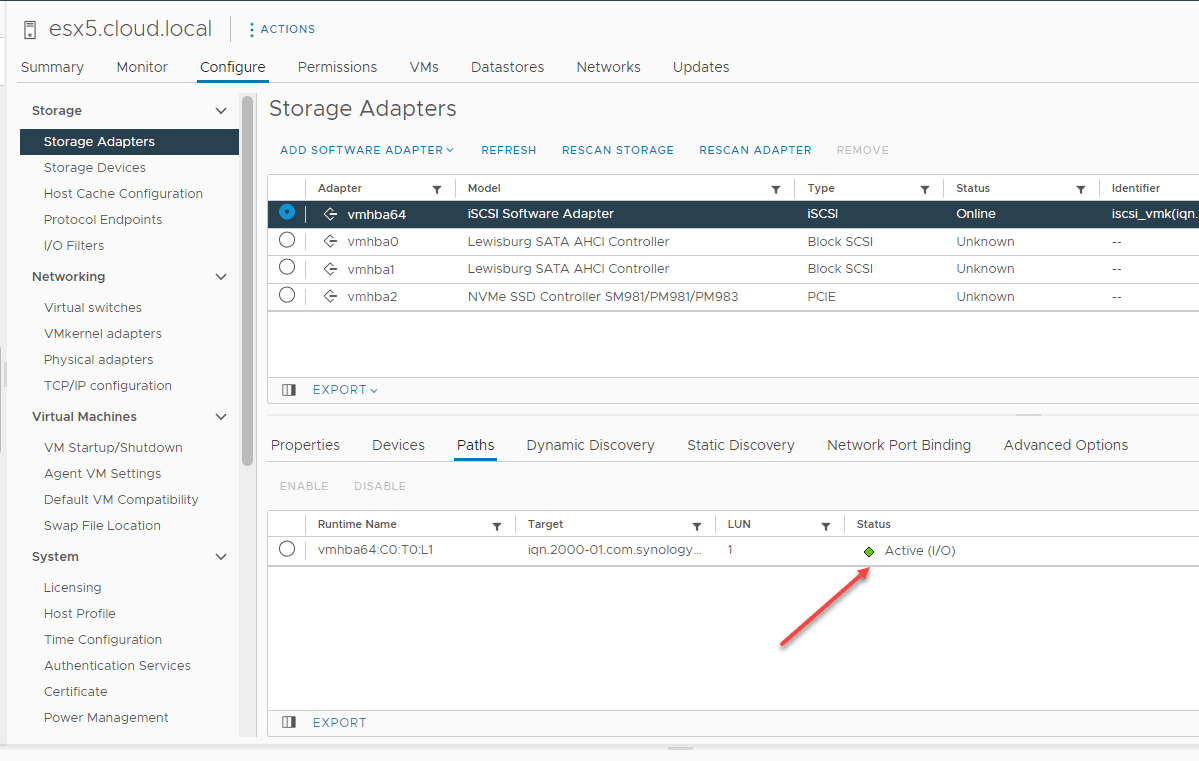

Under the Paths you should see the Synology NAS path listed as Active.

Synology target added and showing as Active
Synology target added and showing as Active

6. Add the new iSCSI vSphere datastore

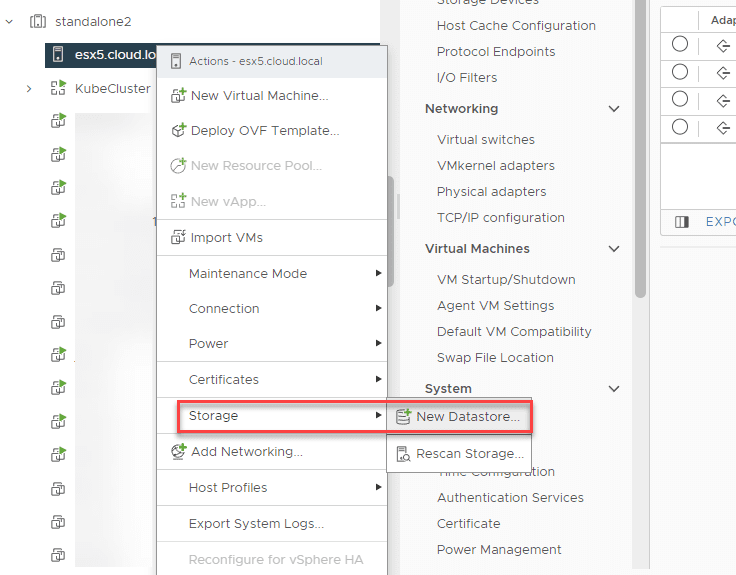

Now that we have the iSCSI Synology path as active, we can add the new datastore to ESXi. Right-click the host > Storage > New Datastore.

Choose to add storage to your ESXi host
Choose to add storage to your ESXi host

Choose VMFS as the type.

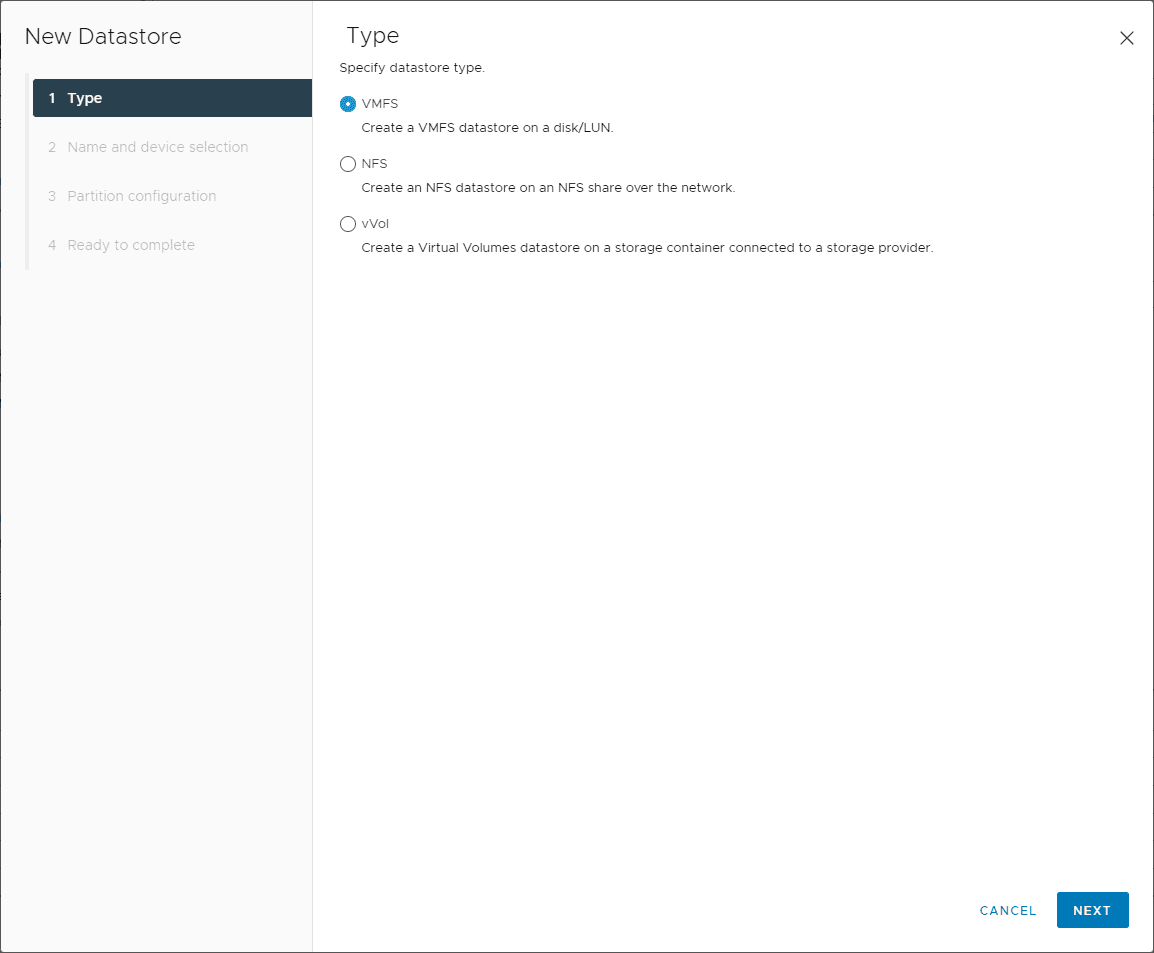

Choose the type of datastore
Choose the type of datastore

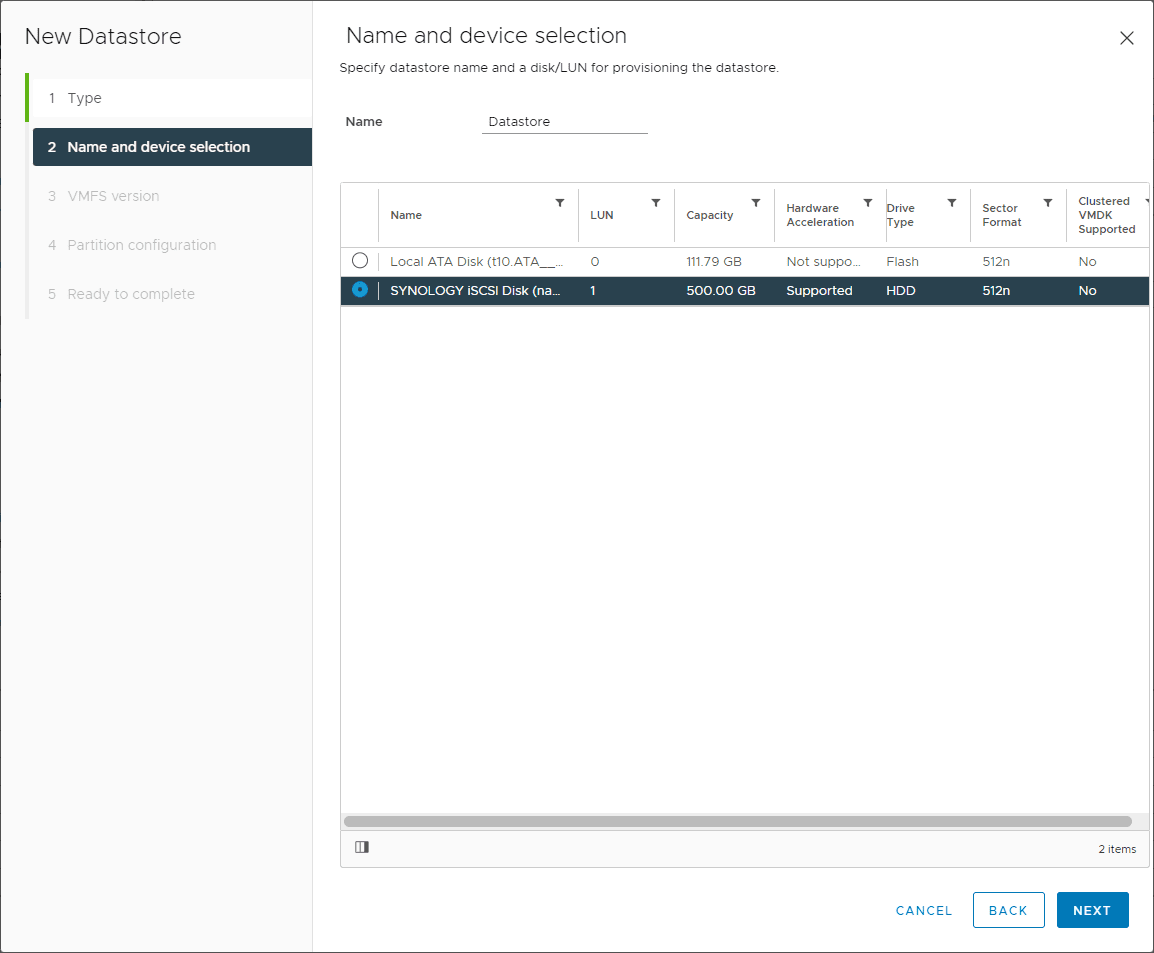

You should see the Synology LUN listed as available storage.

Choose the storage to add as a new datastore
Choose the storage to add as a new datastore

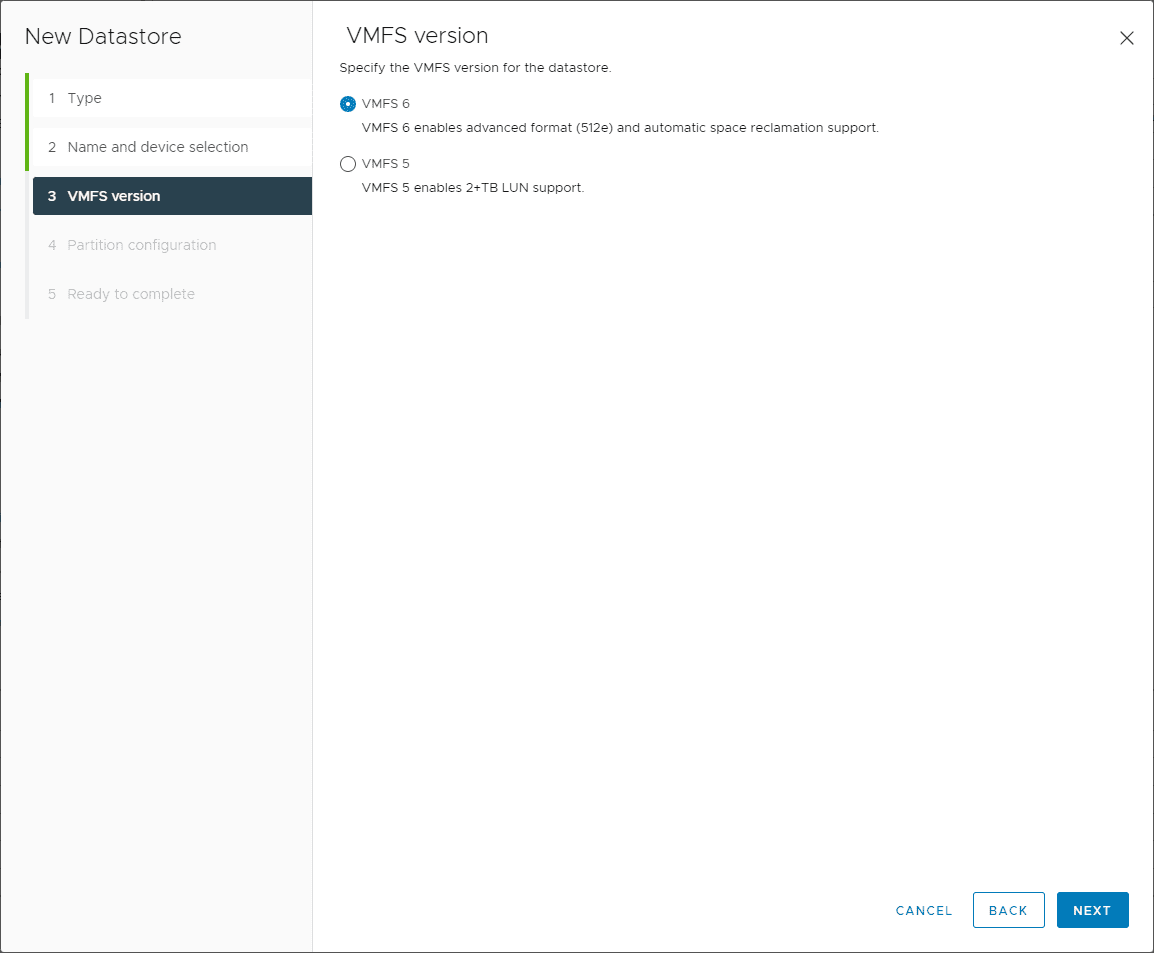

Choose VMFS 6.

Choose the VMFS version
Choose the VMFS version

Configure your partition layout. You should just be able to accept the defaults, unless you need to make changes here.

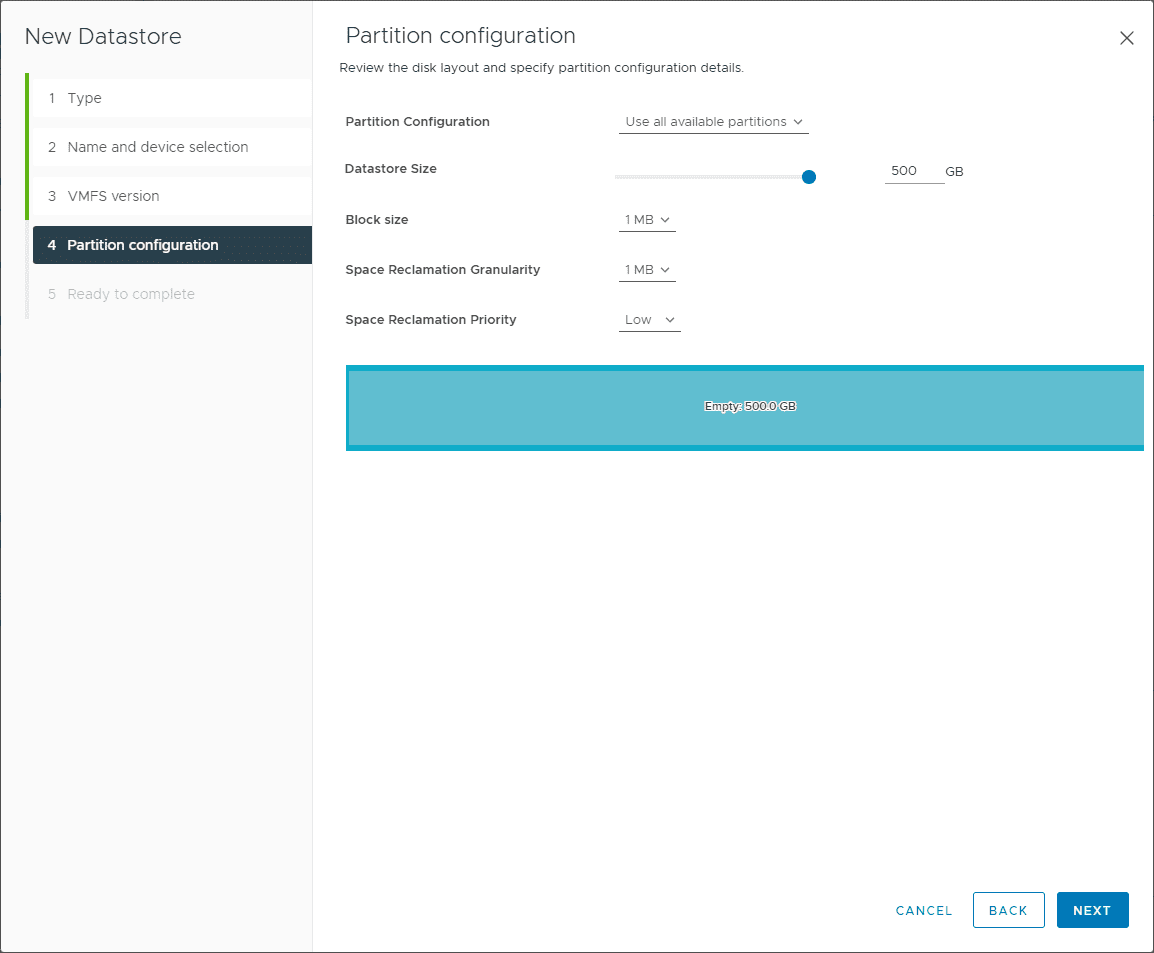

Choose the partition configuration
Choose the partition configuration

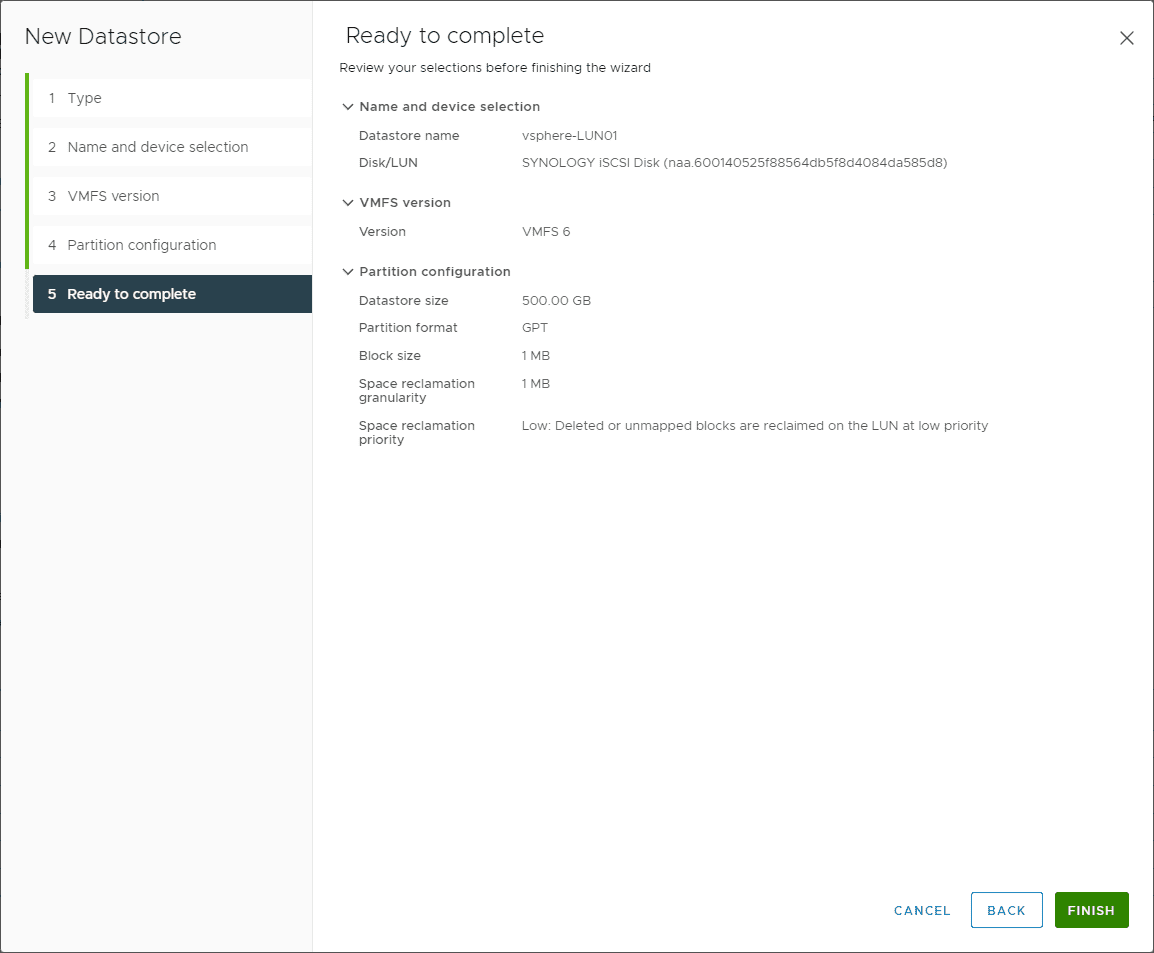

Review the configuration and click Finish.

Ready to complete adding the new vSphre datastore
Ready to complete adding the new vSphre datastore

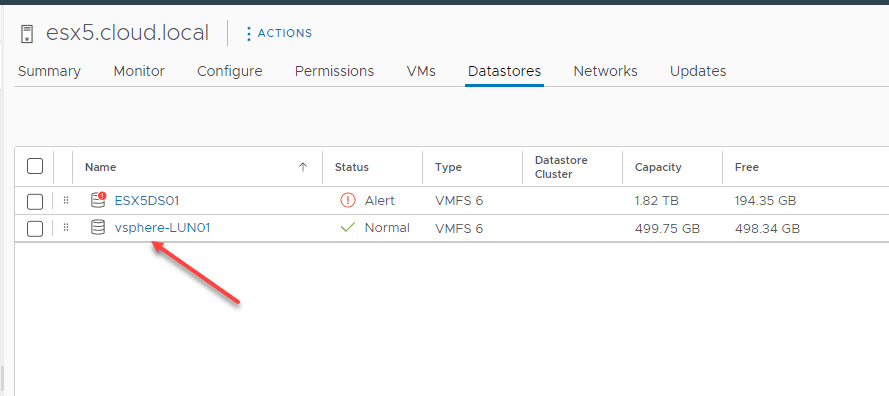

The new datastore is added to the ESXi host.

New vSphere datastore added successfully
New vSphere datastore added successfully

Concluding

I am anxious to get started playing around with iSCSI in the lab once again and make use of the Synology storage for various use cases. Hopefully, this iSCSI Synology VMware configuration step-by-step walkthrough will help any who are wanting to add a Synology-based iSCSI LUN to their vSphere infrastructure. Really, the steps work for any iSCSI storage. The only part that is different with each is configuring the storage on the vendor side. For ESXi, it works the same.
