Windows Server 2016 Install Remote Desktop Services

This year has been a year like none other with organizations scrambling to bolster their remote work infrastructure. It has meant that businesses have had to provision the infrastructure needed to allow workers to connect to business-critical applications, services, and data to carry out essential job functions. One of the technologies that has been around for a while is Remote Desktop Services (RDS). Remote Desktop Services is newer technology iteration of the older Terminal Services technology that many remember from older Windows Server operating systems. Remote Desktop Services is fairly easy to provision and provides the ability to allow remote workers to easily connect to business infrastructure. In this post, we will take a look at Windows Server 2016 install remote desktop services steps to see how you can easily provision a Windows Server 2016 RDS server.

What is Remote Desktop Services?

Remote Desktop Services (RDS) allows delivering virtualized applications, providing secure mobile and remote desktop access, and providing end users with the ability to run business-critical applications from the cloud.

Windows Server 2016 Remote Desktop Services delivers a wide array of flexibility for your end-users when accessing your organization’s infrastructure. This includes:

  • Session-based virtualization – This is the traditional concept of leveraging a Windows Server to deliver a full-blown desktop to an end-user who needs to access applications, data, and services.
  • Virtual Desktop Infrastructure (VDI) – With VDI, you can deliver individual virtual desktops to your end-users. This provides a great option for users who need a highly customized desktop with individualized toolsets

What other benefits and features does Windows Server Remote Desktop give to your end-users? Within the capabilities of RDS, you also have the ability to deliver:

  • Desktops – Either with session-based virtualization or full-blown VDI desktops, you can deliver a full desktop to your end-users who need this functionality
  • RemoteApps – Remote applications are often a much more efficient way of delivering applications to end users since you are only publishing the application and not the desktop environment. Often, an end-user only needs to access an application. If they only need to interact with an application, offering the full desktop is very inefficient from a resource perspective.

Windows Server 2016 Remote Desktop Services Best Practices

There are a few best practices with Windows Server 2016 Remote Desktop Services install. Consider the following as recommended by Microsoft:

  • For your forward-facing environment including Web Access, Gateway, Connection Broker, and license server, use Windows Server 2019 when possible. Windows Server 2019 is backward compatible which means you can still use Windows Server 2016 or Windows Server 2012 R2 RD session hosts.
  • Your RDSH servers need to be the same version of Windows, so you would need to group your RDSH servers into collections like Windows Server 2016 Session Hosts and Windows Server 2019 Session Hosts.
  • If you upgrade your RD Session host, be sure to upgrade your license server as well.
  • Upgrade your environment in the proper order
  • For HA, make sure your connection brokers are at the same version of Windows Server

Windows Server 2016 Install Remote Desktop Services

Let’s now take a look at the process to install Windows Server 2016 RDS in your environment. With Windows Server 2016, Microsoft has made this process fairly easy and wizard-driven with the Server Manager console. Also, it automates the process of installing the needed roles so you don’t have to do this individually on the different servers for the Remote Desktop Services infrastructure.

My infrastructure is as follows:

  • win2016rdgw – This will be used to host connection broker, gateway, and web access
  • win2016rds – This is the session host server

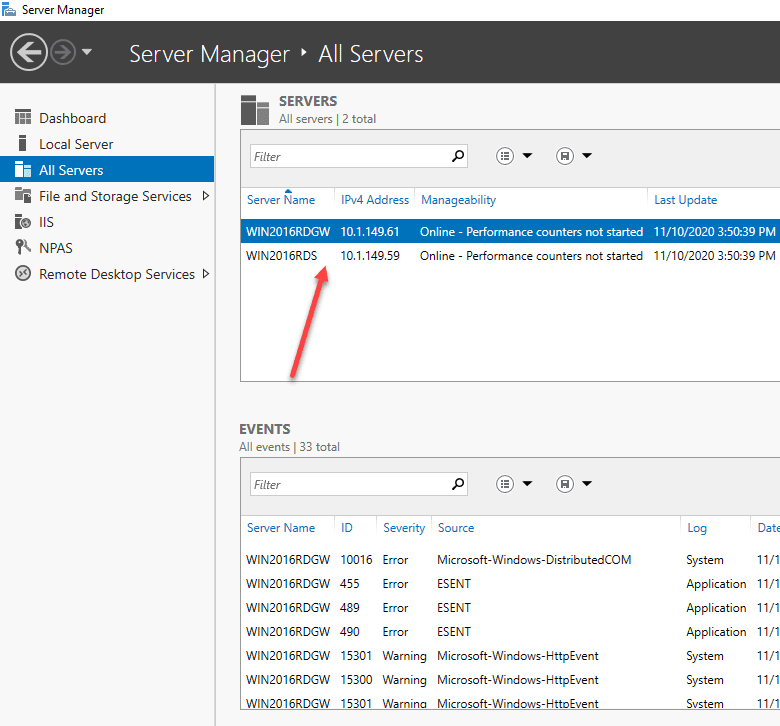

Below, I have added both my RDSH server as well as the server that I am going to use to host the Connection Broker, Web Access, and Gateway. This is the server manager located on the RDS server. In server manager, right-click on All Servers and choose Add Server.

Add-both-your-RDS-and-RDGW-servers-to-Server-Manager Windows Server 2016 Install Remote Desktop Services
Add both your RDS and RDGW servers to Server Manager

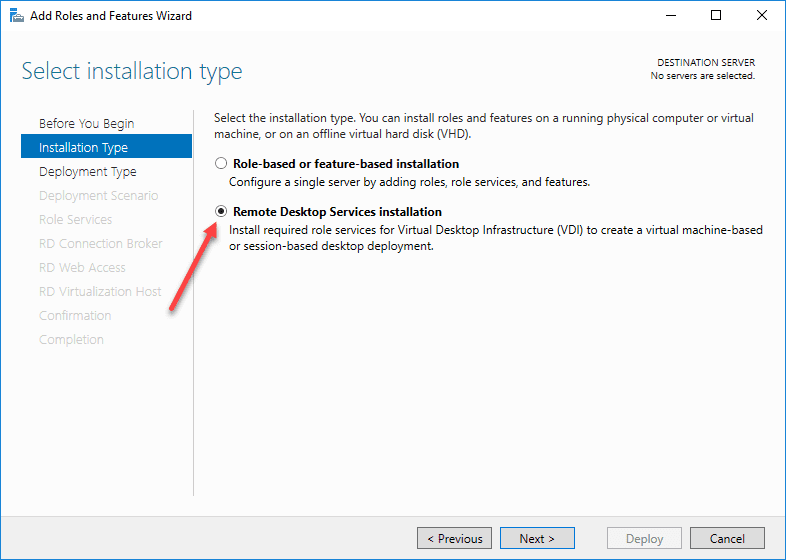

Next, in Server Manager, choose to Add Roles and Features. The wizard will ask you the installation type. Choose Remote Desktop Services installation.

Performing-a-remote-desktop-services-installation Windows Server 2016 Install Remote Desktop Services
Performing a remote desktop services installation

I am performing the Standard deployment type here which allows you to deploy Remote Desktop Services across multiple servers.

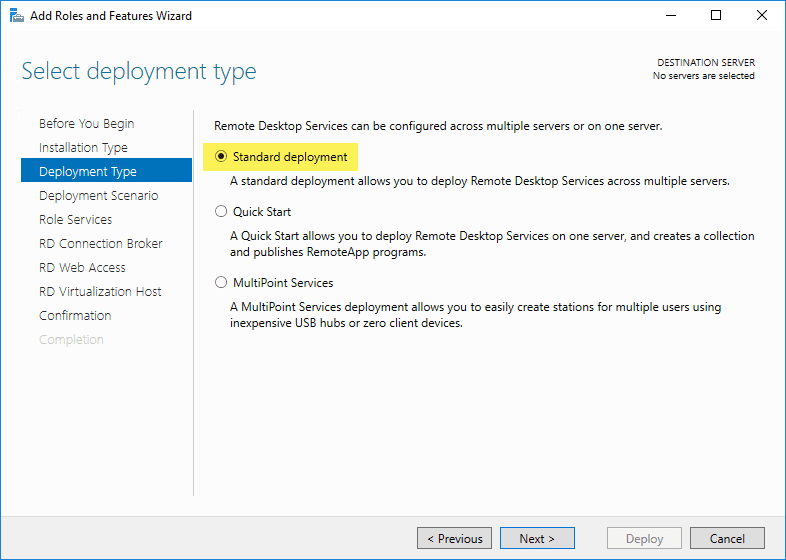

Creating-a-standard-deployment-of-Remote-Desktop-Services-in-Windows-Server-2016 Windows Server 2016 Install Remote Desktop Services
Creating a standard deployment of Remote Desktop Services in Windows Server 2016

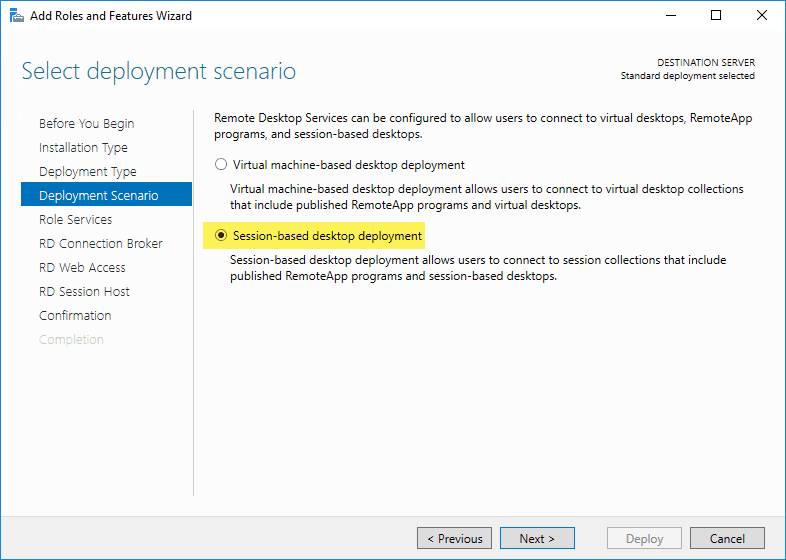

Next, you choose the deployment scenario. I am deploying a session-based desktop deployment so this is what I am choosing here. If you are doing Hyper-V and want to deploy VDI, you choose the Virtual machine-based desktop deployment.

Creating-a-session-based-desktop-deployment Windows Server 2016 Install Remote Desktop Services
Creating a session-based desktop deployment

On the role services screen, the wizard displays the roles services that will be deployed as part of the Windows Server 2016 Remote Desktop Services installation.

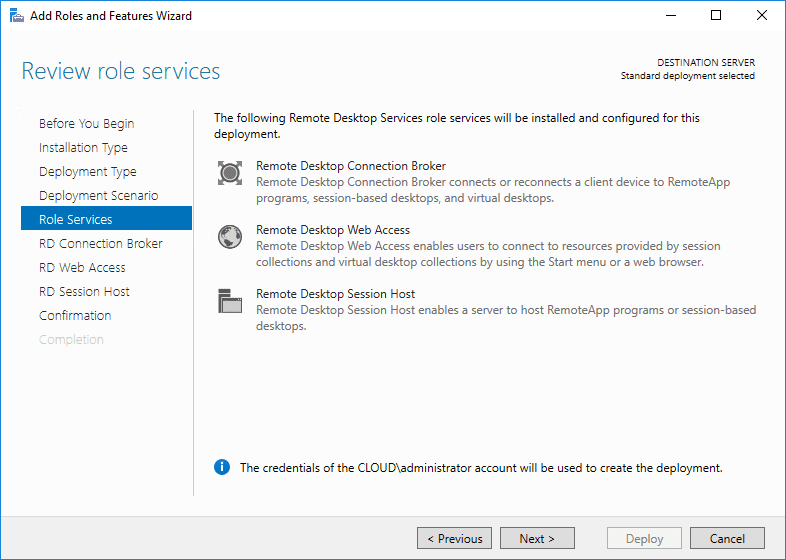

Reviewing-role-services-for-installing-Windows-Server-2016-Remote-Desktop-Services Windows Server 2016 Install Remote Desktop Services
Reviewing role services for installing Windows Server 2016 Remote Desktop Services

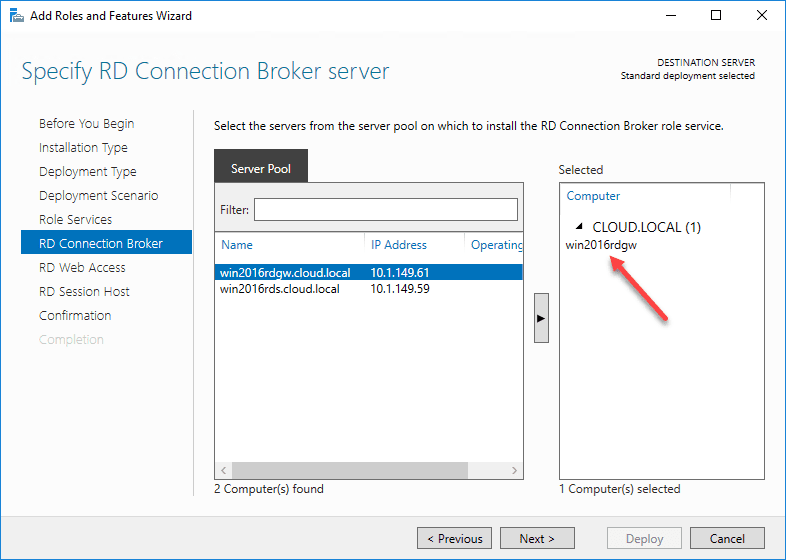

Next, you get to the part of the wizard where you start choosing the servers that you want to use for each role. The first choice is the RD Connection Broker.

Configuring-the-RD-Connection-broker Windows Server 2016 Install Remote Desktop Services
Configuring the RD Connection broker

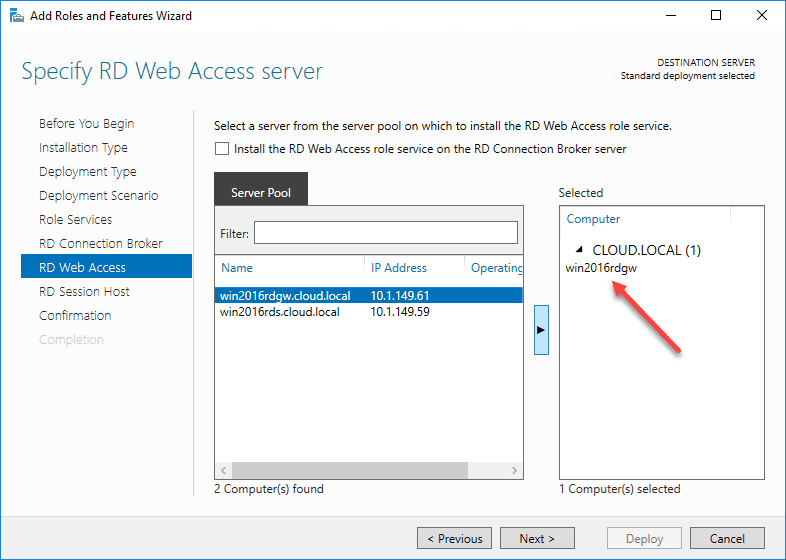

Next, is the RD Web Access Server.

Choosing-the-RD-Web-Access-server-in-the-Windows-Server-2016-Remote-Desktop-Services-deployment Windows Server 2016 Install Remote Desktop Services
Choosing the RD Web Access server in the Windows Server 2016 Remote Desktop Services deployment

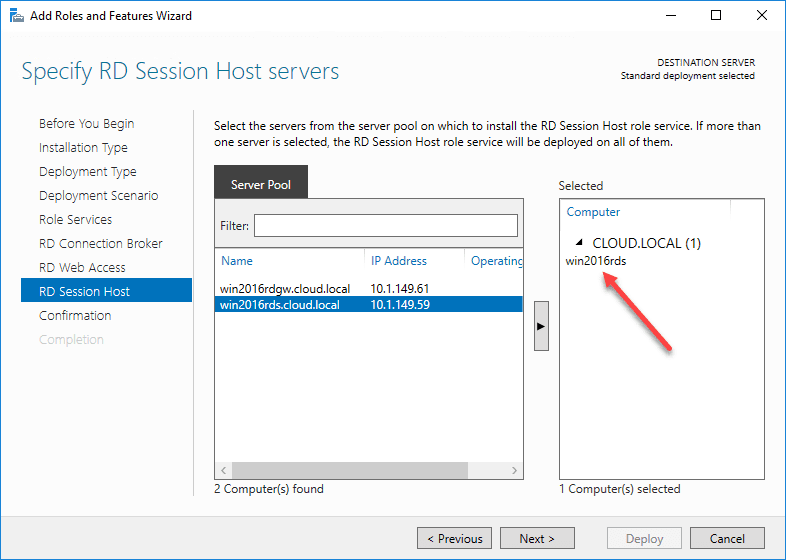

Finally, you choose the RD Session Host servers.

Specify-RD-Session-Host-servers Windows Server 2016 Install Remote Desktop Services
Specify RD Session Host servers

Now that we have selected the servers that will house each role, we can begin the deployment of the solution. I have selected the box to restart the destination server automatically if required. The Remote Desktop Services box that will host the RDSH role will need to be rebooted after the role service is installed.

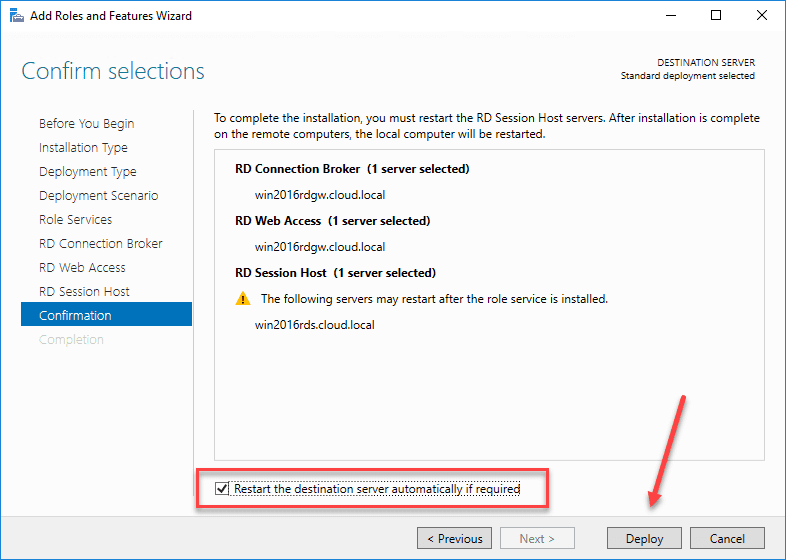

Ready-to-deploy-Windows-Server-2016-Remote-Desktop-Services-restart-the-servers-if-needed Windows Server 2016 Install Remote Desktop Services
Ready to deploy Windows Server 2016 Remote Desktop Services restart the servers if needed

After the server comes back up from a reboot, go back to Server Manager and you will see the Remote Desktop Services role listed in Server Manager. Click this role and it will display the Set up a Remote Desktop Services deployment.

At this stage, we have merely installed the role services. So, we need to configure things such as the remote desktop gateway URL and setup the session collections. The items with a “green plus” sign need to be configured.

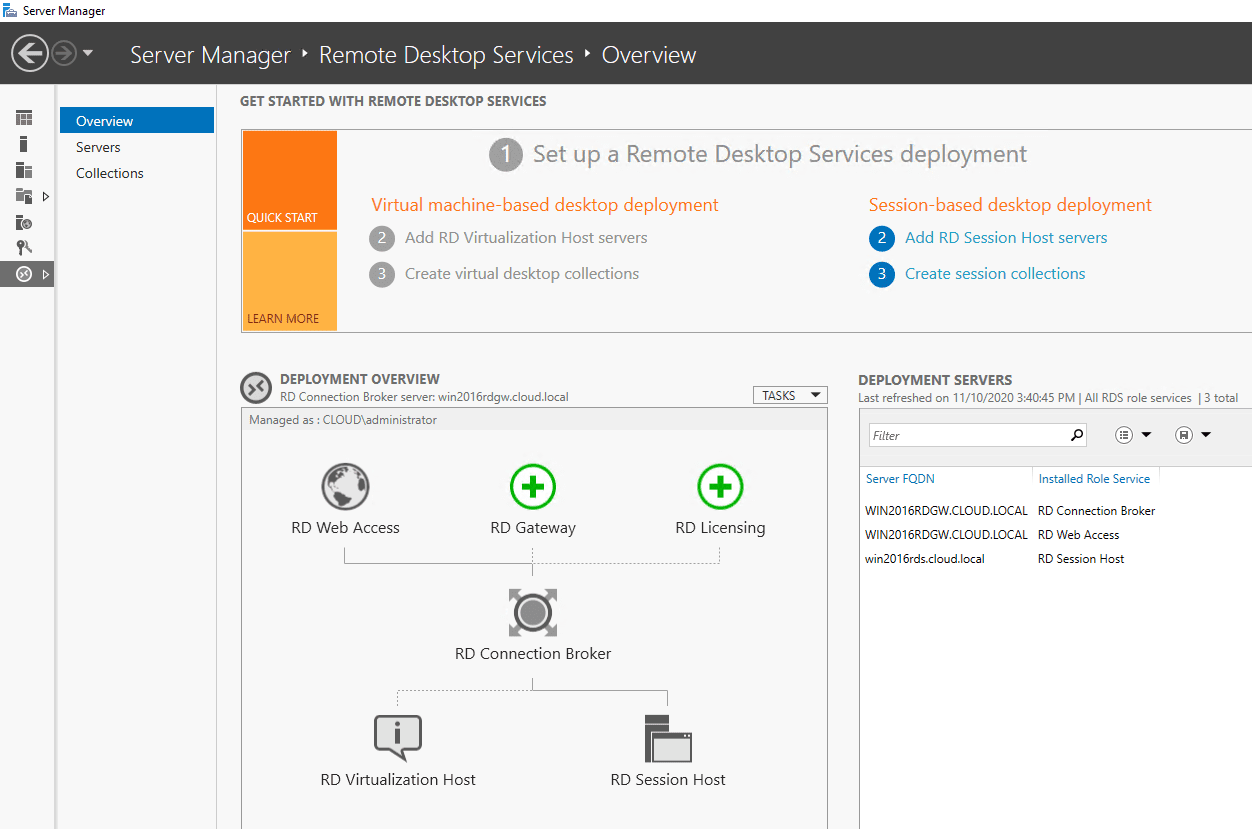

Beginning-the-setup-of-a-remote-desktop-services-deployment-in-Windows-Server-2016 Windows Server 2016 Install Remote Desktop Services
Beginning the setup of a remote desktop services deployment in Windows Server 2016

First I go through the Add RD Gateway Servers wizard. Adding the RD Gateway Server role to a server effectively installs the Network Policy Server role on the server chosen to serve as the RD Gateway.

You will be able to see the Remote Desktop Gateway Manager administrative console installed on the RDGW server. By default it will install the default Connection authorization policy and resource authorization policy on the gateway server. By default <DOMAIN>\Domain Users will be authorized. You can tweak this.

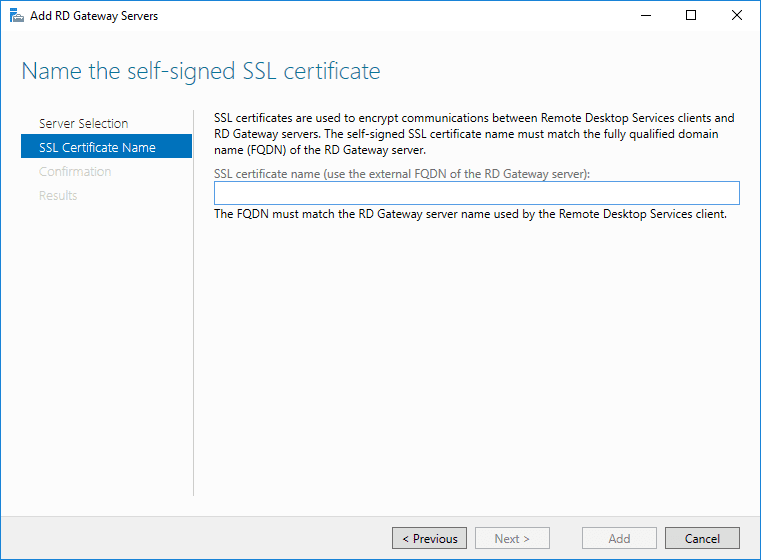

Let’s go through the wizard. Enter the FQDN you want to use as the FQDN for the RD Gateway server.

Name-the-self-signed-certificate-for-the-remote-desktop-services-gateway Windows Server 2016 Install Remote Desktop Services
Name the self-signed certificate for the remote desktop services gateway

After you are done configuring, click Add to finish the deployment.

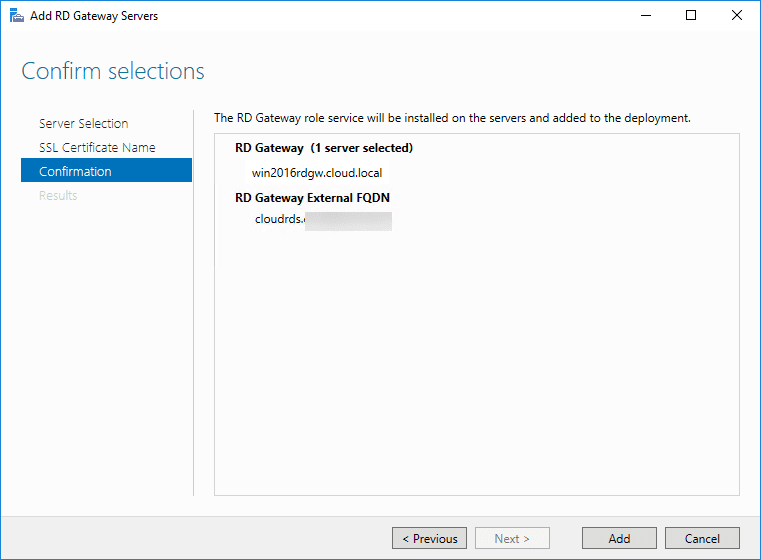

Confirm-the-configuration-of-the-remote-desktop-services-gateway Windows Server 2016 Install Remote Desktop Services
Confirm the configuration of the remote desktop services gateway

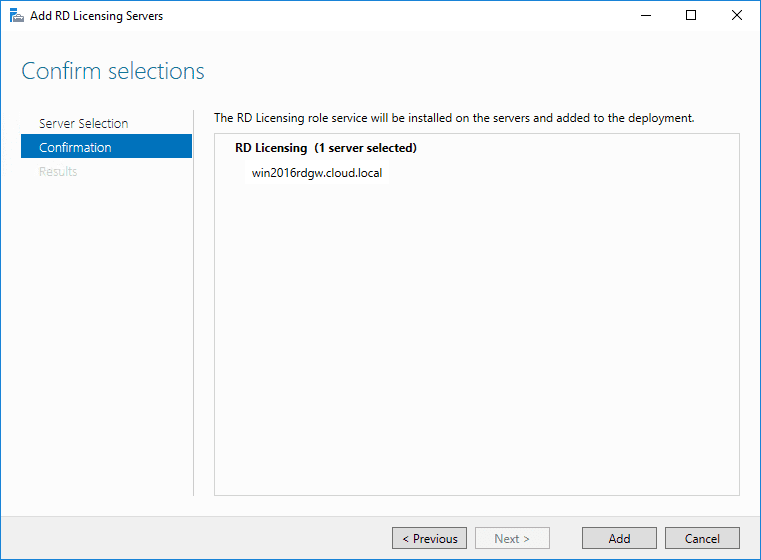

Next, is RD Licensing servers. Add the server that you want to use for RD licensing.

Add-the-RD-License-server-to-the-deployment Windows Server 2016 Install Remote Desktop Services
Add the RD License server to the deployment

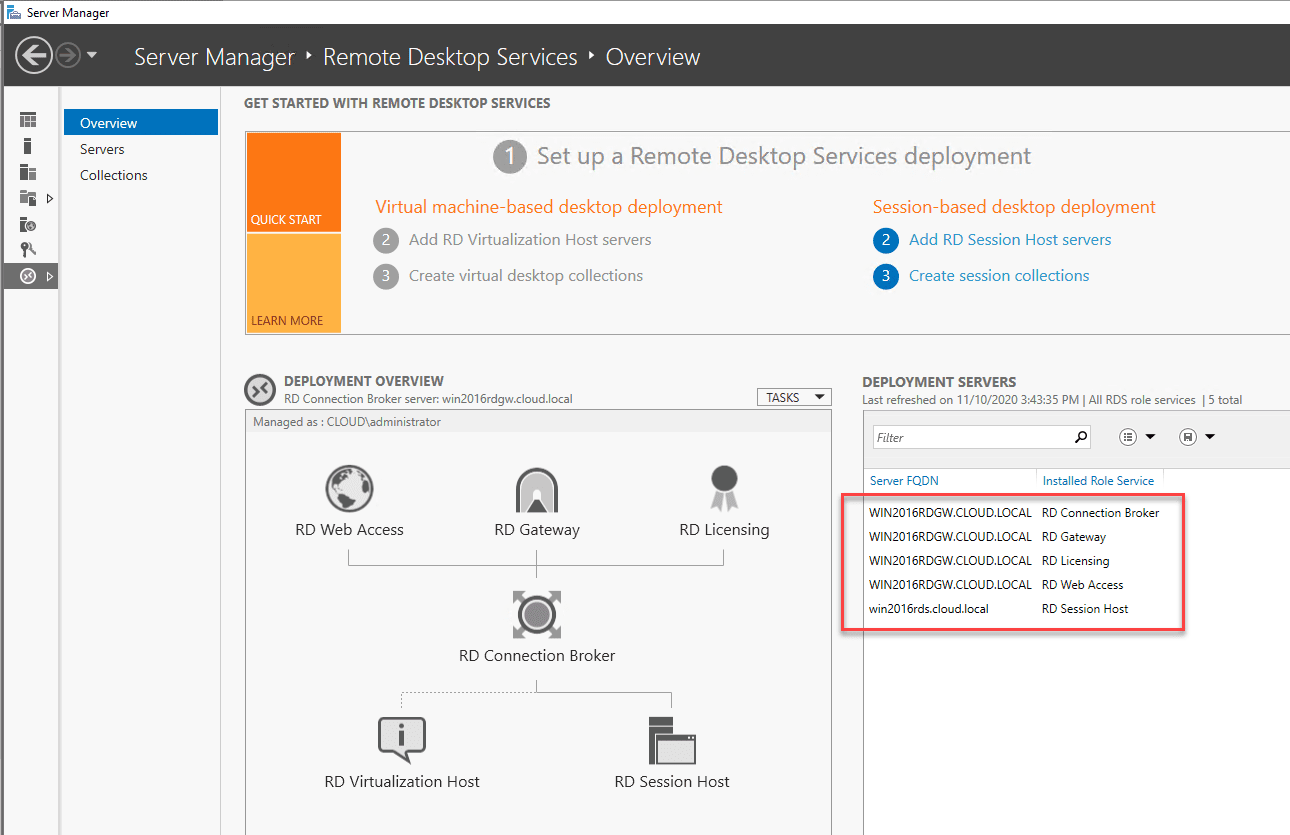

You will now note that all required roles are grey meaning they have been configured. You will see the servers selected and configured for each role under the Deployment Servers pane.

All-Remote-Desktop-Services-roles-have-been-assigned-to-appropriate-servers Windows Server 2016 Install Remote Desktop Services
All Remote Desktop Services roles have been assigned to appropriate servers

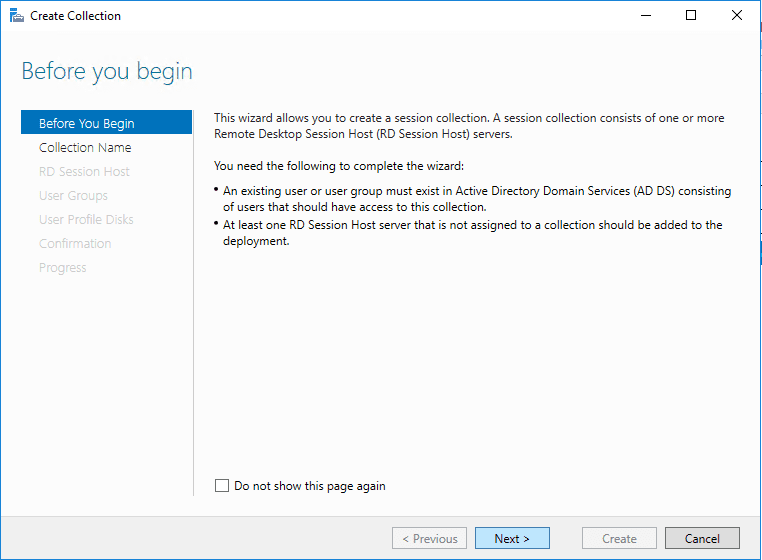

We now need to configure a session collection. This is another wizard that you launch from the deployment screen above under Session-based desktop deployment.

Beginning-to-create-a-collection-in-remote-desktop-services Windows Server 2016 Install Remote Desktop Services
Beginning to create a collection in remote desktop services

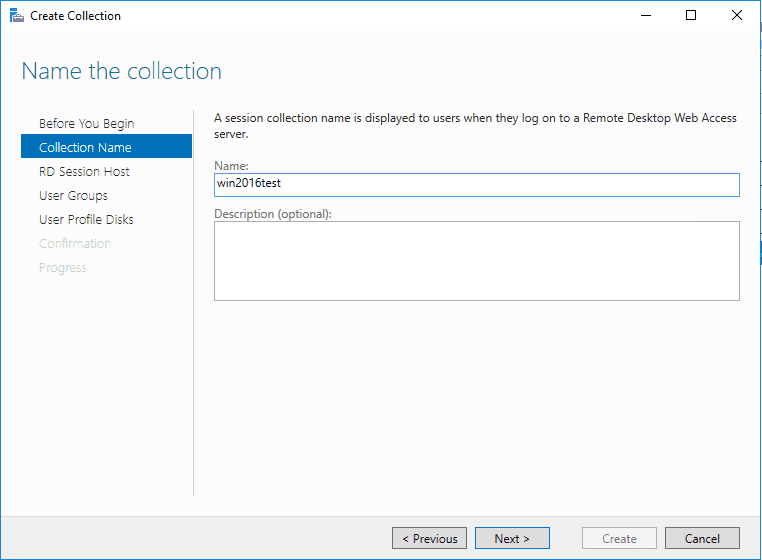

Choose the collection name.

Choose-a-collection-name Windows Server 2016 Install Remote Desktop Services
Choose a collection name

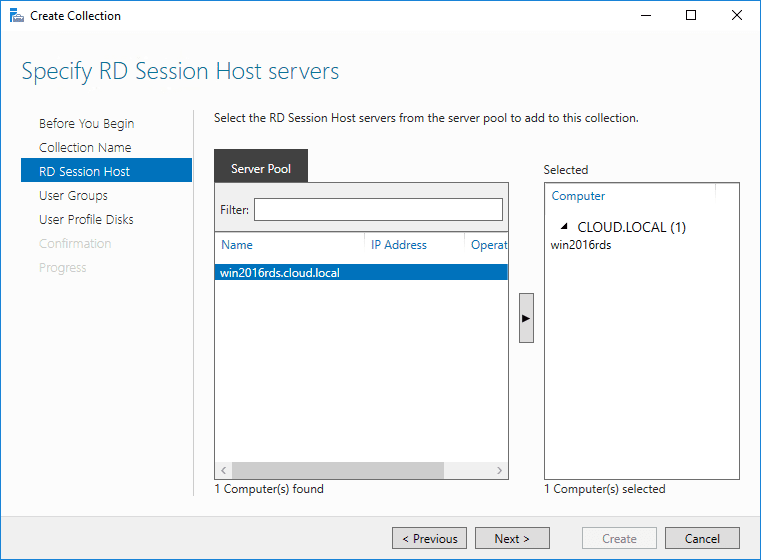

Select the RDSH server(s) that will participate in the session collection.

Specify-the-RD-Session-Host-server-for-the-RD-Collection Windows Server 2016 Install Remote Desktop Services
Specify the RD Session Host server for the RD Collection

Specify user groups you want to have access to the session collection.

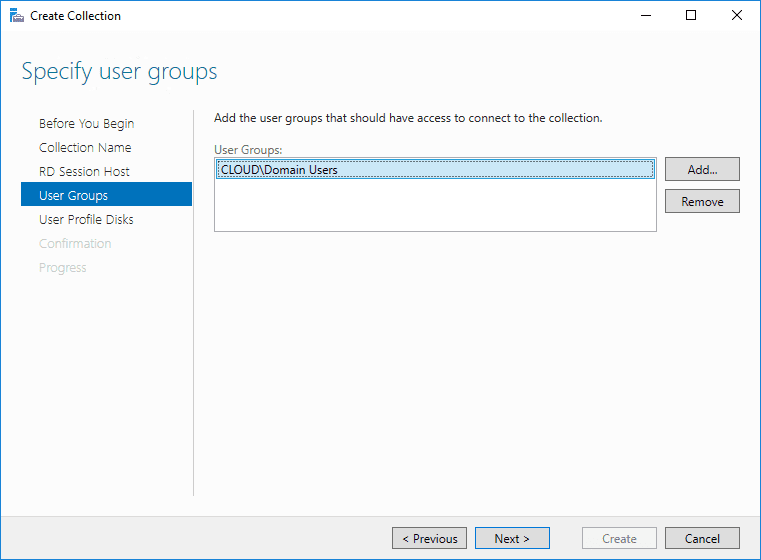

Choose-user-groups-for-the-collection Windows Server 2016 Install Remote Desktop Services
Choose user groups for the collection

You can specify user profile disks to be used for profile settings and data in a central location for the collection if you want.

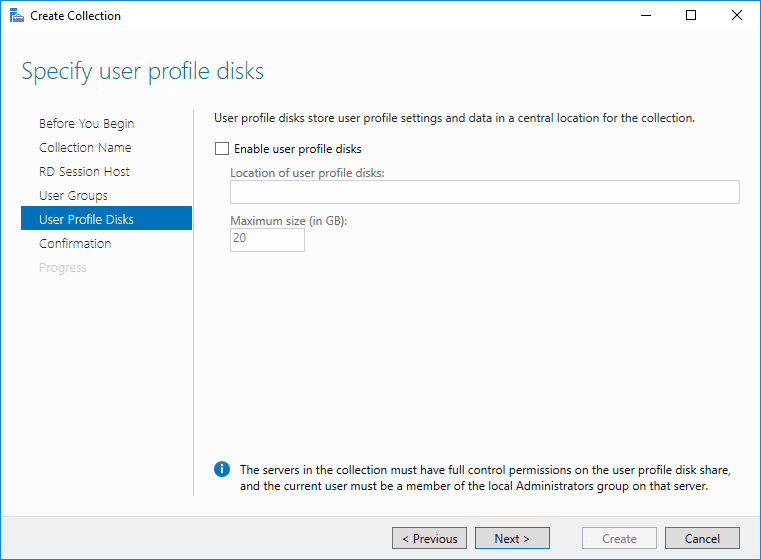

Specify-user-profile-disks Windows Server 2016 Install Remote Desktop Services
Specify user profile disks

Finally, choose Create to create the session collection.

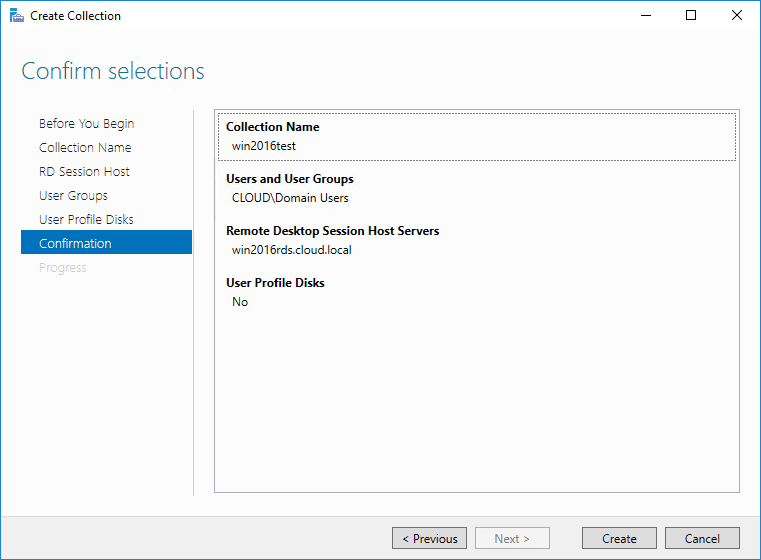

Confirm-creation-of-the-remote-desktop-collection Windows Server 2016 Install Remote Desktop Services
Confirm creation of the remote desktop collection

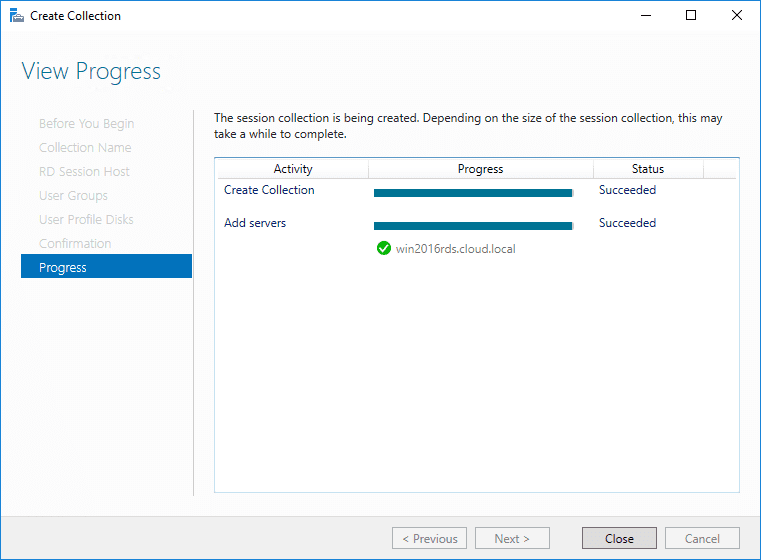

The new session collection is created successfully.

Remote-Desktop-collection-is-created-successfully Windows Server 2016 Install Remote Desktop Services
Remote Desktop collection is created successfully

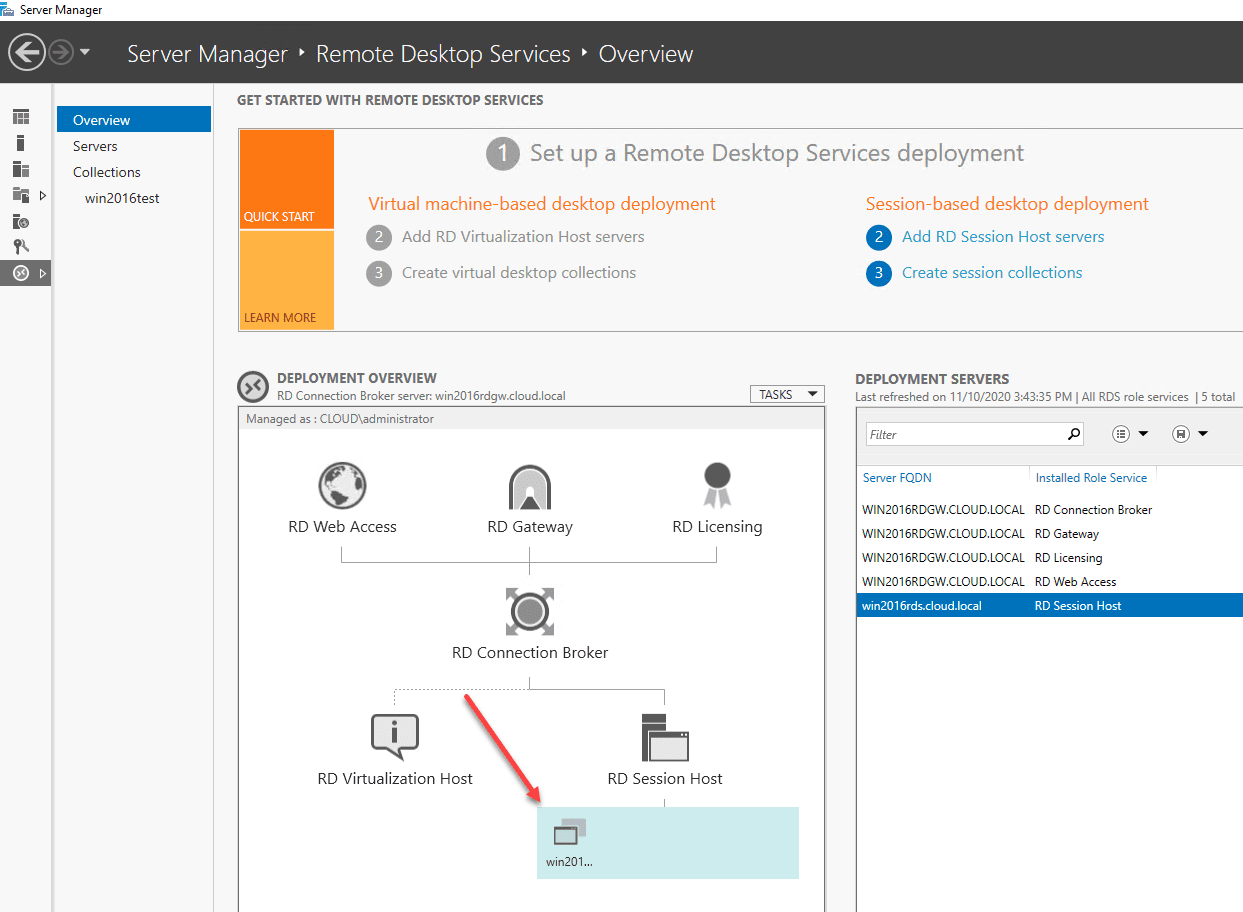

You now see the session collection in the deployment overview pane under your RD Session host.

New-Windows-Server-2016-Remote-Desktop-Session-Collection-created-successfully Windows Server 2016 Install Remote Desktop Services
New Windows Server 2016 Remote Desktop Session Collection created successfully

Next Steps for Windows Server 2016 RDS Configuration

At this point, we have most of the configuration in place for a functional RDS environment with the exception of configuring the Remote Desktop Gateway Server with a proper SSL certificate. Without a proper SSL certificate from a CA, you will have to import the self-signed cert to all clients who will use the RDGW server to connect to the environment.

Additionally, you will most likely want to setup high-availability for the remote desktop gateway as well as add multiple remote desktop session hosts to the pool.

Check out my post I wrote not long ago covering the configuration of Remote Desktop Gateway Server in either Windows Server 2016 or 2019.

Concluding Thoughts

The Windows Server 2016 Install Remote Desktop Services process is made very intuitive with the built-in wizards found in Server Manager. It makes installing all the necessary roles needed for your Remote Desktop Services infrastructure straightforward.

Hopefully this walkthrough of the basic steps will help any who want to see what this process looks like. Additionally, this process is the exact same for Windows Server 2019 so not much has changed there.
