Configuring VMware ESXi 6.7 Quick Boot and HTML5 vSphere Update Manager VUM

We are all no doubt excited about the progress being made with the HTML5 client in the latest vSphere 6.7 release. VMware has certainly made tremendous progress in getting the functionality not only ported over but also new and improved workflows in place with the HTML5 client. The vSphere Update Manager functionality is now in HTML5 trim. There are still things you can’t do in the HTML5 client such as configuring the ESXi quick boot functionality, but the basic VUM functionality is there now. Let’s take a look at Configuring VMware ESXi 6.7 Quick Boot and HTML5 vSphere Update Manager VUM functionality.

What is VMware vSphere 6.7 Quick Boot?

What is the Quick Boot functionality? Quick Boot functionality allows restarting only the hypervisor instead of going through a full reboot of the host hardware including POSTing, etc. This functionality is utilized with vSphere Update Manager so that patching and upgrades are completed much more quickly.  A note here before getting excited about potential backwards compatibility, this functionality is only available for hosts that are running ESXi 6.7.  Even if your hardware is compatible with the new Quick Boot, if you are running a legacy version of ESXi, this won’t be available.

Configuring VMware ESXi 6.7 Quick Boot and HTML5 vSphere Update Manager VUM

A note about Quick Boot.  The Quick Boot functionality relies on integration and compatibility with OEM hardware vendors.  The vendor specific hardware must be compatible with this new functionality.  The big names such as Dell and HP are already on board.  VMware has made a handy little script that is built into ESX 6.7 that allows testing the hardware compatibility with ESXi Quick Boot.  Information regarding the script is found at:

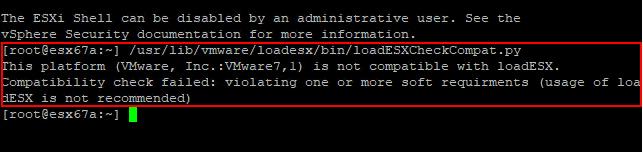

As you can see below, the script quickly points out that my Nested ESXi 6.7 installation is not compatible with Quick Boot.

Running-the-LoadESXCheckCompat-test-script-to-test-Quick-Boot-functionality
Running the LoadESXCheckCompat test script to test Quick Boot functionality

The script:

/usr/lib/vmware/loadesx/bin/loadESXCheckCompat.py

As mentioned configuring VMware ESXi 6.7 Quick Boot functionality must at this point be done in the flash “Flex” client.

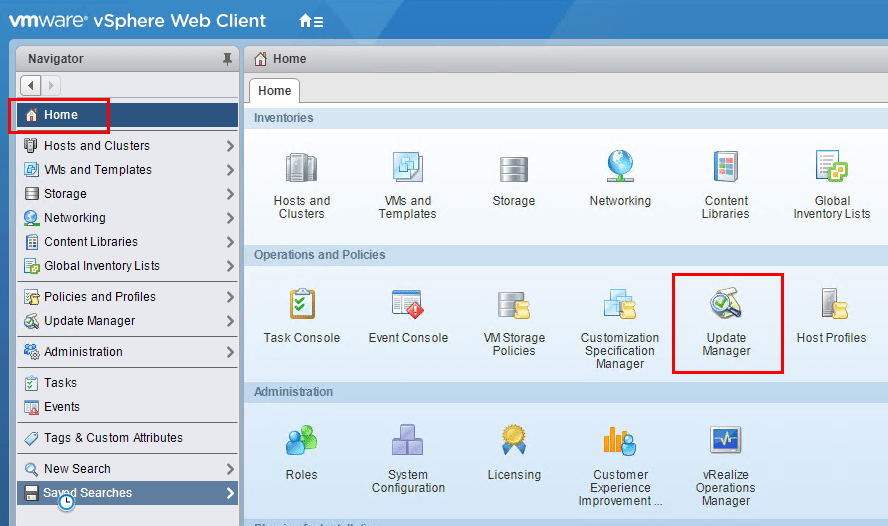

Navigate to Home >> Update Manager

Navigating-to-Home-and-Update-Manager-settings
Navigating to Home and Update Manager settings

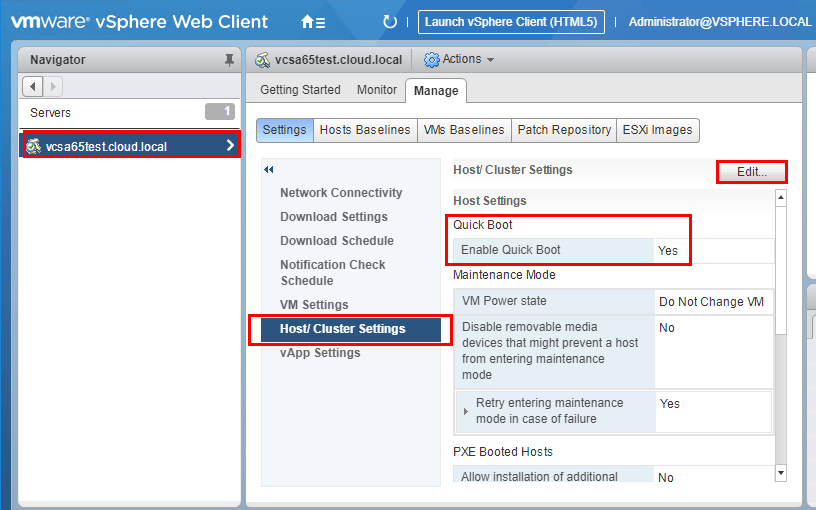

Click your vCenter Server on the left under Servers and then select the Manage tab.  Select Host/Cluster Settings and click the Edit button.

Quick-Boot-Settings-are-found-under-the-Host-Cluster-Settings-configuration
Quick Boot Settings are found under the Host Cluster Settings configuration

As you can see the Quick Boot functionality comes down to a simple checkbox.  What was interesting, my nested ESXi host has this checked by default.

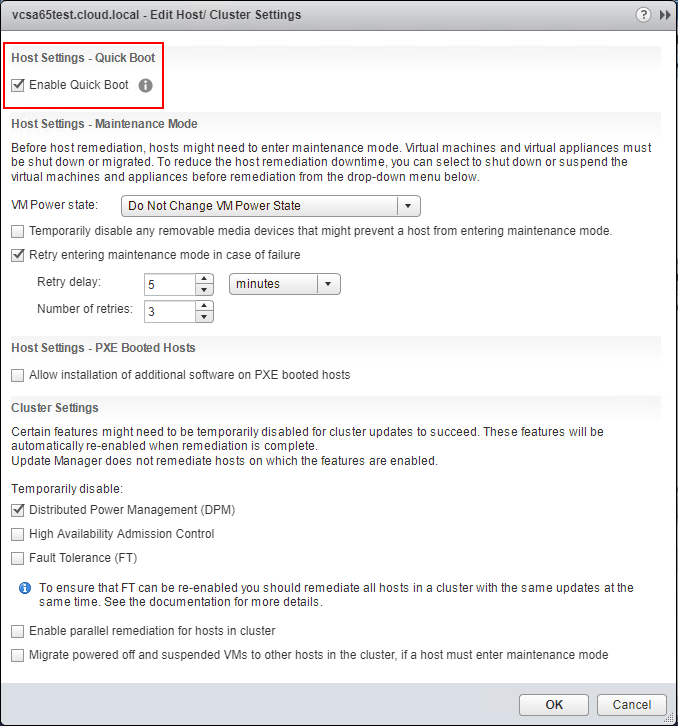

ESXi-6.7-Quick-Boot-Configuration-enabled
ESXi 6.7 Quick Boot Configuration enabled

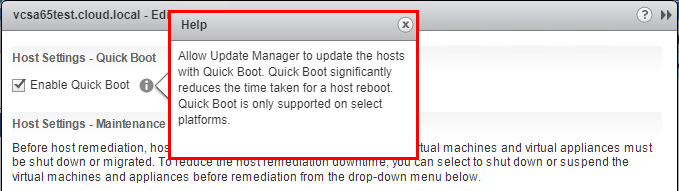

VMware’s description of the Quick Boot functionality if you hover over the information

VMware-description-of-the-Quick-Boot-process-in-ESXi-6.7
VMware description of the Quick Boot process in ESXi 6.7

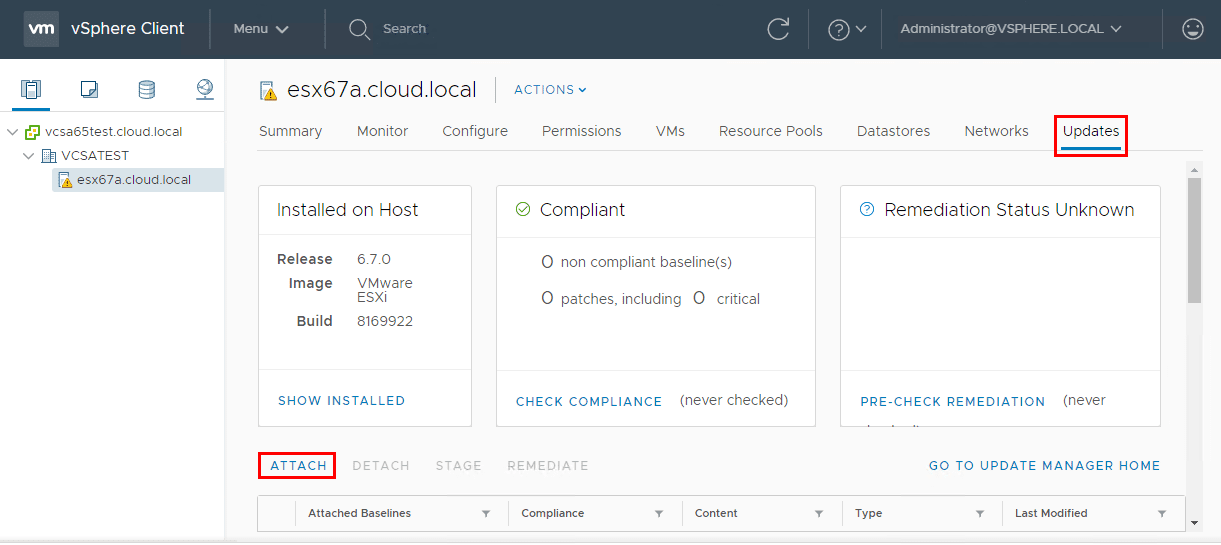

Navigating the new HTML5 vSphere Update Manager functionality.  Below, clicking on a host then clicking the Updates tab.  Notice the familiar actions however with the Attach button ready to attach an updates baseline.

VMware-vSphere-6.7-VUM-HTML5-client
VMware vSphere 6.7 VUM HTML5 client

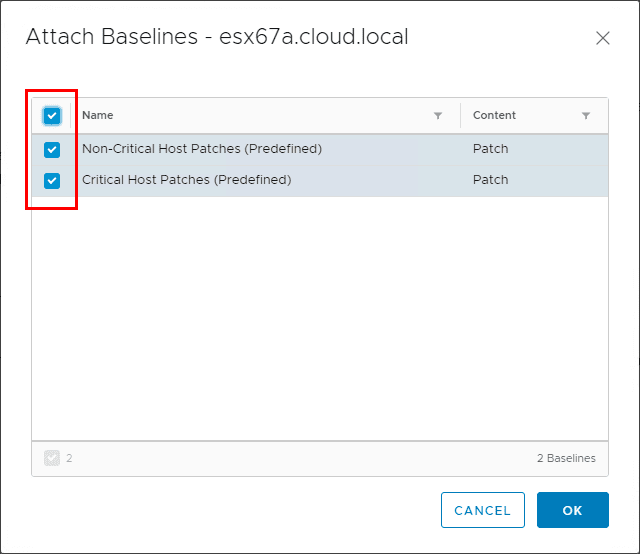

Attaching the default Non-Critical Host Patches and the Critical Host Patches to an ESXi 6.7 host.

Attaching-a-host-baseline-in-ESXi-6.7-vSphere-Update-Manager
Attaching a host baseline in ESXi 6.7 vSphere Update Manager

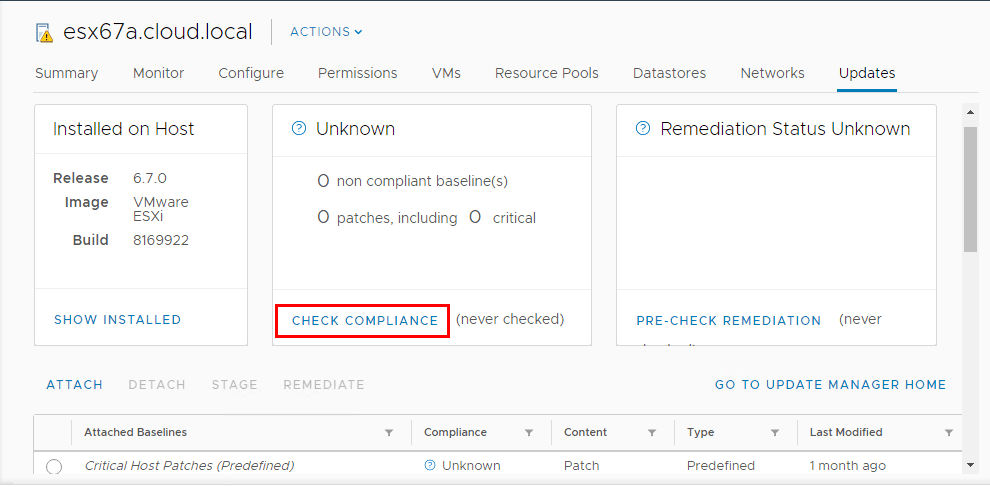

Notice the Check Compliance button.

Checking-compliance-based-on-host-baseline-HTML5-ESXi-6.7
Checking compliance based on host baseline HTML5 ESXi 6.7

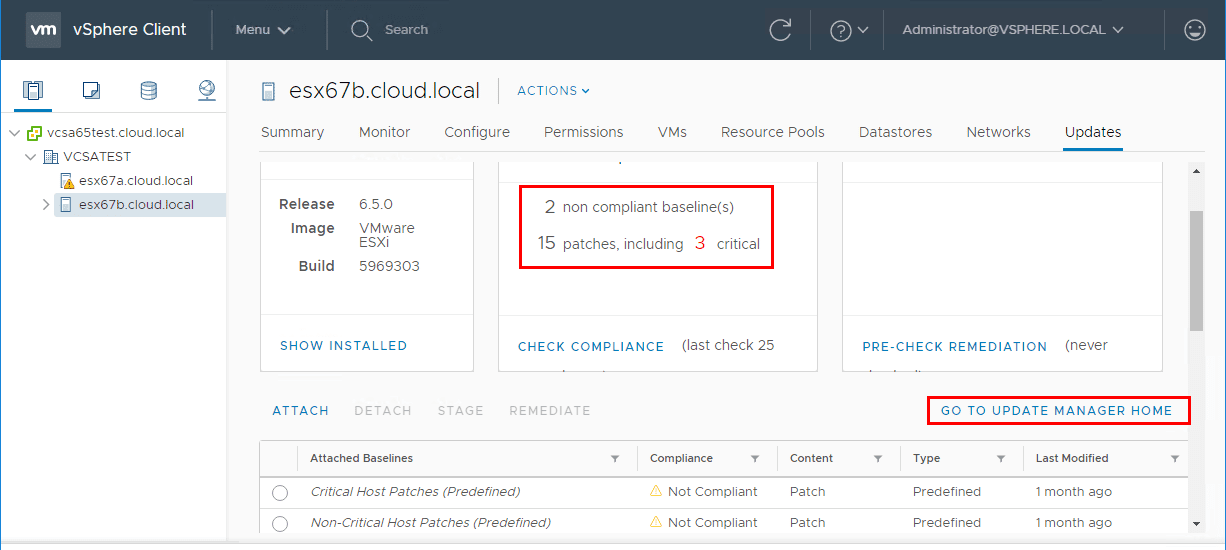

Switched gears below since there are no patches as of yet for ESXi 6.7.  I added in an ESXi 6.5 host into the infrastructure, attached the baselines, and ran the Check Compliance operation.  Notice I now have patches displaying that can be remediated.  A point to note also, you have the link Go to Update Manager Home button that takes you to the Update Manager Home location where you can add images, etc.

Viewing-compliance-scan-results-in-HTML5-VUM-in-vSphere-6.7
Viewing compliance scan results in HTML5 VUM in vSphere 6.7

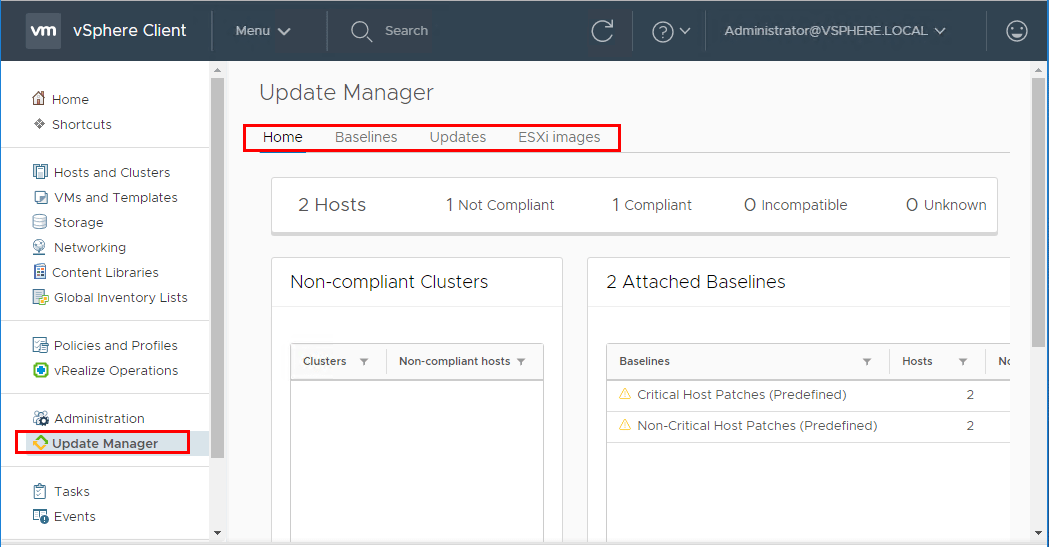

After navigating to the Update Manager Home location.  Note the Baselines, Updates, and ESXi Images tabs.

HTML5-Update-Manager-Home-in-vSphere-6.7-VCSA
HTML5 Update Manager Home in vSphere 6.7 VCSA

Takeaways

Configuring VMware ESXi 6.7 Quick Boot and HTML5 vSphere Update Manager VUM are great new features found in vSphere 6.7.  The more I dive into this release, the more excited I become.  There is just so much new functionality and features that allow administrators to be more effective and efficient in carrying out tasks in their vSphere environments.  The new Quick Boot feature will greatly reduce the time it takes to patch and upgrade hosts.  Also, the HTML5 vSphere Update Manager functionality included with this release definitely helps to close the gap on things that were missing from the previous HTML5 experience prior to vSphere 6.7.
