Rancher Desktop v1.0 Features Installation and Configuration

Rancher Desktop v1.0 Features Installation and Configuration. Looking at Rancher Desktop 1.0 in Windows and using nerdctl and kubectl

Highlights

  • Rancher Desktop is a solution released from Rancher, a respected name in the Kubernetes world, providing a great open-source Kubernetes deployment, configuration, and management tool.
  • The Rancher Desktop solution is an open-source desktop application that allows running Kubernetes and container management locally on a workstation.
  • Once Rancher Desktop is installed and you left the Run Rancher Desktop option selected, you will see the Rancher Desktop Kubernetes configuration dialog box launch.

The world of Kubernetes and especially Kubernetes development is a fascinating one with many different solutions and tools available for running Kubernetes locally on your Workstation. I have written several posts covering various solutions like Minikube and VMware Tanzu Community Edition (TCE). Today I am going to cover a solution that you may not have heard about as of yet. It is Rancher Desktop. Let’s take a look at Rancher Desktop v1.0 features installation and configuration and see how to get up and running with Rancher Desktop for running your local Kubernetes clusters.

What is Rancher Desktop and Rancher Desktop Features?

First, what is Rancher Desktop to begin with? Rancher Desktop is a solution released from Rancher, a respected name in the Kubernetes world, providing a great open-source Kubernetes deployment, configuration, and management tool. The Rancher Desktop solution is an open-source desktop application that allows running Kubernetes and container management locally on a workstation.

It provides many great features, such as allowing you to choose the version of Kubernetes you want to run locally, building, pushing, and running container images using either containerd or Moby which is dockerd. Also, you don’t need to push your images to a registry first to run them. You can build and run your images immediately in Kubernetes, no container registry required.

Rancher Desktop Architecture

The Rancher Desktop application is based on Electron. It runs the solution as a VM in macOS and Linux and uses Windows Subsystem for Linux 2 (WSL2) for running on Windows. What’s more, you simply download the application and run it. Rancher Desktop uses the specialized Rancher K3s distribution. What is this?

K3s is an official CNCF sandbox project that provides a streamlined and lightweight Kubernetes distribution designed for production workloads where resource use is critically important. It may include running in edge environments on IoT devices.

K3s is simple to install and very lightweight, making it perfect, not only for production use cases, but also as a local development platform running inside the Rancher Desktop application.

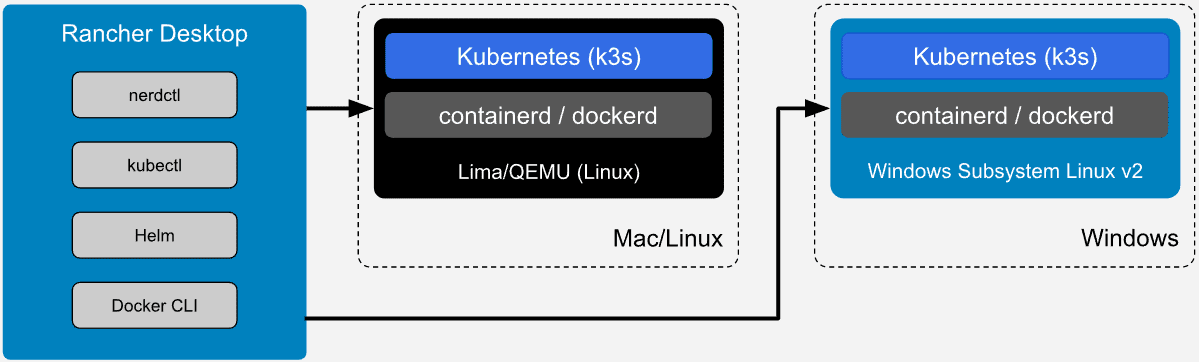

Rancher Desktop architecture using K3s Kubernetes distribution
Rancher Desktop architecture using K3s Kubernetes distribution

A stable 1.0.0 release only days away

There is already a Beta 1.0.0 release posted on the official Github site and the official stable 1.0.0 release is set for Wednesday January 26, 2022. What’s going to be new with the 1.0.0 stable release? According to the official Rancher blog post covering this topic:

  • A change in development philosophy with more focus on stability
  • 1.0.0 will be a stable release moving forward
  • More details will be given when the release is official in the Rancher documentation

Rancher Desktop v1.0 Features Installation and Configuration

Downloading Rancher Desktop

To download the Rancher Desktop application, you can visit the official Github repository here:

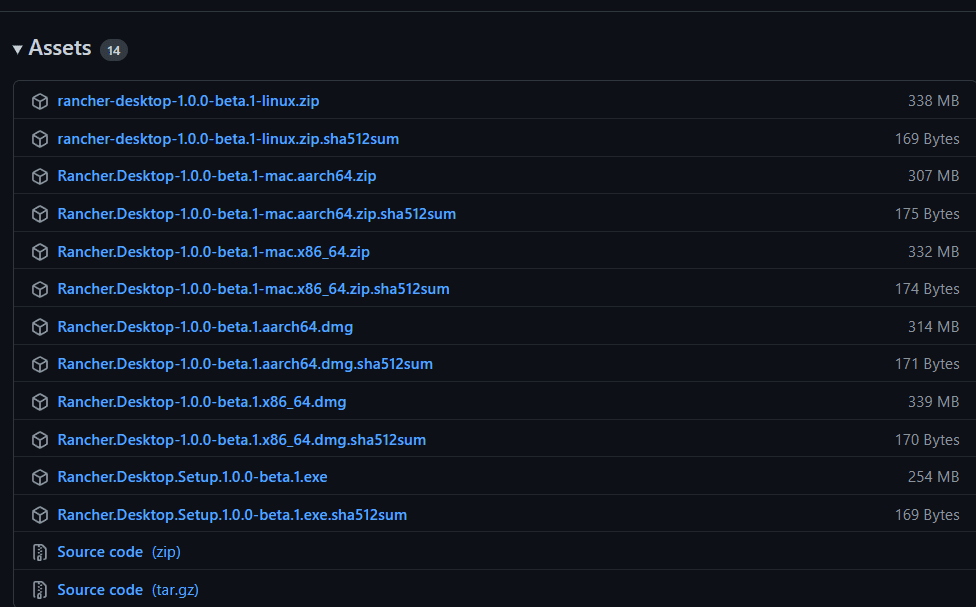

Downloading Rancher Desktop installation for macOS Linux and Windows
Downloading Rancher Desktop installation for macOS Linux and Windows

Installing Rancher Desktop in Windows

Since my administrative workstation is Windows, I will be downloading and installing the Windows version of Rancher Desktop v1.0.0 beta. As you can see from the screenshot above, the size is small at 254 MB. After downloading the Rancher Desktop installation, simply run the .exe and next through the prompts (only 2 screens in Windows).

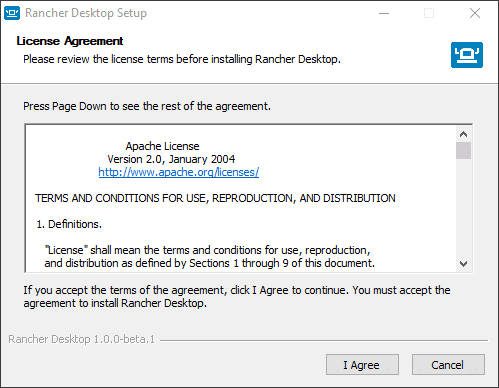

Starting the Rancher Desktop installation and accepting the EULA
Starting the Rancher Desktop installation and accepting the EULA

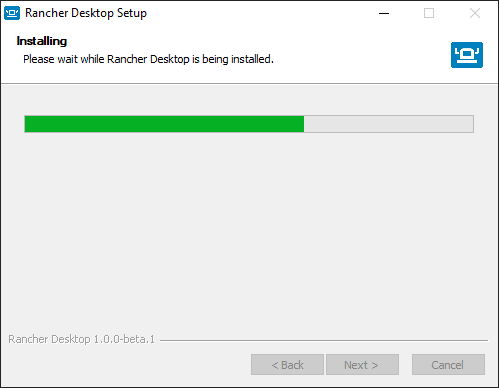

The Rancher Desktop installation progresses
The Rancher Desktop installation progresses

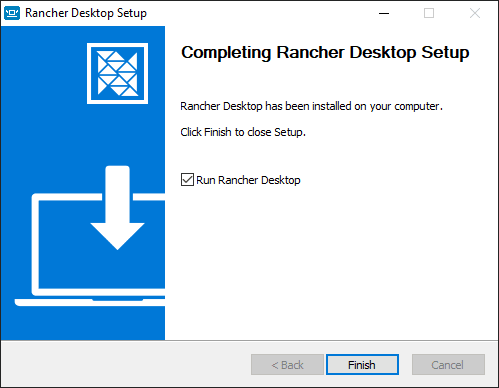

The installation of Rancher Desktop completes successfully
The installation of Rancher Desktop completes successfully

Configuring Rancher Desktop Kubernetes

Once Rancher Desktop is installed and you left the Run Rancher Desktop option selected, you will see the Rancher Desktop Kubernetes configuration dialog box launch. In this configuration dialog, you can configure the version of Kubernetes you want to run and the container runtime used to run it. Here, I am leaving the defaults selected (v1.23.1 (latest) Kubernetes and containerd).

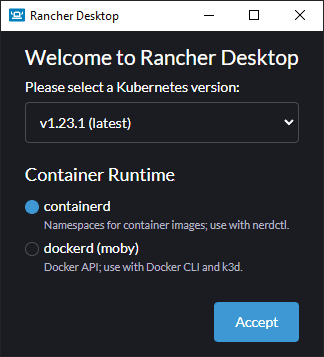

Rancher Desktop Kubernetes configuration launches
Rancher Desktop Kubernetes configuration launches

Note below, you can click the Please select a Kubernetes version drop-down and select a specific version of Kubernetes. This is a great feature. You may not be (most likely are not) running the latest version of Kubernetes in production. This feature allows you to easily switch to the version of Kubernetes that matches your production environments and develop against the same version used in production.

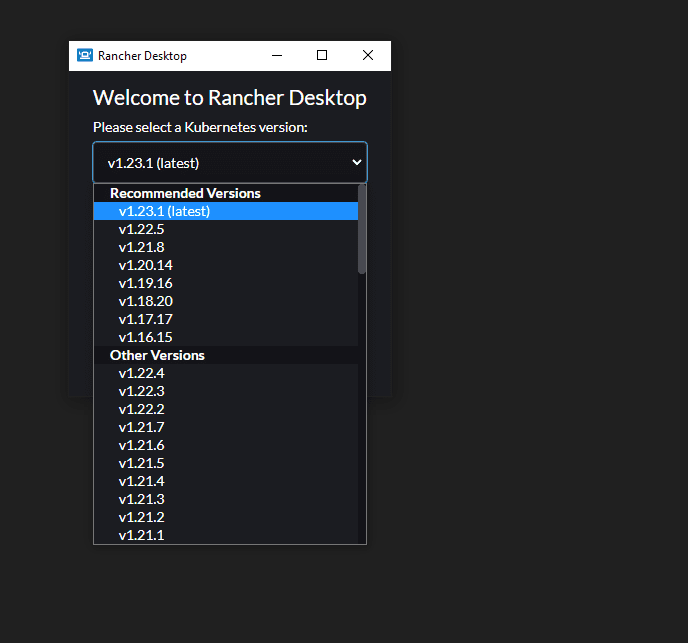

You can select the version of Kubernetes to download and run in Rancher Desktop
You can select the version of Kubernetes to download and run in Rancher Desktop

Once you select the version of Kubernetes and the container runtime, and click Accept, Rancher Desktop will begin provisioning your local Kubernetes cluster. You will see the full Rancher Desktop app launch at this point.

Rancher Desktop application launched and downloading Kubernetes
Rancher Desktop application launched and downloading Kubernetes

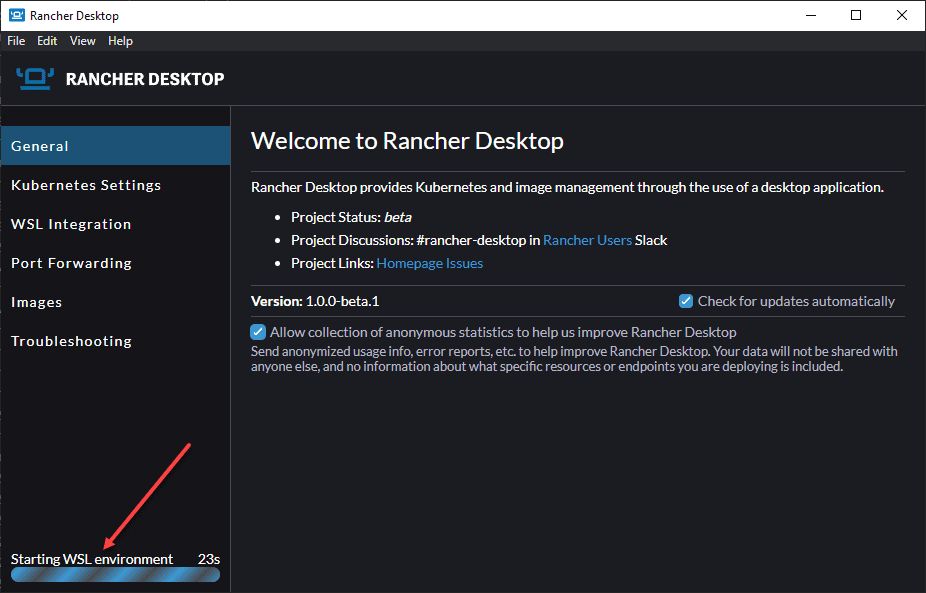

WSL environment being prepared by Rancher Desktop
WSL environment being prepared by Rancher Desktop

Let’s go through the configuration screens available in Rancher Desktop while the WSL environment is prepared (doesn’t take long). On the Kubernetes settings screen, you see the various information configured at the outset with the version of Kubernetes and container runtime selected.

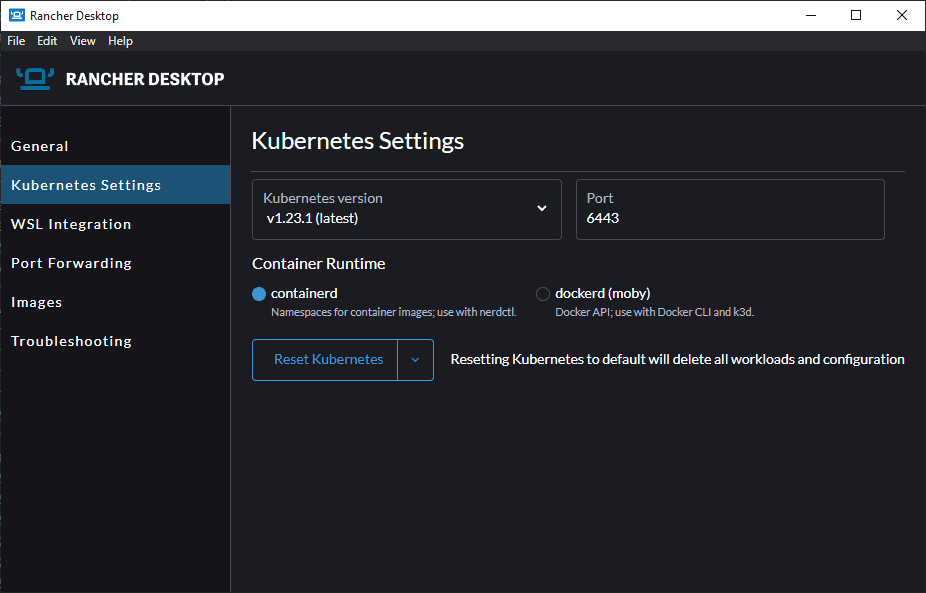

Viewing the Kubernetes settings screen
Viewing the Kubernetes settings screen

WSL integration screen. You can expose Rancher Desktop’s Kubernetes configuration to Windows Subsystem for Linux (WSL) distros.

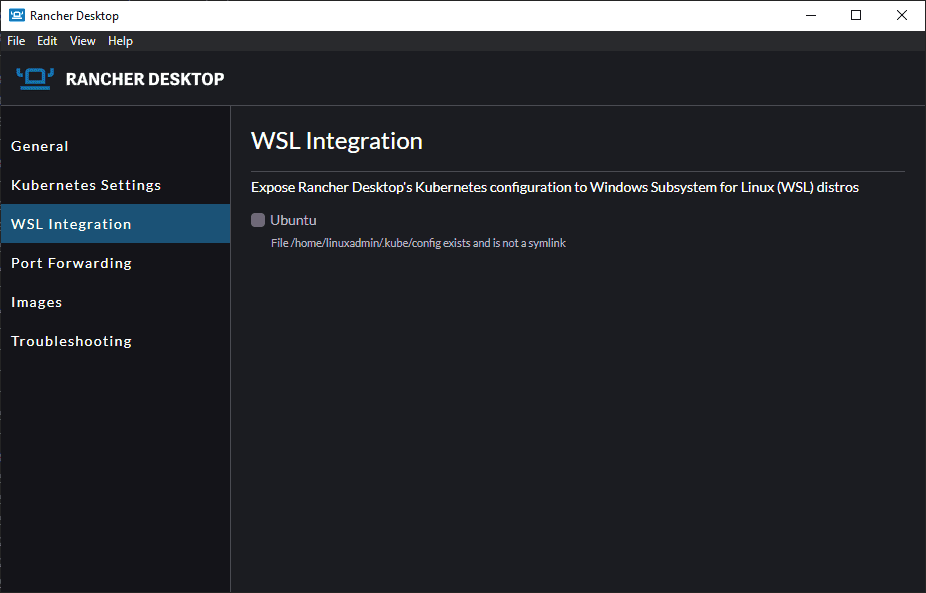

WSL integration settings screen in Rancher Desktop
WSL integration settings screen in Rancher Desktop

The images configuration screen shows the various images available to the K8s.io namespace.

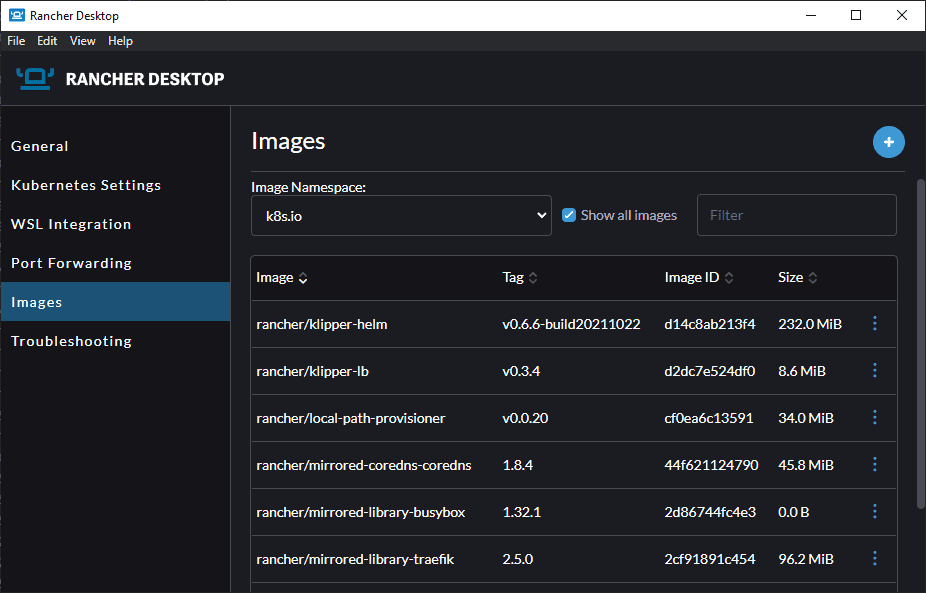

Rancher Desktop images configuration screen
Rancher Desktop images configuration screen

On the Troubleshooting page, you can view logs and also reset the environment back to its factory configuration if you encounter issues.

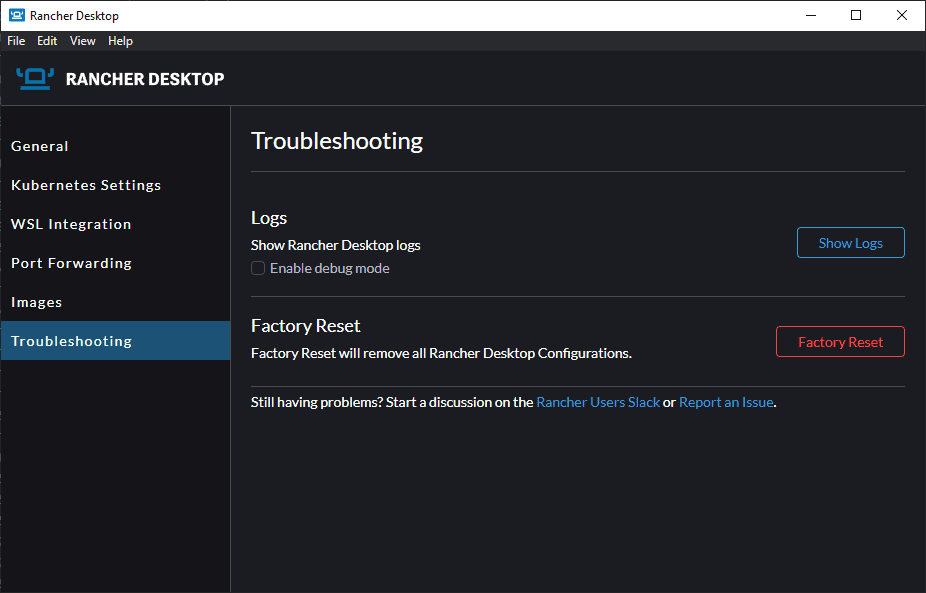

The Rancher Desktop troubleshooting screen
The Rancher Desktop troubleshooting screen

Using nerdctl command-line tool

The nerdctl tool is a Docker-compatible CLI for containerd. It provides the ability to run equivalent Docker CLI commands such as docker run, docker pull, and docker logs. All of these commands are found in nerdctl.

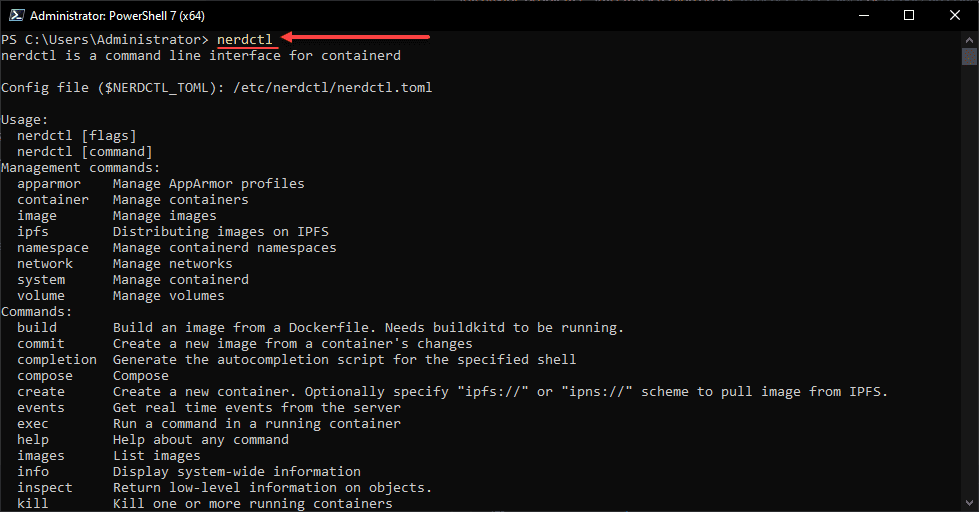

Using the nerdctl command line tool
Using the nerdctl command line tool

Below, we are viewing the K8s.io namespace with nerdctl.

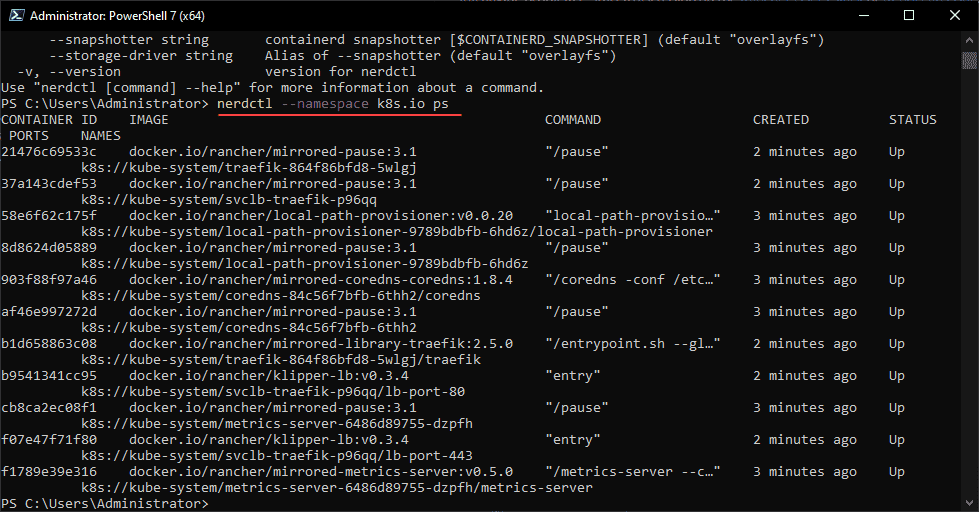

Viewing the k8s.io namespace with nerdctl
Viewing the k8s.io namespace with nerdctl

Connecting to Rancher Desktop Kubernetes using Kubectl

Now, let’s connect to our Rancher Desktop Kubernetes instance using Kubectl. Below, I wanted to ensure my kubectl context was set to the Rancher Desktop Kubernetes cluster. It is correctly set and you can see this with the Current designation.

You can then take a look at the pods and nodes using the normal kubectl commands:

kubectl get pods -A
kubectl get nodes

As you can see below, Rancher Desktop spins up a single-node Kubernetes cluster.

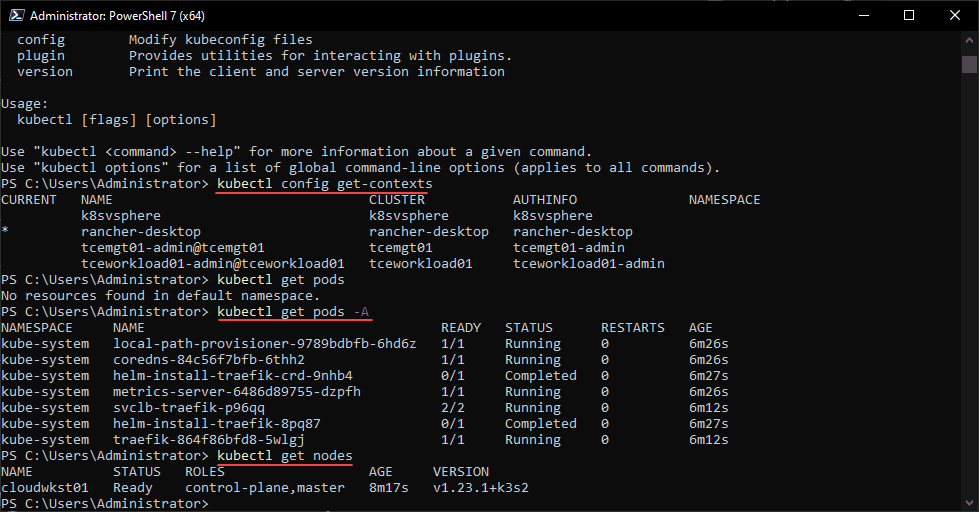

Connect to Rancher Desktop Kubernetes using kubectl viewing pods and nodes
Connect to Rancher Desktop Kubernetes using kubectl viewing pods and nodes

Video overview of Rancher 1.0 installation and configuration

Wrapping Up

The Rancher Desktop solution is a great solution to easily stand up a local Kubernetes environment on your local Workstation for development, learning, and other purposes. The process to download and run Kubernetes using Rancher Desktop is “brain dead” simple and provides features that other development environments don’t have, such as the ability to choose which version of Kubernetes is used to provision the environment. This seems like such an obvious feature, but, other solutions don’t include it. Stay tuned for Wednesday this week when Rancher Desktop v1.0 looks to be officially released on Wednesday.
