How to Create a vSphere with Tanzu Namespace

How to Create a vSphere with Tanzu Namespace using the Namespace wizard. Create a supervisor namespace, permissions, policy, and use kubetcl

No doubt, there are many like me that are having fun playing around with vSphere with Tanzu. I have been utilizing William Lam’s vSphere with Tanzu automation script to quickly deploy nested environments in the lab with just a few tweaks here and there. Check out William’s script here. You can also read my post about how to Configure VMware vSphere with Tanzu Workload Management in your vSphere environment. This post picks up after the workload management has been successfully enabled on your vSphere with Tanzu cluster. Let’s take a look at how to create a vSphere with Tanzu namespace.

vSphere with Tanzu Considerations

Let’s talk about a few things with vSphere with Tanzu and considerations you want to keep in mind. When you configure a namespace on the Supervisor Cluster, you essentially configure several different things. You set resource limits, permissions, storage policy, and provide the URL of the Kubernetes control plane for DevOps engineers. This allows them to run Kubernetes workloads on the namespaces for which they have permissions.

When you compare namespaces and capabilities with the vSphere networking stack compared to namespaces configured with the NSX-T networking stack, there are differences in capabilities. Namespaces running on NSX-T have more capabilities than namespaces on the vSphere networking stack.

Namespaces that are created on the vSphere networking stack can only run Tanzu Kubernetes clusters. You can’t run vSphere Pods or use the Registry Service with them. Workload networking is supported by the vSphere Distributed Switch (vDS).

Namespaces created on the NSX-T networking stack offer the full set of capabilities of the Workload Management platform. NSX-T-enabled namespaces support both vSphere Pods and Tanzu Kubernetes clusters.

How to Create a vSphere with Tanzu Namespace

After you Configure VMware vSphere with Tanzu Workload Management in your vSphere environment, you are ready to start configuring your Namespaces with the vSphere networking stack. Click the Namespaces tab.

Workload-cluster-is-enabled-and-running-click-to-configure-Namespaces
Workload cluster is enabled and running click to configure Namespaces

You will see the dashboard to Create Namespace. Click the button.

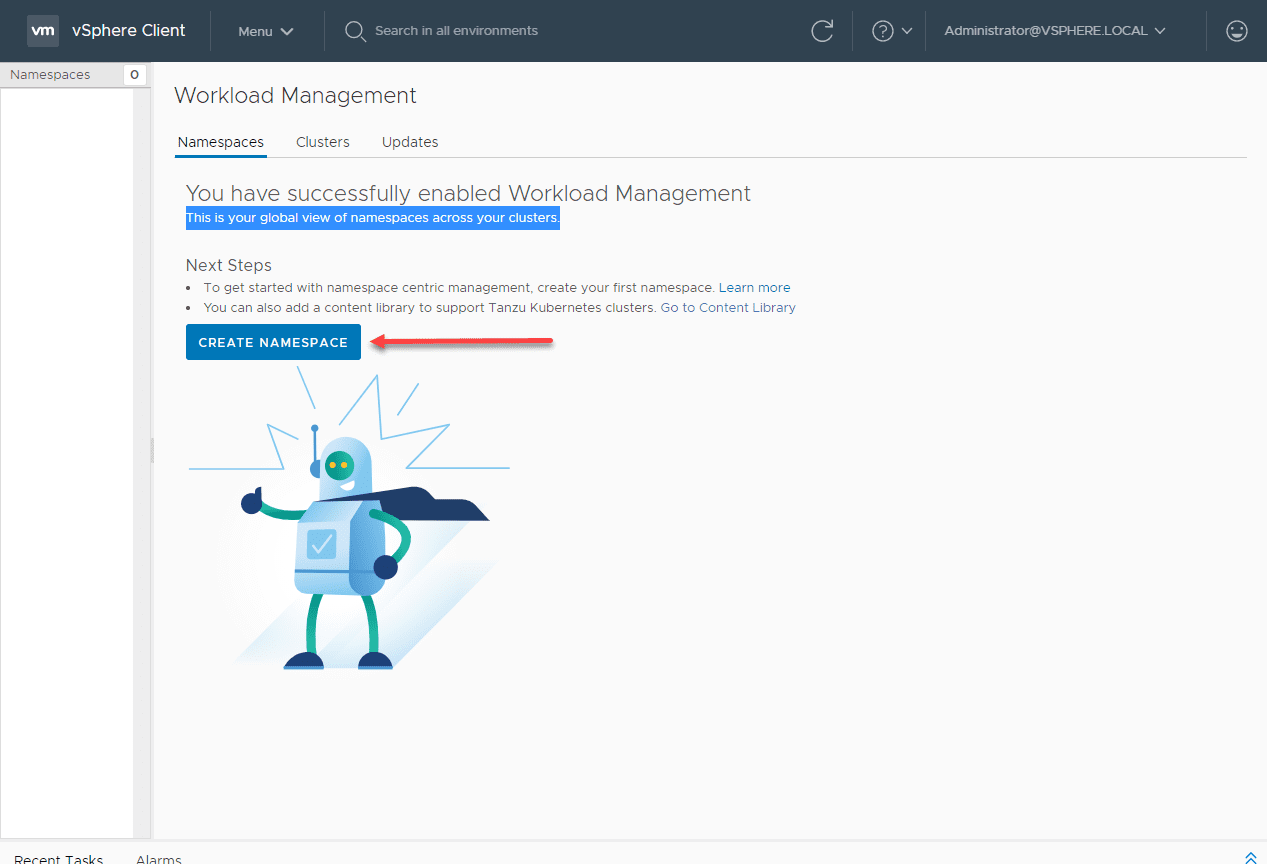

Launch-the-create-namespace-wizard
Launch the create namespace wizard

Choose your Workload Cluster, network, choose a name, and enter a description if you would like.

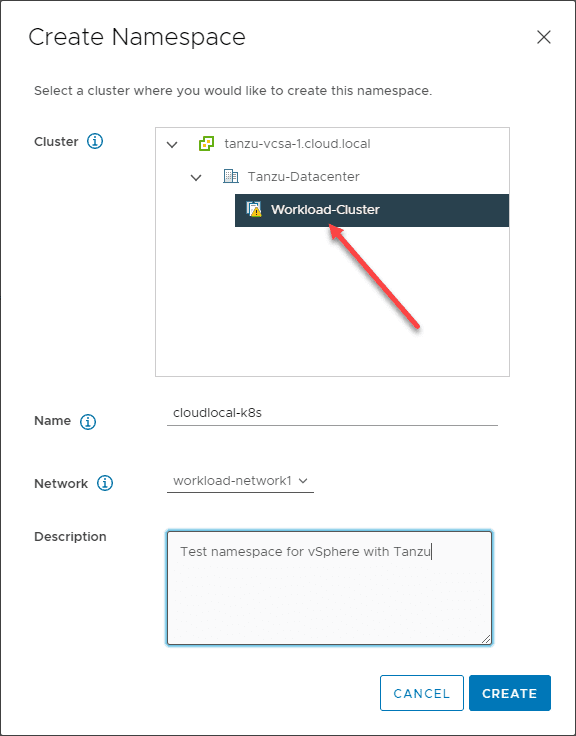

Choose-your-workload-cluster
Choose your workload cluster

With the namespace created, you now need to setup permissions and a storage policy for the namespace.

Add-permissions-and-storage-policy-to-the-namespace
Add permissions and storage policy to the namespace

Below, I am assigning permissions to the administrator account to edit. You can also choose to view.

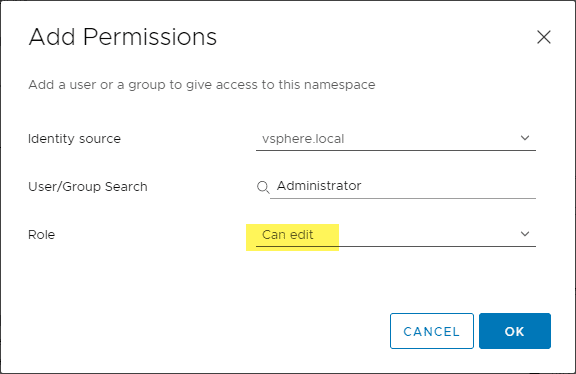

Assigning-permissions-to-the-user-or-group-and-their-role
Assigning permissions to the user or group and their role

Next, select the Storage Policies for the namespace. Here you can also select multiple policies.

Select-the-storage-policy-to-assign-to-the-namespace
Select the storage policy to assign to the namespace

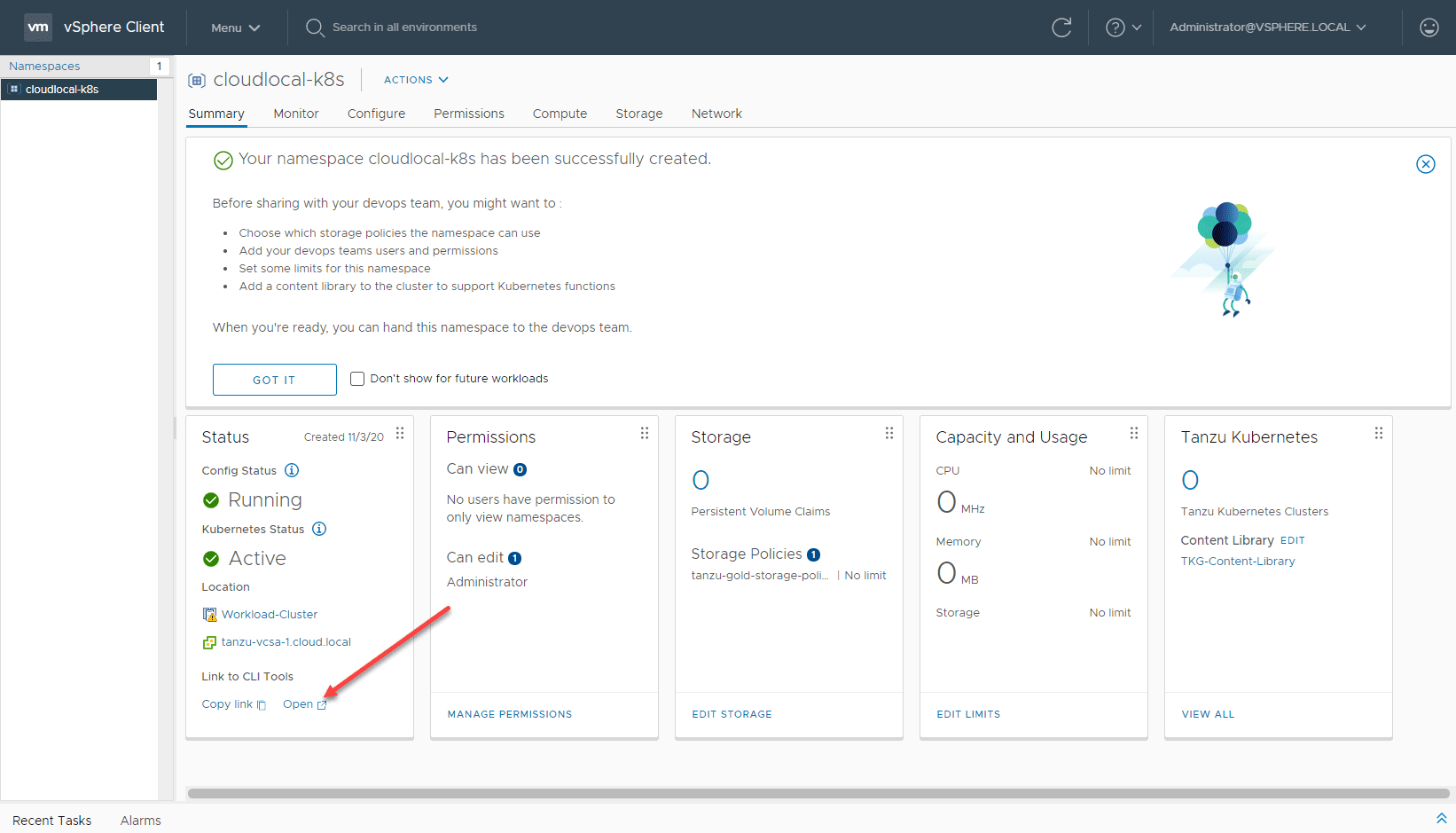

Now that we have the permissions and the storage policy configured, open the link to grab a copy of the Kubernetes CLI tools.

Open-the-link-to-the-CLI-tools
Open the link to the CLI tools

You are actually hitting your configured supervisor control plane node here to pull down the tools.

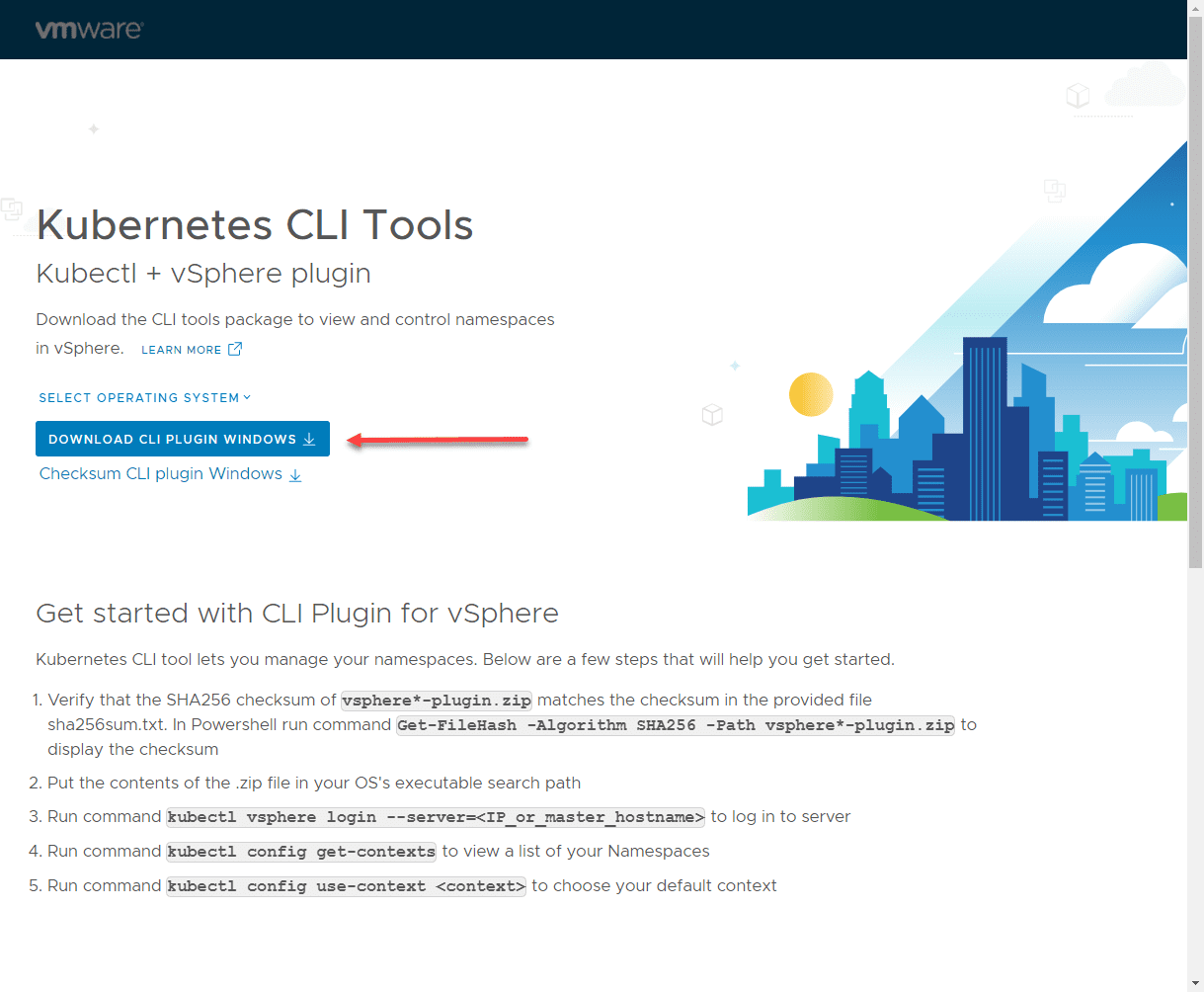

Download-the-Kubernetes-CLI-plugin
Download the Kubernetes CLI plugin

Now that you have the tools, simply extract the .zip file to a directory you want to work from. These are simply self-contained executables so no installation is required. Use the kubectl.exe tool to login to the Supervisor Control plane node. You then change context to your namespace.

 .kubectl.exe vsphere login --server=192.168.5.176 -u [email protected] --insecure-skip-tls-verify

.kubectl.exe config use-context cloudlocal-k8s

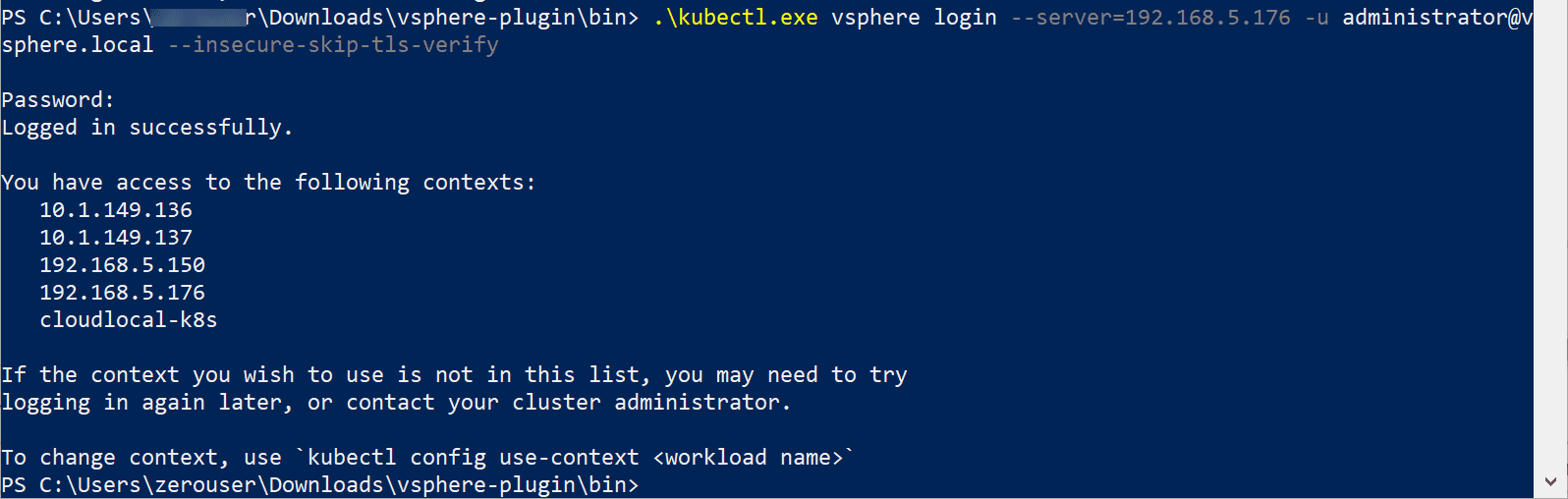

Login-to-Supervisor-Control-Plane-using-kubectl
Login to Supervisor Control Plane using kubectl

Next, you will need to create a configuration YAML file to apply for deploying the worker nodes. I simply copied William’s YAML file here. The only change I made was the namespace name in the file. Make the edits you need to make to the configuration file.

apiVersion: run.tanzu.vmware.com/v1alpha1
kind: TanzuKubernetesCluster
metadata:
  name: william-tkc-01
  namespace: cloudlocal-k8s
spec:
  distribution:
    version: v1.17.8+vmware.1-tkg.1.5417466
  settings:
    network:
      cni:
        name: antrea
      pods:
        cidrBlocks:
        - 193.0.2.0/16
      serviceDomain: managedcluster.local
      services:
        cidrBlocks:
        - 195.51.100.0/12
  topology:
    controlPlane:
      class: best-effort-xsmall
      count: 1
      storageClass: tanzu-gold-storage-policy
    workers:
      class: best-effort-xsmall
      count: 3
      storageClass: tanzu-gold-storage-policy

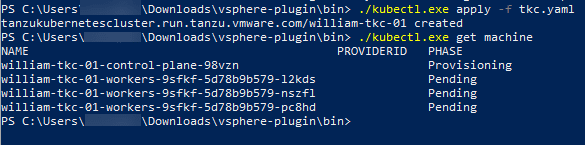

Apply-the-YAML-configuration-file
Apply the YAML configuration file

You can check the status of the Kubernetes worker nodes by issuing the command:

./kubectl.exe get machine

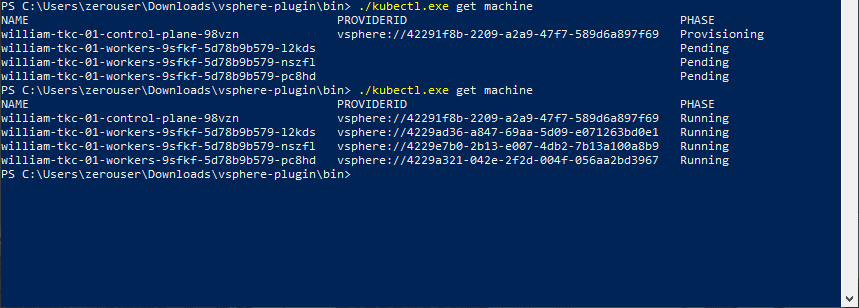

Checking-the-status-of-the-Kubernetes-worker-nodes
Checking the status of the Kubernetes worker nodes

Once you see the control plane and worker nodes running, you are ready to login to the TKG cluster and start deploying applications into the TKG cluster.

./kubectl.exe vsphere login --server=192.168.5.176 -u [email protected] --insecure-skip-tls-verify --tanzu-kubernetes-cluster-name william-tkc-01 --tanzu-kubernetes-cluster-namespace cloudlocal-k8s

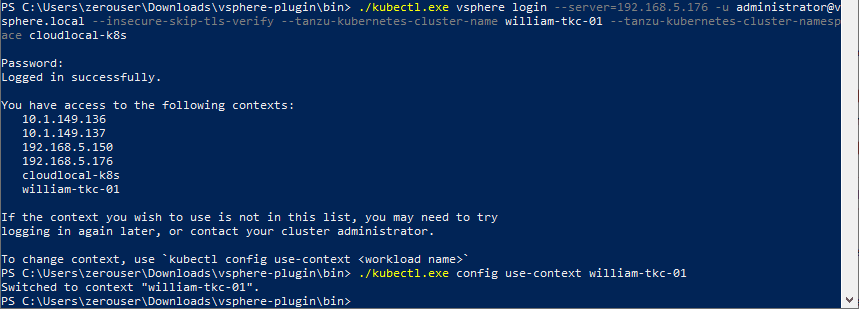

Logging-into-the-TKG-cluster-and-changing-context-to-the-workload-name
Logging into the TKG cluster and changing context to the workload name

Wrapping Up

It is exciting to have access to native Kubernetes inside of vSphere with Tanzu using the native vSphere networking stack. As shown, creating a namespace is made easy with the wizard found in the vSphere Client. After creating the namespace, setting up permissions, and a storage policy, you are ready to begin interacting with the TKG cluster using the kubectl.exe utility.
