I noted a warning on my home lab VMware vSAN environment noting a missing critical patch with vSAN and deduplication environments. The patch was referencing the VMware KB article for all-flash clusters with deduplication enabled. This fit my environment in its current iteration. The host that was showing the missing patch was the VMware vSAN Witness host. Let’s take a look at how to update VMware vSAN Witness appliance with needed patches.

Update VMware vSAN Witness Appliance

According to VMware documentation, they seem to support updating/upgrading VMware vSAN witness appliance hosts using the standard means of updating. See the VMware KB article here: https://kb.vmware.com/s/article/2143999.  While this involves another issue, it indicates VMware supports upgrading the appliance using “your preferred method”.

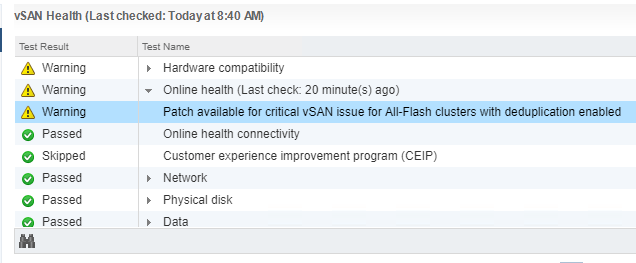

To rewind back to the issue seen in the home lab environment, I had a warning there was a “patch available for critical vSAN issue for All-Flash clusters with deduplication enabled“.

Message-that-patch-is-available-for-critical-vSAN-issue-for-all-flash-environments Update VMware vSAN Witness Appliance

Message that patch is available for critical vSAN issue for all-flash environments

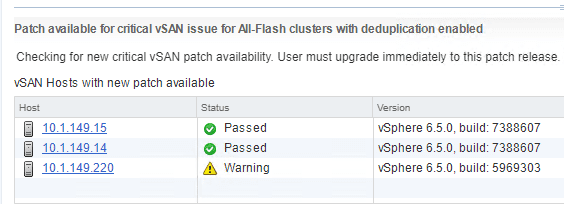

The details of the missing patch reflect that it is missing on the VMware vSAN Witness host.

VMware-vSAN-Witness-host-was-showing-as-needing-the-patch Update VMware vSAN Witness Appliance

VMware vSAN Witness host was showing as needing the patch

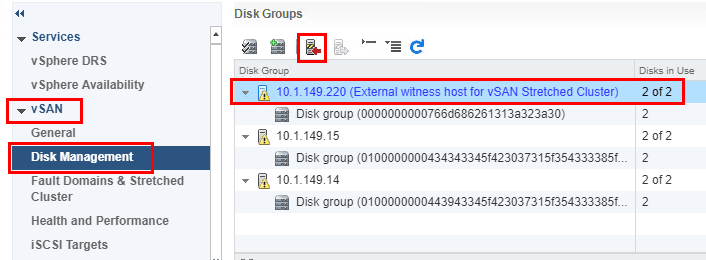

To proceed with updating the VMware vSAN Witness host, I will place the host in maintenance mode.  To do that, navigate to Cluster >> Configure >> vSAN >> Disk Management and select the host in question.  After highlighting the host, using the maintenance mode icon to place it in maintenance mode.

Placing-the-VMware-vSAN-Witness-host-in-maintenance-mode Update VMware vSAN Witness Appliance

Placing the VMware vSAN Witness host in maintenance mode

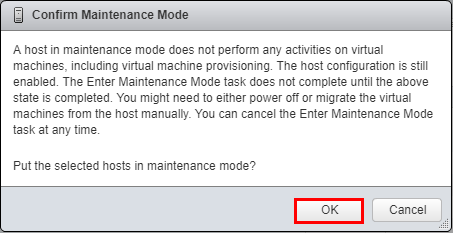

Here we confirm the action of placing the witness host in maintenance mode.

Confirm-placing-the-VMware-vSAN-Witness-host-in-maintenance-mode Update VMware vSAN Witness Appliance

Confirm placing the VMware vSAN Witness host in maintenance mode

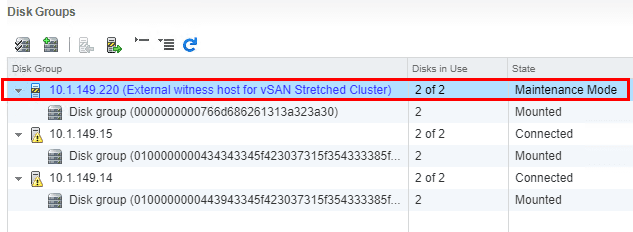

Now, we should see the vSAN Witness host in maintenance mode.

Verify-the-VMware-vSAN-Witness-Host-is-now-in-maintenance-mode Update VMware vSAN Witness Appliance

Verify the VMware vSAN Witness Host is now in maintenance mode

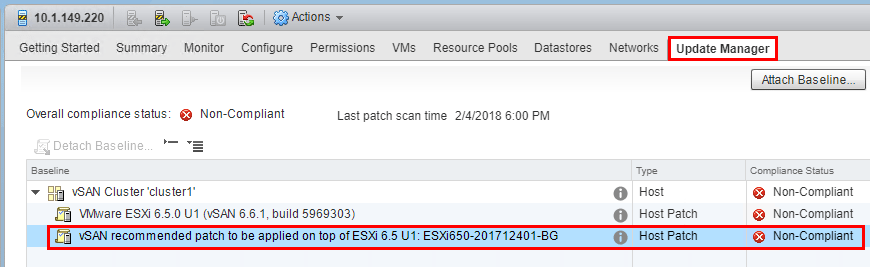

Using update manager, scanning the Witness host shows the needed missing patch.

Using-update-manager-scan-the-VMware-vSAN-Witness-host-for-updates Update VMware vSAN Witness Appliance

Using update manager scan the VMware vSAN Witness host for updates

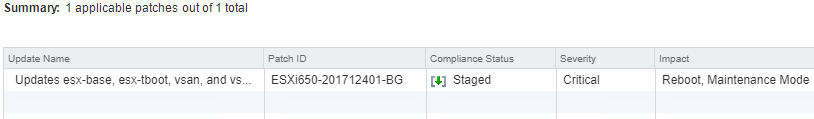

The missing patch shown is the ESXi650-201712401-BG package.

The-needed-patch-has-been-staged-for-the-vSAN-Witness-host Update VMware vSAN Witness Appliance

The needed patch has been staged for the vSAN Witness host

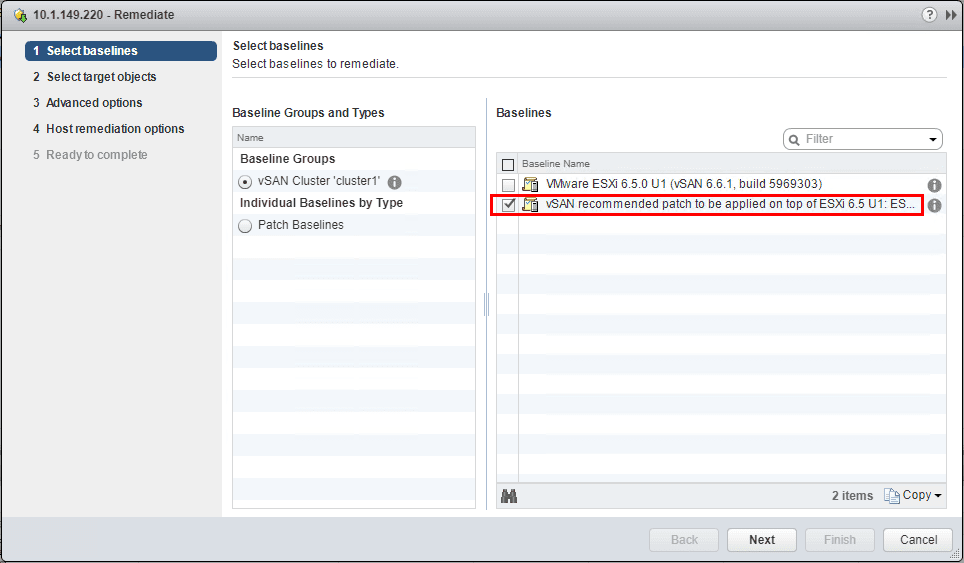

We begin the remediate process on the host.

Select-baselines-in-update-manager Update VMware vSAN Witness Appliance

Select baselines in update manager

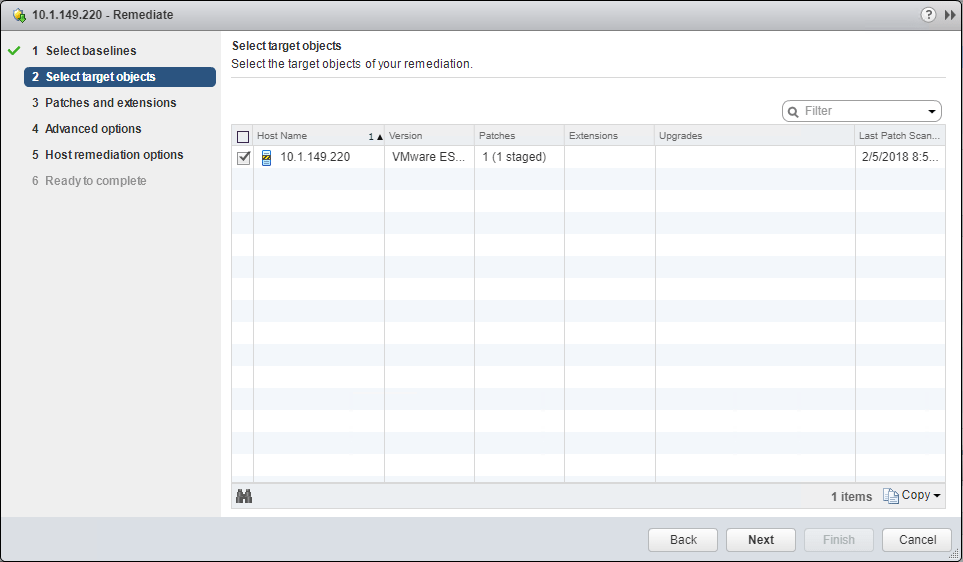

Selecting the vSAN Witness host in the update manager wizard to apply the needed patch.

Select-the-target-object-which-is-the-VMware-vSAN-Witness-host Update VMware vSAN Witness Appliance

Select the target object which is the VMware vSAN Witness host

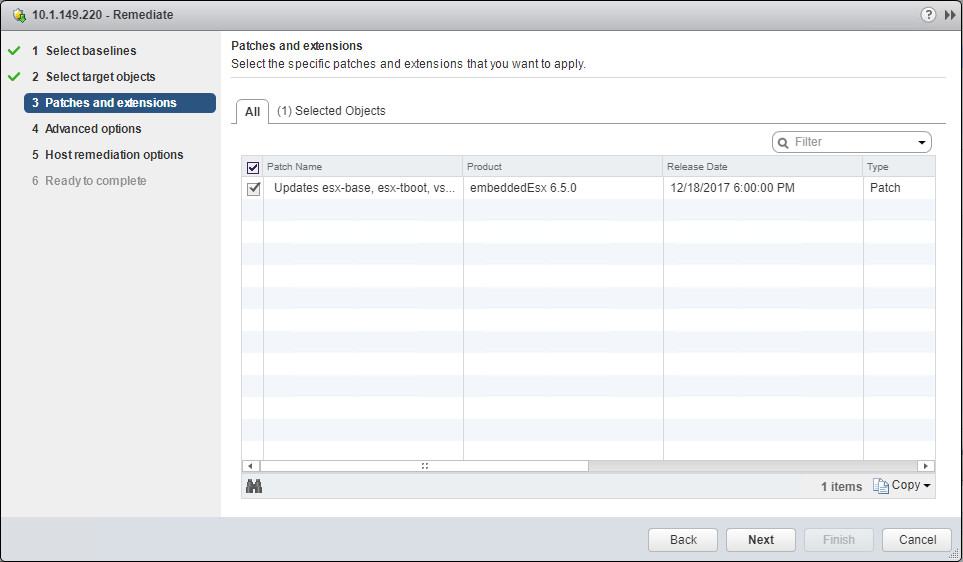

Select the update package(s) to apply to the vSAN Witness host.

Choose-the-patches-and-extensions-for-the-vSAN-Witness-host Update VMware vSAN Witness Appliance

Choose the patches and extensions for the vSAN Witness host

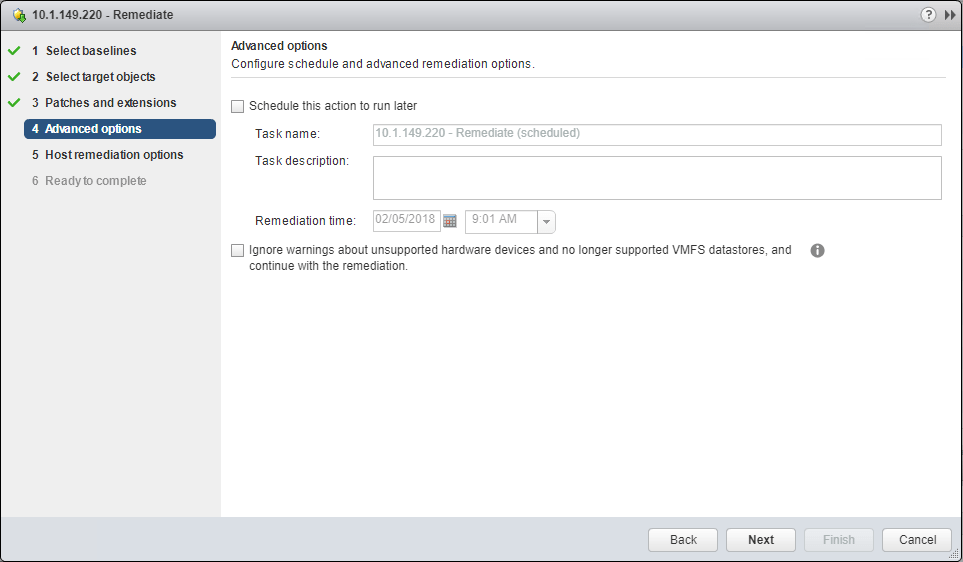

Choose any advanced options.

Choose-any-advanced-options-for-the-update Update VMware vSAN Witness Appliance

Choose any advanced options for the update

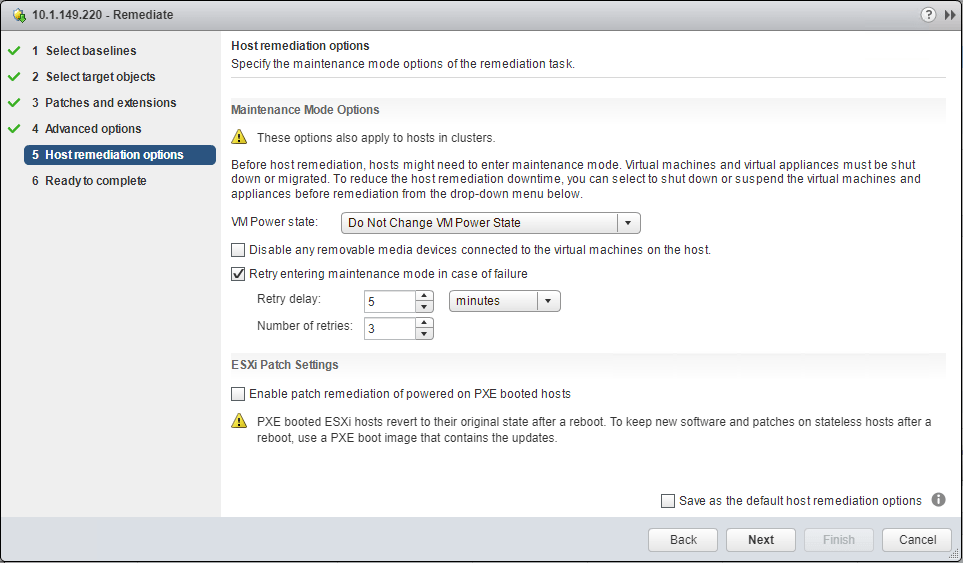

Select you host remediation options.

Configure-host-remediation-options Update VMware vSAN Witness Appliance

Configure host remediation options

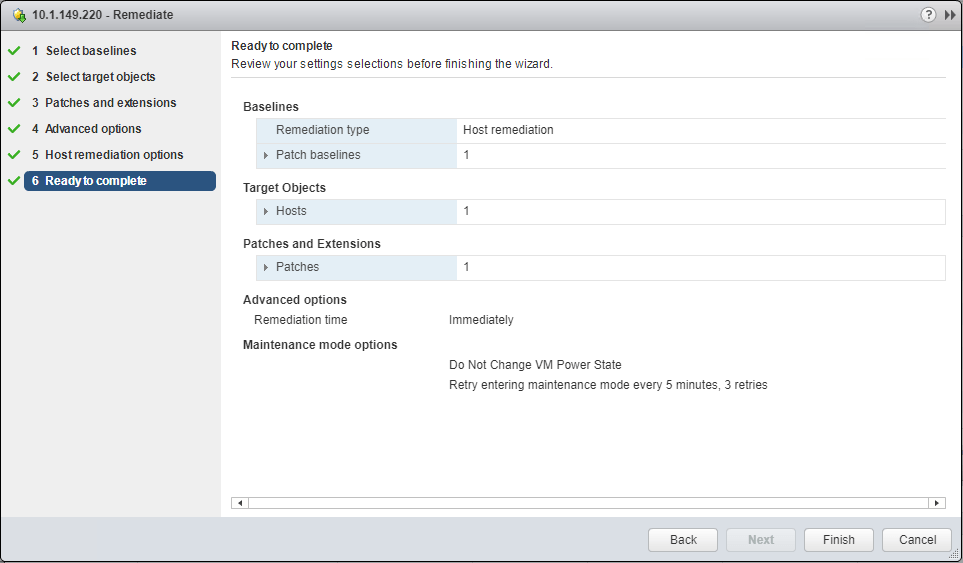

Finalize the patch installation options.

Finalize-the-VMware-vSAN-Witness-host-update-options Update VMware vSAN Witness Appliance

Finalize the VMware vSAN Witness host update options

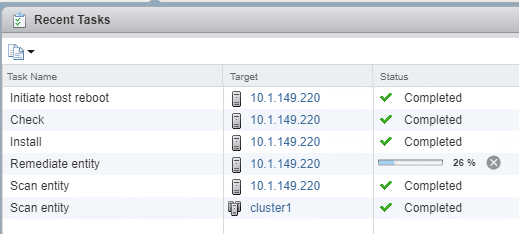

We can watch the update task in vCenter proceed as the patches are applied and the host is rebooted.

The-update-patch-process-begins-on-the-vSAN-Witness-host Update VMware vSAN Witness Appliance

The update patch process begins on the vSAN Witness host

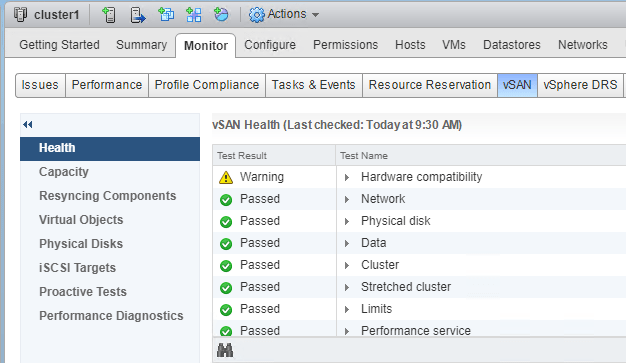

After the VMware vSAN Witness host comes back up, we no longer see the needed patch displaying as a warning in the vSAN Health Monitor.

No-longer-have-the-warning-for-the-vSAN-patch-needed Update VMware vSAN Witness Appliance

No longer have the warning for the vSAN patch needed

Concluding Thoughts

The process to update VMware vSAN Witness host is fairly straightforward and generally follows the same regimen as updating a “regular” ESXi host.  However, always make sure to follow the guidance of VMware if you are having a specific issue with vSAN or any other VMware product.  The vSAN Health monitor is really nice in that it allows you to easily have a high-level overview of the health of the vSAN environment and quickly links you to relevant VMware KB articles with solutions. Making sure to resolve any issues that are found in the Health monitor will ensure you have a healthy and performant vSAN cluster.
