Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

0

With the recent exciting news of the release of VMware vSphere 6.5 Update 1, there are many great reasons now to upgrade from vSphere 6.0. The first step that you will want to take after validating your hardware compatibility and interoperability matrices from VMware, is Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1. The process to upgrade from VCSA 6.0 to VCSA 6.5 Update 1 is the same as the process from 6.0 to 6.5 that we covered here:

  • First, a new appliance is deployed to the target vCenter or ESXi host
  • Second, the upgrade process copies data from the source appliance to the deployed appliance.

If you are already running 6.5 and want to upgrade to Update 1, then it is as simple as logging into the VAMI interface and running the Update procedure there.  Let’s take a look at that process.

Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

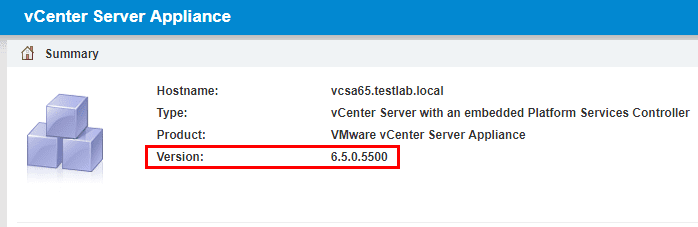

First of all, we can look at the current version running on our lab VCSA 6.5 appliance.  Version 6.5.0.5500.

VMware-vCenter-VCSA-version-before-Update-1 Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

VMware vCenter VCSA version before Update 1

Under the Update Menu we simply select the Check Updates and Check Repository links.

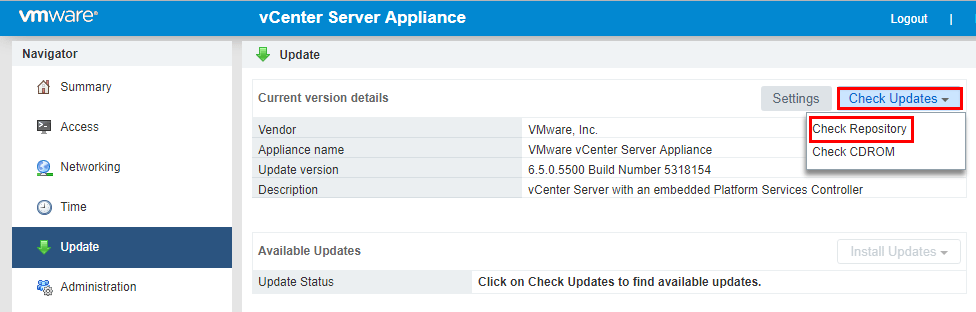

Checking-for-updates-for-VCSA-from-the-VMware-repository Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Checking for updates for VCSA from the VMware repository

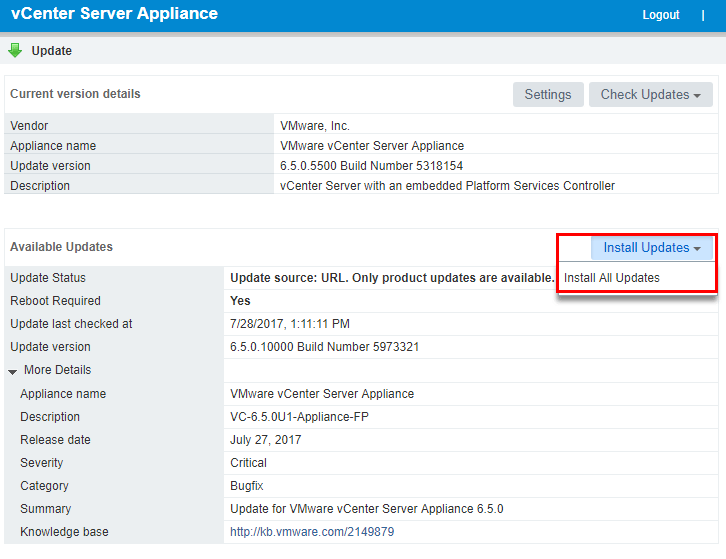

We should see the available update to 6.5 Update 1 appear as available.  Update Version 6.5.0.10000 Build Number 5973321.

We-will-see-6.5-Update-1-found-as-an-available-update Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

We will see 6.5 Update 1 found as an available update

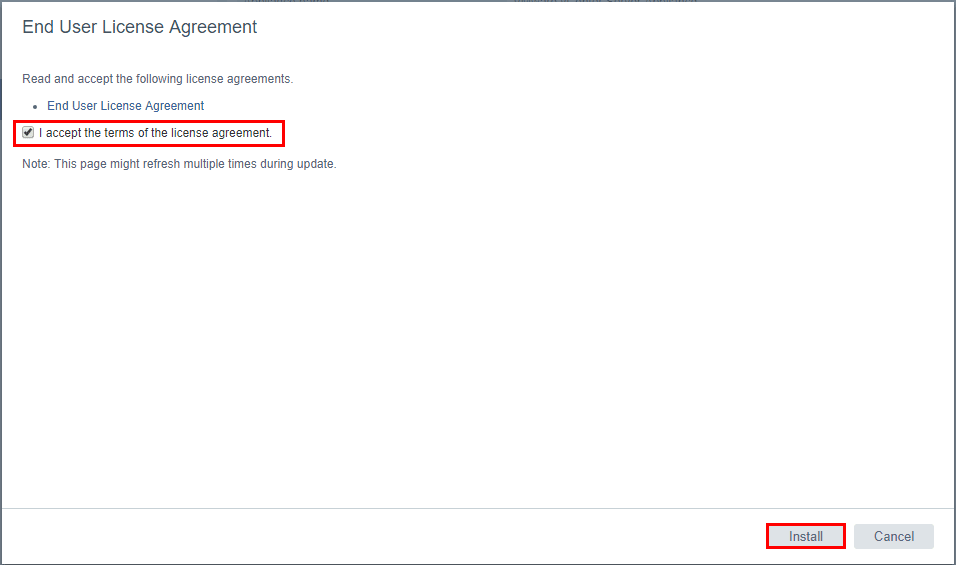

Accepting the license agreement…

Accept-the-terms-of-the-license-agreement-for-Update-1 Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Accept the terms of the license agreement for Update 1

The Update process begins.  You can Show Details and see each step as it is running.

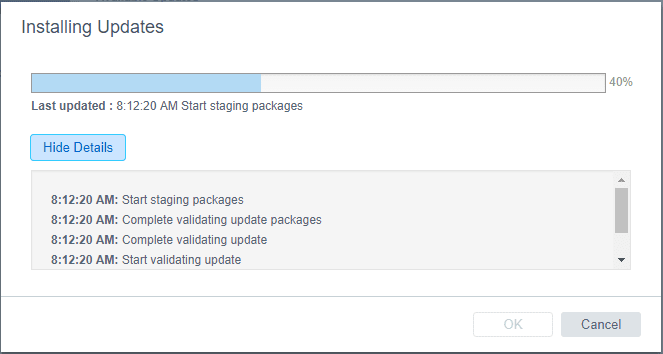

Installation-of-vCenter-VCSA-Appliance-6.5-Update-1-begins Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Installation of vCenter VCSA Appliance 6.5 Update 1 begins

After the update finishes, we will be prompted to reboot the appliance.

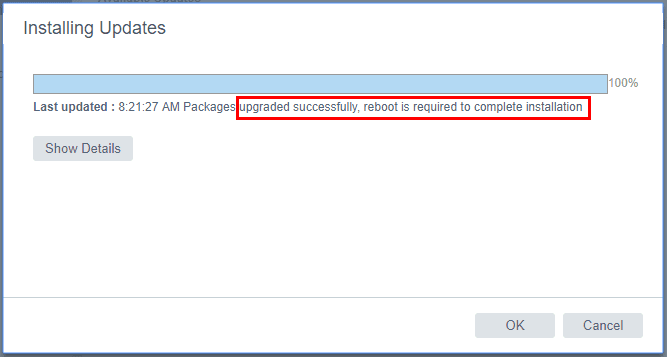

vSphere-VCSA-6.5-Update-1-update-successful-reboot-prompt Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

vSphere VCSA 6.5 Update 1 update successful reboot prompt

If we click OK above and look at the Update version and Status we can see we are at the latest version now with the reboot prompt.

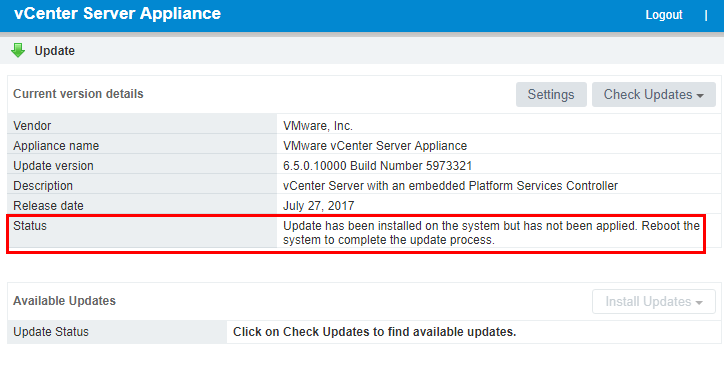

Checking-the-version-from-the-VCSA-VAMI-status-screen Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Checking the version from the VCSA VAMI status screen

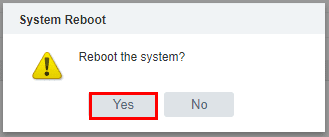

I chose to simply reboot the appliance from the VAMI interface.

Initiate-the-reboot-from-the-VCSA-VAMI Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Initiate the reboot from the VCSA VAMI

VMware vCenter VCSA 6.5 Update 1 New HTML5 functionality

Now that the appliance has rebooted and we should have the new functionality, one of the most exciting components of the vCenter VCSA Update 1 release for me is the additional HTML5 functionality.  All of us have been eagerly awaiting the day when we can fully use the HTML5 interface as opposed to the legacy flash client.  With 6.5 Update 1 this is getting closer to being reality.  VMware has mentioned they are now at around 90% of the functionality in the HTML5 client.

There are additions in the area of Virtual Distributed Switches as well as storage and others to mention a few.  I was excited to hear the added feature set to manage VDS switches.  I have a couple of screenshots below comparing the “non Update 1” to the “Update 1” version of the HTML5 client.  Notice the screenshots of a couple of differences.  Just as a walk through to test the functionality, I went through adding a new VDS switch as well as adding this switch to a couple of hosts in the lab.

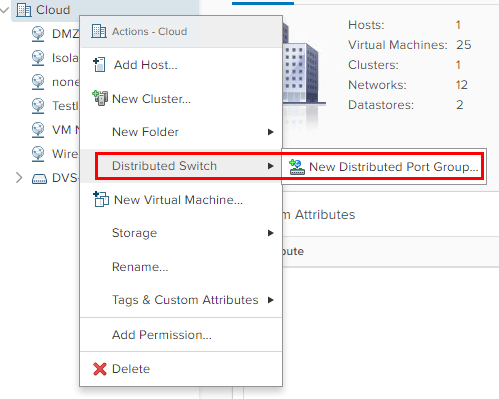

Below we have the “non Update 1” HTML5 client and as you can see we can only create a new Distributed Port Group.

The-non-Update-1-HTML5-client-can-only-create-new-Distributed-Port-Groups Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

The non Update 1 HTML5 client can only create new Distributed Port Groups

Looking at the new HTML5 web client we see that we can create new Distributed vSwitches.

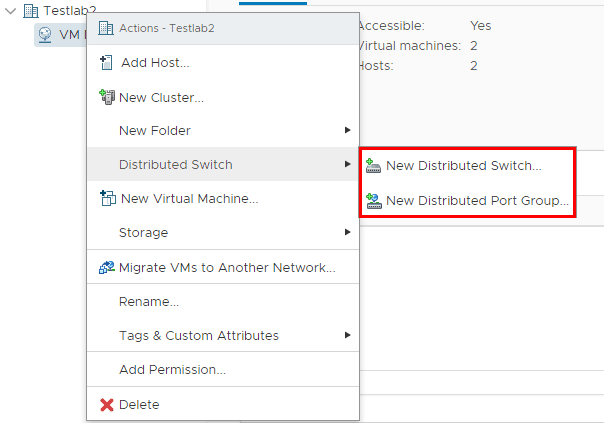

vSphere-6.5-Update-1-HTML5-web-client-can-create-Distributed-Switches Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

vSphere 6.5 Update 1 HTML5 web client can create Distributed Switches

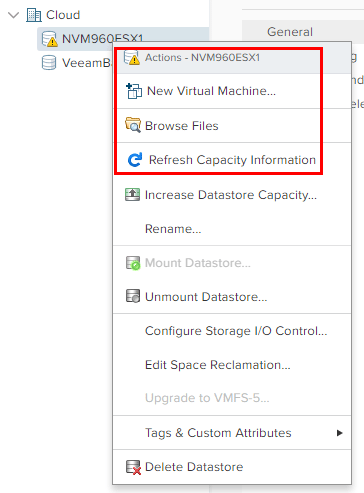

A different example involving storage.  Below is the HTML5 client prior to Update 1 and we don’t have the option to register VMs among other things.

Prior-to-Update-1-we-cant-register-VMs-from-teh-storage-screen Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Prior to Update 1 we can’t register VMs from teh storage screen

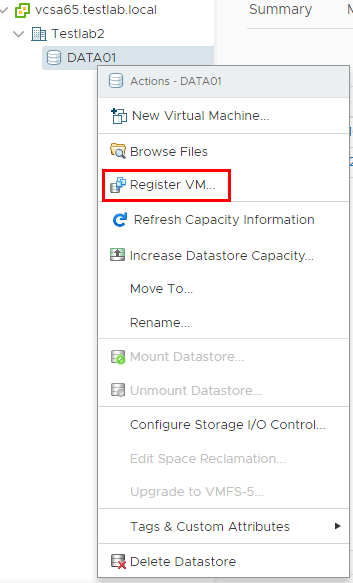

With vSphere 6.5 Update 1, we have the option to Register VM from storage.

With-HTML5-client-in-Update-1-we-can-register-VMs Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

With HTML5 client in Update 1 we can register VMs

Adding a new Distributed Switch vSphere 6.5 Update 1 HTML5 web client

Verified – we can add Distributed Switches with the new HTML5 client.  I went through the wizard and everything works beautifully!  Can anyone say “death to the flash client”?

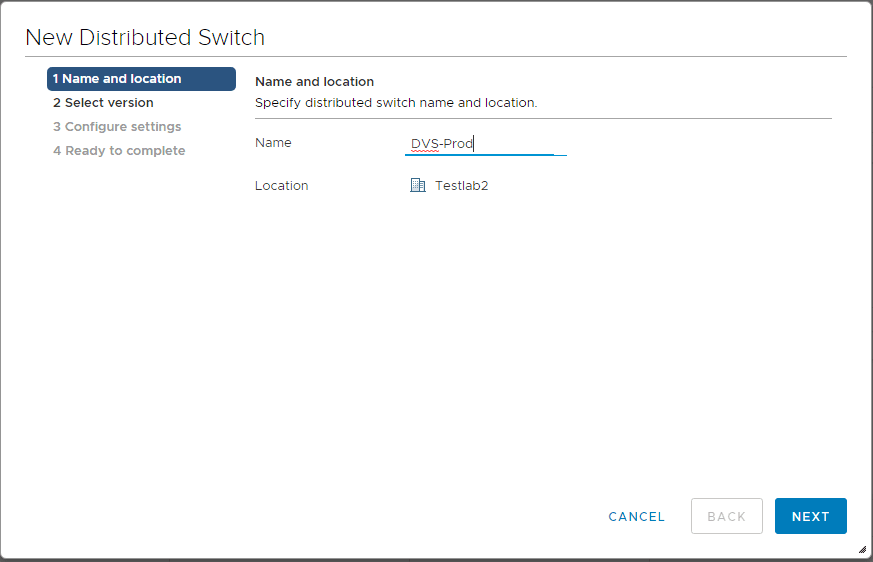

Adding-a-new-Distributed-Switch-vSphere-6.5-Update-1 Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Adding a new Distributed Switch vSphere 6.5 Update 1

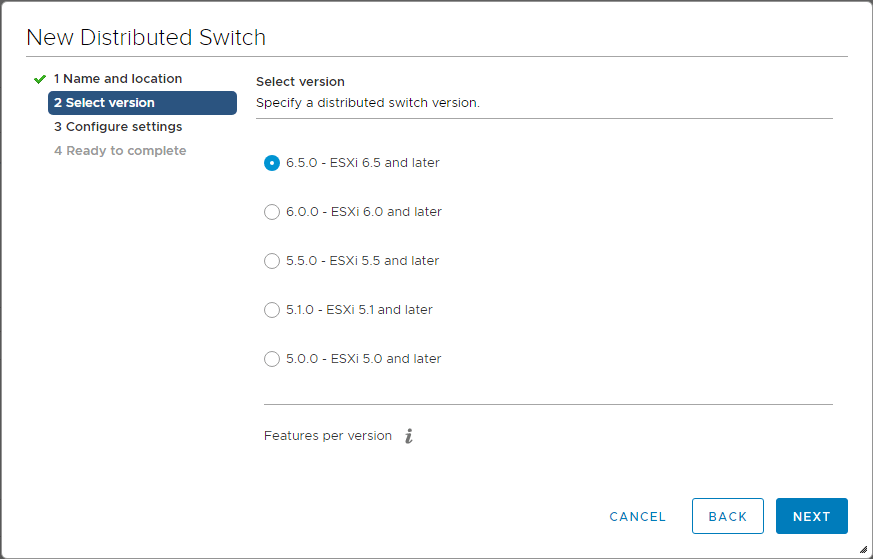

Choosing-Distributed-Switch-version Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Choosing Distributed Switch version

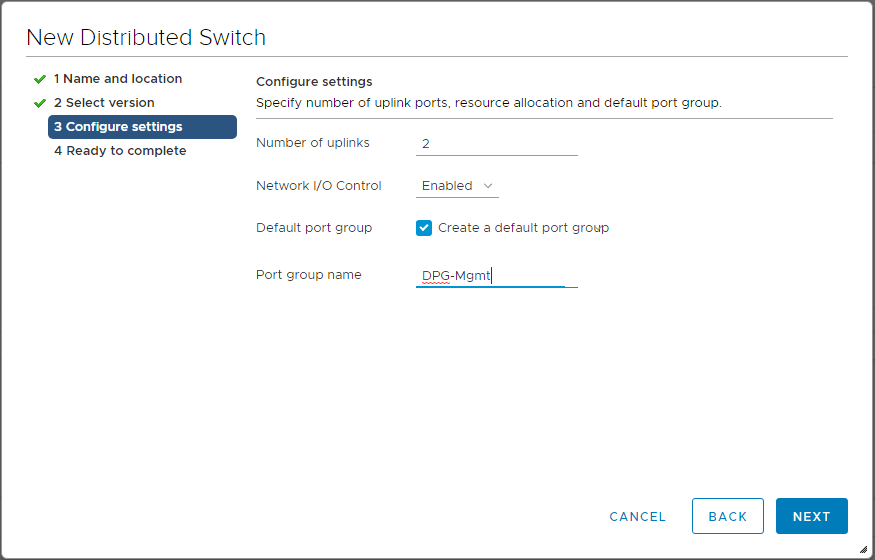

Choosing-uplinks-and-port-group-name Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Choosing uplinks and port group name

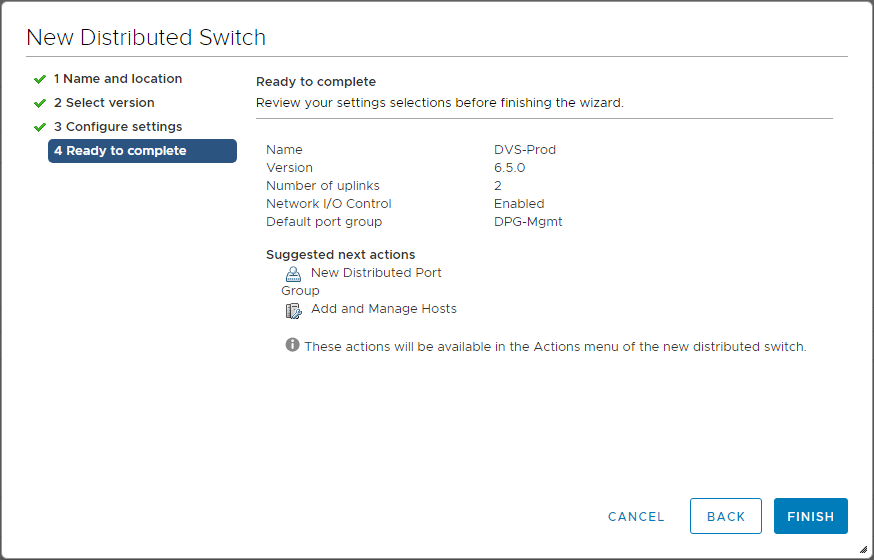

Completing-the-addition-of-new-Distributed-Switch Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Completing the addition of new Distributed Switch

vSphere 6.5 Update 1 HTML5 Adding Distributed Switch to Hosts

Next, we can add the new Distributed Switch to the hosts as well.  Let’s look at the wizard HTML5 style.

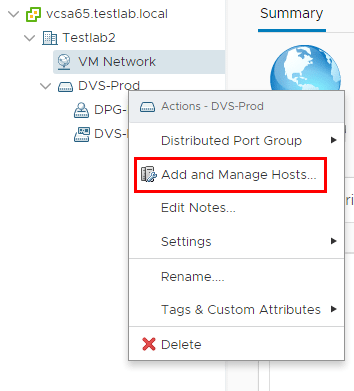

vSphere-6.5-Update-1-Add-Distributed-Switch-to-Hosts Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

vSphere 6.5 Update 1 Add Distributed Switch to Hosts

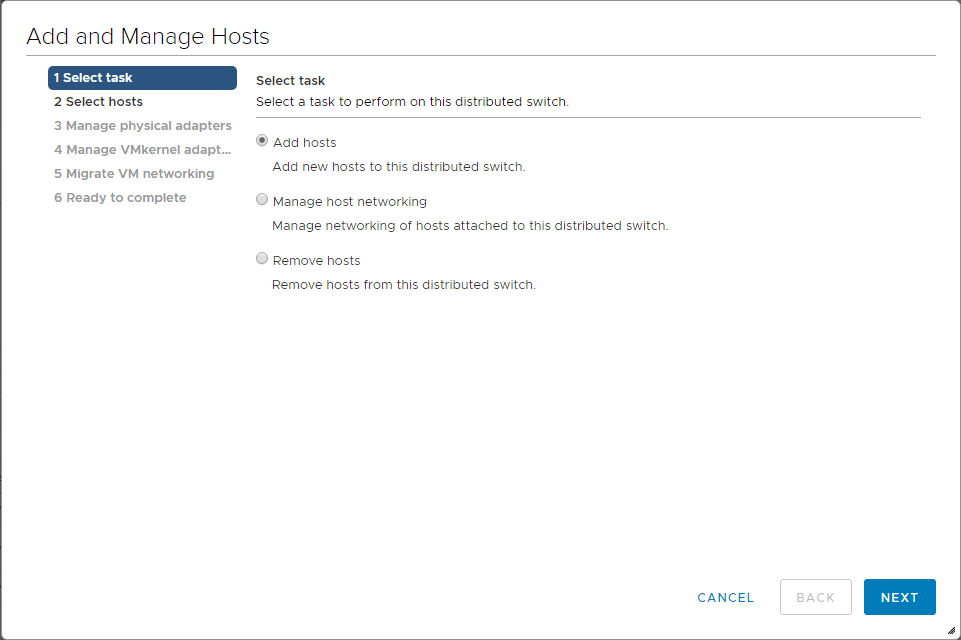

Starting-the-Add-and-Manage-Hosts-Wizard Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Starting the Add and Manage Hosts Wizard

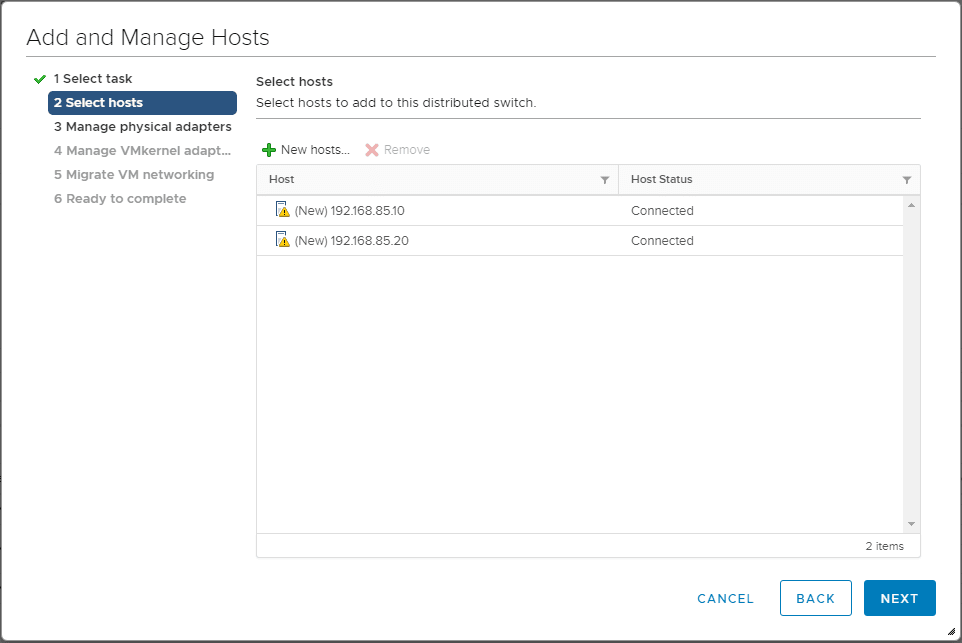

Choosing-Hosts Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Choosing Hosts

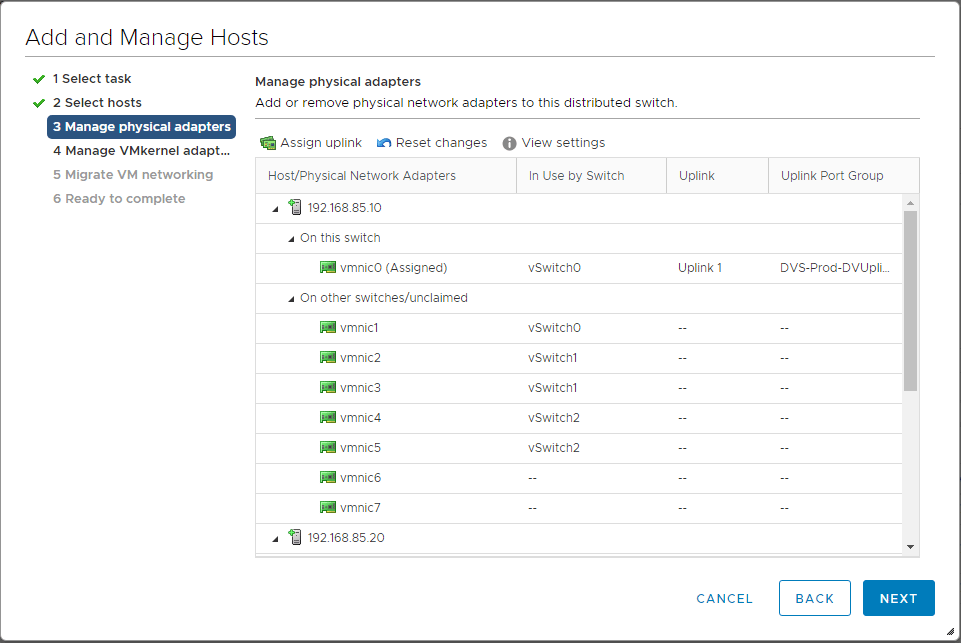

Managing-Distributed-Switches-physical-adapters Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Managing Distributed Switches physical adapters

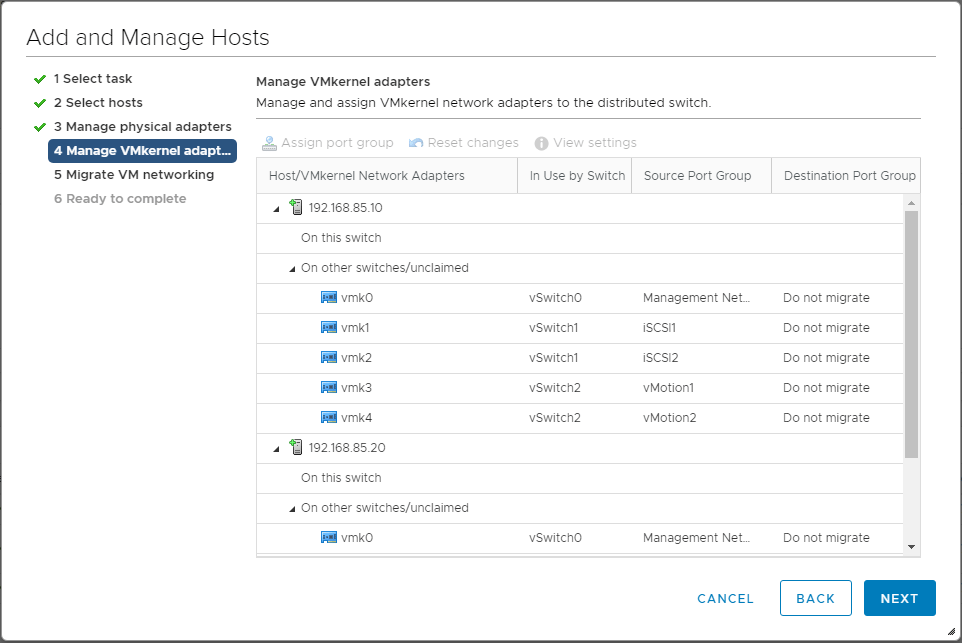

Managing-Distributed-Switch-VMkernel-adapters Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Managing Distributed Switch VMkernel adapters

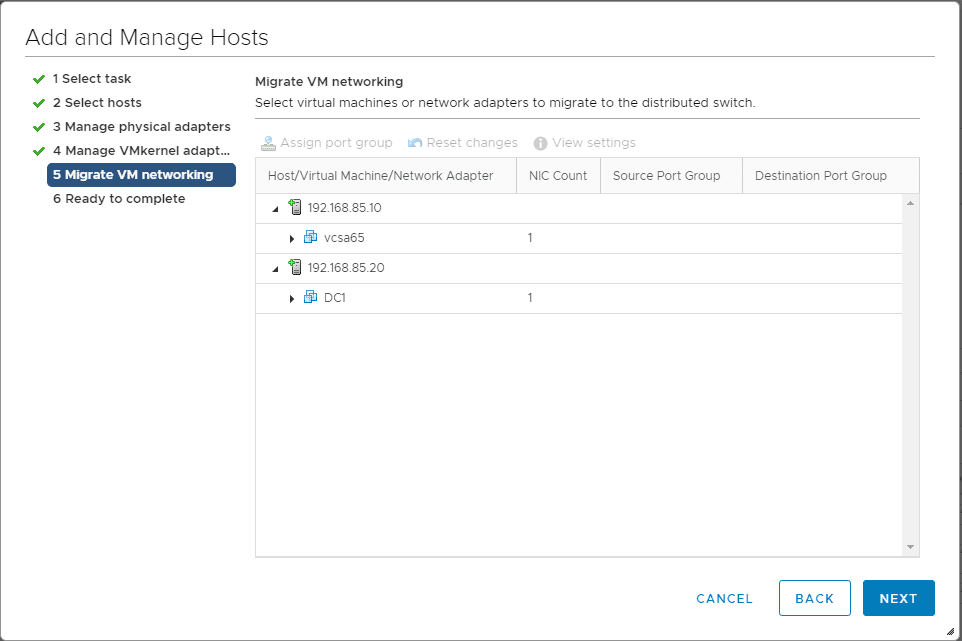

Migrate-VM-networking-vSphere-6.5-Update-1-HTML5 Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Migrate VM networking vSphere 6.5 Update 1 HTML5

Completing-the-addition-of-new-Distributed-Switch-1 Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1

Completing the addition of Distributed Switch to hosts

Concluding Thoughts

Upgrading VMware vSphere VCSA Appliance to 6.5 Update 1 brings many exciting new features.  The additional HTML5 functionality is certainly welcome news for all who have long been desiring to leave the flash client far behind.  With 90% of the features and functionality being reach with vSphere 6.5 Update 1 for vCenter, this truly may be the release where we can for the most part, leave behind the flash client.  However, we still have to wait for future updates to manage NSX and the likes as that just isn’t there yet.  However, two thumbs up to VMware for this release as it is certainly a worthy upgrade!  Stay tuned!
