Hey Brandon, I love your YouTube videos! A lot of the seup and stuff I have running in my home lab was as a result of watching and learning from your videos! Great job. Comprehensive, clear, and easy to follow. I would really love to win that Beelink!

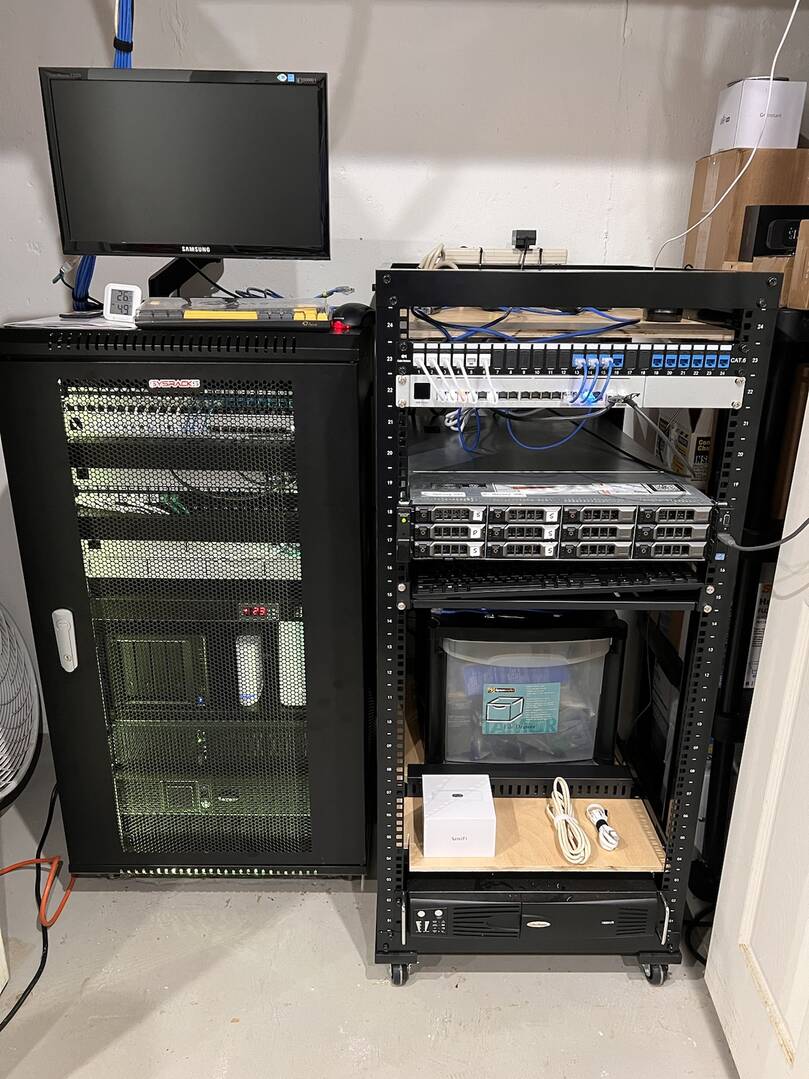

Here is my home lab setup starting with first picture and the rack on the left from top to bottom:

Server Monitor

Cat 6a patch panel

UniFi Enterprise 24 POE

UniFi USW 10Gbe Aggregation

Another Cat 6a patch panel

UniFi UDM SE Gateway/Router with two network WANs connected

UniFi NVR

Rack Temperature Monitor controlling Rack Fans

Synology DS923+

Aris Cable Modem Wan 2

ATT Fiber Modem Wan 1

2U Home built server running Windows 10 Hyper-V with TrueNAS and Ubuntu Server as VMs. Ubuntu Server runs PiHole backup.

CyberPower UPS

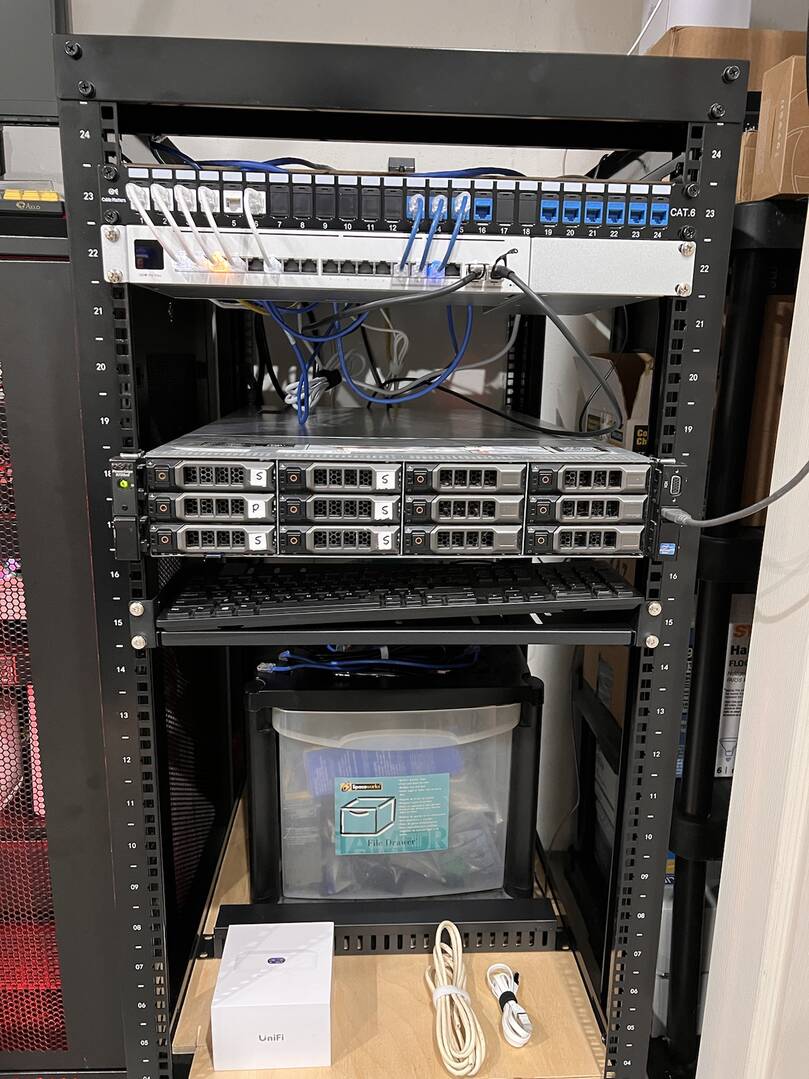

First picture rack on right:

Another CAT 6a patch Panel

UniFi USW ProMax 16

Dell PowerEdge R720XD running ProxMox. My ProxMox server is running VMs and Containers for:

Home Assistant

UpTime Kuma

Docker

Ubuntu Server running main PiHole wth Keepalived

Windows 11

ProxMox Backup Server

A Virtual Synolgy NAS

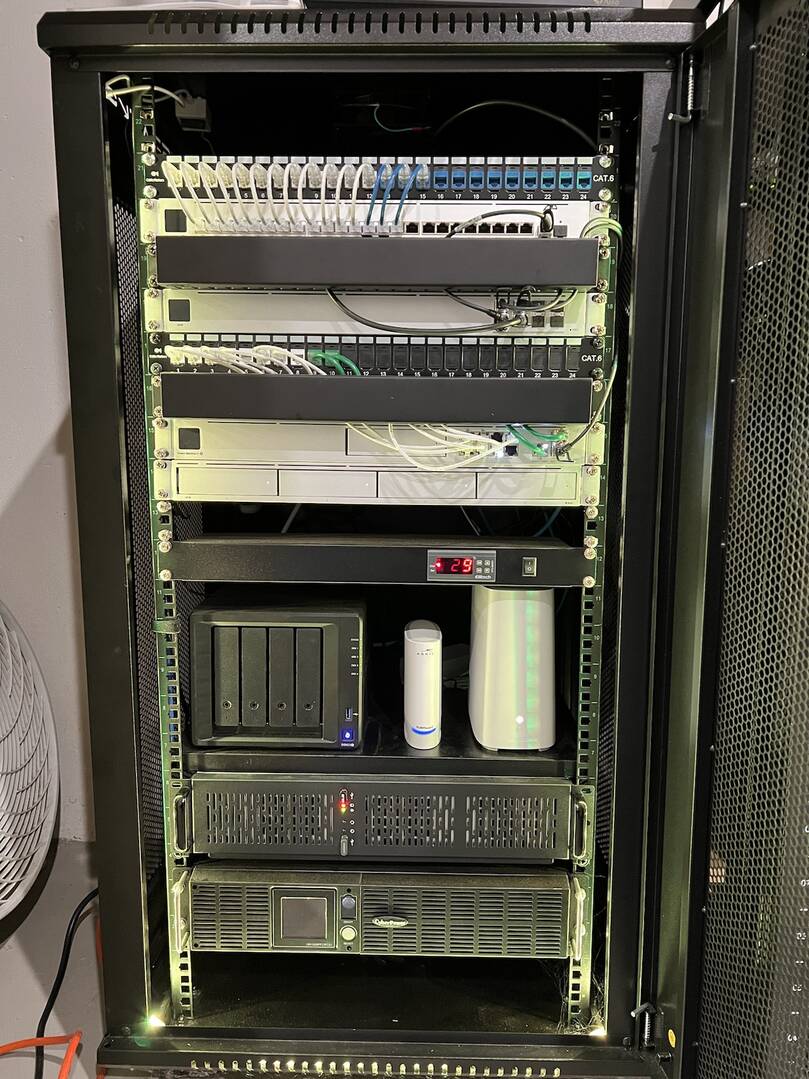

Second thru 3rd pictures showing rack closeups:

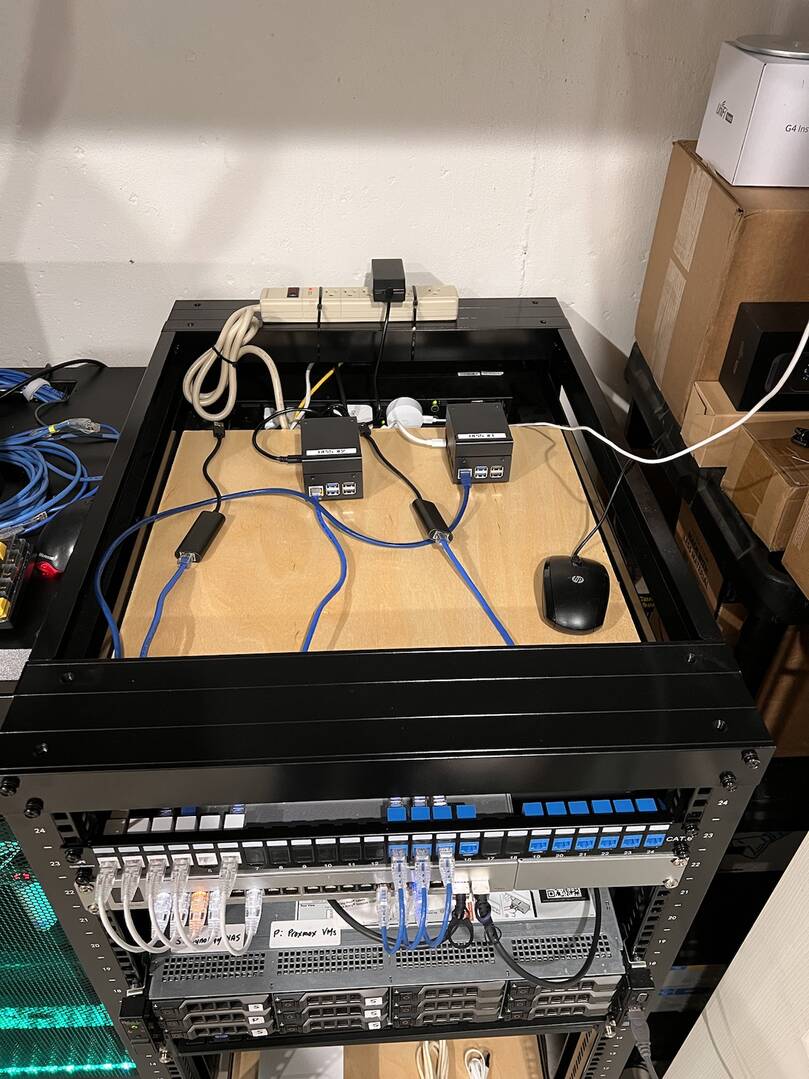

Last picture shows two Raspberry Pi5s running Pi Desktop and Ubuntu Desktop respectively

ย

IMG 6297.HEIC compressed
IMG 6299.HEIC compressed
IMG 6298.HEIC compressed
IMG 6300.HEIC compressed

ย The overall setup runs my home network with hardwired drops in most rooms and 4 UnFI APs for my wireless network. I have Vlans setup for four different types of network traffic.
