Windows Server 2016 Hyper-V Versions

0

Microsoft’s Hyper-V hypervisor has definitely seen an uptick in adoption with more enterprise ready features with each version.  Windows Server 2016 is the most capable and fully featured release to date and it certainly has matured from the early days of the product.  Microsoft has paid attention to what customers have asked for and what their actual needs are in the enterprise environment.  Additionally with Microsoft Azure public cloud seeing tremendous growth, Windows Server 2016 Hyper-V includes very strong cloud integration with Azure.  With the powerful scripting options that are made available with Microsoft’s PowerShell working directly with Windows Server 2016 platform and Azure, Let’s take a look at Windows Server 2016 Hyper-V versions and which version you may want to use depending on your license level and use case for the platform.

Windows Server 2016 Hyper-V Versions

If you have noticed, there are different versions of Hyper-V with Windows Server 2016 that are available.  There is a free Hyper-V 2016 product available for download as well as the full Windows Server 2016 Hyper-V server that has the role installed on either the Windows Sever Standard or Datacenter platform.  What are the specific use cases for both platforms?

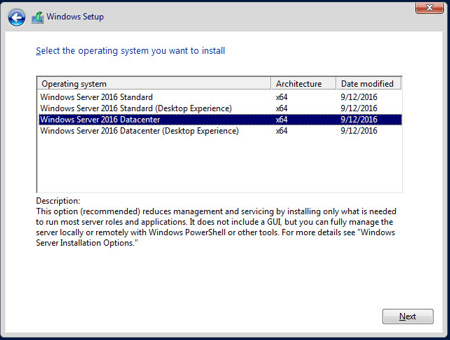

Windows-Server-2016-Standard-vs-Datacenter Windows Server 2016 Hyper-V Versions

Windows Server 2016 Standard vs Datacenter

The Microsoft Hyper-V 2016 platform is a free download that is better suited from a license/cost standpoint to run Linux workloads as well as VDI since it doesn’t include the Windows Server guest licenses that you get with the Standard and Datacenter counterparts.  Hyper-V 2016 is basically Windows Server 2016 core with Hyper-V role already installed without any of the licensing benefits.  However, once you install Hyper-V 2016, you are up and running with the hypervisor.

When you choose to use the full Windows Server 2016 operating system either in the Standard or Datacenter trim, you will be installing the operating system and then installing the Hyper-V role in the operating system.

Hyper-V 2016

  • Doesn’t include Windows guest licenses
  • Best suited for Linux or VDI workloads

Windows Server 2016 Standard:

  • Unlimited containers
  • Nano server
  • Includes (2) virtual instances of Windows Server licenses
  • These virtual instances cannot be moved between servers
  • Host Guardian Service

Windows Server 2016 Datacenter

  • Unlimited containers
  • Nano server
  • Includes an unlimited number of virtual instances for Windows Server virtual machines
  • Includes support for network virtualization, storage replicas, storage spaces direct, and shielded VMs

Is Windows Server 2016 Hyper-V a Type 1 or Type 2 Hypervisor?

Many may think since the hypervisor is installed as a Role inside the operating system, that it would be a type 2 Hypervisor.  However, Hyper-V does something crafty here – the Hyper-V role instantiates before the operating system, so it is loaded first, with the operating system running on top of Hyper-V.  Since this is the case, Hyper-V is a Type 1 hypervisor that is considered to be “bare metal”.

Windows Server 2016 Hyper-V Licensing

Microsoft with Windows Server 2016 has changed its licensing model from socket based licensing to the per core licensing model and seems to align itself much better cloud integrated pricing that Microsoft has been moving towards.  Some of the highlights of the per core licensing model are as follows from the Windows Server 2016 Licensing Datasheet:

Windows-Server-2016-Licensing Windows Server 2016 Hyper-V Versions

Windows Server 2016 Licensing

  • 16 core minimum core licenss required for each server
  • 8 core licenses required for each physical socket
  • The new core licenses are to be sold in packs of (2)
    • (8) two core packs are required to be licensed per physical server
  • The way servers are licensed is based on the number of processor cores inside the physical box
  • Physical cores in the server must all be licensed

Azure Hybrid Use Benefit

Microsoft is offering customers with Software Assurance the ability to benefit from special pricing for new Windows Server VMs in Azure.  These customers with this benefit only pay for the base compute rate, which is the same as the Linux rate for VMs.  For each license Microsoft will cover the cost of the operating system on up to two Azure VMs.

Azure-Hybrid-Use-Benefit Windows Server 2016 Hyper-V Versions

Azure Hybrid Use Benefit

Thoughts

Microsoft Windows Server 2016 Hyper-V has brought Microsoft’s hypervisor a long way since its beginnings.  It has certainly matured quite a bit.  For those of us who are still partial to other well known hypervisors, it still may be second place.  However, it is getting better.  If you are like me and want to play around and learn the latest and greatest, you can download the free copy of Hyper-V 2016 and start playing around with Hyper-V virtualization, kicking the tires to see which features you like and others that may not be quite as polished.
