In rolling through quite a few upgrades recently, I wanted to posted some screenshots and process notes of upgrading vROPs 6.0.2 I had running in my environment to 6.2.  The process is fairly standardized with VMware’s appliances and for the most part the steps are similar between different appliances to get things updated.  The process involves downloading the PAK update files needed, uploading to the appliance and running the update.  The update requires first updating the OS files and then updating the vROPs files.  Let’s take a look at Upgrade VMware vRealize Operations Manager vROPs 6.2.

Upgrade VMware vRealize Operations Manager vROPs 6.2

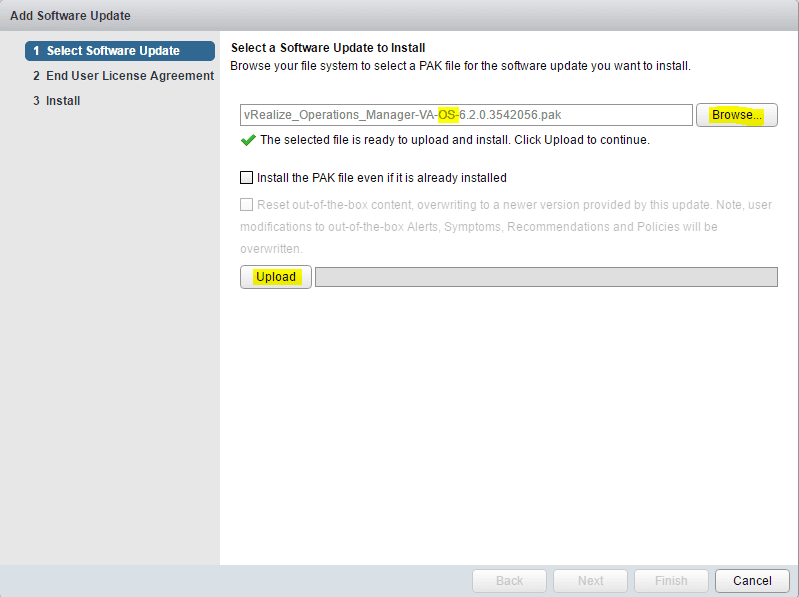

First thing you will need to do is pull down the .pak file from VMware.  As you can see below I have downloaded the vRealize_Operations_Manager-VA-OS-6.2.03542056.pak file.  Notice the file is for the OS.  The updater will ask you to browse to the file and then you will have the ability to Upload.

vrops_update06 Upgrade VMware vRealize Operations Manager vROPs 6.2

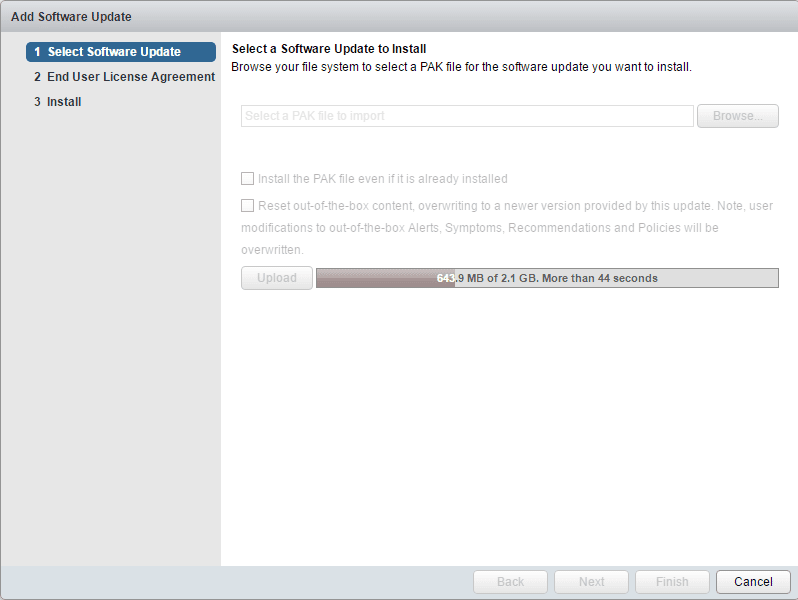

The upload process starts uploading the file to the vROPs.

vrops_update07 Upgrade VMware vRealize Operations Manager vROPs 6.2

After uploading completes, staging begins:

vrops_update08 Upgrade VMware vRealize Operations Manager vROPs 6.2

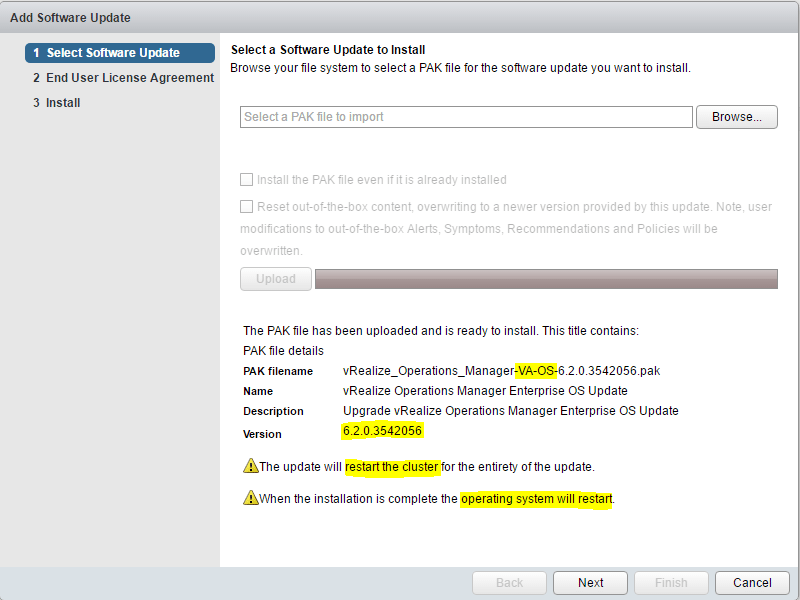

A summary of the .pak file and update settings are displayed:

vrops_update09 Upgrade VMware vRealize Operations Manager vROPs 6.2

vrops_update22 Upgrade VMware vRealize Operations Manager vROPs 6.2

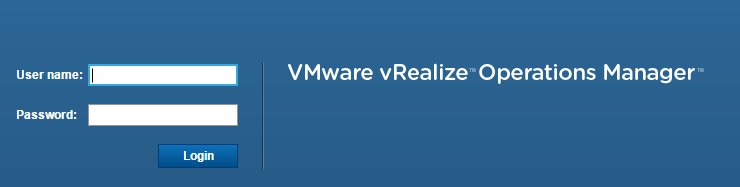

The update process should automatically log you out and you will be presented back with the vRealize Operations Manager login screen.

vrops_update11 Upgrade VMware vRealize Operations Manager vROPs 6.2

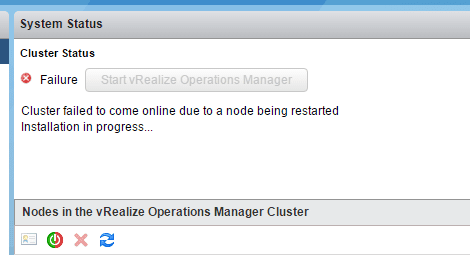

After logging back in you may see a Cluster Status of “Failure” showing – but if you look carefully it will let you know the node is being restarted and installation is in progress.

vrops_update12 Upgrade VMware vRealize Operations Manager vROPs 6.2

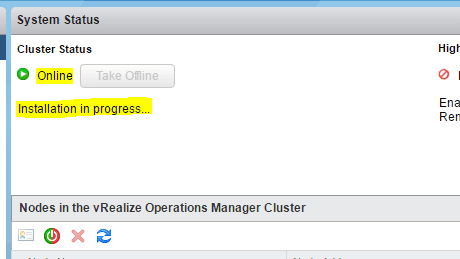

Still installing as you can see below, but the cluster status is now online:

vrops_update13 Upgrade VMware vRealize Operations Manager vROPs 6.2

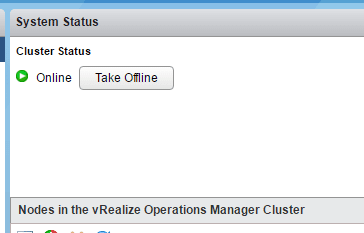

Finally we get an online status with no installation notifications:

vrops_update14 Upgrade VMware vRealize Operations Manager vROPs 6.2

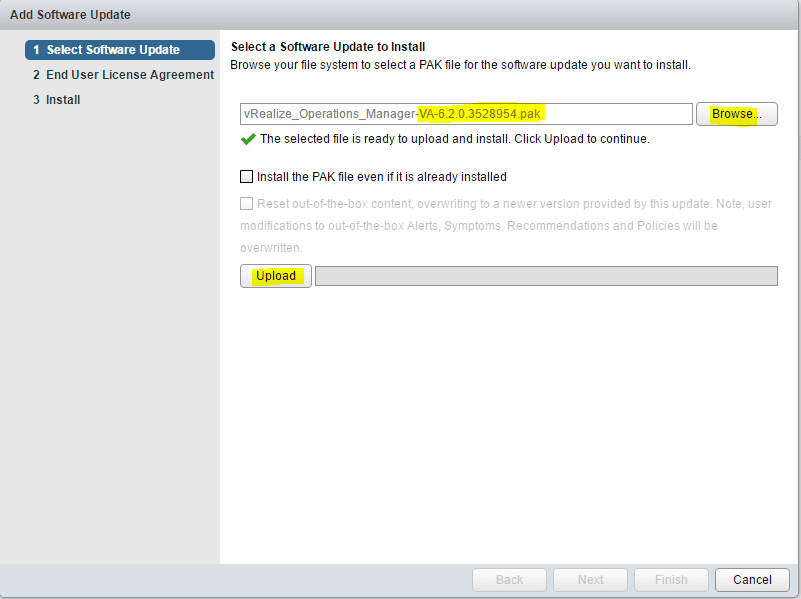

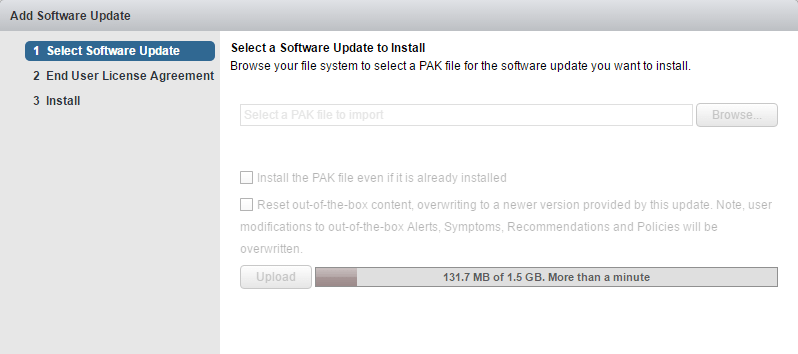

After updating the OS files, below we now can run the update .pak file for the vROPs application upgrade.

vrops_update15 Upgrade VMware vRealize Operations Manager vROPs 6.2
vrops_update16 Upgrade VMware vRealize Operations Manager vROPs 6.2

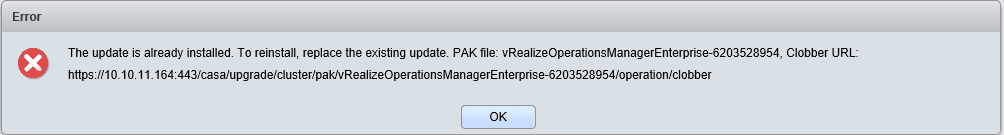

I ran into this issue below which I did find the issue of “the update is already installed” documented on VMware’s KB for upgrading vROPs. Check this KB out:  https://pubs.vmware.com/Release_Notes/en/vrops/62/vrops-62-release-notes.html

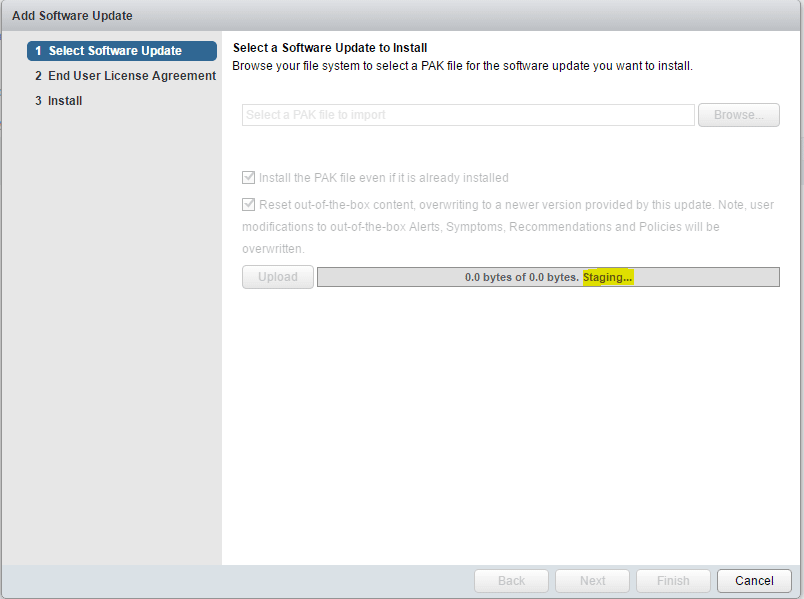

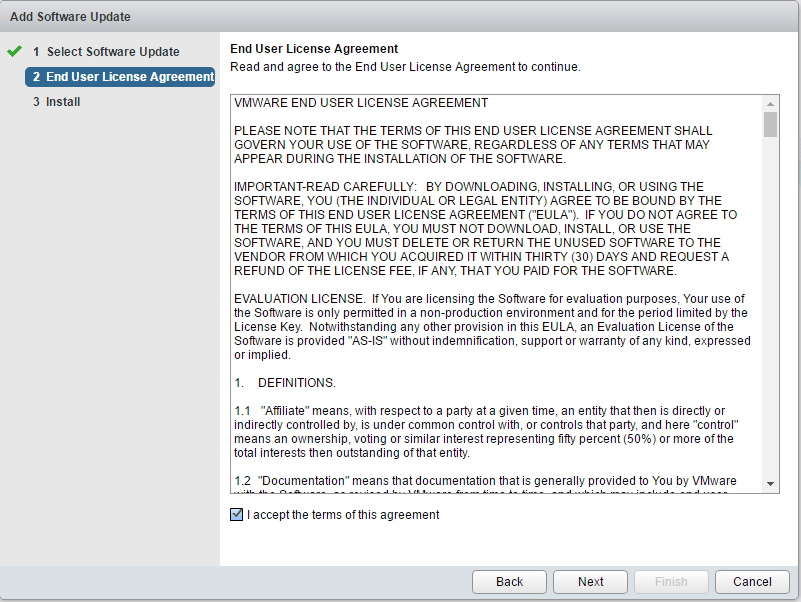

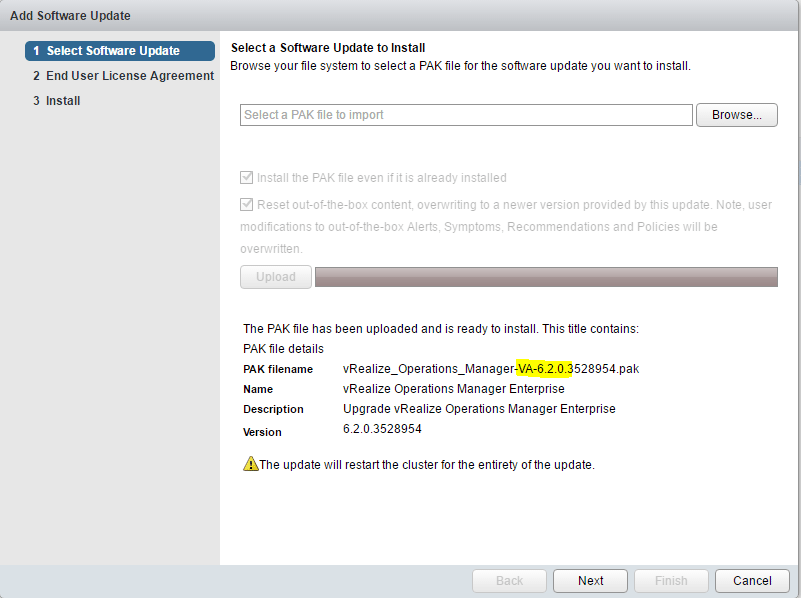

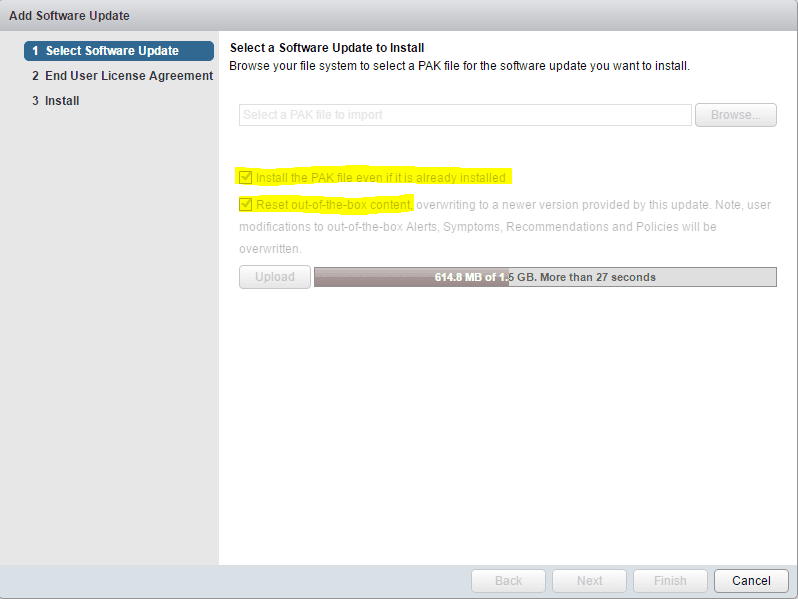

Basically it is a refresh issue if the UI times out on the other install.  The workaround as noted on VMware’s site is:  “Workaround: When you perform the software update again, check the option to Install the PAK file even if it is already installed, then click Upload.”

vrops_update17 Upgrade VMware vRealize Operations Manager vROPs 6.2
vrops_update18 Upgrade VMware vRealize Operations Manager vROPs 6.2
vrops_update19 Upgrade VMware vRealize Operations Manager vROPs 6.2
vrops_update20 Upgrade VMware vRealize Operations Manager vROPs 6.2
vrops_update21 Upgrade VMware vRealize Operations Manager vROPs 6.2

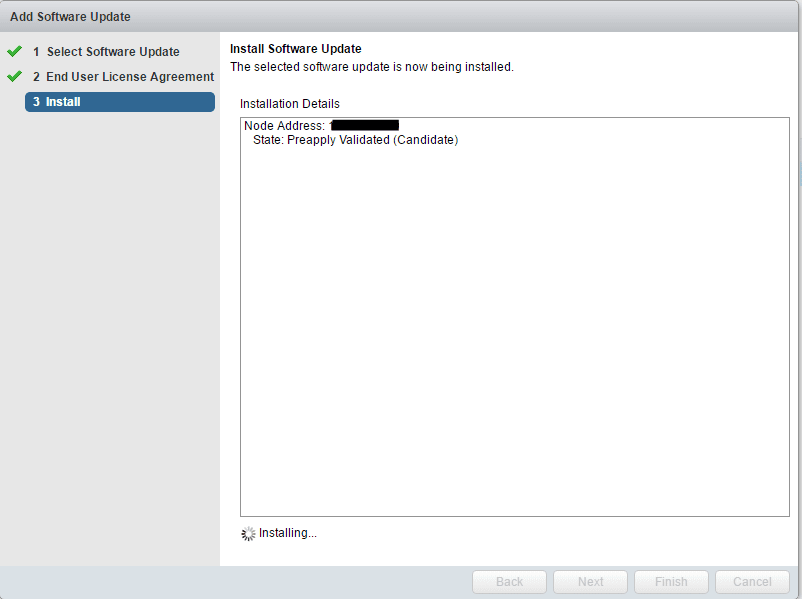

vrops_update22-1 Upgrade VMware vRealize Operations Manager vROPs 6.2

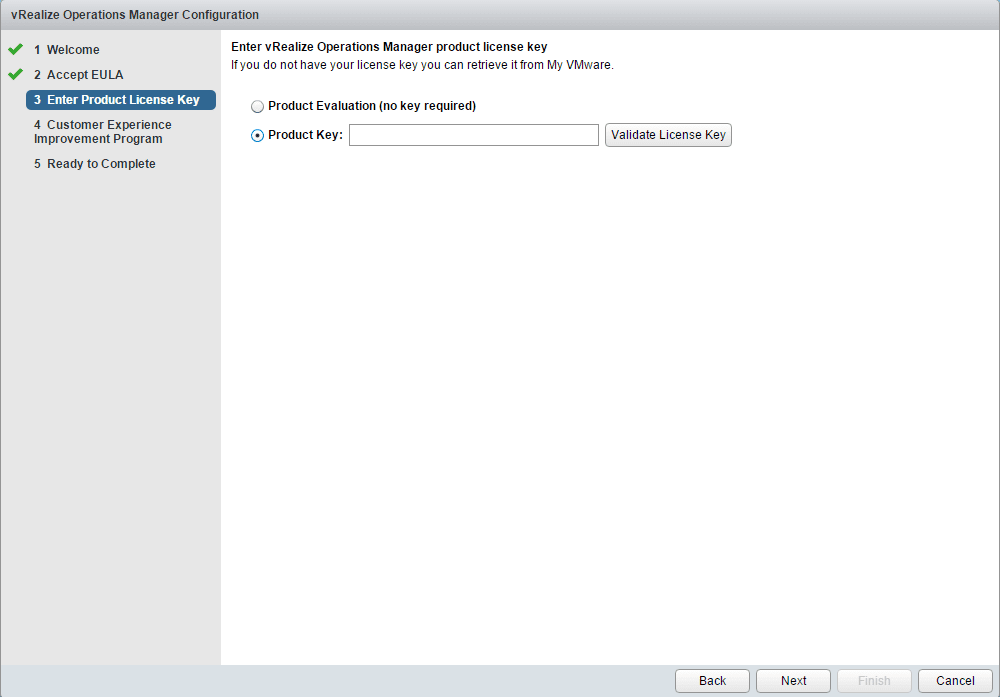

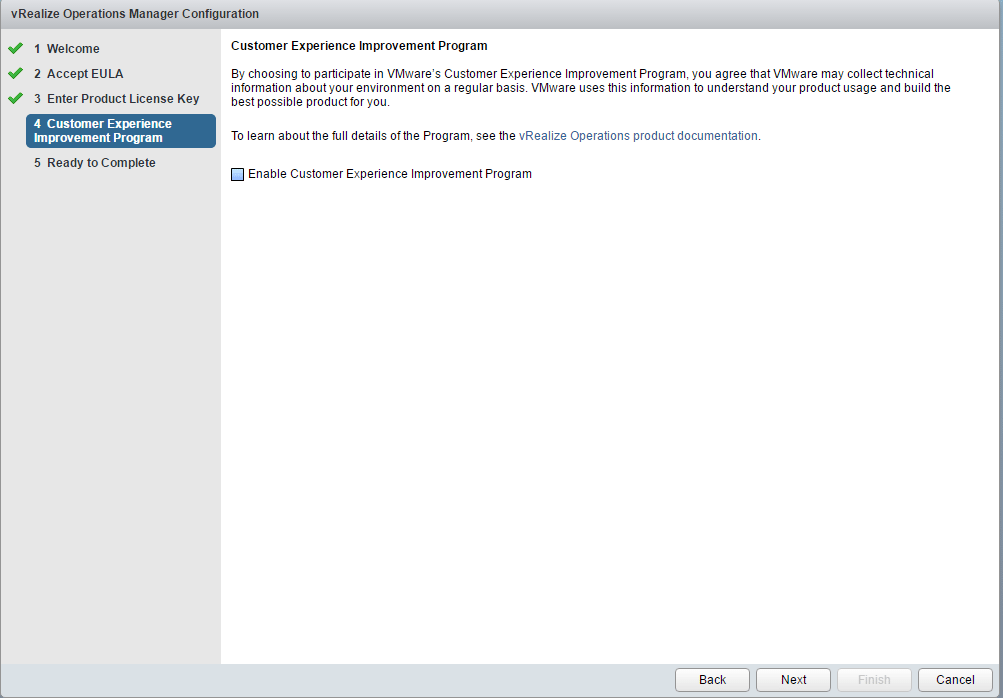

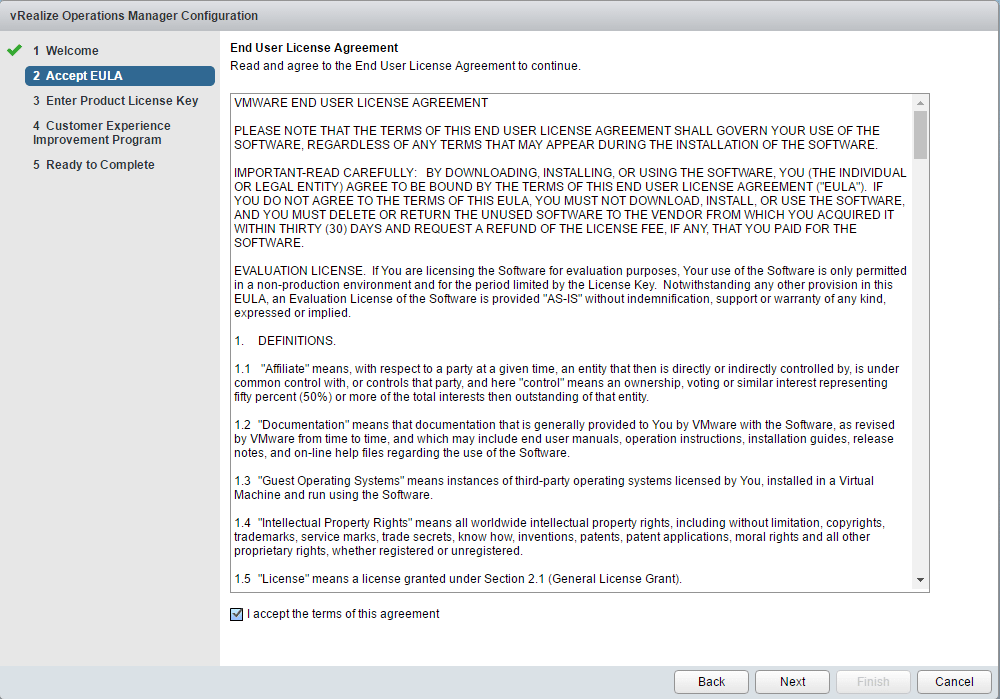

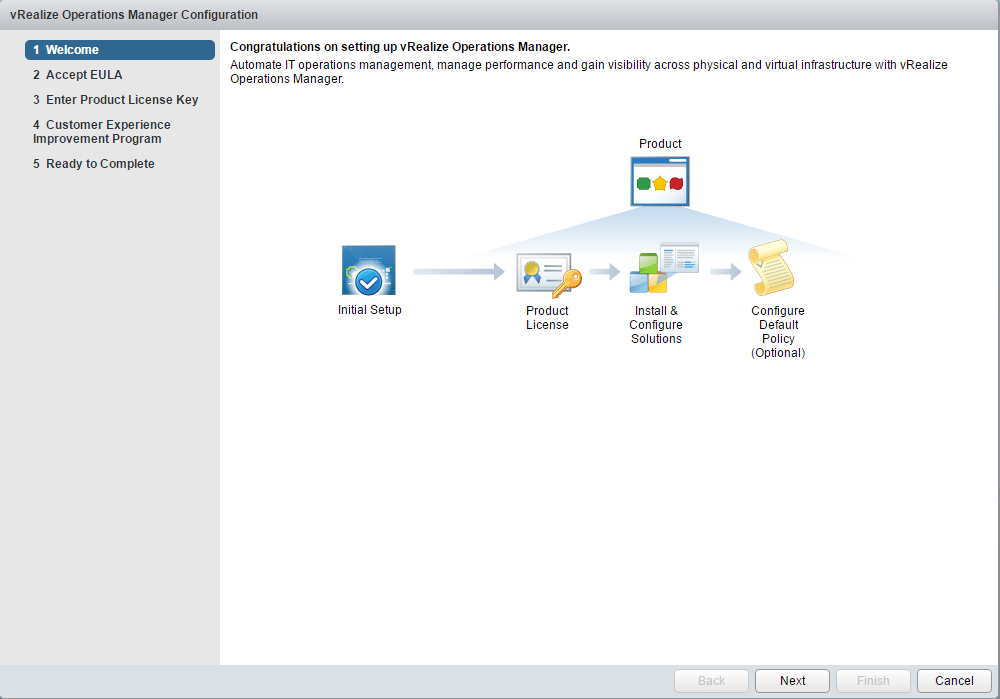

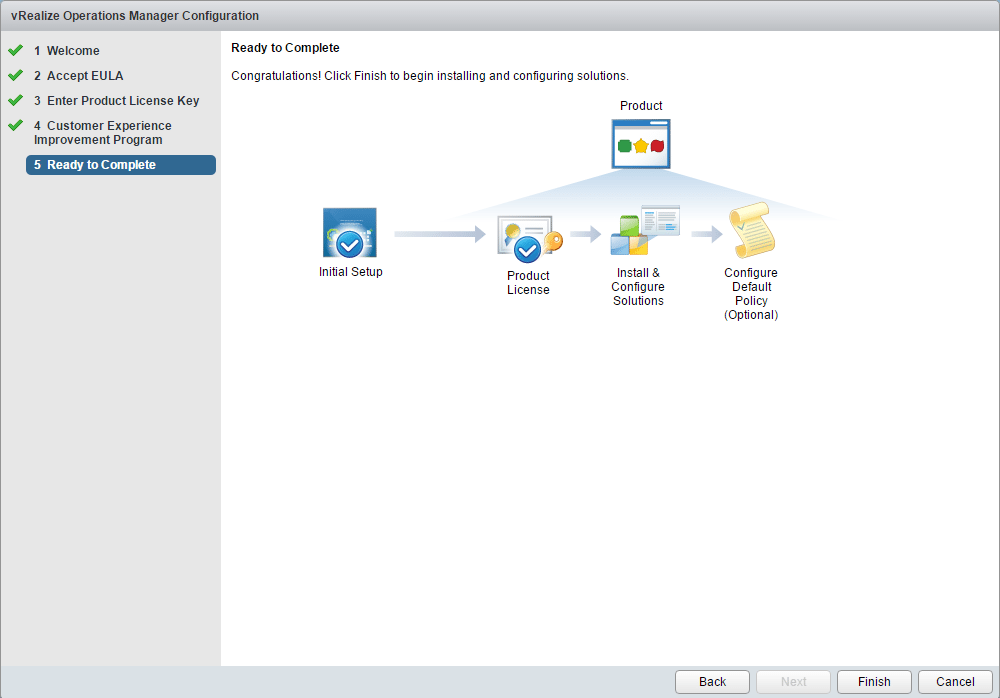

After the upgrade finished, after logging in, I was presented with the configuration of vROPs – EULA, product key, etc.

vrops_update24 Upgrade VMware vRealize Operations Manager vROPs 6.2
vrops_update25 Upgrade VMware vRealize Operations Manager vROPs 6.2
vrops_update26 Upgrade VMware vRealize Operations Manager vROPs 6.2
vrops_update27 Upgrade VMware vRealize Operations Manager vROPs 6.2
vrops_update28 Upgrade VMware vRealize Operations Manager vROPs 6.2

Final Thoughts

The upgrade process took about an hour however, I was pulled away from the desk a few times in between.  Hopefully the above will help you to get an idea of what the upgrade process involves.  It was painless and seems to work as expected besides the refresh issue I ran into mentioned earlier.
