Recently VMware released the U1b release of vSphere products.  I wanted to post some quick notes and steps used to update a vCenter 6.0 U1a release to U1b revision level.  What is contained in this release?

A few of the new features

  • This release of vCenter Server 6.0 Update 1b supports URL-based patching using the zipped update bundle. For more information, see KB 2142009.
  • The user preferences for Client Integration Plugin or VMware-csd guard dialog box in vSphere Web Client can be configured. For more information, see KB 2142218.
  • vCenter Server 6.0 Update 1b enables support for TLS versions 1.1 and 1.2 for most of the vSphere components without breaking the previously supported compatibility or interoperability.

For a full list see the official VMware release notes:  https://pubs.vmware.com/Release_Notes/en/vsphere/60/vsphere-vcenter-server-60u1b-release-notes.html

Steps to upgrade the VCSA appliance.  In my environment the VCSA is embedded with platform services controller so just one appliance for a small environment.

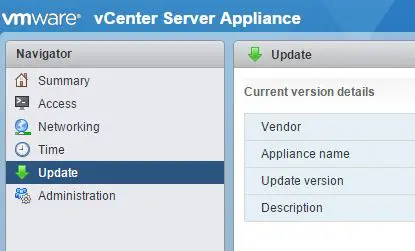

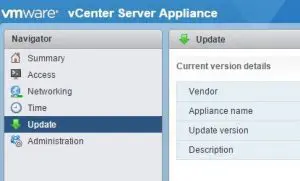

  • Navigate to your https://vcsaappliance:5480 and login.  This gains you access to the administrative side of the VCSA appliance for updates, etc.  Click the update link.

vcupdates01-300x181 Updating vCenter VCSA and update manager to 6.0 U1b

Over to the right you have a check updates dropdown button.  Click the button and select to Check URL which will pull live updates from VMware.


vcupdates02 Updating vCenter VCSA and update manager to 6.0 U1b

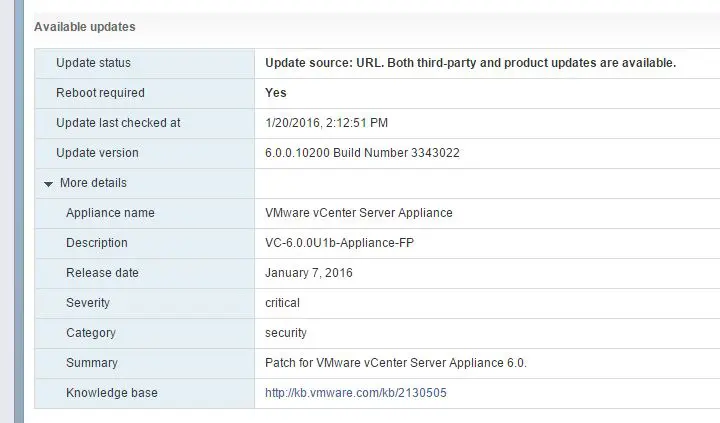

As you can see below, when I ran the update check, it came back with the available update to take the appliance to VC-6.0.0U1b level, build number 3343022


vcupdates03-300x176 Updating vCenter VCSA and update manager to 6.0 U1b

Click the Install all updates link under the install Updates dropdown button.

vcupdates04 Updating vCenter VCSA and update manager to 6.0 U1b

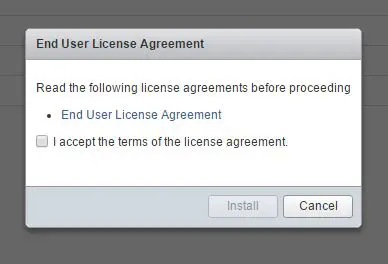

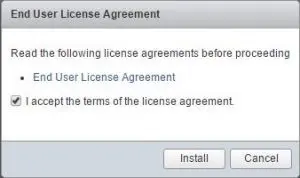

Once you click the Install updates link, you will see the normal license agreement and other housekeeping items before the upgrade starts.


vcupdates05-300x204 Updating vCenter VCSA and update manager to 6.0 U1b
vcupdates06-300x178 Updating vCenter VCSA and update manager to 6.0 U1b

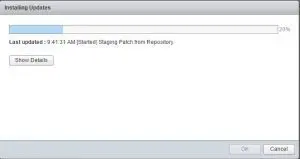

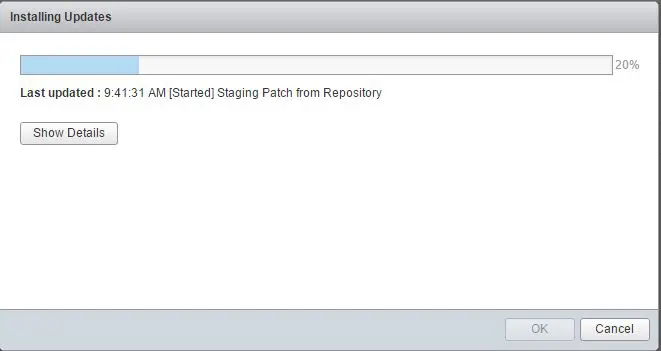

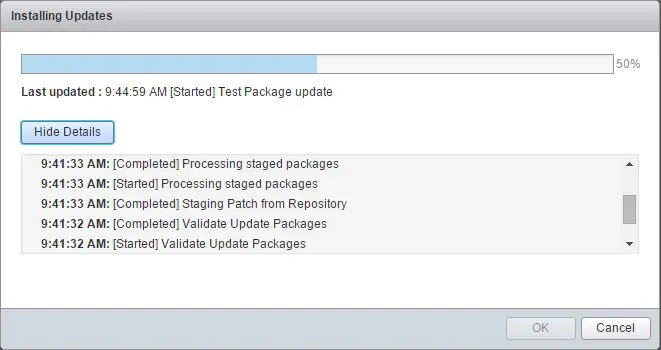

Upgrade begins



vcupdates07-300x159 Updating vCenter VCSA and update manager to 6.0 U1b

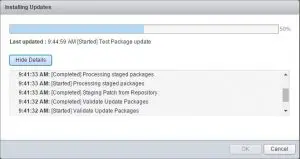

vcupdates08-300x159 Updating vCenter VCSA and update manager to 6.0 U1b

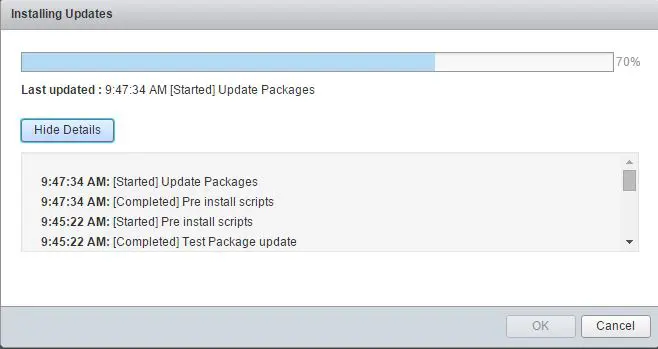

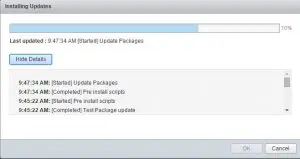

I want to note that in my environment, after leaving the browser session up and running for over an hour, the progress indicator stuck at 70% and didn’t budge.  However, I had alerts from vROPs that the VCSA appliance went unreachable after a bit into the wizard, so I am assuming it rebooted at that point.  After an hour, I just killed my browser session and rebooted the VCSA appliance again and it came up fine.


vcupdates09-300x159 Updating vCenter VCSA and update manager to 6.0 U1b

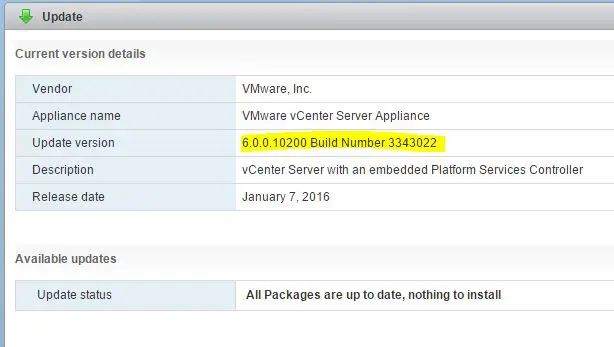

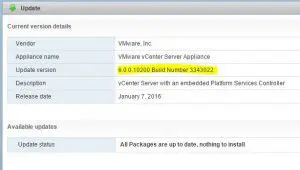

After the reboot, I had the correct version 3343022 listed and after checking for updates again, it found none.


vcupdates10-300x170 Updating vCenter VCSA and update manager to 6.0 U1b

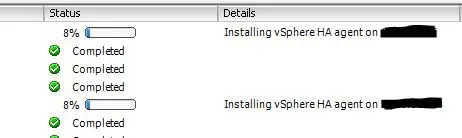

All of my HA agents had to reinstall on the hosts after the upgrade to vCenter.


vcupdates11-300x90 Updating vCenter VCSA and update manager to 6.0 U1b

Updating Update Manager

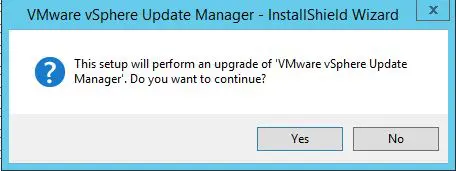

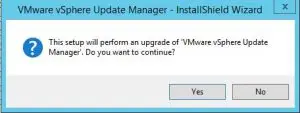

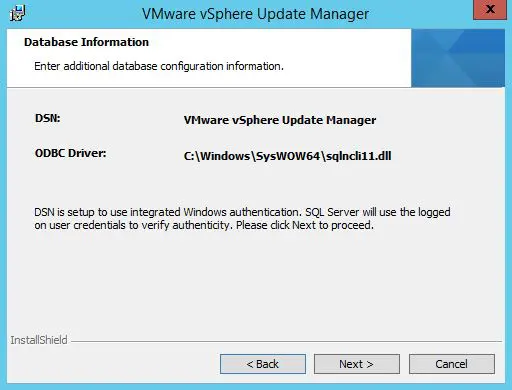

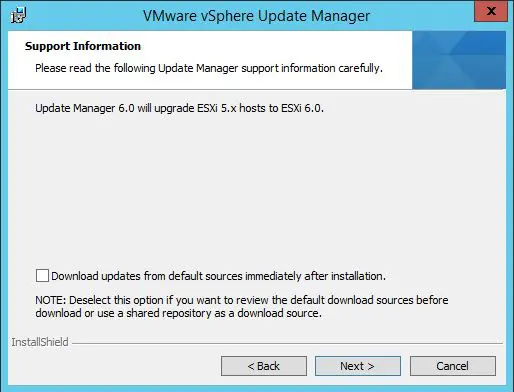

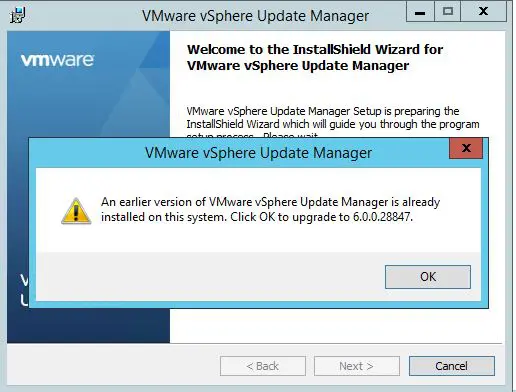

The update manager update was painless for me as I simply downloaded the Windows version of vCenter 6.0 U1b and then ran just the update manager piece on my VUM Windows box.

vumupdate01-300x113 Updating vCenter VCSA and update manager to 6.0 U1b
vumupdate02-300x228 Updating vCenter VCSA and update manager to 6.0 U1b

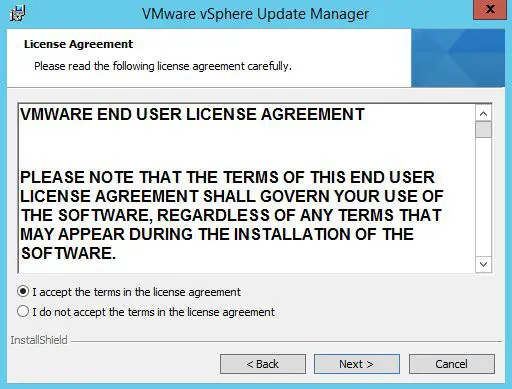

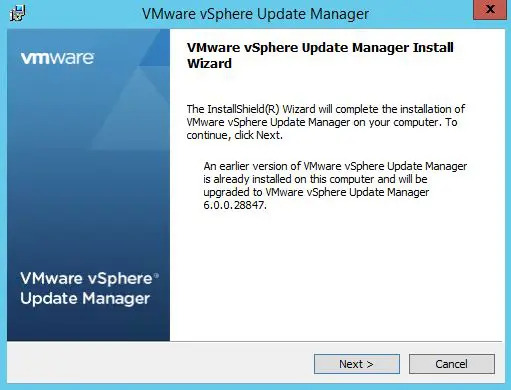

vumupdate03-300x229 Updating vCenter VCSA and update manager to 6.0 U1b

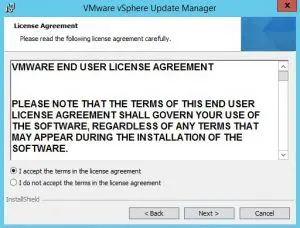

vumupdate04-300x228 Updating vCenter VCSA and update manager to 6.0 U1b
vumupdate05-300x229 Updating vCenter VCSA and update manager to 6.0 U1b

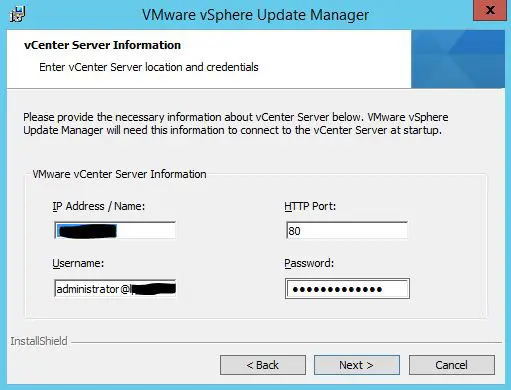

vumupdate06-300x229 Updating vCenter VCSA and update manager to 6.0 U1b
vumupdate07-300x229 Updating vCenter VCSA and update manager to 6.0 U1b

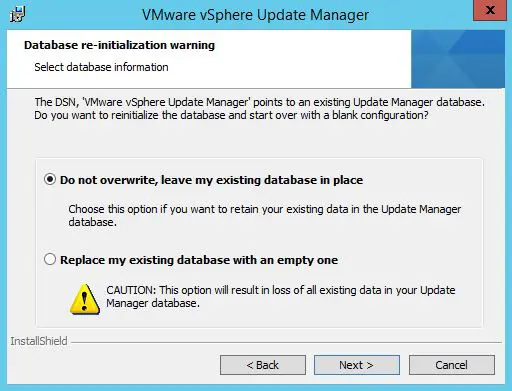

vumupdate08-300x229 Updating vCenter VCSA and update manager to 6.0 U1b

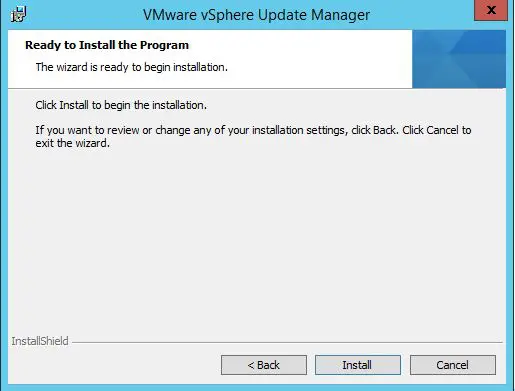

vumupdate09-300x228 Updating vCenter VCSA and update manager to 6.0 U1b

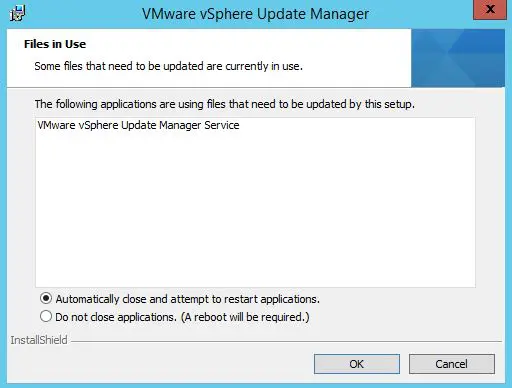

vumupdate10-300x227 Updating vCenter VCSA and update manager to 6.0 U1b

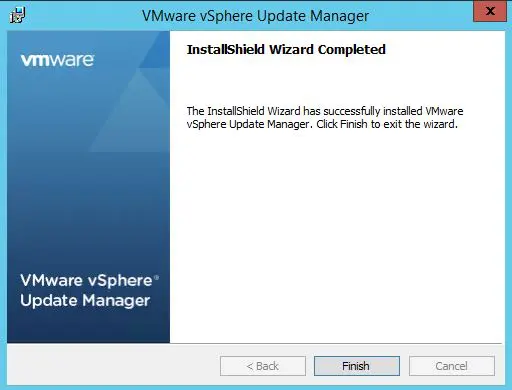

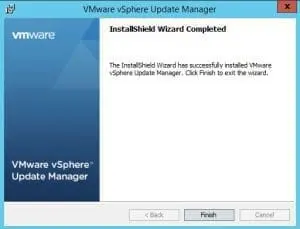

vumupdate11-300x229 Updating vCenter VCSA and update manager to 6.0 U1b

Update your vSphere Update Manager Client to 6.0 Update 1b

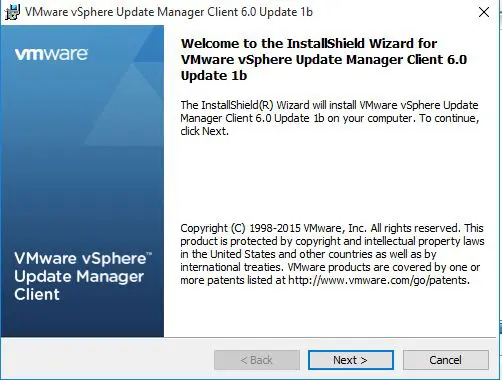

After you update the server portion of Update Manager, you will need to update your vSphere Update Manager client plugin in the vSphere Windows Client with the new version.  In the vSphere Client, just click the Plug-ins menu at the top and then Manage Plugins and you will see the option to download and install the Update Manager Plugin.


vumupdate13-300x227 Updating vCenter VCSA and update manager to 6.0 U1b

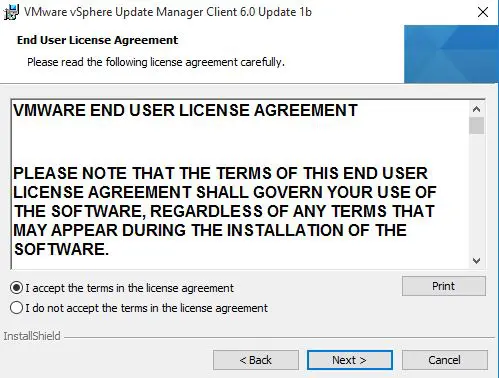

vumupdate14-300x227 Updating vCenter VCSA and update manager to 6.0 U1b

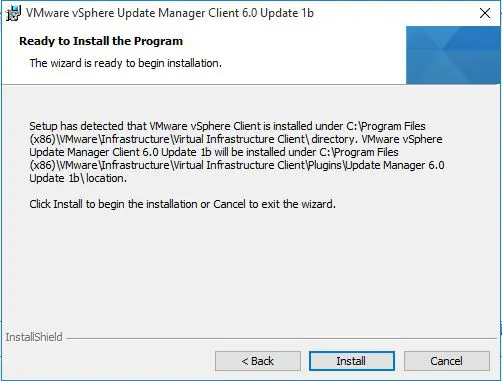

vumupdate15-300x228 Updating vCenter VCSA and update manager to 6.0 U1b

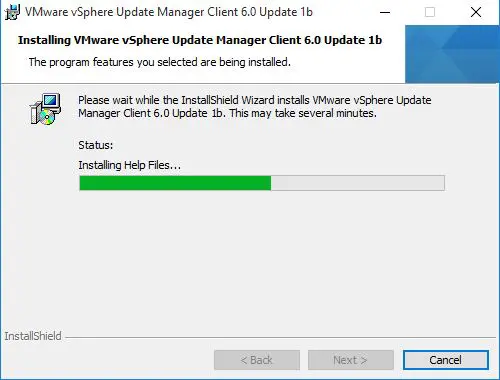

vumupdate16-300x228 Updating vCenter VCSA and update manager to 6.0 U1b

After the install completes, you should be good to go with your vCenter Server and Update Manager.
