Installing Exchange 2013 in Windows Server 2008 R2 step by step

0

Microsoft messaging administrators everywhere always look forward to the next version of Microsoft Exchange as it usually brings many desired improvements and other benefits to organizations running Microsoft’s messaging platform.  With the announcement of Exchange 2013, we wondered what improvements would be made and what we would be able to do as administrators with the new version of Exchange.  We wanted to show the install process for the new version of Exchange on a clean install of Windows Server 2008 R2.

Right from the beginning we ran into requirements that we didn’t have installed on our server.

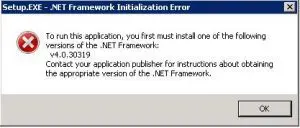

ex2013_1-300x128 Installing Exchange 2013 in Windows Server 2008 R2 step by step

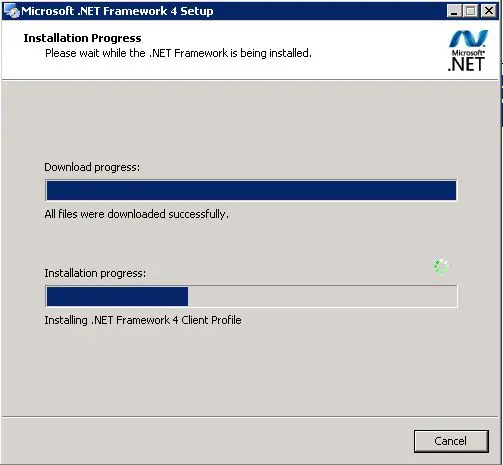

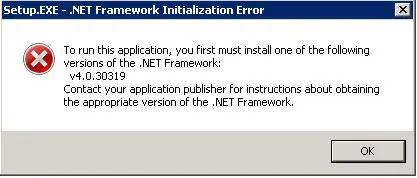

The installer needed .NET 4.0

ex2013_2-300x277 Installing Exchange 2013 in Windows Server 2008 R2 step by step

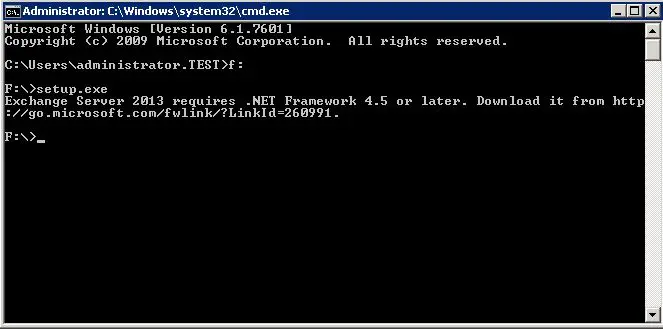

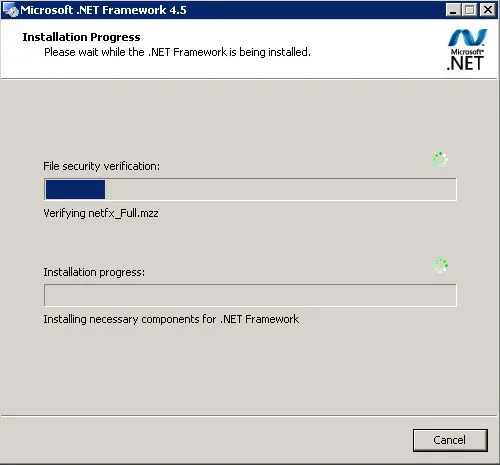

Then we found out we actually needed .NET 4.5

ex2013_3-300x148 Installing Exchange 2013 in Windows Server 2008 R2 step by step



ex2013_4-300x279 Installing Exchange 2013 in Windows Server 2008 R2 step by step

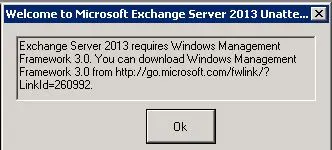

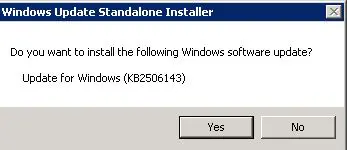

The installer then prompted for Windows Management Framework 3.0

ex2013_5-300x135 Installing Exchange 2013 in Windows Server 2008 R2 step by step



ex2013_6-300x129 Installing Exchange 2013 in Windows Server 2008 R2 step by step

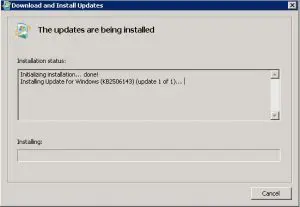

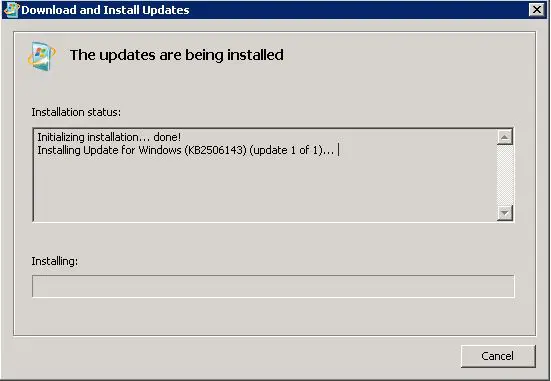

ex2013_7-300x207 Installing Exchange 2013 in Windows Server 2008 R2 step by step

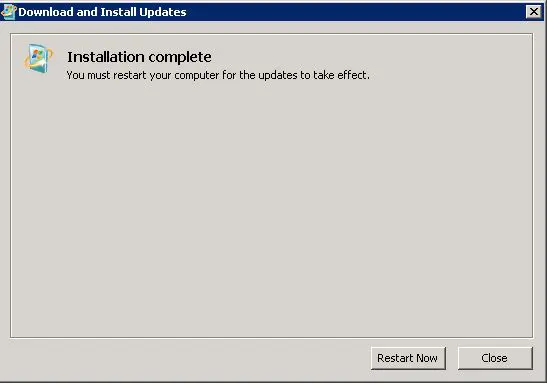

ex2013_8-300x211 Installing Exchange 2013 in Windows Server 2008 R2 step by step

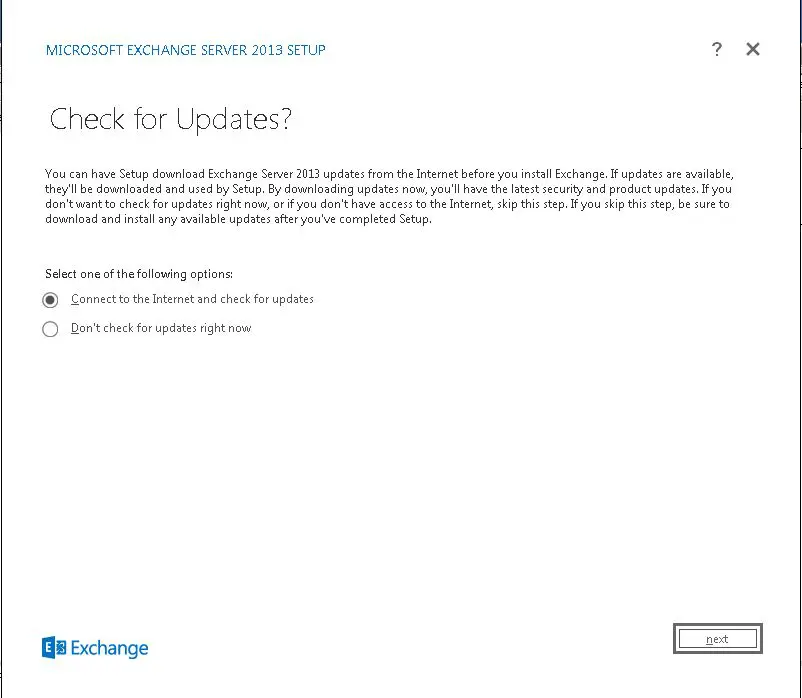

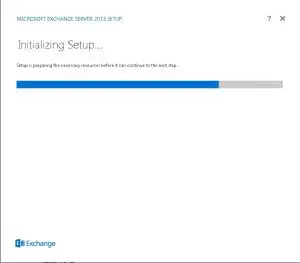

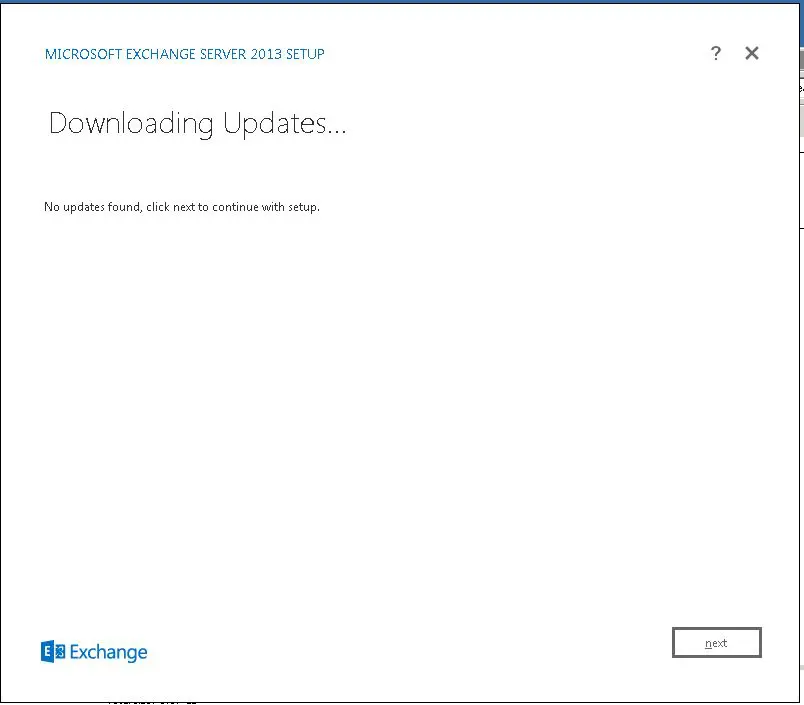

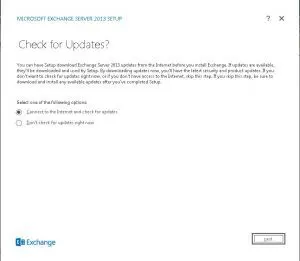

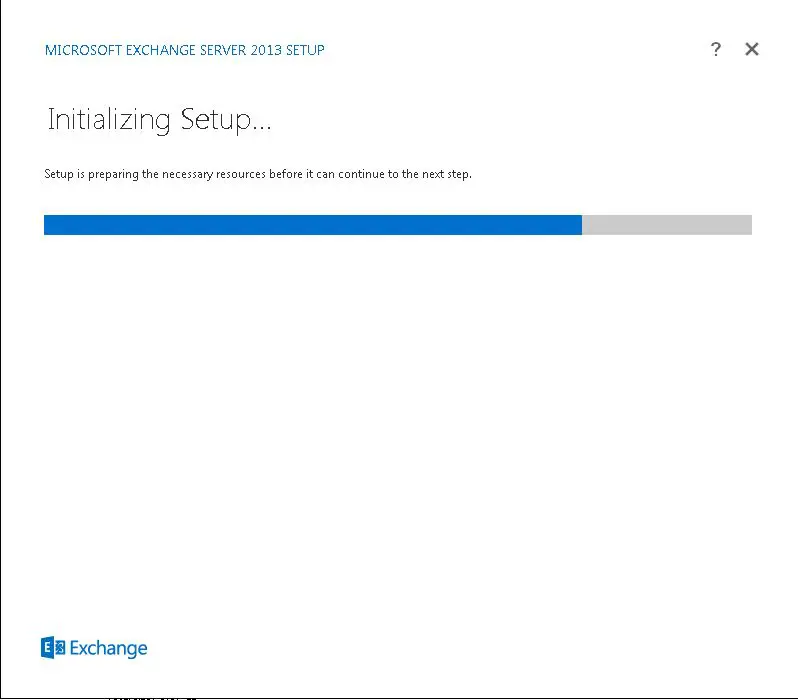

The installer finally is able to start the setup process

ex2013_9-300x261 Installing Exchange 2013 in Windows Server 2008 R2 step by step

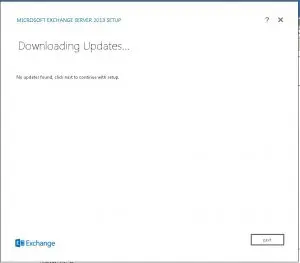

ex2013_10-300x263 Installing Exchange 2013 in Windows Server 2008 R2 step by step

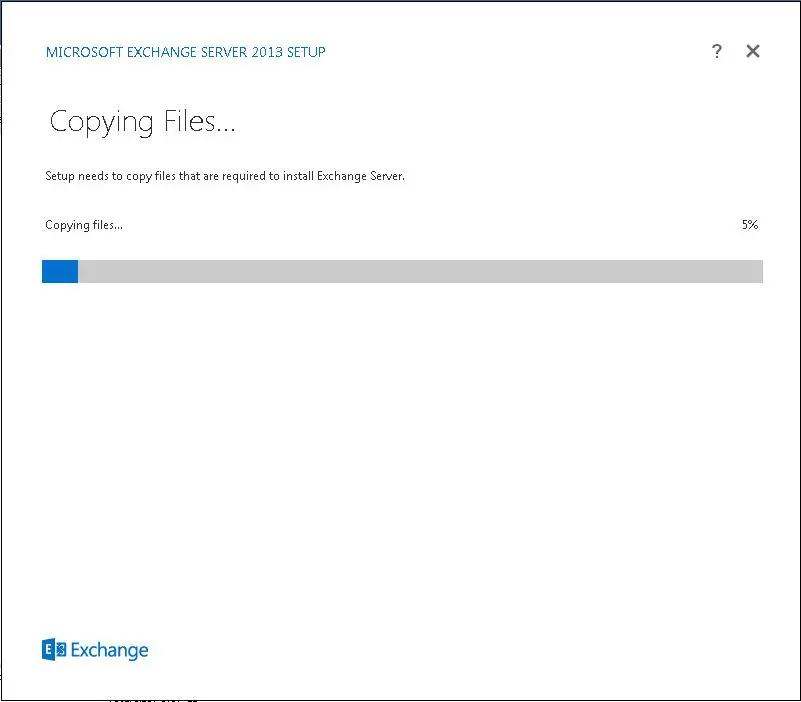

ex2013_11-300x262 Installing Exchange 2013 in Windows Server 2008 R2 step by step



ex2013_12-300x263 Installing Exchange 2013 in Windows Server 2008 R2 step by step

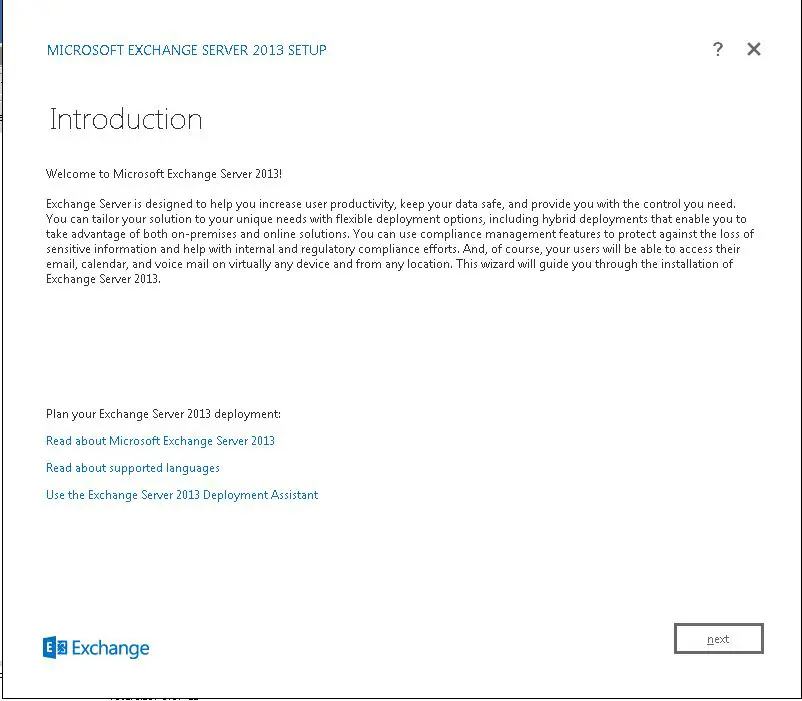

ex2013_15-300x262 Installing Exchange 2013 in Windows Server 2008 R2 step by step

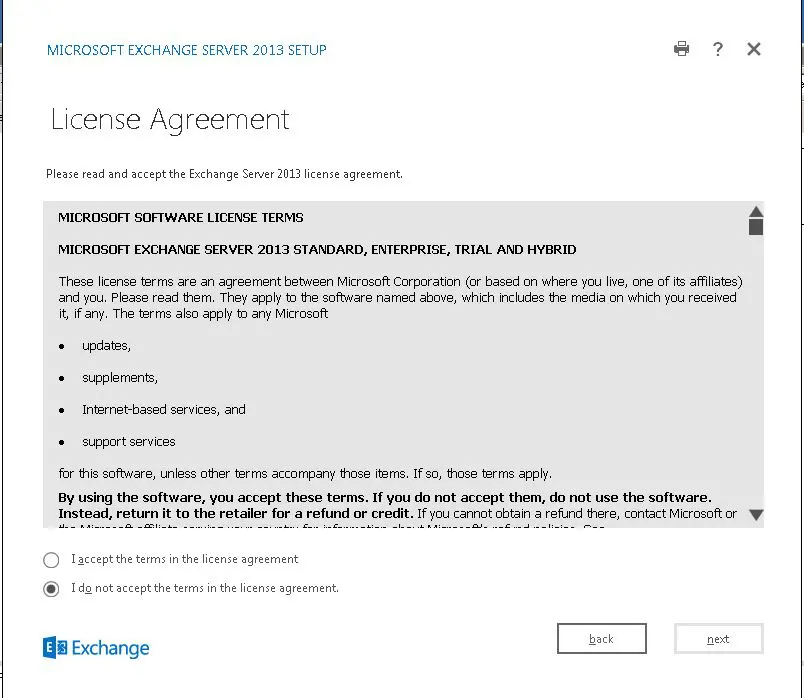

License agreement

ex2013_16-300x260 Installing Exchange 2013 in Windows Server 2008 R2 step by step

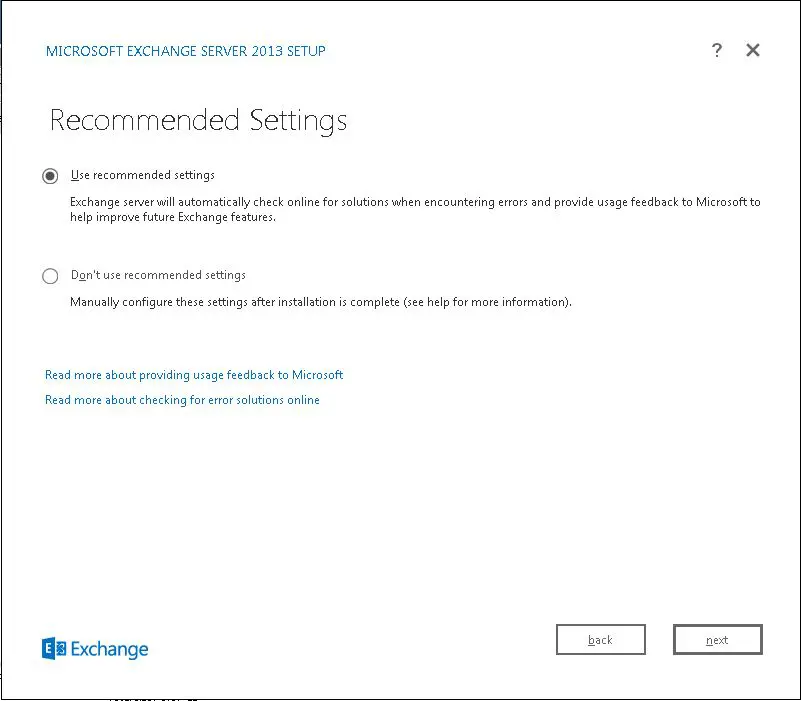

Settings selection

ex2013_17-300x262 Installing Exchange 2013 in Windows Server 2008 R2 step by step

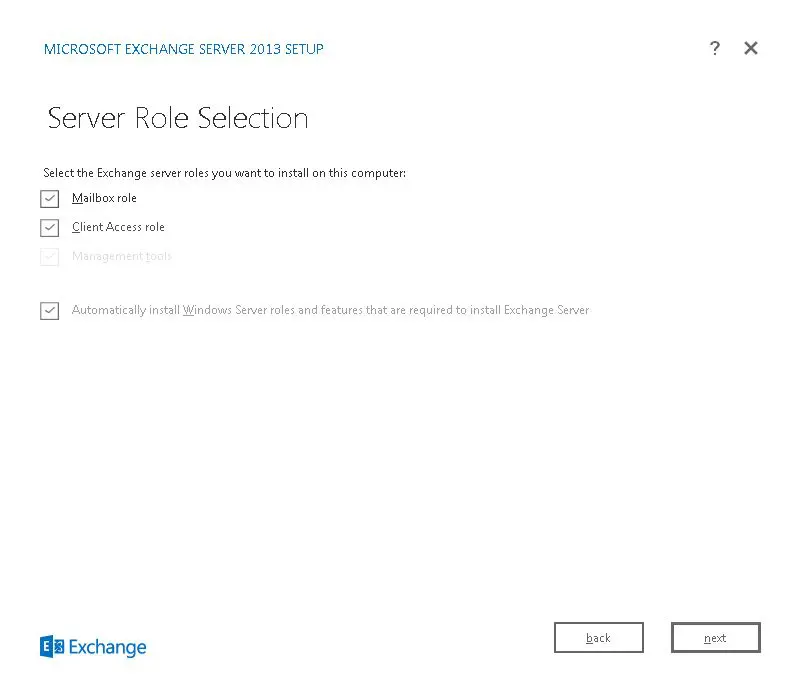

Here you select the server roles.  You will notice a much more streamlined server role selection.  No more “Hub transport” role as this is combined into the “Client Access” Role.

ex2013_18-300x261 Installing Exchange 2013 in Windows Server 2008 R2 step by step

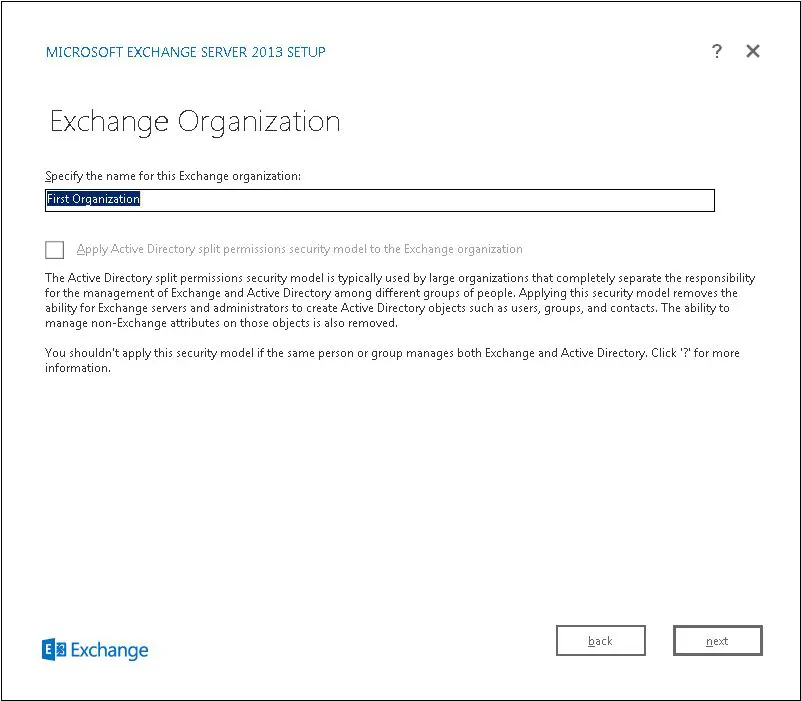

Naming your Exchange organization

ex2013_19-300x262 Installing Exchange 2013 in Windows Server 2008 R2 step by step

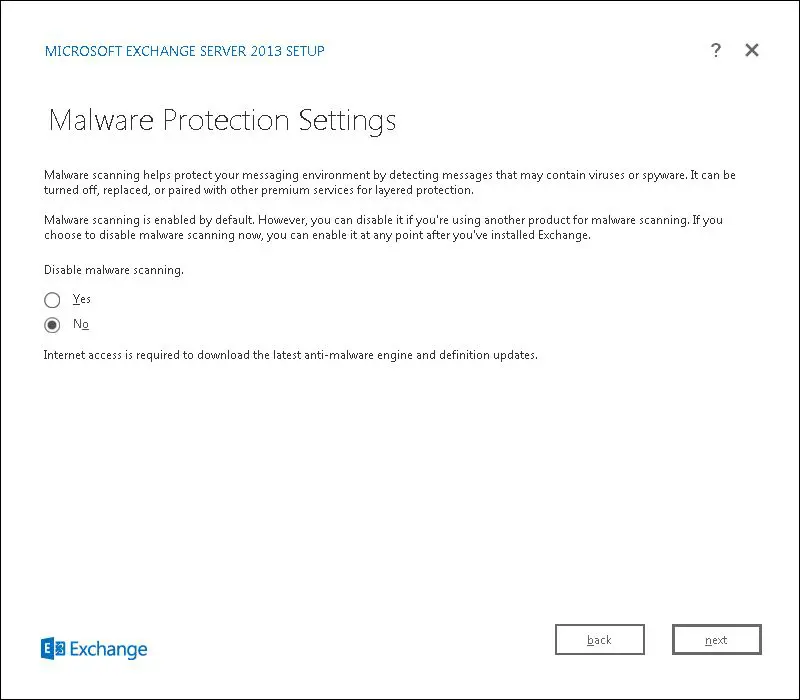

New to Exchange 2013, there is “in-the-box” malware protection.  The installer asks if you want to leave this turned on (default) or turn this feature off.

ex2013_20-300x261 Installing Exchange 2013 in Windows Server 2008 R2 step by step

More requirements

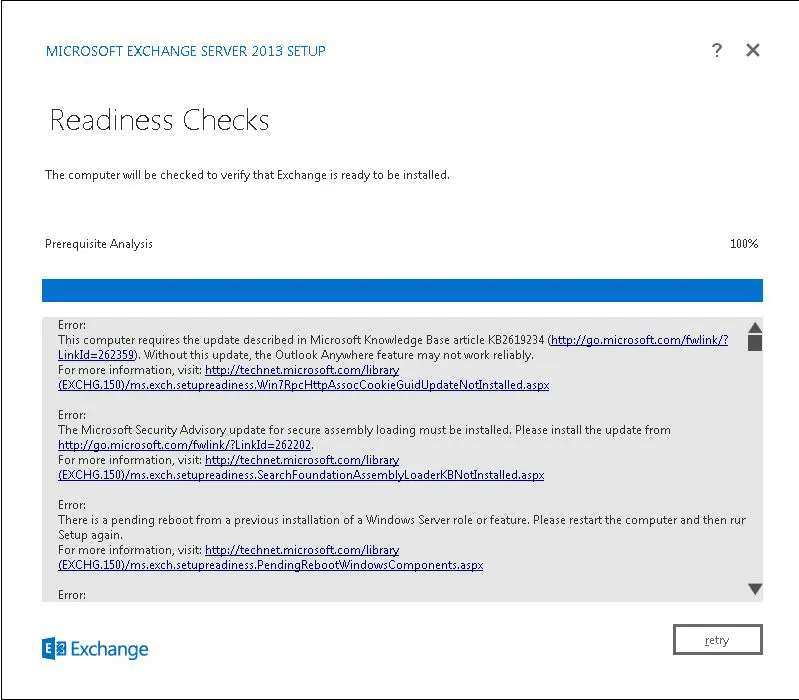

ex2013_22-300x262 Installing Exchange 2013 in Windows Server 2008 R2 step by step

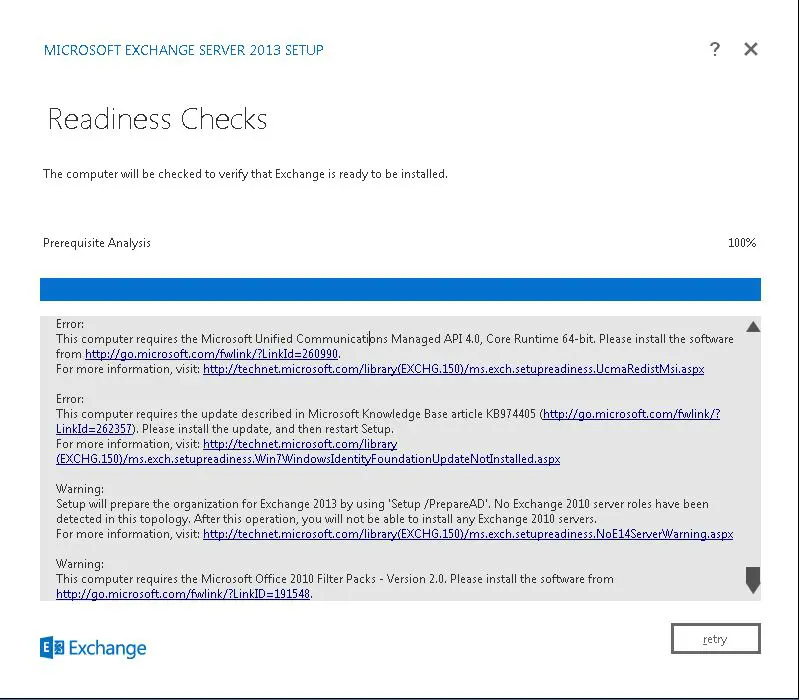

More missing components, however, it is nice that the UI actually has hyperlinks directly to the missing packages you need to download and install.

ex2013_23-300x262 Installing Exchange 2013 in Windows Server 2008 R2 step by step

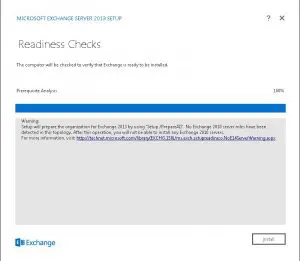

Finally, the readiness checks complete besides the note that adprep is going to run on our domain.

ex2013_24-300x261 Installing Exchange 2013 in Windows Server 2008 R2 step by step

After this box, the installer actually went through and finished installation of Exchange 2013.  We will have a following post about the actual management console.  The new console is actually all web based and follows suite with the direction Microsoft is taking on many of their other apps.  It has the new Metro look and feel, that honestly, we are not crazy about here.  The new Web UI seems very sluggish and cumbersome in an initial impression, but we will reserve a final conclusion to more testing and having more time with the new administrative user interface.
