Dell laptop nVidia display Windows 7 driver issue

Dell laptop nVidia display Windows 7 driver issue

Recently in working with a client we ran into a driver issue with a set of Dell D820 laptops.  The laptops had recently been installed with Windows 7 Enterprise 32 bit.  The display driver worked, however, the driver that was installed out of the box was a “Generic Plug and Play Display Driver.”  In looking at the specs for this laptop, we noticed that it was installed with the nVidia Quadro NVS 110M display adapter, however, the driver did not get installed with the Windows 7 installation.

Of course as most of you are familiar with the Dell support webpage, you simply navigate to the support page, enter your service tag and then browse the available downloads.  For our model, the driver for Windows 7 wasn’t even available due to the fact this laptop is several years old.  Adding to the frustration is that if you try to install the newest drivers from nVidia, the driver package will tell you that support hardware has not been found due to the customized nature of many of these OEM cards.  However, we can do some trickery with the drivers and get one installed even though it is not written for Windows 7.  After we do this, we allow Windows update to take care of the rest.

Installation:

As you can see below, the Windows 7 installation left us with “Standard VGA Graphics Adapter” installed

driver1



Download File Preparation:

  • Simply download the Windows XP driver from the Dell website

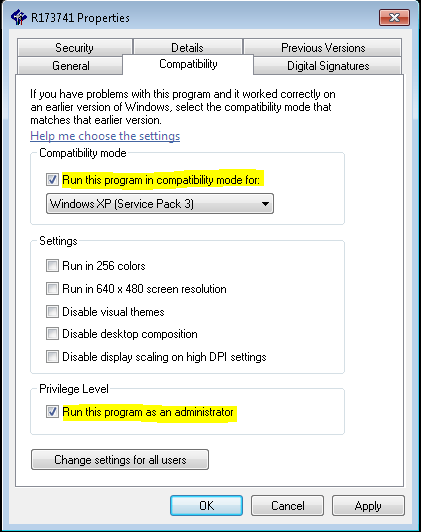

  • Prepare the file properties as the screenshot shows below.  You do this by right-clicking on the file and then choosing “Properties” and clicking on the “Compatibility” tab.  Since this is a file written for XP we need to flag it as such so the installer will work.  Also, check the “Run this program as Administrator

    driver2

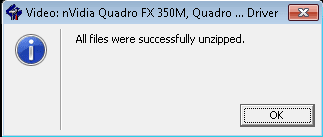

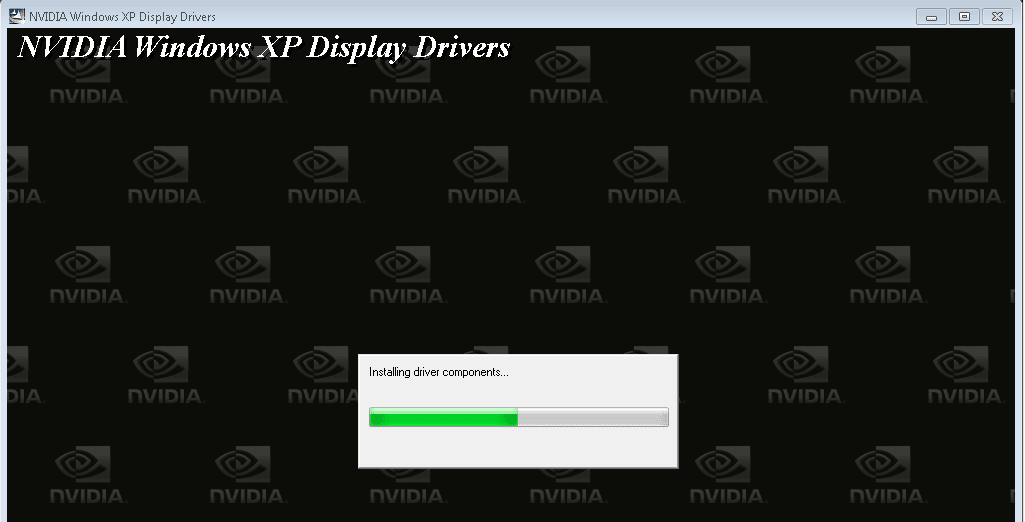

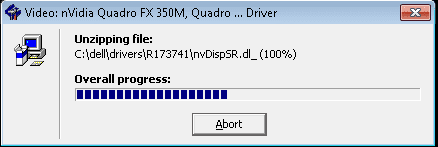

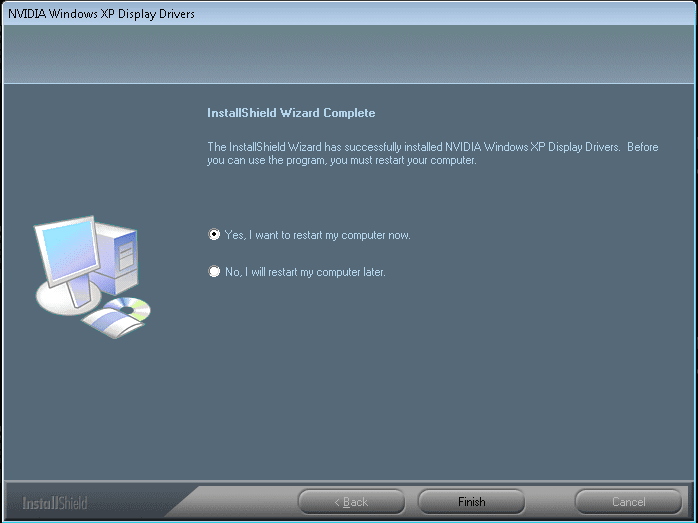

  • Once the file is prepared we go through the extraction and installation process

    driver3

    driver4

    driver54

    driver61

After installing the driver package:

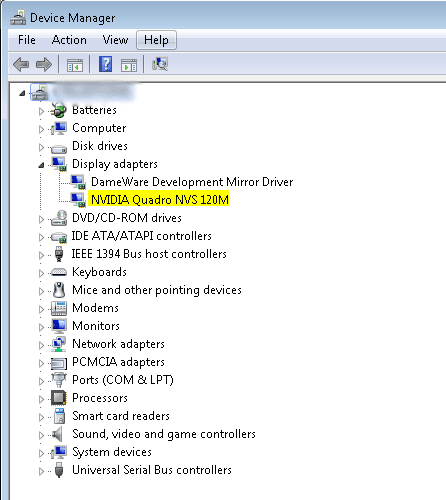

  • You will now see that the driver listed in the device manager is the nVidia driver

    driver7

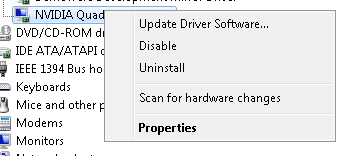

  • Right click on the nVidia driver and click “Update Driver Software”

    driver8

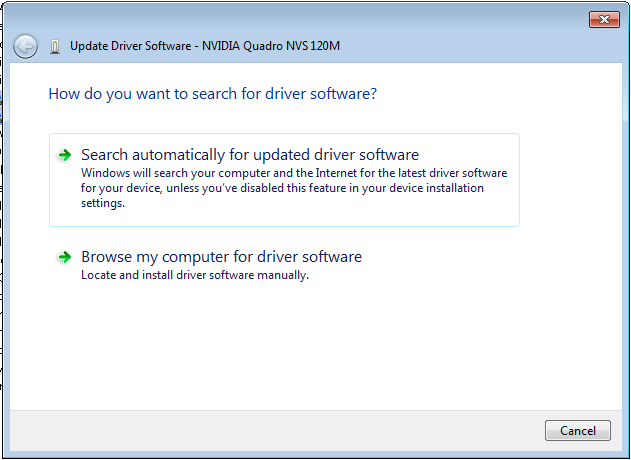

  • Click “Search automatically for updated driver software

    driver9

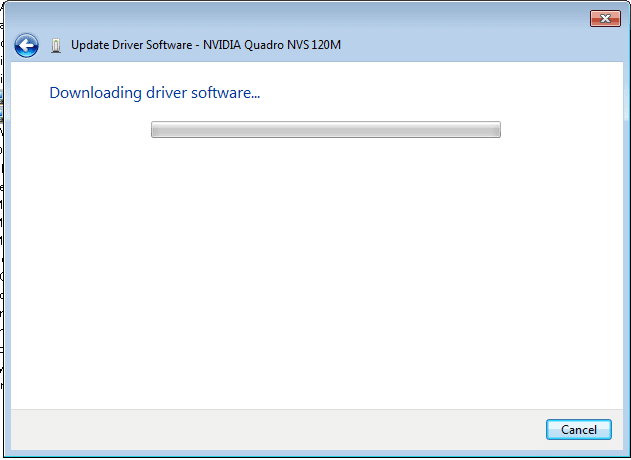

  • The newest driver from Microsoft will begin to download

    driver10

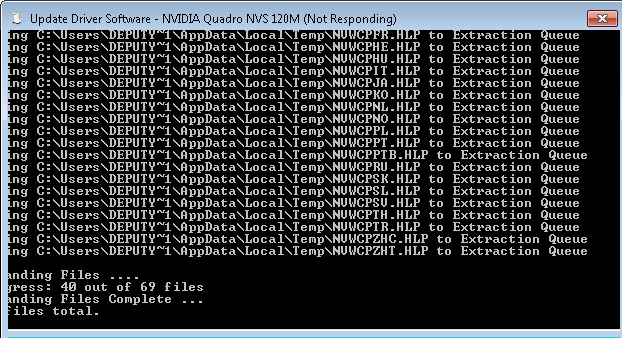

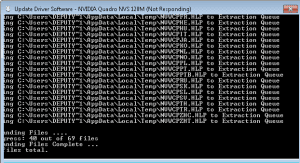

  • You will see files extracting

    driver11

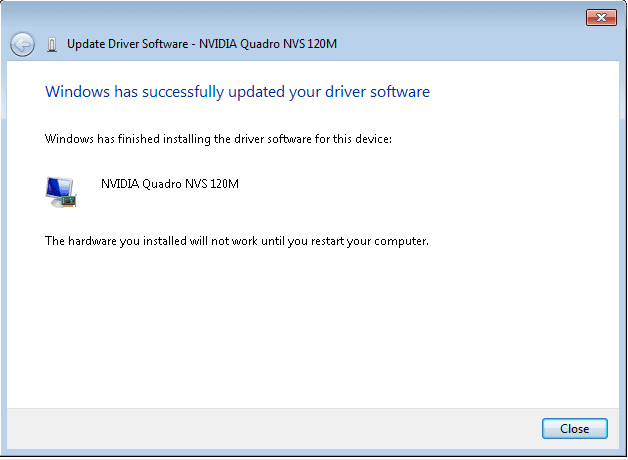

  • You will receive note that Windows has successfully updated your driver software

    driver12

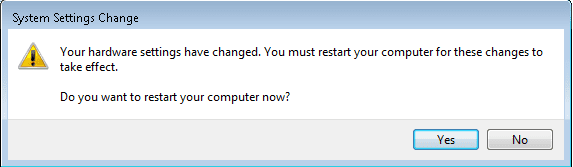

  • All that is left is a reboot

    driver13



Final Thoughts:

If you are running an older Dell laptop and are unable to find Windows 7 drivers from Dell directly, oftentimes the process described above works fine to install the XP driver and then allow Windows update to upgrade the driver to the latest version.
