Minisforum just teased a new mini workstation called the MS-03, and from what is being reported so far it looks like it may be the successor to the MS-01, which a lot of us are already running in home labs. I currently am running 5 of the MS-01s in my Proxmox Ceph mini cluster.

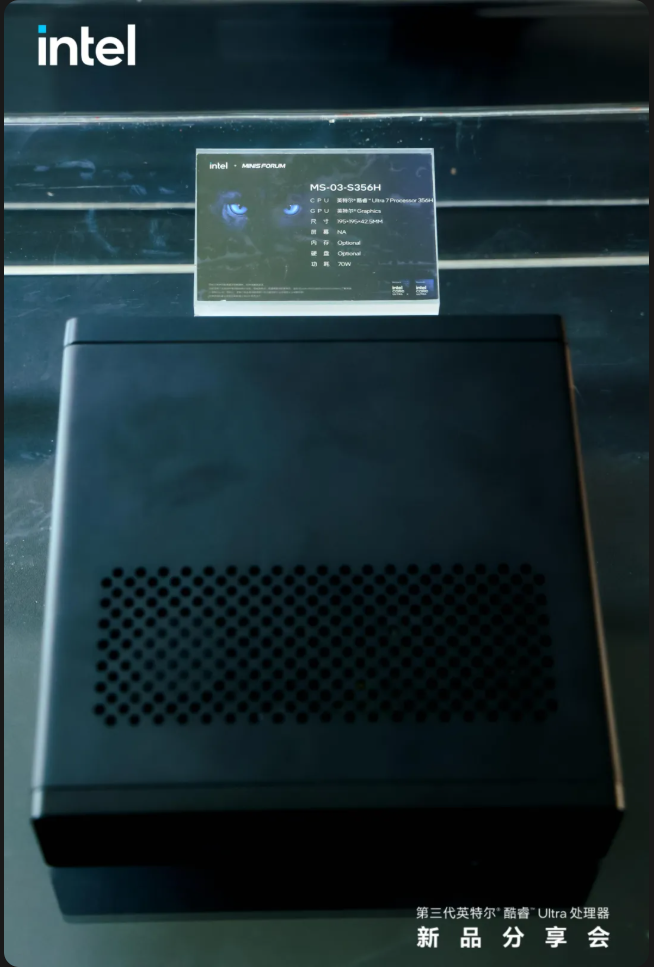

A few different tech sites have picked up the story and there are some interesting early details starting to surface. I pulled together the concrete info below so we can discuss it. The image below is from here:
CPU: Intel Core Ultra 7 356H (Panther Lake)
The MS-03 is expected to be powered by Intel’s upcoming Panther Lake mobile platform, specifically the Core Ultra 7 356H.
Specs floating around right now include the following for the CPU:
-
16 cores total
-
4 Performance cores
-
8 Efficiency cores
-
4 Low power Efficiency cores
-
-
Boost clocks up to about 4.7 GHz
-
18 MB cache
-
Xe3 integrated graphics
-
Integrated NPU for AI acceleration
Panther Lake is Intel’s next architecture after Lunar Lake and Meteor Lake, so this will likely bring improvements in both performance and efficiency.
AI compute looks like a big focus
One interesting part of the specs is how much AI acceleration is being advertised with this one. There are several reported numbers related to AI performance, including the following:
-
~40 TOPS from the GPU
-
~50 TOPS from the NPU
-
~90 TOPS total AI compute
That suggests Minisforum may be positioning this system partly as an AI workstation mini PC, not just a general desktop, which is not surprising as most of the manufacturers are jumping on this bandwagon of marketing.
Power target around 70 W
Some reports say the system may run the CPU at around a 70 W power envelope, but it will be interesting to see if when released if it is around this power level as this will be somewhat high for mini PC and home lab I think but still doable. But also, if that ends up being true, it could mean much stronger sustained performance compared to many compact systems that throttle heavily.
Chassis size
The MS-03 appears to remain very compact and look basically like the MS-01 (see the picture above), with the dimensions of 195 × 195 × 42.5 mm. So still firmly in the small workstation mini PC category.
Possible MS-01 successor
Several sites suggest this is essentially the next generation of the MS-01 platform, even though they have already released the MS-02. I think we would all agree the MS-02 was really its own type of mini PC and looks more like a mini workstation footprint, instead of what the MS-01 started. That raises some obvious questions for those of us running MS-01 systems today.
Things we still don’t know are the following. Will it keep 10GbE networking or maybe have 25 GbE like the MS-02? Will there still be multiple NVMe slots? Will OCuLink be there for external GPU support? Will there be any PCIe expansion options? What will be the memory type and capacity? Is there a release timeline or pricing?
Why this could be interesting for home labs
If Minisforum keeps the same philosophy as the MS-01, this could end up being another strong home lab node with many of the same features that we really liked about the MS-01 such as the high core count CPU, small footprint, high-speed networking, AI acceleration, integrated graphics. So if they do, I think this could definitely be interesting for running Proxmox clusters, AI inference workloads, edge compute clusters or bare metal Kubernetes or Docker nodes.
Curious what everyone thinks
A few questions for those in the forum. Do you think 10GbE returns on this system? Would you upgrade from an MS-01 for Panther Lake? Would you use this more for virtualization or AI workloads?
Personally I am really curious if Minisforum doubles down on the mini workstation / home lab hybrid concept again. If they keep the networking and storage flexibility of the MS-01 but add Panther Lake performance, this could end up being another really popular platform.
Would love to hear what everyone thinks.
