vSphere 6.5 has been released!  With the release yesterday of VMware vSphere 6.5, this is a quick post showing screenshots of the VMware ESXi 6.5 Install step by step and what to expect with the install.  For the most part there are no surprises here with the installer as it keeps with the look and configuration that we have all come to know with vSphere 6.x.

First things first, you need to download the ISO from VMware.  You can do that here directly from VMware.

There are some important compatibility considerations at this point.  The following is straight from VMware:

Compatibility considerations

  • These products are not compatible with vSphere 6.5 at this time:
    • VMware NSX
    • VMware Integrated OpenStack
    • vCloud Director for Service Providers
    • vRealize Infrastructure Navigator
    • App Volumes
    • Horizon Air Hybrid-Mode
    • Integrated OpenStack
    • vCloud Networking and Security
    • vRealize Business for Cloud
    • vRealize Configuration Manager
    • vRealize Hyperic
    • vRealize Networking InsightCustomers with these products are advised to upgrade to vSphere 6.5 when compatible versions become available. For more information, see the VMware Product Interoperability Matrixes.
  • To revert a migration to 6.5 that contains these products see, Reverting a vCenter Server 5.5 or 6.0 to Appliance 6.x migration (2146453)
  • To revert a Windows installed vCenter Server upgrade that contains these products see the Roll Back a vCenter Server Instance on Windows When vCenter Server Upgrade Fails section in the vSphere Upgrade guide.

VMware ESXi 6.5 Install step by step

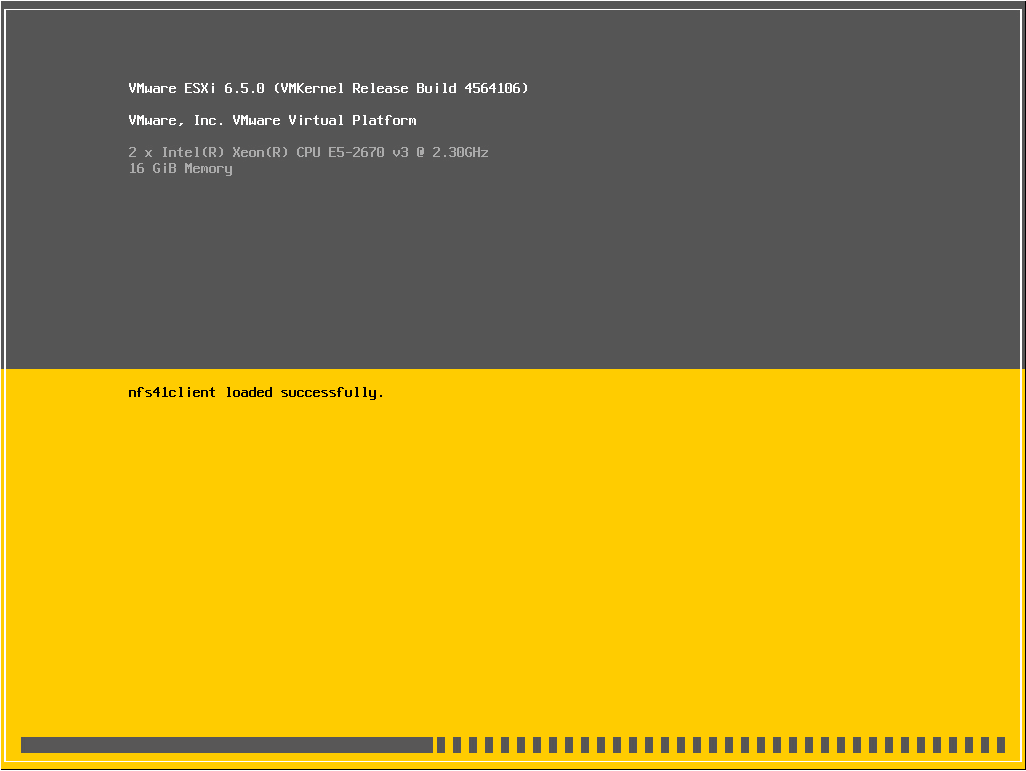

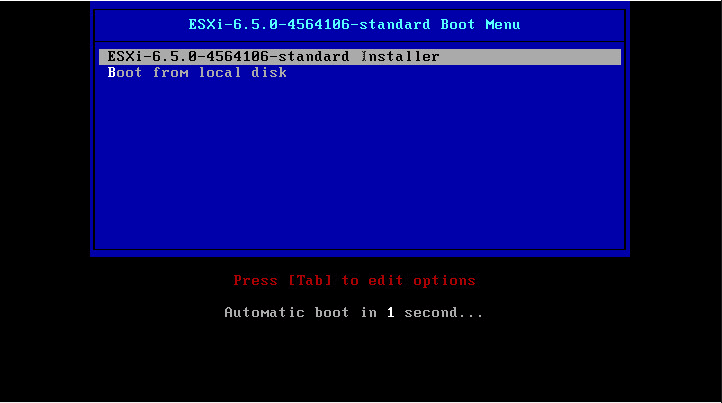

The ISO image that I downloaded from VMware was 336,156KB and the build number for 6.5 looks to be 4564106.  The screenshots below show the installer booting from the ISO.  Keep in mind that you have many options with the ISO – burning the ISO to optical media, booting from it directly in nested install configuration, or creating a bootable USB disk with a utility like Rufus.

esxi65_01 VMware ESXi 6.5 Install step by step

esxi65_02 VMware ESXi 6.5 Install step by step

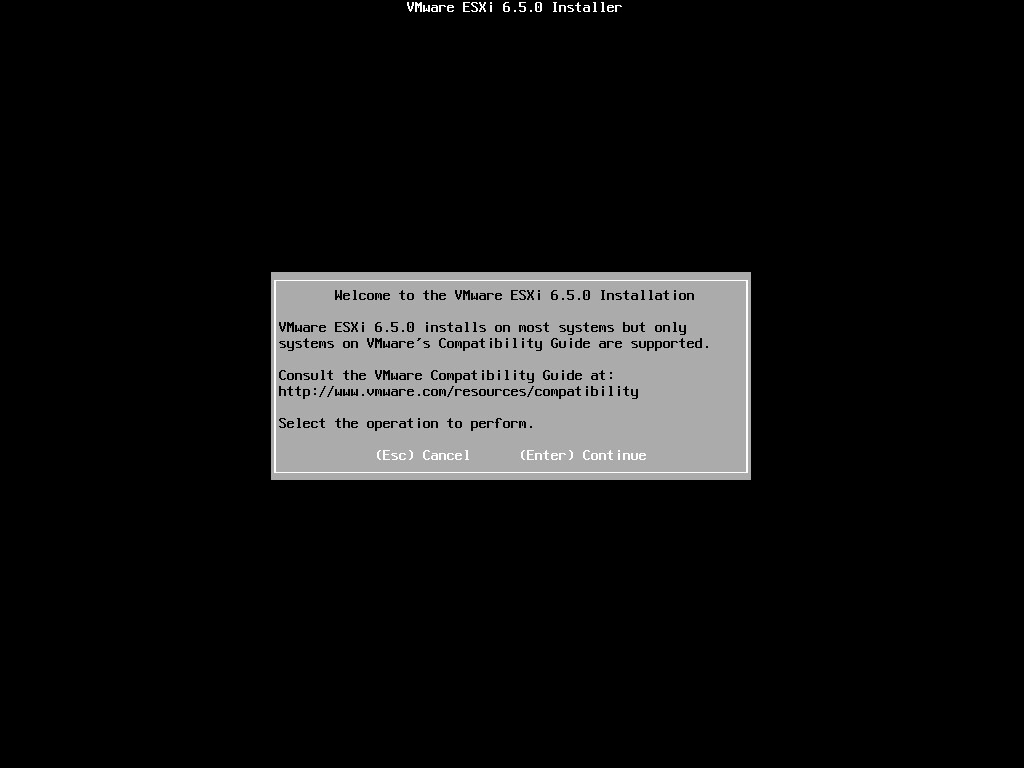

The installer begins with the familiar greeting.

esxi65_03 VMware ESXi 6.5 Install step by step

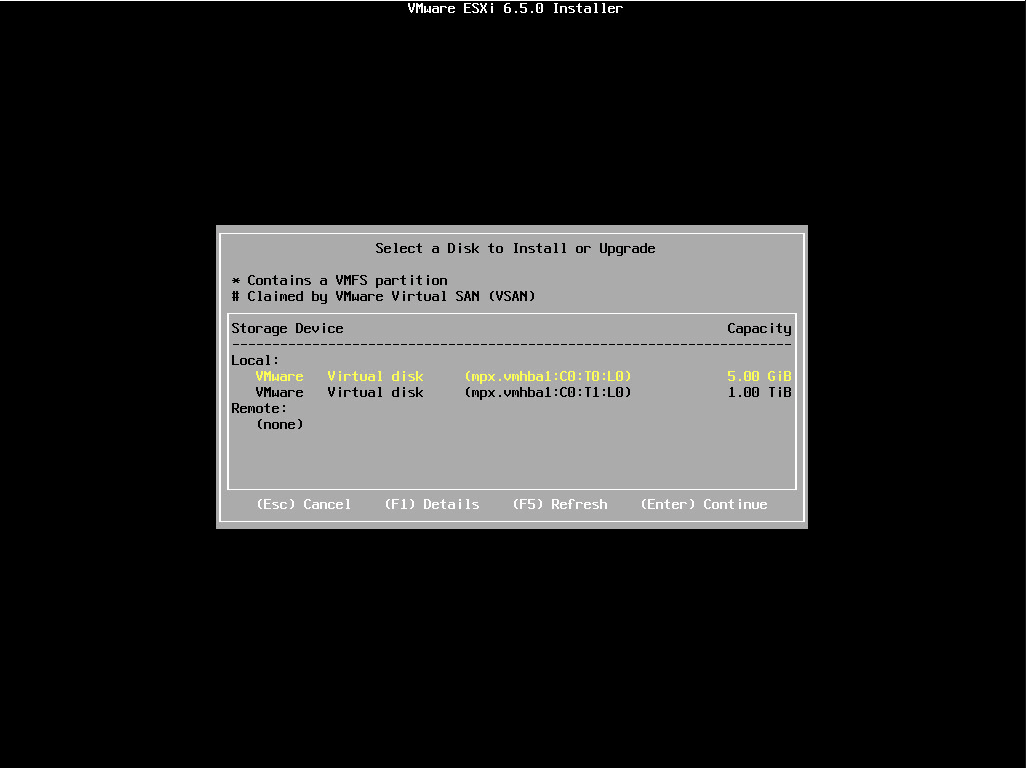

As before, we select the disk to install or upgrade.

esxi65_04 VMware ESXi 6.5 Install step by step

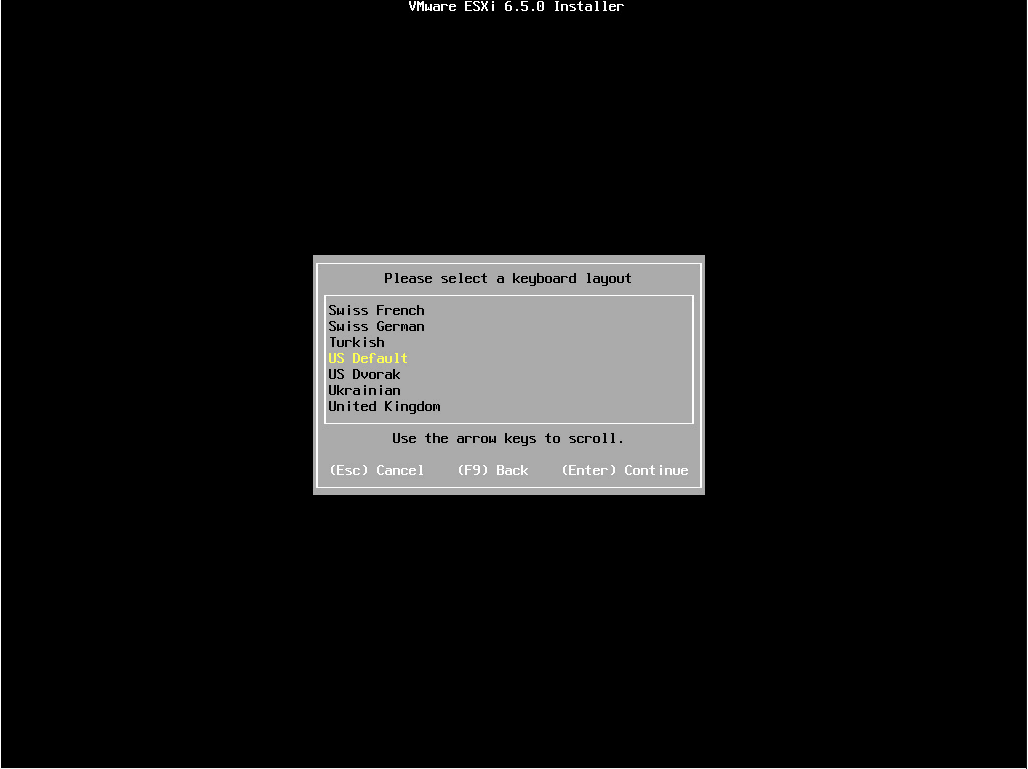

Next, we choose our language.

esxi65_05 VMware ESXi 6.5 Install step by step

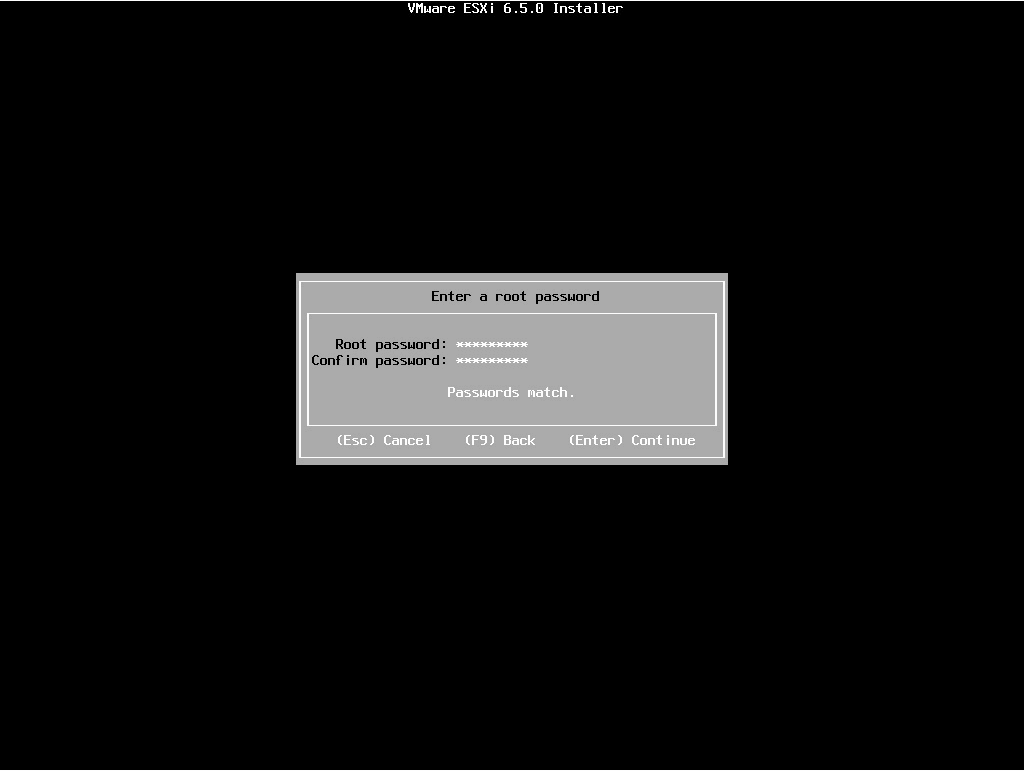

Setting the root password…

esxi65_06 VMware ESXi 6.5 Install step by step

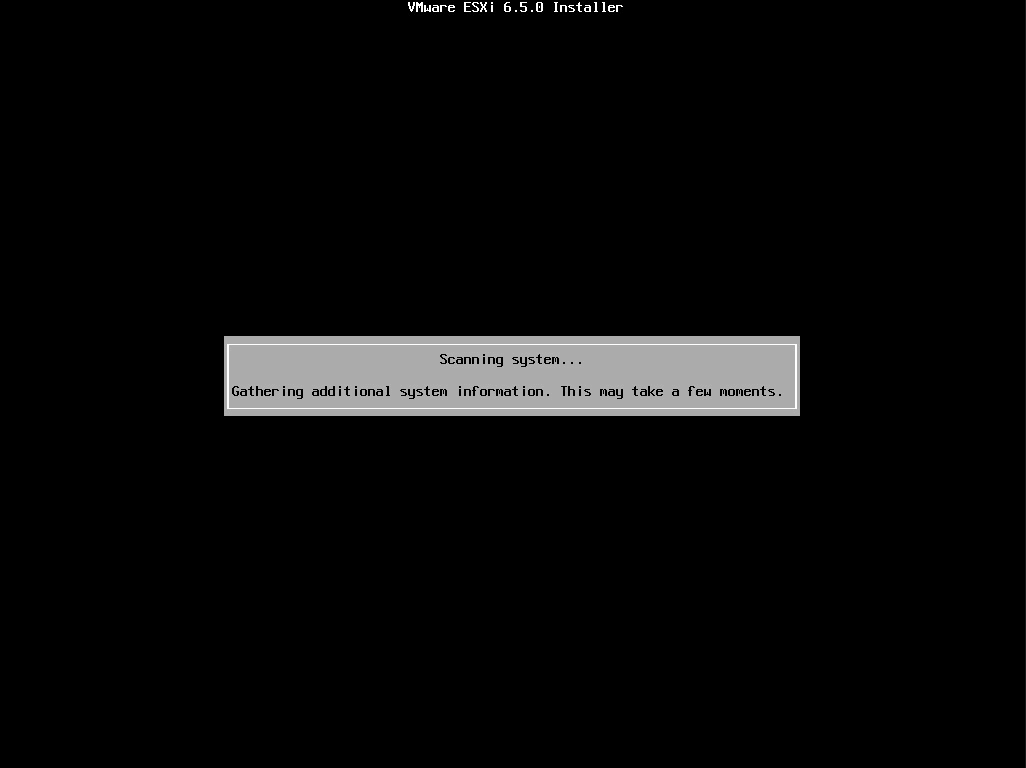

Scanning for components screen is next.

esxi65_07 VMware ESXi 6.5 Install step by step

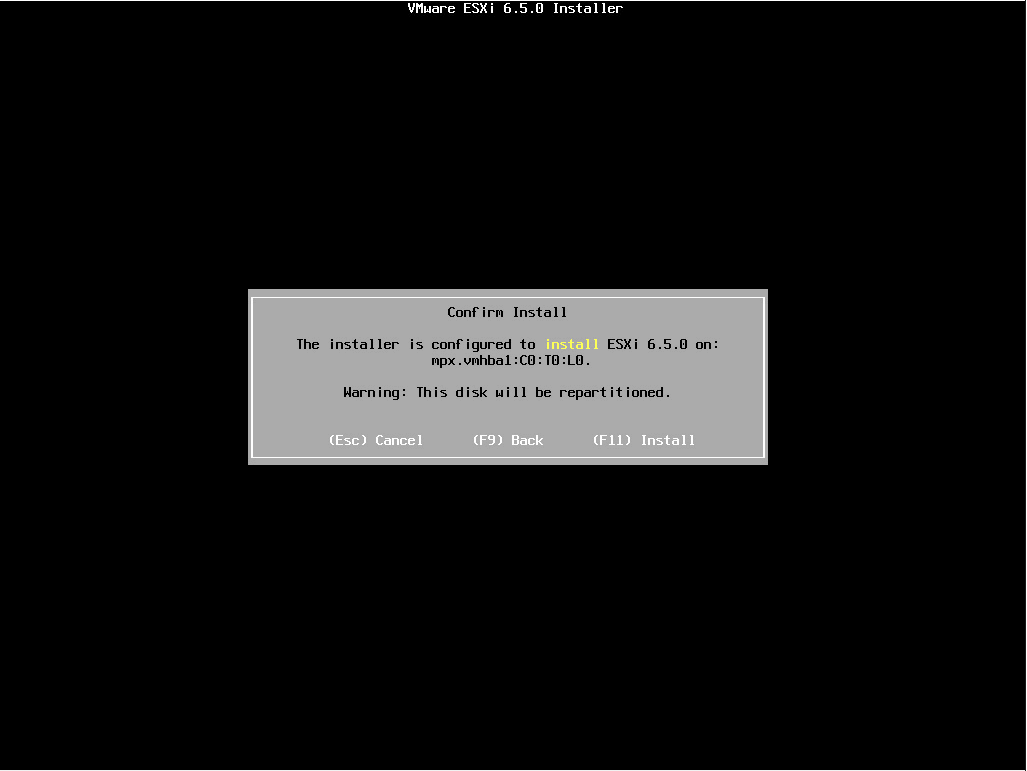

The disk is repartitioned with the install by pressing F11.

esxi65_08 VMware ESXi 6.5 Install step by step

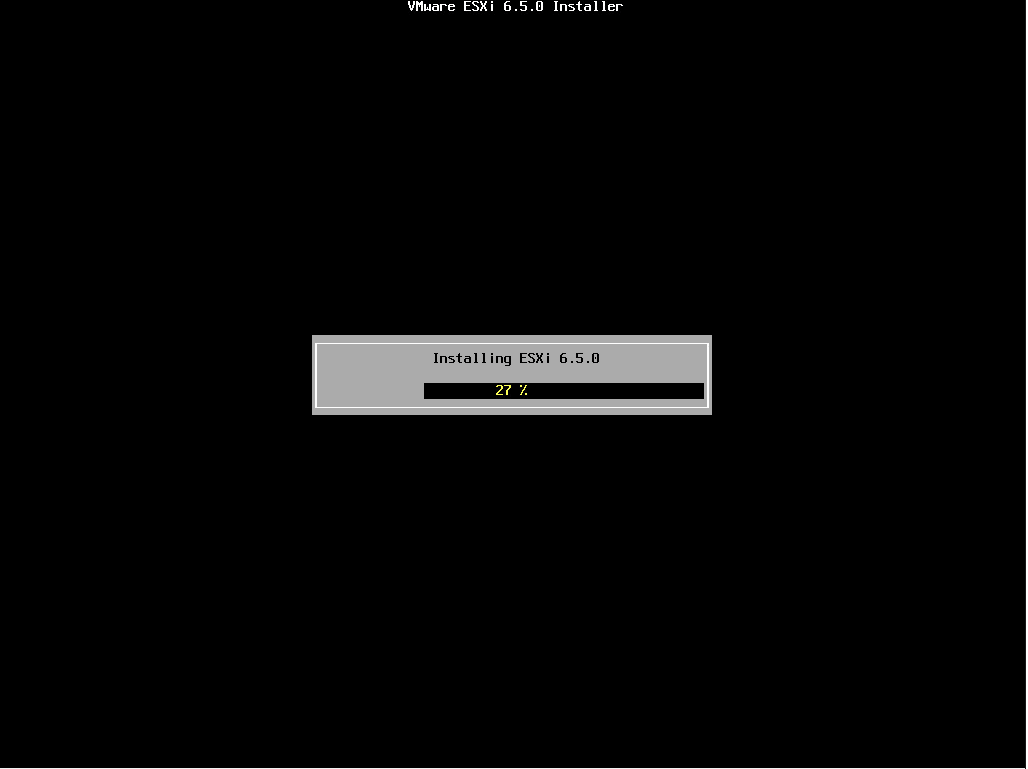

The install begins!

esxi65_09 VMware ESXi 6.5 Install step by step

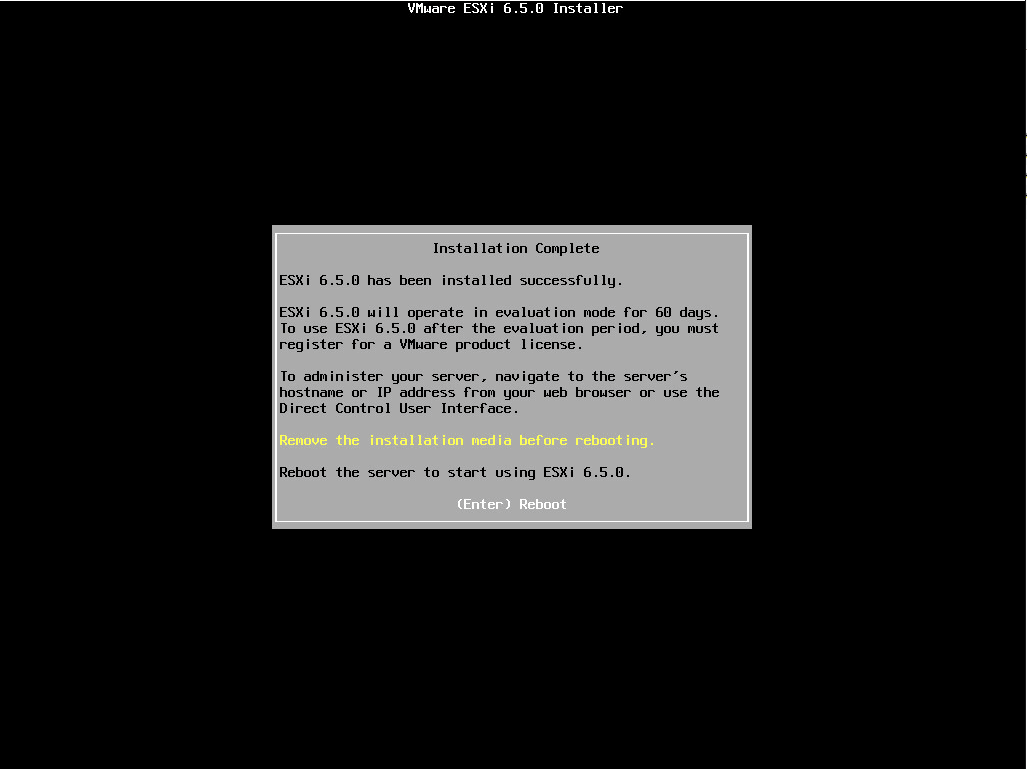

After the installer completes, we are prompted to reboot by pressing ENTER.

esxi65_10 VMware ESXi 6.5 Install step by step

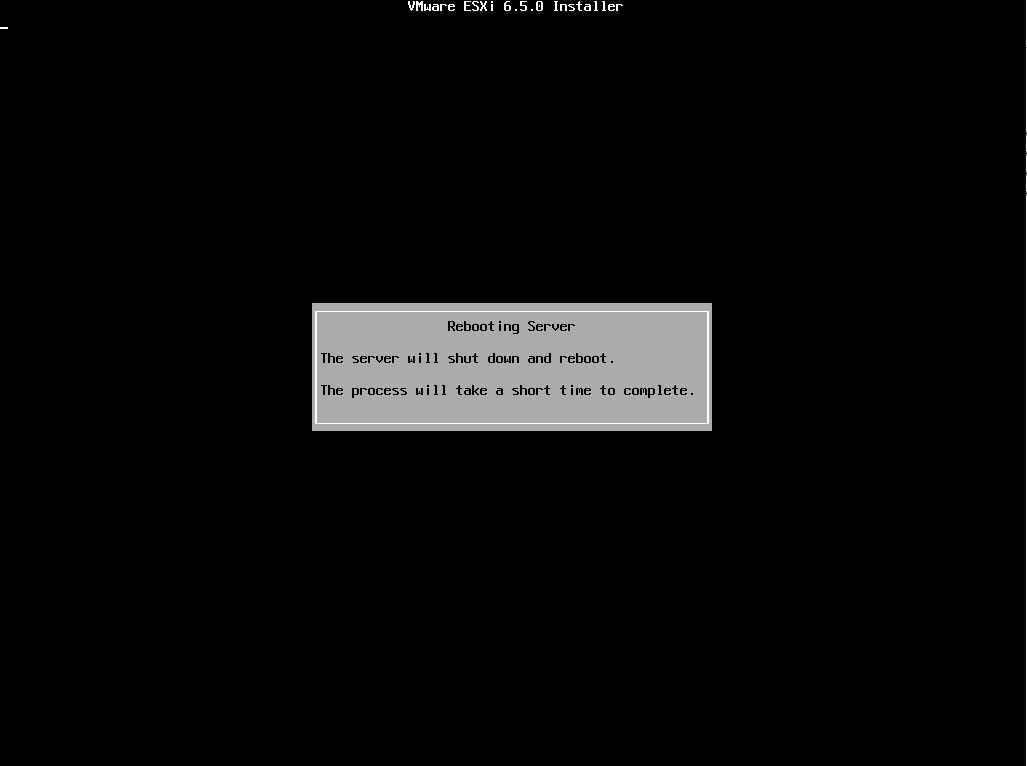

The host reboots.

esxi65_11 VMware ESXi 6.5 Install step by step

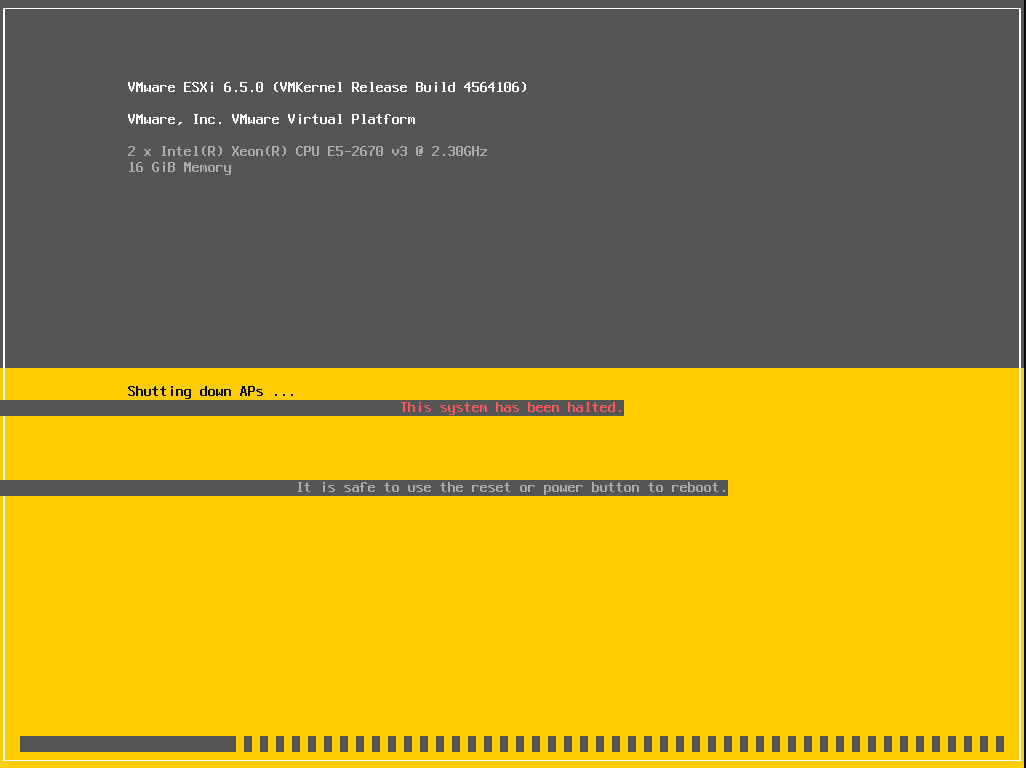

Below is a quick screen caught as the system was halted and reboot begins.

esxi65_12 VMware ESXi 6.5 Install step by step

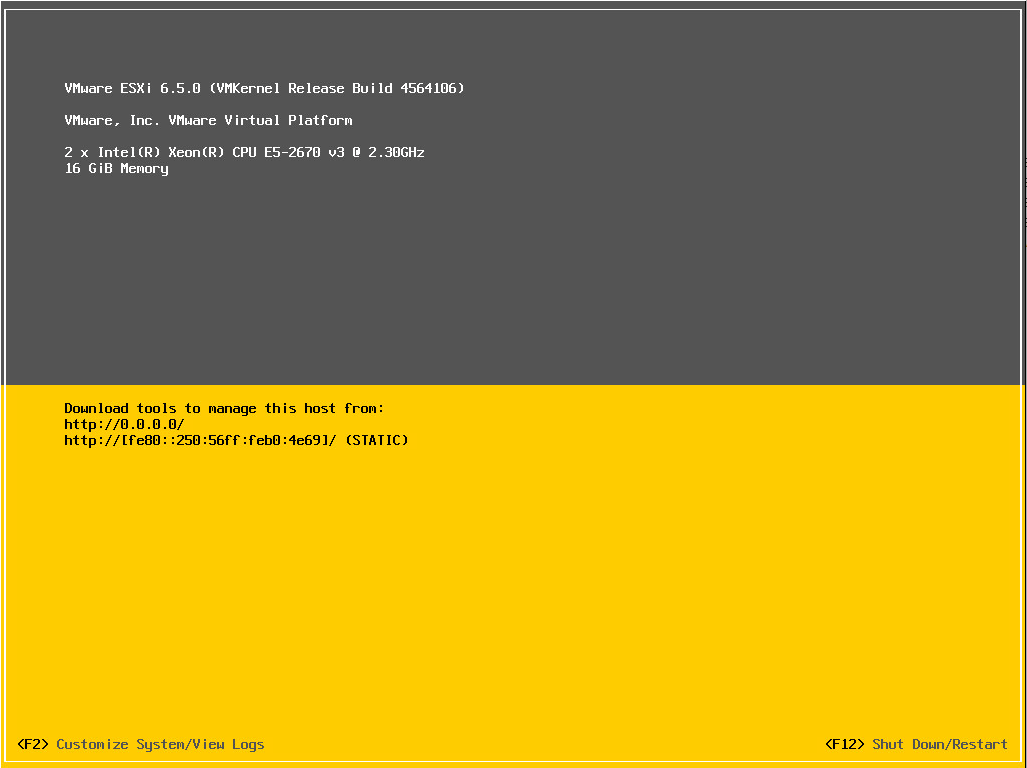

Alas, we are at the first DCUI spash screen for 6.5.

esxi65_13 VMware ESXi 6.5 Install step by step

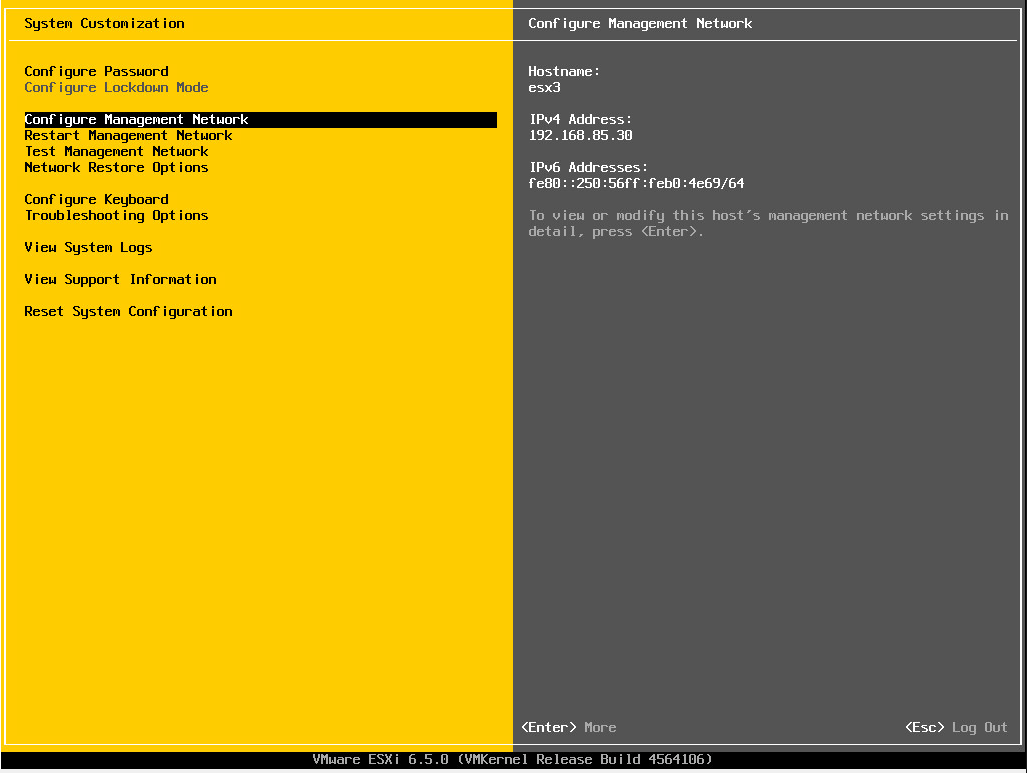

The DCUI menus look the same with no surprises here in the management network configuration or other options found in the menus.

esxi65_15 VMware ESXi 6.5 Install step by step

Thoughts

There were no surprises in the VMware ESXi 6.5 Install step by step as the screens, colors, options, and expected behavior are a direct takeaway from 6.x installs that we are familiar with at this point.  However, we didn’t expect much change here either.  Next, we will take a look at the upgrade process to get a host that is running 6.0 U2 with patches up to version 6.5.
